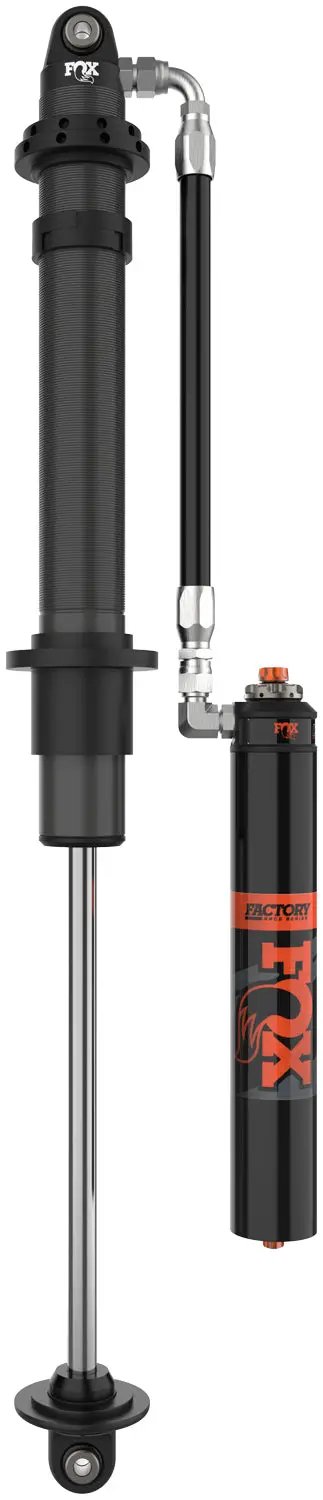

FACTORY RACE 2.5 X 14 COIL-OVER REMOTE SHOCK
Features & Benefits
- NEW proprietary Cerakote® protective ceramic coating over zinc plated basecoat
- 17-4 H900 hard chrome plated stainless steel shaft
- Owner serviceable and rebuildable
- JM92 MIL-SPEC oil developed specifically for off-road racing
- Black Anodized CNC Machined Aluminum Components
Specifications
| Body Diameter (in) | 2.5 |
| Body Finish | FOX Grey Cerakote |
| Body Material | Steel |
| Bottom Mount | Eyelet |
| Compressed Length (in) | 23.50 IN |
| Extended Length (in) | 37.45 IN |
| Eyelet Length (in) | 1.95 IN |
| Fox Catalog | OFFROAD |
| Hose | -10 x 18.00 |
| Label Name | 2.5 FRS CO R/R 14" |
| Mounting | 1/2 x 1-1/2 |
| Prop 65 - Long Label | ! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Prop 65 Y/N | Y |
| Reservoir Dimensions | 2.55 x 14.00 |
| Reservoir Type | Remote |
| Series | Factory Race |
| Shaft Size (in) | 7/8 IN |
| Title | FACTORY RACE 2.5 X 14 COIL-OVER REMOTE SHOCK |
| Top Mount | Eyelet |
| Travel (in) | 13.95 IN |
| Type | Coil-Over |
| Valving | 807-24-300 |
Warranty: 12 Months
