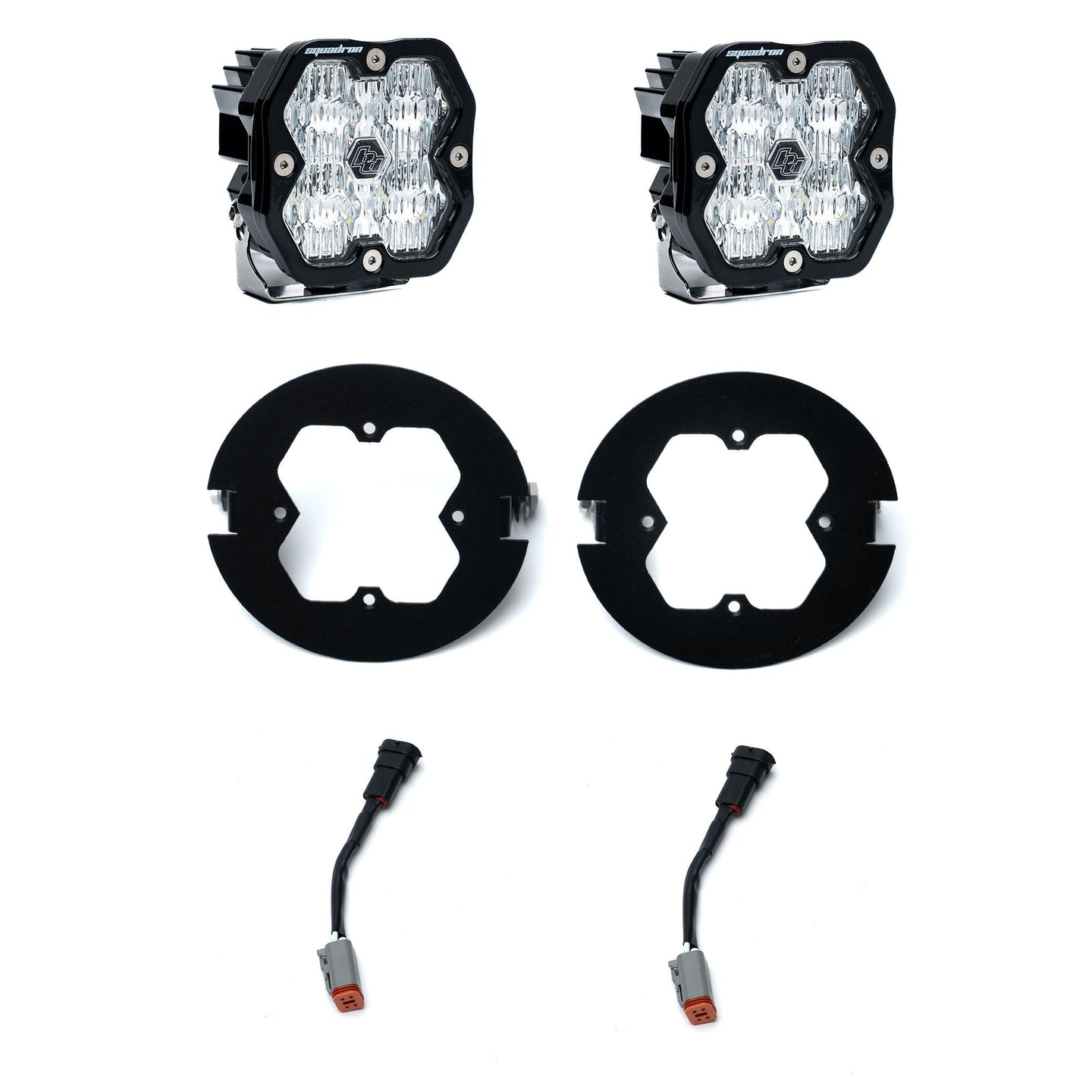

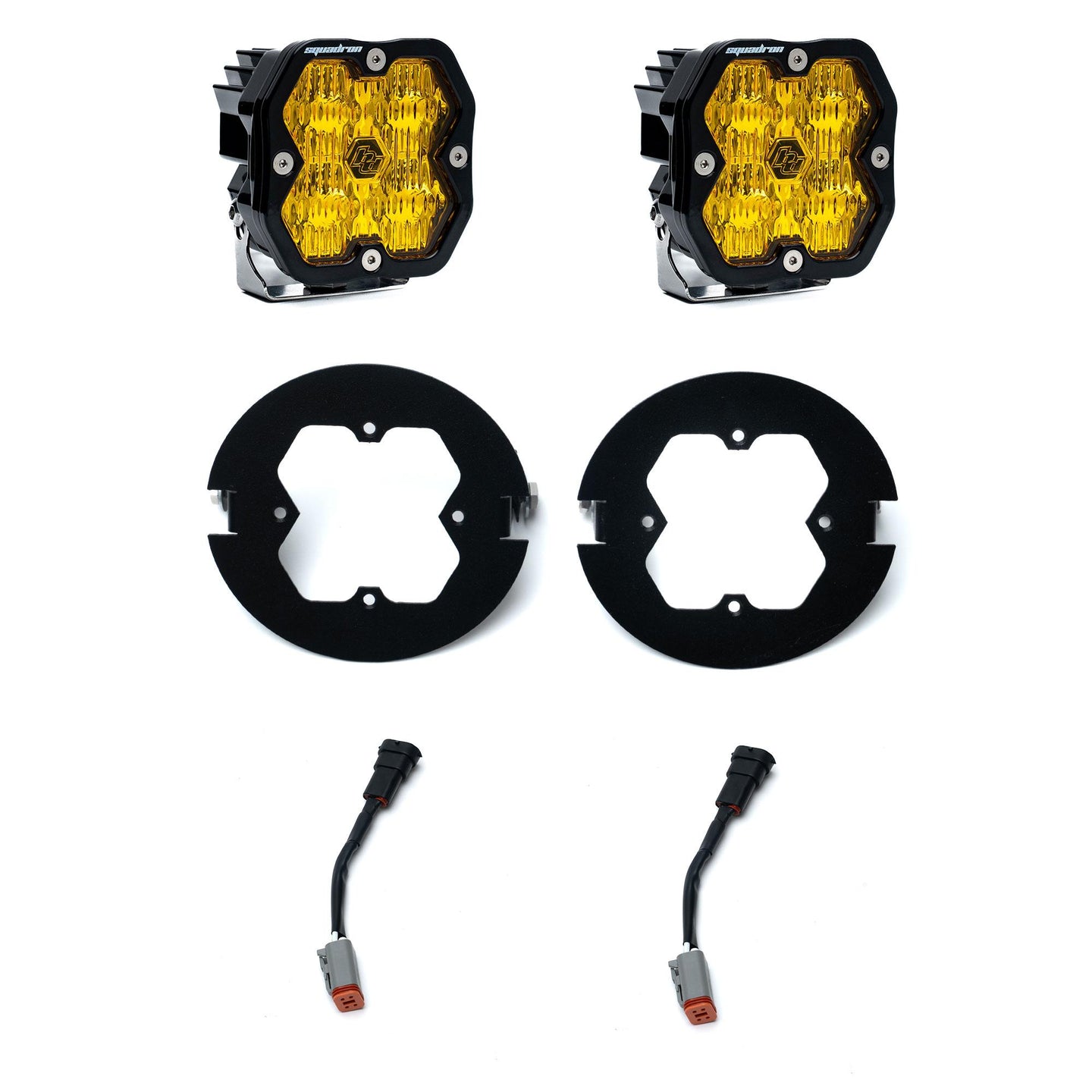

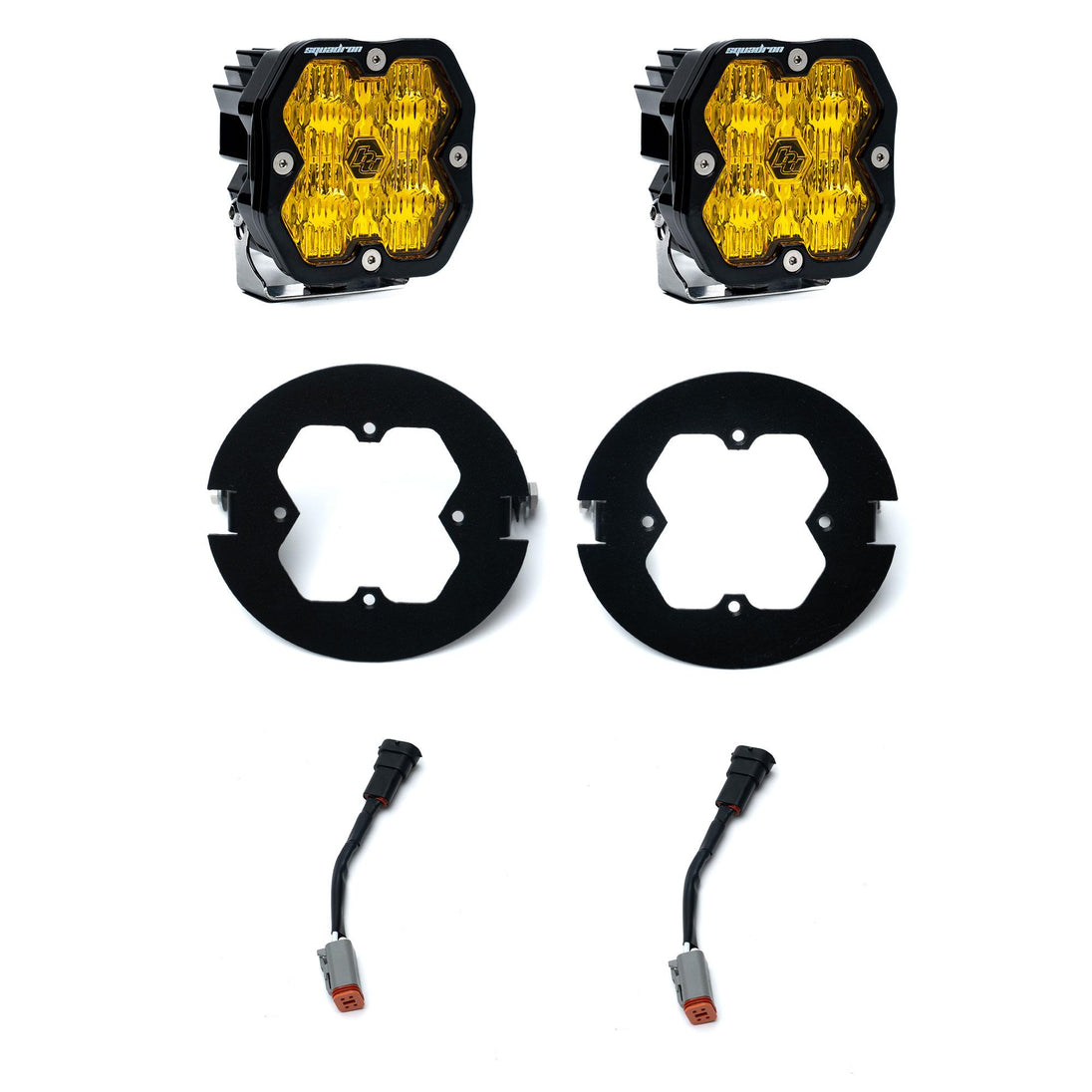

Squadron 2.0 Sport auxiliary lights in the factory location, offering more light for the trails. Squadron 2.0 Sport LED lights with wide-cornering lenses, and adapter harnesses that let you use your factory switch and mounting hardware. Squadron 2.0 Sport LED lights up the trails with an impressive 3,200 lumens at 30W each - a 26 percent increase in performance over the previous generation Squadron - while delivering improved beam control and higher efficiency.

Squadron 2.0 Sport include updated lens patterns optimized for the new redesigned optics, a durable 4-pin Deutsch connector, and for those that light color, an all-new user selectable backlight with nine selectable colors to match your vehicle's style. Enhanced uService features clip-in reflectors for secure, simple lens swaps, paired with a redesigned gasket for superior sealing and long-term weather protection. Fitted with our wide cornering lens pattern to illuminate zones 1 and 2 for a larger spread and blend angle, improving situational awareness while on the trail.

Experience the assurance of our 30-day satisfaction guarantee and Lifetime limited warranty, providing unparalleled protection for your investment.

Squadron 2.0 Sport Features:

• Refined beam pattern provides greater distance, wider coverage, and reduced light spill
• User selectable backlight with 9 selectable colors to match any vehicle
• New clip-in reflectors stay secure during lens changes, improving uService
• New gasket design improves sealing and protection against the elements
• Redesigned mounting bracket allows greater vertical adjustability
• Standard 4-pin Deutsch connector for improved wiring harness durability

Squadron 2.0 Sport Specifications (Per Light):

• Lumens: 3,200
• Watts/Amps: 30W/2.2A
• Operational Voltage: 12-32V

The Baja Designs Advantage:

• Satisfaction Guarantee - 30-Day Money Back Guarantee
• Limited Lifetime Warranty - Complete Purchase Protection
• uService - Replaceable Lenses and Optics
• ClearView - All the Light, Right Where You Need It
• MoistureBlock - Waterproof, Rain Proof, Submersible
• CopperDrive - Safely Driving LEDs at 100 percent
• 5000K Daylight - Less Driver Fatigue, Natural Color

• Specifications:
  • Brightness (Lumens): 3,200 lm
  • Amperage Rating (A): 30W / 2.2A at 13.8V
  • Voltage: Operating White Light Voltage: 10 - 36V; Operating Backlight Voltage: 11-14V
  • Description: Backlight: 9-Colors
  • Terminal Connector: Deutsch

• Standards & Compliance:
  • Standards/Compliance (Water Resistance): IP69K

• Dimensions:
  • Depth (in.): 3.32 Inch
  • Height (in.): 3.29 Inch
  • Length (in.): 2.84 Inch

Fitment:
2005-2011 Toyota Tacoma
2005-2011 Toyota Tacoma Pre Runner
2005-2011 Toyota Tacoma X-Runner
2006-2008 Ford F-150 Harley-Davidson Edition
2006-2014 Ford F-150 FX4
2006-2014 Ford F-150 King Ranch
2006-2014 Ford F-150 Lariat
2006-2014 Ford F-150 STX
2006-2014 Ford F-150 XL
2006-2014 Ford F-150 XLT
2007-2008 Ford F-150 FX2
2008 Ford F-150 Limited
2008 Ford F-150 THE 60TH ANNIVERSARY EDITION
2009-2014 Ford F-150 Platinum
2010-2012 Ford F-150 Harley-Davidson Edition
2010-2014 Ford F-150 FX2
2010-2014 Ford F-150 SVT Raptor
2011 Ford F-150 Lariat Limited
2013-2014 Ford F-150 Limited
