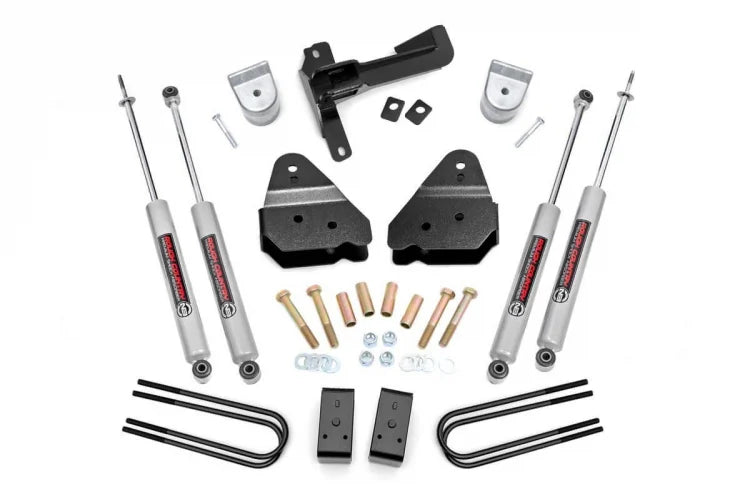

Give your 17-20 Ford Super Duty an impressive upgrade, front to back, with Rough Country’s 3" Suspension Lift Kit!
This easy-to-install lift kit raises the front of your vehicle to be equal height with the rear for a leveled, better-than-stock look, that gives an improved ride height and more aggressive appearance.
This kit features a set of front lifted coil springs spacers allowing you gain additional ride height without sacrificing ride quality or performance. A set of radius arm drop brackets, as well as a track bar drop bracket is provided to keep everything at optimum angles for a factory-like ride, even after lifting.
A set of Rough Country's premium N3 shocks are also included. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action, smooth highway ride quality; with a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body.
Get the wheels you want! Rough Country's 3" Suspension Lift Kit comes with everything you need to fit up to a 35" tire with proper wheel backspacing.
Best of all, Rough Country's 3" Suspension Lift Kit is backed by our Lifetime Replacement Warranty!
FEATURES:
- Easy bolt-on installation
- Maintains factory ride quality
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Radius arm drop brackets allow for properly set caster - proper caster is crucial to maintaining factory handling and driveability.
NOTES - IMPORTANT!
- Does NOT fit F-350 models
- Does NOT fit dually models
- Does NOT fit 4" rear axle tubes
- Does NOT work on models equipped with Tremor Factory Trim Package
- If equipped with factory top mount overload spring - it will need to be removed
RECOMMENDED TIRES & WHEELS
| TIRE | WHEEL | BOLT PATTERN | OFFSET | NOTE |
|---|---|---|---|---|
| 35x12.50R20 | Factory 20 | 8x170 | - | - |
| 35x12.50R18 | Factory 18 | 8x170 | - | - |
| 35x12.50R17 | Factory 17 | 8x170 | - | - |
| 35x12.50R17 | 17x8.5 | 8x170 | +0 | Minor Trimming |
| 35x12.50R17 | 17x8.5 | 8x170 | +1 | Minor Trimming |
| 35x12.50R17 | 17x9 | 8x170 | +0 | Minor Trimming |
| 35x12.50R17 | 17x9 | 8x170 | +1 | Minor Trimming |
| 35x12.50R17 | 17x9 | 8x170 | +18 | Minor Trimming |
| 35x12.50R17 | 17x9 | 8x170 | +20 | Minor Trimming |
| 35x12.50R18 | 18x8.5 | 8x170 | +0 | Minor Trimming |
| 35x12.50R18 | 18x8.5 | 8x170 | +1 | Minor Trimming |
| 35x12.50R18 | 18x9 | 8x170 | +0 | Minor Trimming |
| 35x12.50R18 | 18x9 | 8x170 | +1 | Minor Trimming |
| 35x12.50R18 | 18x9 | 8x170 | +18 | Minor Trimming |
| 35x12.50R18 | 18x9 | 8x170 | +20 | Minor Trimming |
| 35x12.50R20 | 20x9 | 8x170 | +0 | Minor Trimming |
| 35x12.50R20 | 20x9 | 8x170 | +1 | Minor Trimming |
| 35x12.50R20 | 20x9 | 8x170 | +18 | Minor Trimming |
| 35x12.50R20 | 20x9 | 8x170 | +20 | Minor Trimming |
