S&B Model 10-1001

Important Note: The nozzle at high-flow fuel stations (truck stops) will not be able to fill automatically. Skid plates and straps are NOT included. These parts are reused.

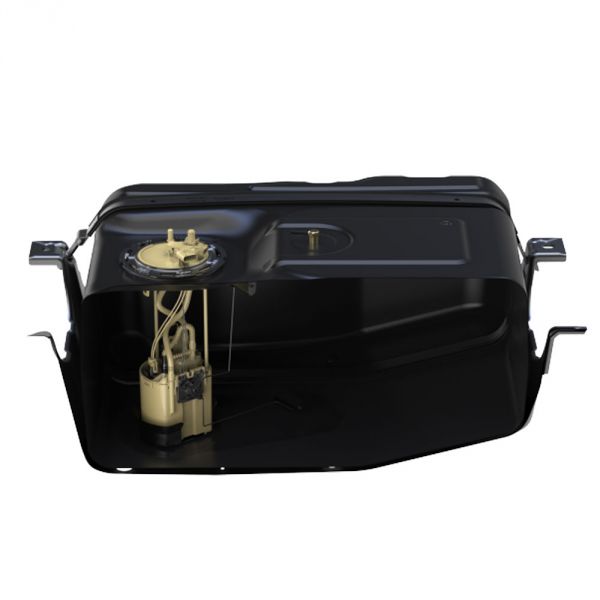

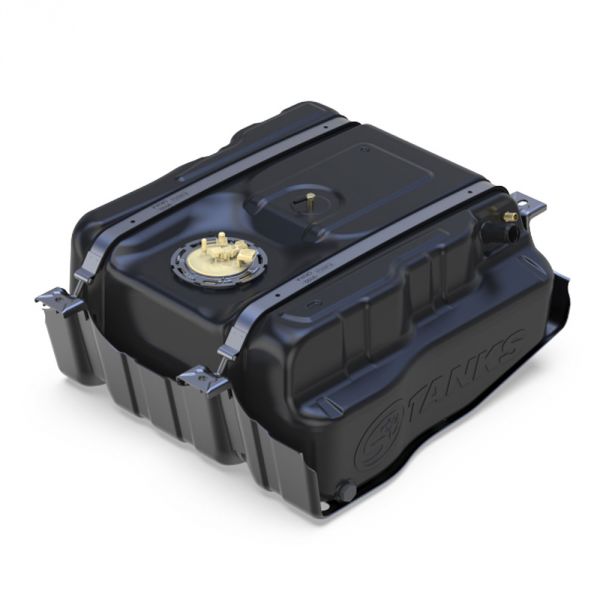

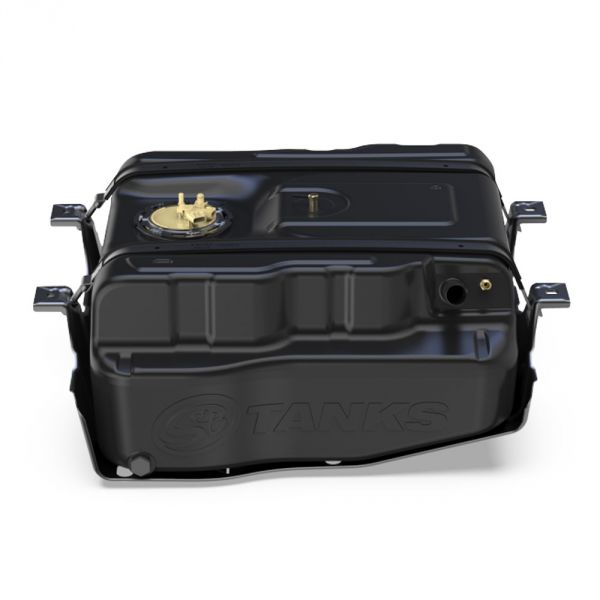

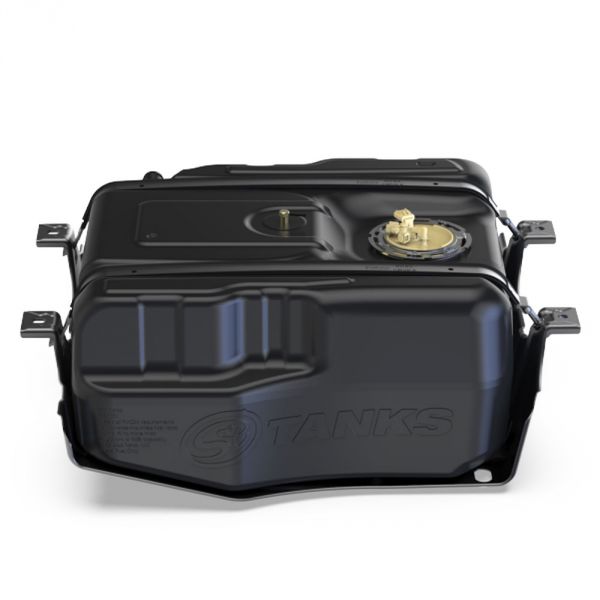

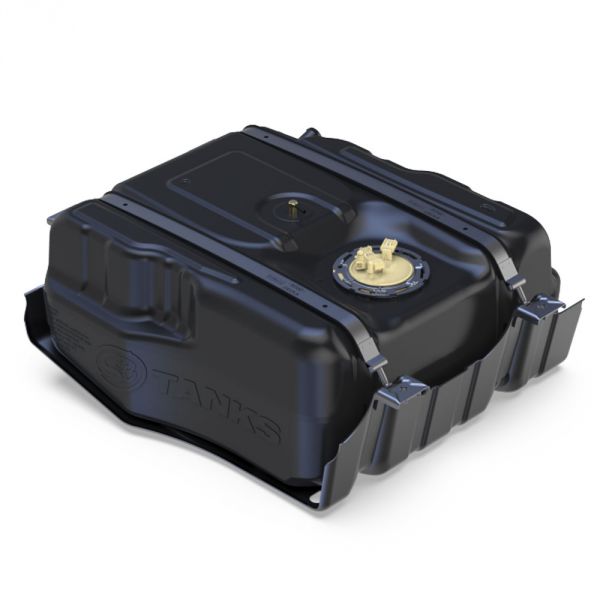

This is a direct replacement to the OEM 40 gallon tank. This and your current OEM tank are the same size and shape. This poly tank resolves the problem of the OEM steel tank delaminating.

TANK TYPE - AFT

S&B CAPACITY - (APPROXIMATE) 40 GALLONS

WEIGHT - (DRY) 25LBS

GROUND CLEARANCE COMPARE TO OE TANK - SAME

SUMP - NO

DRAIN - YES

SENDING UNIT - OE

STRAPS INCLUDED - NO

COMPATIBLE WITH OE SKID PLATE (not included) - YES

COMPATIBLE WITH GOOSENECK AND 5TH WHEEL - YES

TRANSFER PUMP READY - NO

EMBEDDED FITTING THREAD SIZE - 1/2" NPT

DIMENSIONS- 30.21" X 31.22" X 14.95"

40 Gallon, After Axle, Replacement Fuel Tank For 2011-2016 Ford Powerstroke 6.7L Cab Chassis

SKU 10-1001

Regular price: $899.00
