COMPATIBLE WITH GOOSENECK AND 5TH WHEEL YES
COMPATIBLE WITH OE SKID PLATE NO
DIMENSIONS 79" X 17.37" X 19.37"
DRAIN YES
EMBEDDED FITTING THREAD SIZE 1/2" NPT
GROUND CLEARANCE COMPARE TO OE TANK 2.9" LOWER THAN STOCK.
OEM CAPACITY 29 GALLONS
SENDING UNIT OE
STRAPS INCLUDED YES
SUMP YES
S&B CAPACITY (APPROXIMATE) 60 GALLONS
TANK TYPE MIDSHIP
TRANSFER PUMP READY YES
WEIGHT DRY 45LBS

Important Notes: The nozzle at high-flow fuel stations(truck stops) will not be able to fill automatically. This tank holds approximately 60 gallons of fuel. The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 60 Gallon tank with have a greater fuel reserve.


If your truck has the V shaped crossmember connected to the carrier-bearing crossmember(see important note in instructions), the S&B Tank will not fit with this in place.

S&B Sump Fittings/Drain Plug fittings are required when using our sump feed/return port or after drilling out the bottom port to use as a drain. Fittings are under related products.

Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.

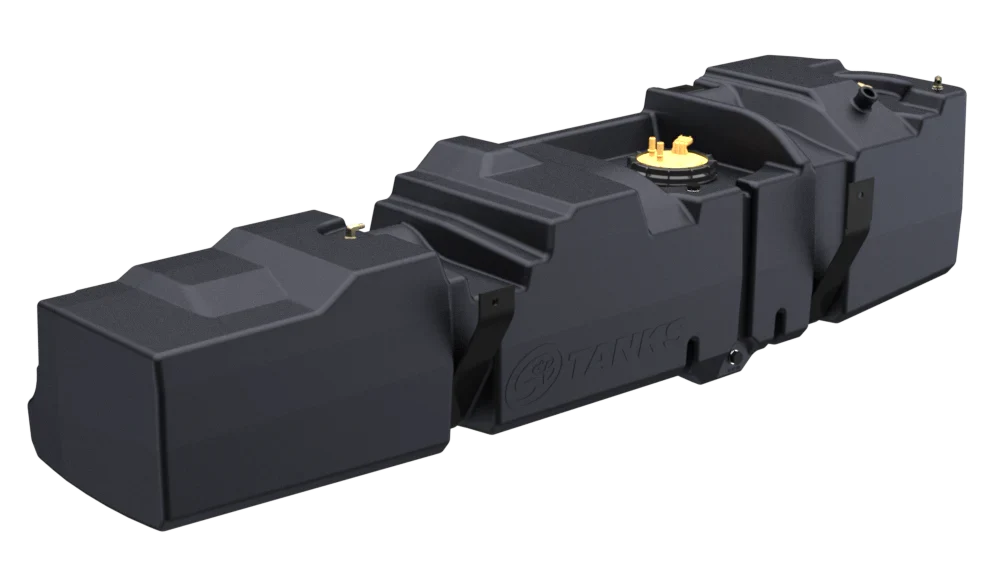

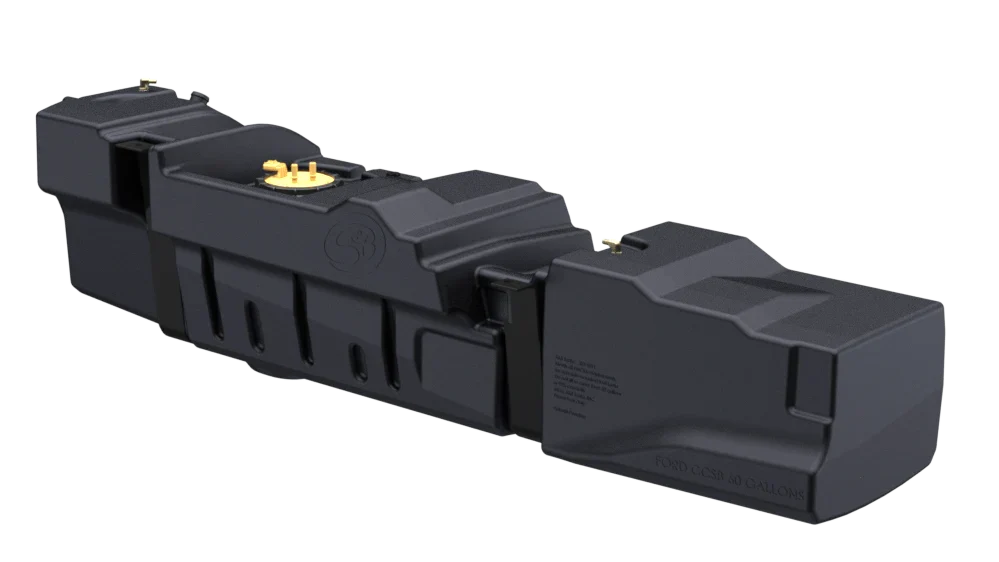

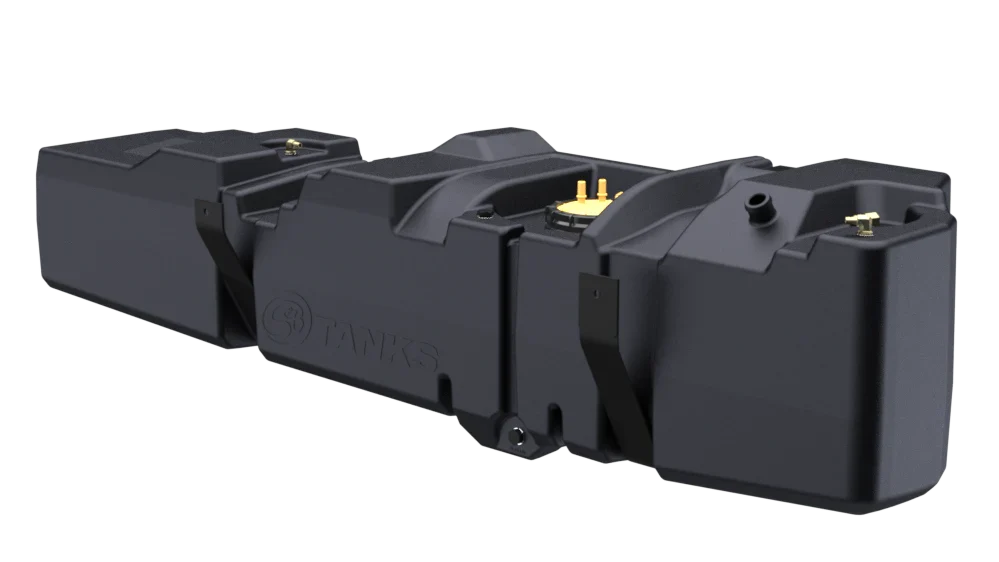

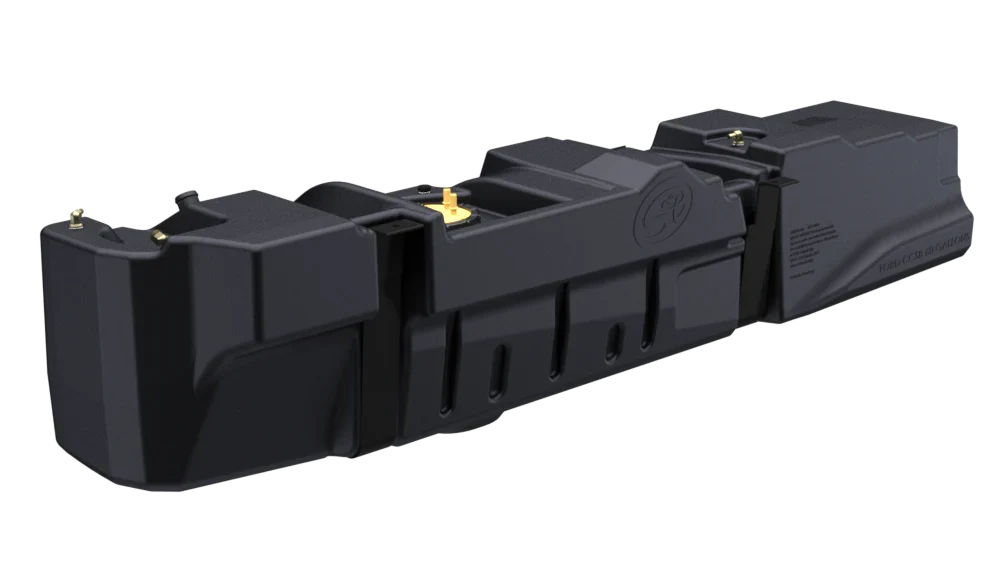

60 Gallon Replacement Fuel Tank For 1999-2007 Ford F250, F350 Powerstroke 7.3L, 6.0L Crew Cab Short Bed 10-1011

SKU 10-1011
$1,349.00
$1,349.00
COMPATIBLE WITH GOOSENECK AND 5TH WHEEL YES
COMPATIBLE WITH OE SKID PLATE NO
DIMENSIONS 79" X 17.37" X 19.37"
DRAIN YES
EMBEDDED FITTING THREAD SIZE 1/2" NPT
GROUND CLEARANCE COMPARE TO OE TANK 2.9" LOWER THAN STOCK.
OEM CAPACITY 29 GALLONS
SENDING UNIT OE
STRAPS INCLUDED YES
SUMP YES
S&B CAPACITY (APPROXIMATE) 60 GALLONS
TANK TYPE MIDSHIP
TRANSFER PUMP READY YES
WEIGHT DRY 45LBS

Important Notes: The nozzle at high-flow fuel stations(truck stops) will not be able to fill automatically. This tank holds approximately 60 gallons of fuel. The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 60 Gallon tank with have a greater fuel reserve.


If your truck has the V shaped crossmember connected to the carrier-bearing crossmember(see important note in instructions), the S&B Tank will not fit with this in place.

S&B Sump Fittings/Drain Plug fittings are required when using our sump feed/return port or after drilling out the bottom port to use as a drain. Fittings are under related products.

Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.
