S&B Model 10-1003

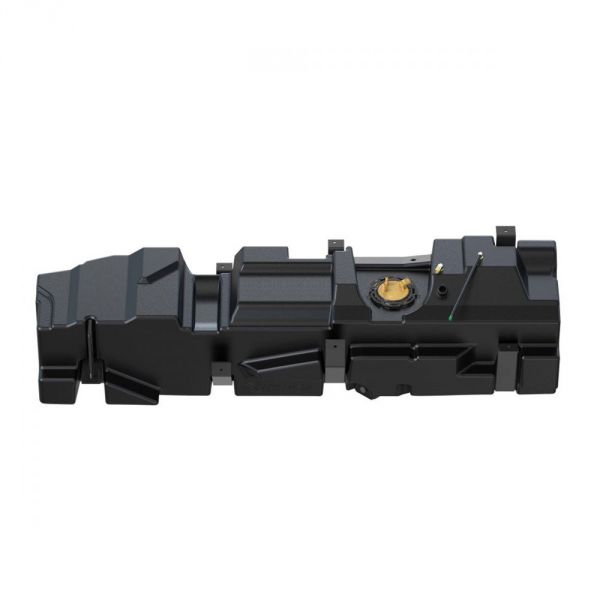

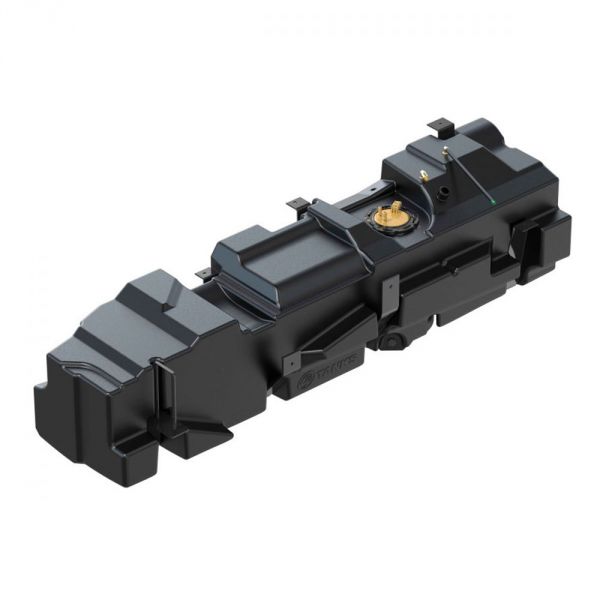

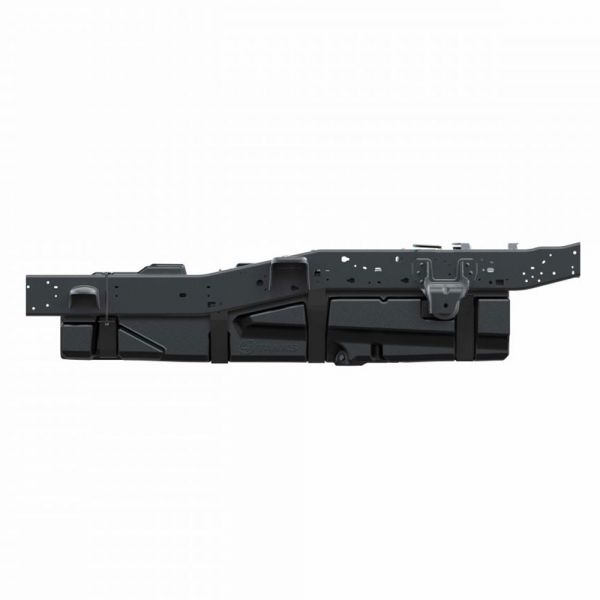

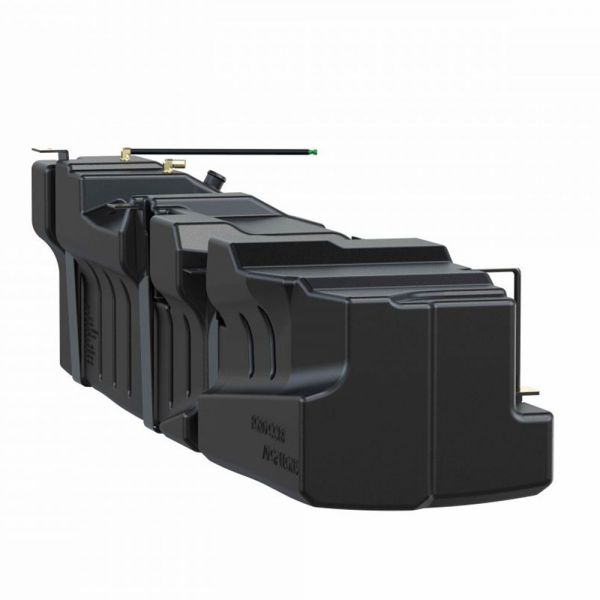

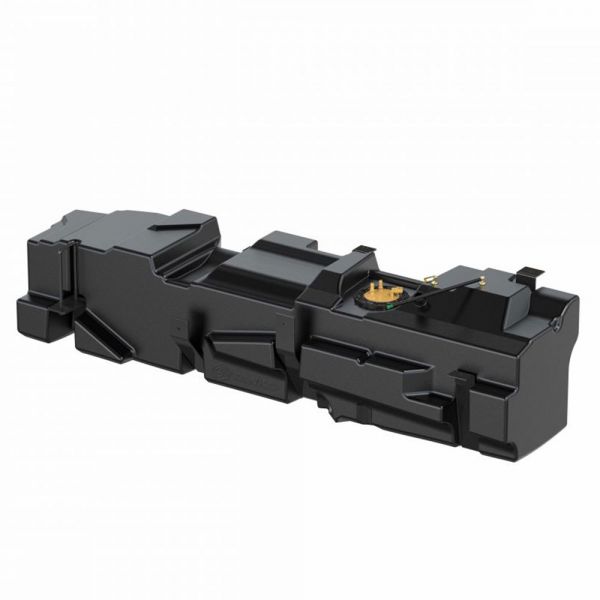

S&B's 70 Gallon Fuel Tank replaces the OEM 35 gallon fuel tank.

The replacement tank sits 3" below the OEM fuel tank shield and holds approximately 70 gallons of fuel. The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 70 Gallon tank will have a greater fuel reserve.

TANK TYPE - MIDSHIP
S&B CAPACITY - (APPROXIMATELY) 70 GALLONS
WEIGHT (DRY) - 53LBS
GROUND CLEARANCE COMPARE TO OE TANK - 3" LOWER
SUMP - NO
DRAIN - YES
SENDING UNIT - OE
STRAPS INCLUDED - YES
COMPATIBLE WITH OE SKID PLATE - NO
COMPATIBLE WITH GOOSENECK AND 5TH - YES
TRANSFER PUMP READY - YES
EMBEDDED FITTING THREAD SIZE - 1/2" NPT
DIMENSIONS - 80.82" X 19.18" X 20.79"

70 Gallon Replacement Fuel Tank For 2011-2016 Ford Powerstroke 6.7L Crew Cab Long Bed

SKU 10-1003
$1,449.00
$1,449.00
S&B Model 10-1003

S&B's 70 Gallon Fuel Tank replaces the OEM 35 gallon fuel tank.

The replacement tank sits 3" below the OEM fuel tank shield and holds approximately 70 gallons of fuel. The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 70 Gallon tank will have a greater fuel reserve.

TANK TYPE - MIDSHIP
S&B CAPACITY - (APPROXIMATELY) 70 GALLONS
WEIGHT (DRY) - 53LBS
GROUND CLEARANCE COMPARE TO OE TANK - 3" LOWER
SUMP - NO
DRAIN - YES
SENDING UNIT - OE
STRAPS INCLUDED - YES
COMPATIBLE WITH OE SKID PLATE - NO
COMPATIBLE WITH GOOSENECK AND 5TH - YES
TRANSFER PUMP READY - YES
EMBEDDED FITTING THREAD SIZE - 1/2" NPT
DIMENSIONS - 80.82" X 19.18" X 20.79"
