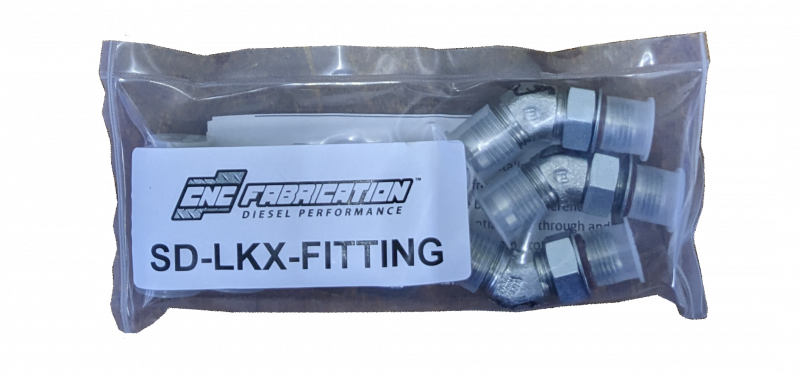

98.5-03 7.3L CNC Fabrication HPO Lines w/ Crossover (3 line kit) Fitting Pack

• All new Brennan Hydraulic fittings
• High quality Viton o-rings

Installation: Disconnect the battery grounds before installation to avoid accidentally arc'ing the line on the glow plug relay or the alternator charging lug. Use pictures from the product webpage for routing example.

The fittings are marked with numbers to label install location. After installation, be sure there is no other lines/wires that are touching the lines that could potentially rub through and damage either the HPOP line or the other line that may be touching it.

Use a small section of wire loom protector or a larger piece or rubber hose to wrap around the contact point. Many will remove or bend the engine eyelet on the driver side as a precaution, but it is not necessary.

Sealant is not necessary, but If you choose to use any, use Loctite 680 or Permatex 64000 retaining compound (green) only on the fittings installed in the HPOP.

If you are unsure of installing yourself, seek out a competent and qualified technician to install the lines.

Hose ID: 98.5-03 Superduty 2 LINE - Both side are same length. 94.5-97 OBS 2 Line - Passenger is longer of the 2

Fitting Markings: 1- Front Port Pump 2- Rear pump port 3- Driver head 4- OBS passenger head 5- SD Passenger head and crossover OBS driver side line fitting gets moved forward one port on the head to match SD

Pump Fittings:

• 28FT/LBS
• Head Fittings: 23FT/LBS
• Hose Ends: 21FT/LBS
