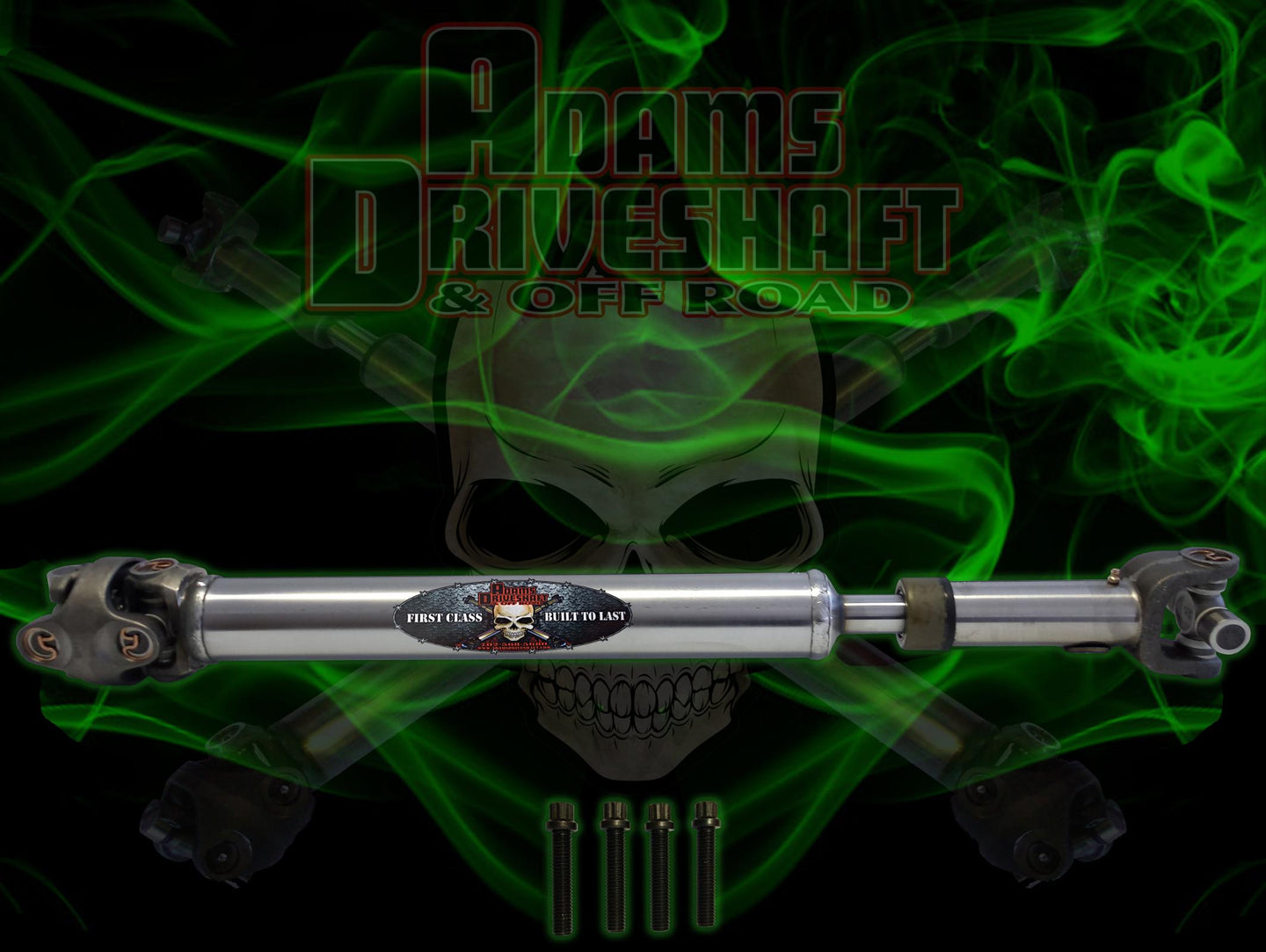

The Adams Driveshaft ASDXJ-1310CVF-G is a precision-engineered heavy-duty front CV driveshaft designed specifically for 1984-2001 Jeep Cherokee XJ models with lifted suspensions. This American-made driveshaft eliminates the vibrations, binding, and premature u-joint failure associated with stock driveshafts operating at extreme angles in lifted 4WD applications.

Key Features:

• Heavy-duty 1310 series construction for increased strength
• Double Cardan (CV) design eliminates driveline vibrations
• Precision-balanced for smooth operation at all speeds
• Greaseable u-joints for extended service life
• DOM (Drawn Over Mandrel) steel tubing for superior strength
• Engineered for lifted XJ applications (3-6+ inches)
• Bolt-in installation with no modifications required

Why You Need a Front CV Driveshaft: Lifting your Jeep Cherokee XJ creates extreme driveshaft angles at the front differential and transfer case. The factory single u-joint driveshaft cannot accommodate these angles, resulting in vibrations, binding during articulation, and rapid u-joint failure. The double Cardan CV joint design allows smooth power transfer even at steep angles, eliminating vibrations and ensuring reliable 4WD performance.

Technical Specifications:

• Part Number: ASDXJ-1310CVF-G
• Application: 1984-2001 Jeep Cherokee XJ (Front - 4WD only)
• Series: Heavy Duty 1310
• Joint Type: Double Cardan (CV) at transfer case end
• Joint Size: 1310 series u-joints (3.219" cap-to-cap)
• Tube Material: DOM steel construction
• Tube Diameter: 2.0 inches, .120 wall
• Yoke Style: Standard slip yoke and flange yoke
• Balancing: Precision computer-balanced
• Finish: Black painted steel

Direct Fitment:

• 1984-2001 Jeep Cherokee XJ (4WD models only)
• Compatible with all engine options (2.5L, 4.0L)
• Compatible with all transfer case options (NP231, NP242)
• Designed for 3-6 inch lift kits (may accommodate higher lifts)
• Works with Dana 30 or Dana 44 front axles
• Compatible with stock or aftermarket axles

Heavy Duty Construction: Adams Driveshafts are built to withstand the punishment of aggressive 4WD use and off-road terrain. The 1310 series u-joints provide significantly more strength than factory components, and the heavy-wall DOM tubing resists twisting under high torque loads. From trail running to rock crawling, this driveshaft is engineered to handle extreme conditions.

Double Cardan CV Technology: The CV (Constant Velocity) joint at the transfer case end uses two u-joints connected by a centering ball and socket mechanism. This advanced design allows the driveshaft to operate smoothly at angles up to 25-30 degrees—far exceeding the 3-5 degree operational limit of conventional single u-joint driveshafts. The result is vibration-free 4WD engagement throughout the entire RPM range.

Precision Engineering: Each Adams driveshaft is:

• Custom-measured for your specific application
• Built with precision-machined components
• Computer-balanced to less than 0.5 oz-in
• Assembled by experienced driveline technicians
• Quality-tested before shipment

Installation Notes:

• Direct bolt-in replacement for factory front driveshaft
• Length is pre-determined for lifted 4WD XJ applications
• Requires proper transfer case output yoke (typically stock)
• Grease all u-joints before installation and every 3,000-5,000 miles
• Verify driveshaft clearance at full suspension droop and compression
• Check for interference with steering components during full lock
• Professional installation recommended

Performance Benefits:

• Eliminates Vibrations: Smooth 4WD operation at all speeds
• Prevents Binding: CV joint allows proper articulation during flex
• Increases Reliability: Reduces stress on transfer case and front differential
• Extends Component Life: Less wear on u-joints, yokes, and bearings
• Improved Drivability: Quieter, smoother 4WD engagement
• Off-Road Capable: Handles extreme articulation and torque loads
• Better Steering Feel: Eliminates driveline-induced steering feedback

Maintenance:

• Grease all u-joints every 3,000-5,000 miles or before off-road trips
• Inspect u-joint caps for play or excessive wear
• Check for driveshaft contact with exhaust, frame, or steering components
• Verify proper yoke engagement in slip section
• Inspect CV centering ball and socket for wear
• Use quality CV joint grease (NLGI Grade 2 recommended)

What's Included:

• Complete front driveshaft assembly
• Pre-installed 1310 u-joints (greaseable)
• CV centering components
• Installation hardware (if required for your application)
• Lubrication/maintenance instructions

Important Notes:

• This is for 4WD XJ models only (not applicable to 2WD)
• Driveshaft length is critical—verify lift height before ordering
• Some extreme lift applications may require additional modifications
• Transfer case lowering kits may affect required driveshaft length
• Aftermarket steering components may affect clearance—verify fitment
• This is a FRONT driveshaft only (rear sold separately)

Lift Kit Compatibility: This driveshaft is engineered for 4WD XJ Cherokee models with:

• 3-4 inch lifts (optimal performance range)
• 4-6 inch lifts (fully compatible)
• 6+ inch lifts (may require custom length—contact manufacturer)
• Long arm suspension conversions (verify clearances)

Common XJ Front Driveline Problems Solved:

• 4WD Vibration: CV joint eliminates angle-induced vibrations
• Binding During Articulation: Double Cardan design allows smooth flex
• Rapid U-Joint Failure: Extreme angles destroy stock joints—CV prevents this
• Clunking on Engagement: Worn u-joints and binding—new CV shaft solves both
• Steering Feedback: Driveline vibrations transmitted through steering—eliminated

Why Choose Adams Driveshaft: Adams Driveshaft has been manufacturing custom and performance driveshafts in the USA for over 40 years. Their commitment to quality, precision engineering, and customer service has made them the trusted choice for Jeep enthusiasts, off-road racers, and professional builders nationwide. Every Adams driveshaft is backed by American craftsmanship and proven performance.

Warranty: Adams Driveshafts are backed by a limited warranty against defects in materials and workmanship. See included documentation for complete warranty details.

Professional Installation Recommended: While mechanically-inclined enthusiasts can install this driveshaft, professional installation ensures proper torque specifications, u-joint phasing, and clearance verification. Improper installation can lead to vibration, premature wear, or component damage.

Complementary Products:

• Adams ASDXJ-1310CVR-G (Rear CV Driveshaft for complete driveline upgrade)
• Heavy-duty u-joint grease
• Transfer case lowering kit (if needed for extreme lifts)
• Chromoly axle shafts (recommended for aggressive off-road use)

Upgrade your lifted 4WD Jeep Cherokee XJ with the proven quality and performance of an Adams Driveshaft Heavy Duty CV front driveshaft. Eliminate vibrations, prevent binding, and enjoy reliable 4WD performance on and off the road.

Proudly Made in the USA by Adams Driveshaft.
