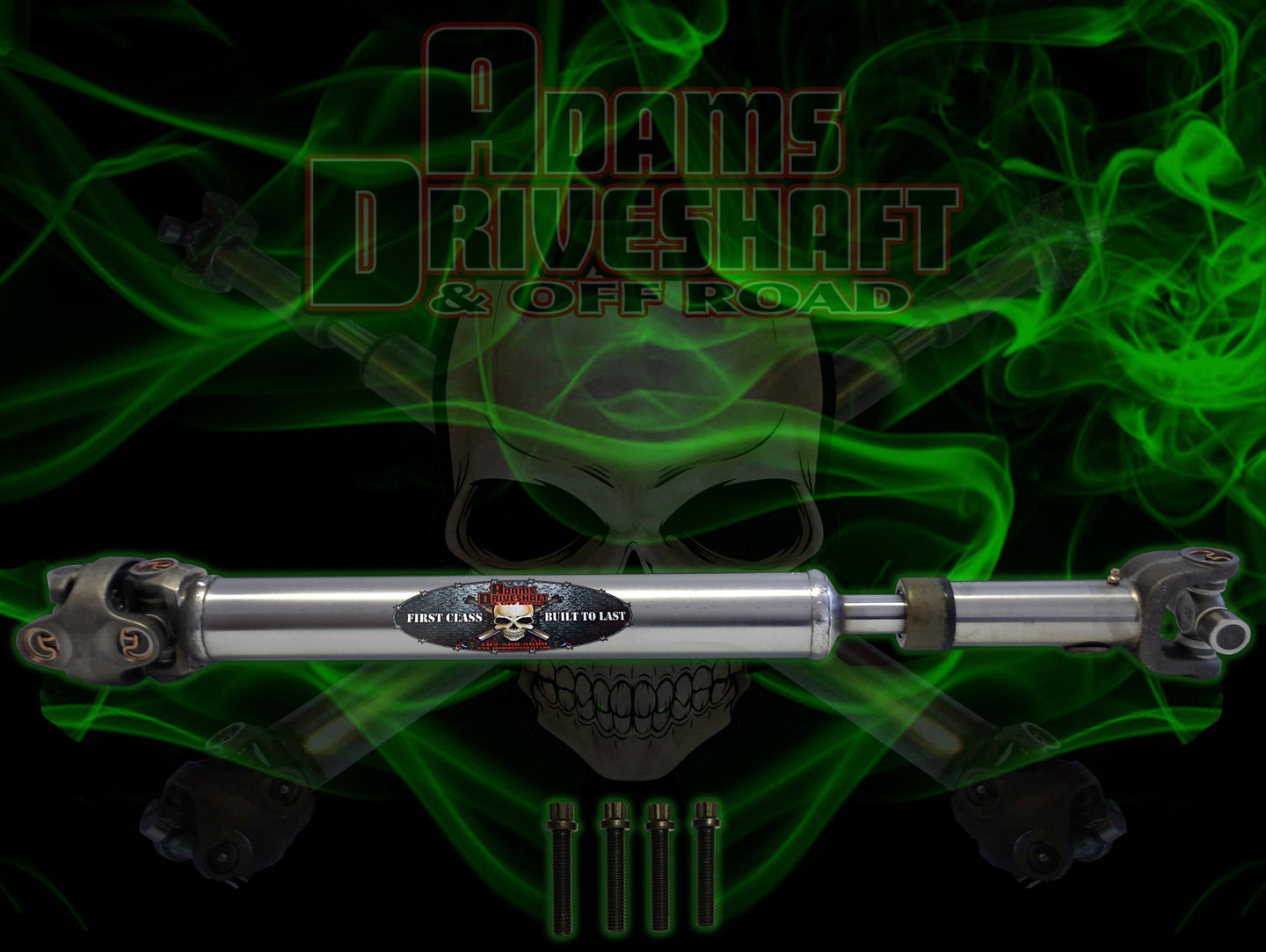

The Adams Driveshaft ASDXJ-1310CVR-G is a precision-engineered heavy-duty rear CV driveshaft designed specifically for 1984-2001 Jeep Cherokee XJ models with lifted suspensions. This American-made driveshaft eliminates the vibrations, binding, and premature u-joint failure associated with stock driveshafts operating at extreme angles.

Key Features:

• Heavy-duty 1310 series construction for increased strength
• Double Cardan (CV) design eliminates driveline vibrations
• Precision-balanced for smooth operation at all speeds
• Greaseable u-joints for extended service life
• DOM (Drawn Over Mandrel) steel tubing for superior strength
• Engineered for lifted XJ applications (3-6+ inches)
• Bolt-in installation with no modifications required

Why You Need a CV Driveshaft: When you lift your Jeep Cherokee XJ, the rear driveshaft operates at a steeper angle than factory specifications. This increased angle causes single u-joint driveshafts to vibrate, bind, and wear prematurely. The double Cardan CV joint design allows smooth power transfer even at extreme angles, eliminating vibrations and extending component life.

Technical Specifications:

• Part Number: ASDXJ-1310CVR-G
• Application: 1984-2001 Jeep Cherokee XJ (Rear)
• Series: Heavy Duty 1310
• Joint Type: Double Cardan (CV) at transfer case end
• Joint Size: 1310 series u-joints (3.219" cap-to-cap)
• Tube Material: DOM steel construction
• Tube Diameter: 3.0 inches
• Yoke Style: Standard slip yoke and flange yoke
• Balancing: Precision computer-balanced
• Finish: Black painted steel

Direct Fitment:

• 1984-2001 Jeep Cherokee XJ (2WD and 4WD models)
• Compatible with all engine options (2.5L, 4.0L)
• Compatible with all transmission/transfer case combinations
• Designed for 3-6 inch lift kits (may accommodate higher lifts)
• Works with stock or aftermarket axles

Heavy Duty Construction: Adams Driveshafts are built to withstand the punishment of off-road use. The 1310 series u-joints are significantly stronger than factory 1310 joints, and the heavy-wall DOM tubing resists twisting under high torque loads. Whether you're rock crawling, trail running, or daily driving your lifted XJ, this driveshaft is engineered to handle the abuse.

Double Cardan CV Technology: The CV (Constant Velocity) joint at the transfer case end uses two u-joints connected by a centering ball and socket. This design allows the driveshaft to operate smoothly at angles up to 25-30 degrees—far exceeding the 3-5 degree limit of conventional single u-joint driveshafts. The result is vibration-free operation throughout the entire RPM range.

Precision Engineering: Each Adams driveshaft is:

• Custom-measured for your specific application
• Built with precision-machined components
• Computer-balanced to less than 0.5 oz-in
• Assembled by experienced technicians
• Tested for quality before shipment

Installation Notes:

• Direct bolt-in replacement for factory rear driveshaft
• Length is pre-determined for lifted XJ applications
• Requires proper transfer case output yoke (typically stock)
• Grease all u-joints before installation and every 3,000-5,000 miles
• Verify driveshaft clearance at full suspension compression
• Professional installation recommended

Performance Benefits:

• Eliminates Vibrations: Smooth operation at highway speeds
• Prevents Binding: CV joint allows proper articulation
• Increases Reliability: Reduces stress on transfer case and axle
• Extends Component Life: Less wear on u-joints, yokes, and bearings
• Improved Drivability: Quieter, smoother power delivery
• Off-Road Capable: Handles extreme articulation and torque loads

Maintenance:

• Grease all u-joints every 3,000-5,000 miles or before off-road trips
• Inspect u-joint caps for play or excessive wear
• Check for driveshaft contact with exhaust or chassis components
• Verify proper yoke engagement in slip section
• Use quality CV joint grease (NLGI Grade 2 recommended)

What's Included:

• Complete rear driveshaft assembly
• Pre-installed 1310 u-joints (greaseable)
• CV centering components
• Installation hardware (if required for your application)
• Lubrication/maintenance instructions

Important Notes:

• Driveshaft length is critical—verify lift height and measurements
• Some extreme lift applications may require additional modifications
• Transfer case lowering kits may affect required driveshaft length
• Tire size and gearing changes do not affect driveshaft requirements
• This is a REAR driveshaft only (front sold separately if needed)

Lift Kit Compatibility: This driveshaft is engineered for XJ Cherokee models with:

• 3-4 inch lifts (optimal range)
• 4-6 inch lifts (fully compatible)
• 6+ inch lifts (may require custom length—contact manufacturer)

Why Choose Adams Driveshaft: Adams Driveshaft has been manufacturing custom and performance driveshafts in the USA for over 40 years. Their commitment to quality, precision, and customer service has made them the go-to choice for Jeep enthusiasts, off-road racers, and professional builders. Every Adams driveshaft is backed by craftsmanship you can trust and performance you can feel.

Warranty: Adams Driveshafts are backed by a limited warranty against defects in materials and workmanship. See included documentation for complete warranty details.

Troubleshooting Common XJ Driveline Issues:

• Vibration at 40-60 MPH: Typically caused by driveshaft angle—CV driveshaft solves this
• Clunking on acceleration: Check u-joint condition and slip yoke engagement
• Binding during articulation: CV joint eliminates this issue
• Premature u-joint failure: Result of extreme angles—CV design prevents this

Upgrade your lifted Jeep Cherokee XJ with the proven quality and performance of an Adams Driveshaft Heavy Duty CV driveshaft. Eliminate vibrations, increase reliability, and enjoy smooth power delivery on and off the road.

Proudly Made in the USA by Adams Driveshaft.
