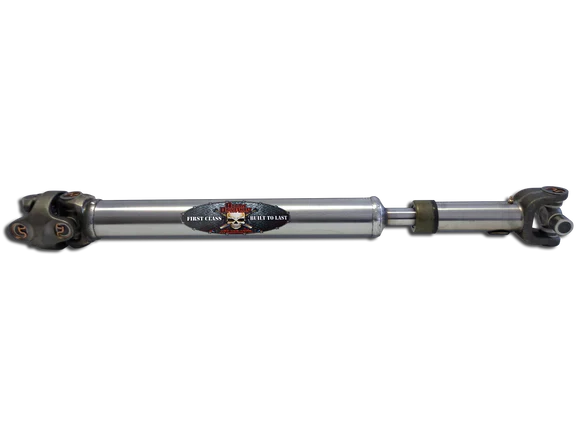

The Adams Driveshaft Extreme Duty Series Rear 1310 CV Driveshaft (part number ASDXJ-1310CVR-S) is custom manufactured for the Jeep XJ Cherokee — rear position. Compatible with tires up to 37 inches tall. For tires larger than 37 inches, Adams Driveshaft recommends upgrading to their Extreme Duty 1350 Solid Series. Each driveshaft is built to order using a center-to-center measurement taken at ride height.

SYE Kit Required: An end yoke style Slip Yoke Eliminator (SYE) kit must be installed on the transfer case for this driveshaft to work. If a Mega Short SYE has been installed, notify Adams Driveshaft at time of order as this will affect the driveshaft length.

Tubing Option: The standard build uses 2-1/2" × .083 wall DOM tubing. Adams Driveshaft can build this driveshaft from 2" × .120 wall DOM tubing at no extra charge for driveshafts up to 36 inches center-to-center — request this option at time of order.

Construction: Built from 2-1/2" × .083 wall DOM seamless tubing with a long slip-n-stub and solid non-greasable 1310 series U-joints. The strongest component castings available are used throughout. All components sourced exclusively from Spicer and Neapco — two American manufacturers. Finished in gloss black show quality paint.

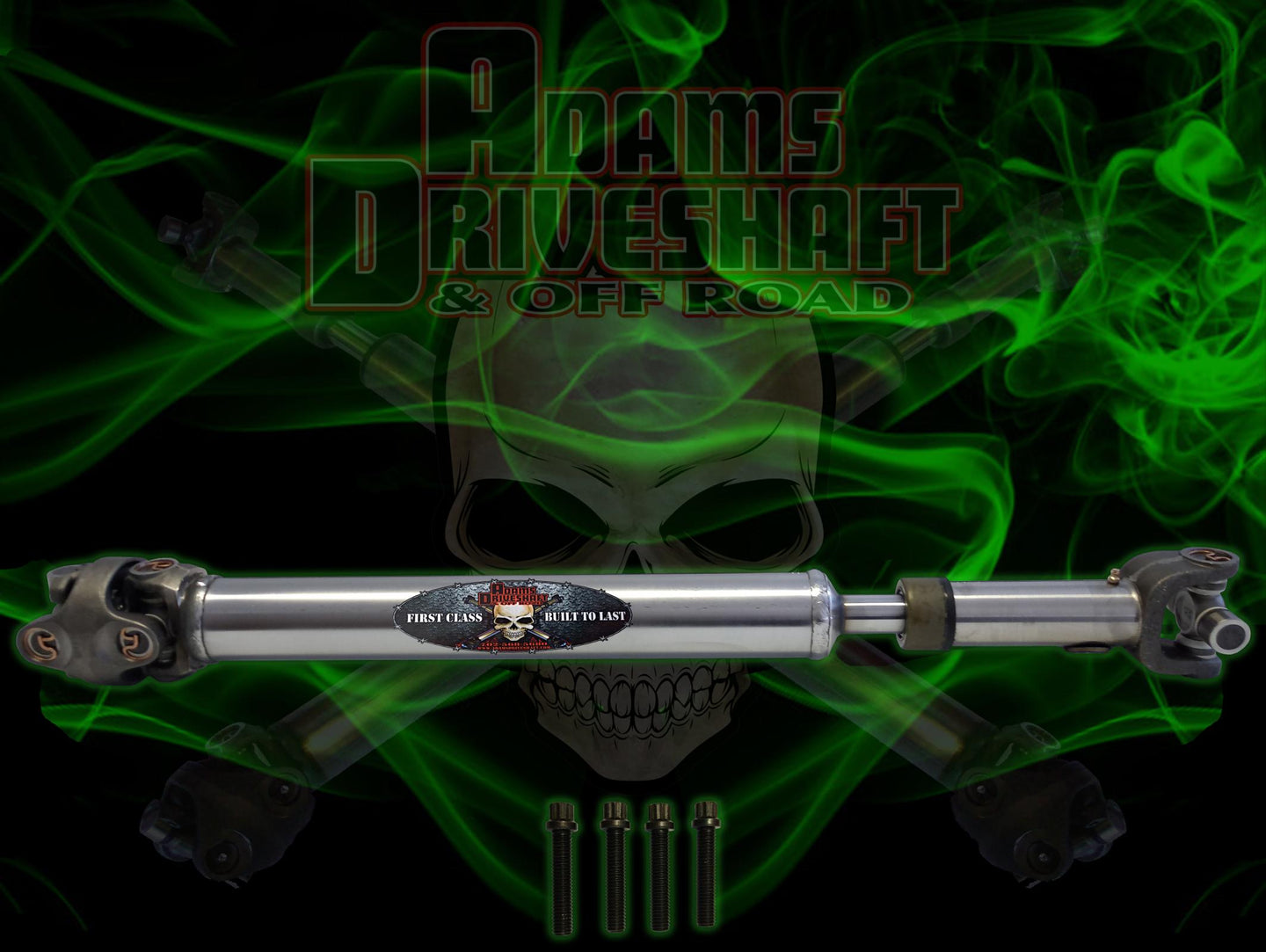

What's in the Box:

• (1) Adams Driveshaft 1310 Extreme Duty Series CV driveshaft — 2-1/2" × .083 wall DOM tubing with solid non-greasable U-joints
• (4) Grade 10 CV bolts with small heads for easy installation

Fitment: Jeep XJ Cherokee — rear position | end yoke SYE kit must be installed | up to 37" tires. Custom built to your vehicle's center-to-center measurement taken at ride height.

Part Number: ASDXJ-1310CVR-S

Warranty: Lifetime warranty on welds and tubing if they break due to torque. No warranty if components break due to bad angles. U-joints and CV kit are wear items and must be greased every 3 months or 3,000 miles, whichever comes first — no warranty coverage without proper maintenance.
