Adams Driveshaft JL 4XE Rear 1350 CV Driveshaft Extreme Duty Series

New rear extreme duty Jeep JL Wrangler 4XE 1350 series CV driveshaft with solid u-joints custom made by Adams Driveshaft.

This extreme duty series solid 1350 CV driveshaft will work up to 42" tall tires, after that size we recommend upgrading to the extreme duty 1410 solid series. Bigger tires add more weight, traction, and more pressure on your drivetrain components like your driveshafts, axles, gears, etc., so you want to make sure you are buying the strongest driveshaft for your Jeep. This driveshaft will work up to a 6" lift after that the angle may be too severe or bind.

Fitment

  • Fits Jeep JL Wrangler 4XE 2 or 4 door models.
  • Choose M200 or M220 to match your rear differential.
  • Please note: depending on the size and manufacturer of your lift kit, rear upper adjustable control arms may be needed to help set the pinion angle.
  • Driveshafts are built to length; depending on lift height and setup, a measurement may be needed to build the correct length.

Features and Benefits

  • Made out of 2 1/2" x .095 wall D.O.M. tubing that is double the strength of the factory tubing to handle more abuse. Competitors use 2 1/2" x .083 or 3" x .083.
  • Has a longer slip n stub than some of our competitors.
  • Built only with components made by Spicer and Neapco.
  • Uses the strongest non greasable u-joints on the market.
  • American made rear 1350 half round style t-case yoke that gives you more angle.
  • Comes with a forged 1350 u-bolt style pinion yoke.

What's in the Box

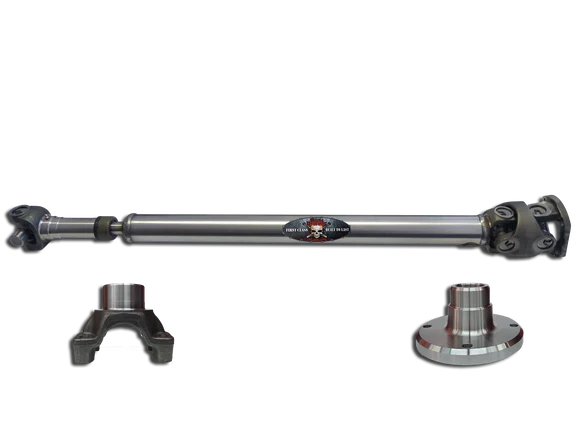

  • (1) 2 1/2" x .095 wall extreme duty 1350 CV driveshaft with solid u-joints.
  • (1) rear 1350 transfer case output shaft yoke.
  • (1) rear 1350 forged u-bolt style pinion yoke.
  • (1) set of 1350 u-bolts.
  • (1) set of Grade 10 CV bolts.

Details

  • Warranty: Driveshaft: lifetime warranty on the welds and tubing if they break due to torque.

Product information

  • Part number: ASDJL-1350HRR-S2D-4XE-35-HVHK (2 door M200), ASDJL-1350HRR-S2D-4XE-HVHK (2 door M220), ASDJL-1350HRR-S4D-4XE-35-HVHK (4 door M200), ASDJL-1350HRR-S4D-4XE-HVHK (4 door M220)
  • Fitment: Jeep Wrangler JL 4XE
  • Weight: 40.0 lb
