FEATURES

• Provides up to 150 retarding horsepower throughout the engine's RPM range
• BD's exclusive Variable Orifice Technology
• Adjustable pressure regulation

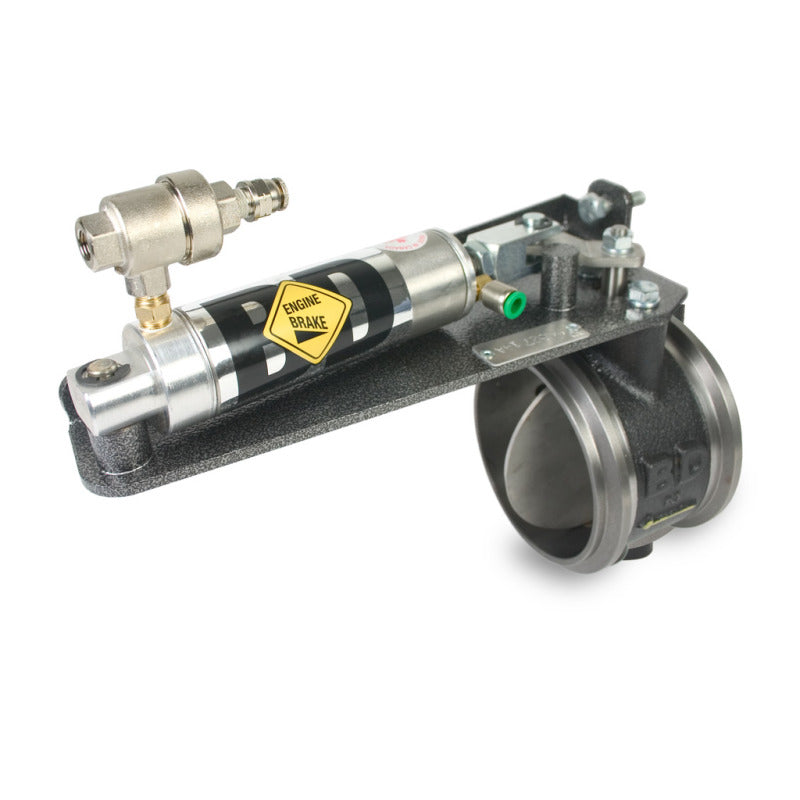

• Pneumatic spring loaded cylinder
• BD's solid, offset butterfly
• Rugged, cast-iron housings
• BD's exclusive alumibronze bushing
• Piston ring-seals
• Stainless steel butterfly shaft
• Proven to stand-up under the harsh, high heat conditions of the exhaust environment

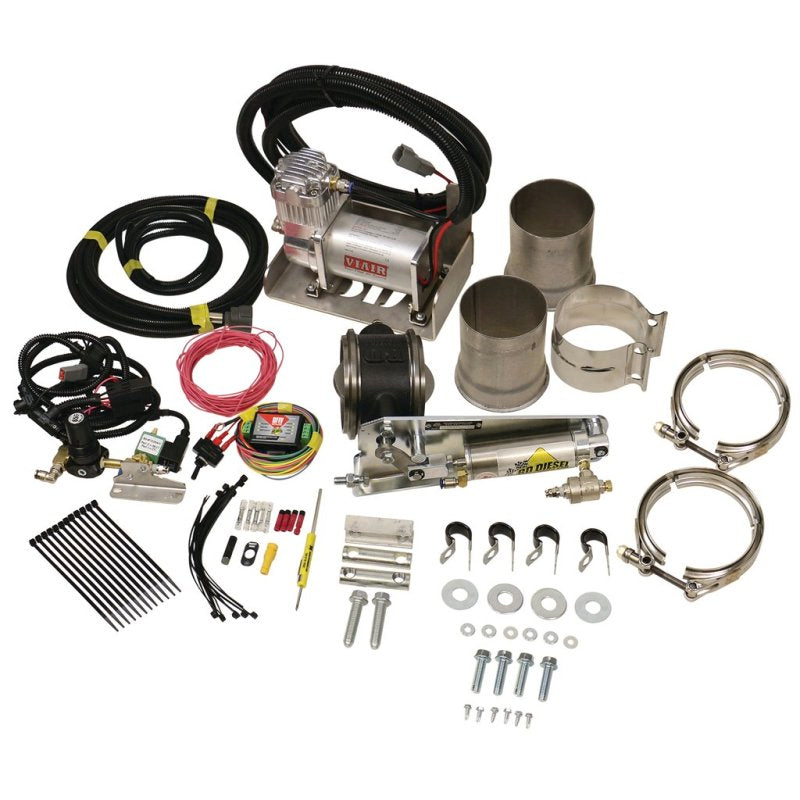

• All mounting hardware provided
• There's a reason why the BD Brake is the most widely-recognized diesel exhaust brake in the industry: It's the best! Compare it to the competition, and you'll see why.
• REQUIRES 4" EXHAUST SYSTEM!

NOTE

• Brake controls connect to throttle pedal with Accelerator Pedal Position Sensor (APPS). Vehicles without APPS will require 1300420 micro switch and custom bracket will have to be made.
• Exhaust Back Pressure test gauge kit 1030050 suggested for the set-up of exhaust brakes
• May not work with engines that have OEM Variable Vane (VGT) Turbos such as Cummins ISX.
• Will work with aftermarket non-VGT turbos.
