BD's replacement Heavy Duty EGR Coolers for the 2003-2007 6.0L Ford Power Stroke Diesels use TIG welded 304L stainless 0.375 in. O.D. x 0.048 in. walled tubes to replace the OEM inner cores that have been known to fail due to weak brazed joints. The failure of the OEM units has caused coolant to leak into the cylinders creating a hydrolock condition which will cause sever engine damage. Water deflectors are added to increase turbulence to the coolant flow to aide in heat dissipation. These exchange units are pressure tested, include O-ring and threaded insert. No performance tuner required and will not activate the engine light.

Features
  • 5-Year Limited Warranty/ Unlimited Miles
  • Replacement Heavy Duty EGR Coolers for 2003-2007 6.0L Ford Power Stroke Diesels
  • TIG welded 304L stainless 0.375in.O.D. x 0.048in. walled tubes replace the OEM inner cores
  • Water deflectors added to increase turbulence to flow to aid in heat dissipation
  • Includes O-ring and threaded insert
  • Prevents premature failure due to weak brazed joints
  • Pressure tested

  • *Up to production date 9/22/03 IF AFTER 09/22/03 YOU NEED SQUARE HERE





This Part Fits:

Year Make Model Submodel
2004 Ford F-250 Super Duty Harley-Davidson Edition
2004 Ford F-250 Super Duty King Ranch
2003-2004 Ford F-250 Super Duty Lariat
2003-2004 Ford F-250 Super Duty XL
2003-2004 Ford F-250 Super Duty XLT
2004 Ford F-350 Super Duty Harley-Davidson Edition
2003-2004 Ford F-350 Super Duty King Ranch
2003-2004 Ford F-350 Super Duty Lariat
2003-2004 Ford F-350 Super Duty XL
2003-2004 Ford F-350 Super Duty XLT
2003 Ford F-450 Super Duty Lariat
2003 Ford F-450 Super Duty XL
2003 Ford F-450 Super Duty XLT

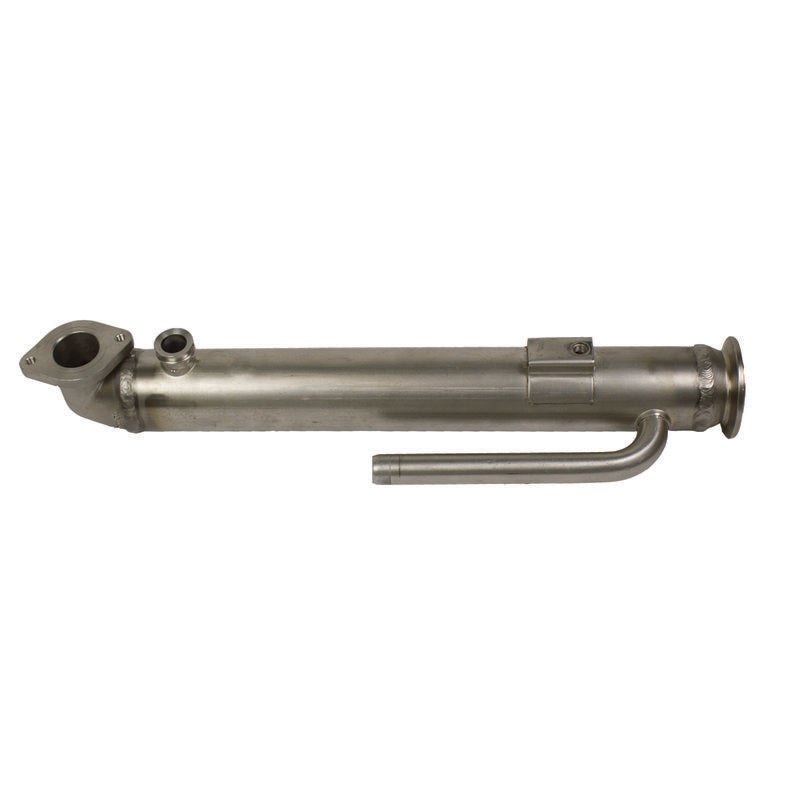

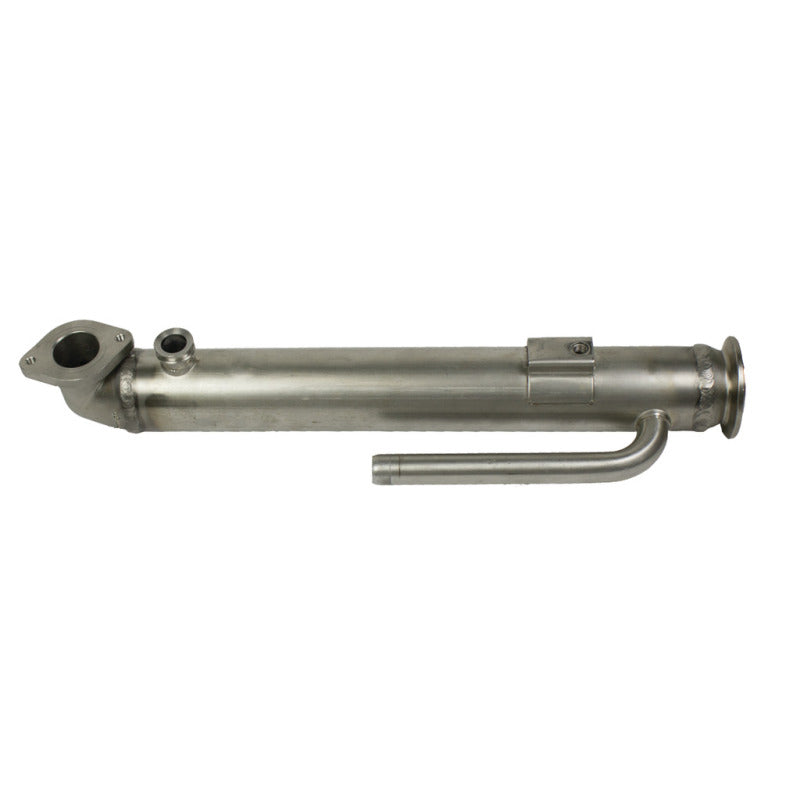

BD Diesel Replacement ROUND EGR Cooler 2003-Early 2004* Ford Powerstroke 6.0L (to 09/22/03)

SKU BDD1090201
$445.95
$445.95

BD's replacement Heavy Duty EGR Coolers for the 2003-2007 6.0L Ford Power Stroke Diesels use TIG welded 304L stainless 0.375 in. O.D. x 0.048 in. walled tubes to replace the OEM inner cores that have been known to fail due to weak brazed joints. The failure of the OEM units has caused coolant to leak into the cylinders creating a hydrolock condition which will cause sever engine damage. Water deflectors are added to increase turbulence to the coolant flow to aide in heat dissipation. These exchange units are pressure tested, include O-ring and threaded insert. No performance tuner required and will not activate the engine light.

Features
  • 5-Year Limited Warranty/ Unlimited Miles
  • Replacement Heavy Duty EGR Coolers for 2003-2007 6.0L Ford Power Stroke Diesels
  • TIG welded 304L stainless 0.375in.O.D. x 0.048in. walled tubes replace the OEM inner cores
  • Water deflectors added to increase turbulence to flow to aid in heat dissipation
  • Includes O-ring and threaded insert
  • Prevents premature failure due to weak brazed joints
  • Pressure tested

  • *Up to production date 9/22/03 IF AFTER 09/22/03 YOU NEED SQUARE HERE





This Part Fits:

Year Make Model Submodel
2004 Ford F-250 Super Duty Harley-Davidson Edition
2004 Ford F-250 Super Duty King Ranch
2003-2004 Ford F-250 Super Duty Lariat
2003-2004 Ford F-250 Super Duty XL
2003-2004 Ford F-250 Super Duty XLT
2004 Ford F-350 Super Duty Harley-Davidson Edition
2003-2004 Ford F-350 Super Duty King Ranch
2003-2004 Ford F-350 Super Duty Lariat
2003-2004 Ford F-350 Super Duty XL
2003-2004 Ford F-350 Super Duty XLT
2003 Ford F-450 Super Duty Lariat
2003 Ford F-450 Super Duty XL
2003 Ford F-450 Super Duty XLT
