***ONLY FITS SINGLE REAR WHEEL CHEVY KINGPIN 8x6.5 APPLICATIONS***

Our Legacy Chevy bolt on brake kit makes it easy to put light weight racing brakes on your Ultra 4 Car, Rock Crawler, or your trail rig. The 6061 Aircraft grade aluminum hats are specially machined for this set up to have a flat bolt on caliper bracket. The hats are then hard coat anodized red. Rotors are laser cut mild steel then CNC machined with holes and slotting.

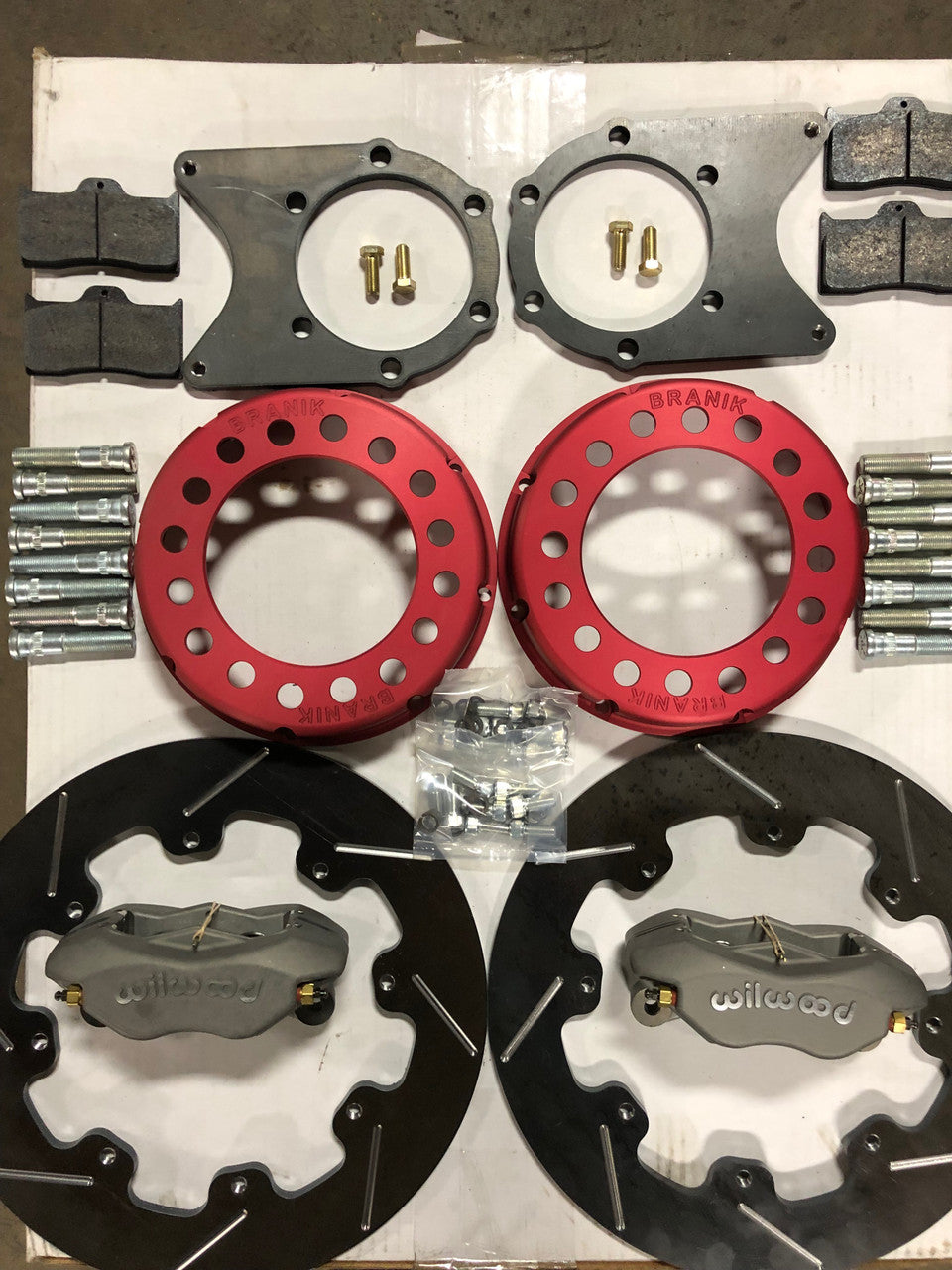

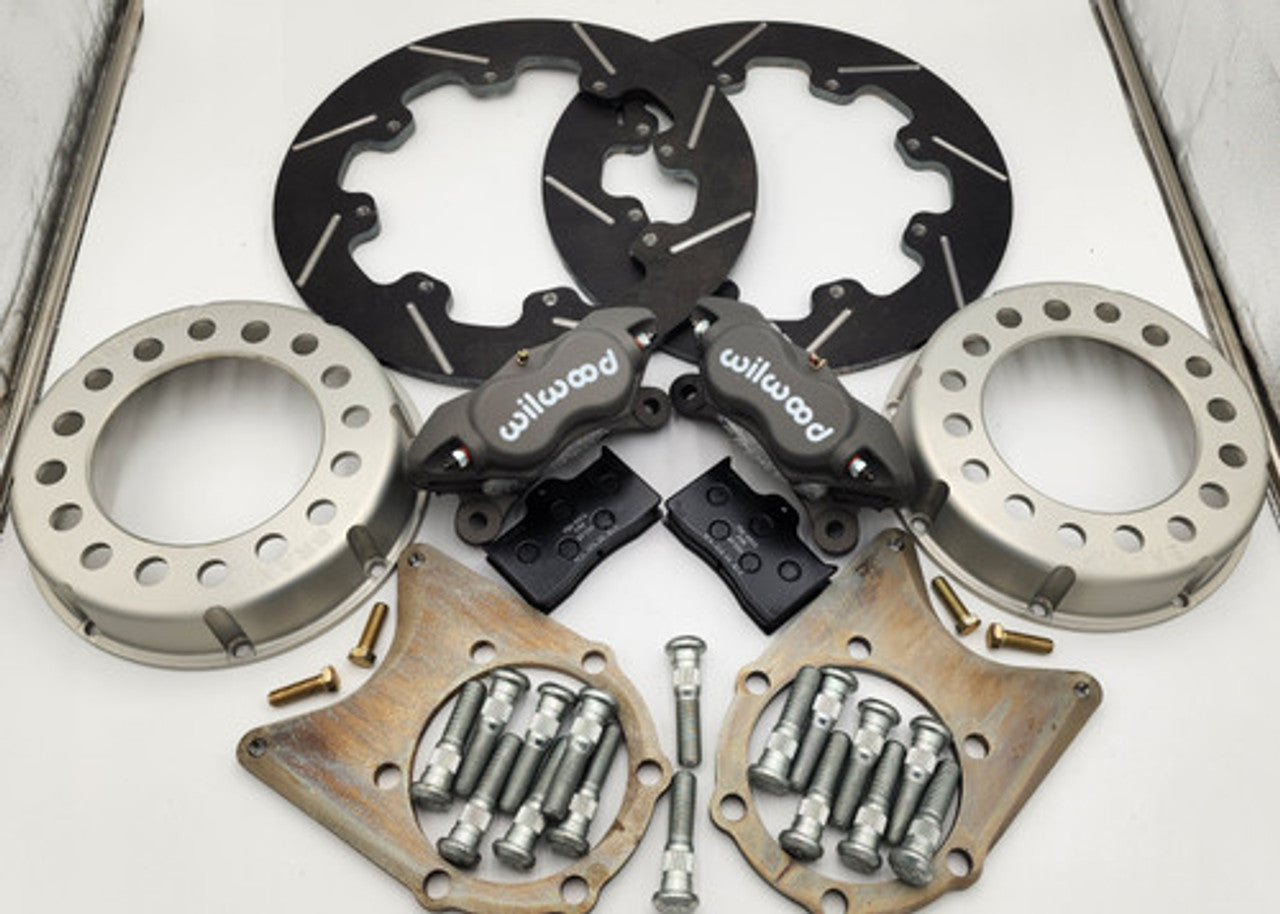

 Kit Includes:

Two 14" Rotors
Two Rotor Hats
Sixteen Rotor to Hat Bolts
Left and Right Four Piston Wilwood Calipers-1206818(4 Piston)
Brake Pads-150-8850K(4 Piston)
Left and Right Caliper Brackets
Four Caliper Bracket Bolts
Sixteen Wheel Studs

 ***Six Piston Upgrade***

1 - WILWOOD DYNA PRO 6 PISTON - LH

1 - WILWOOD DYNA PRO 6 PISTON - RH

1 SET - 6 piston Wilwood ROCK CRAWLER/STREET PADS - 150-Q-6712K

SAVES ABOUT 80 POUNDS OVER THE STOCK BRAKE SET UP

ONLY FITS SINGLE REAR WHEEL CHEVY KINGPIN 8x6.5 APPLICATIONS!!!

REQUIRES 17" WHEELS!!!

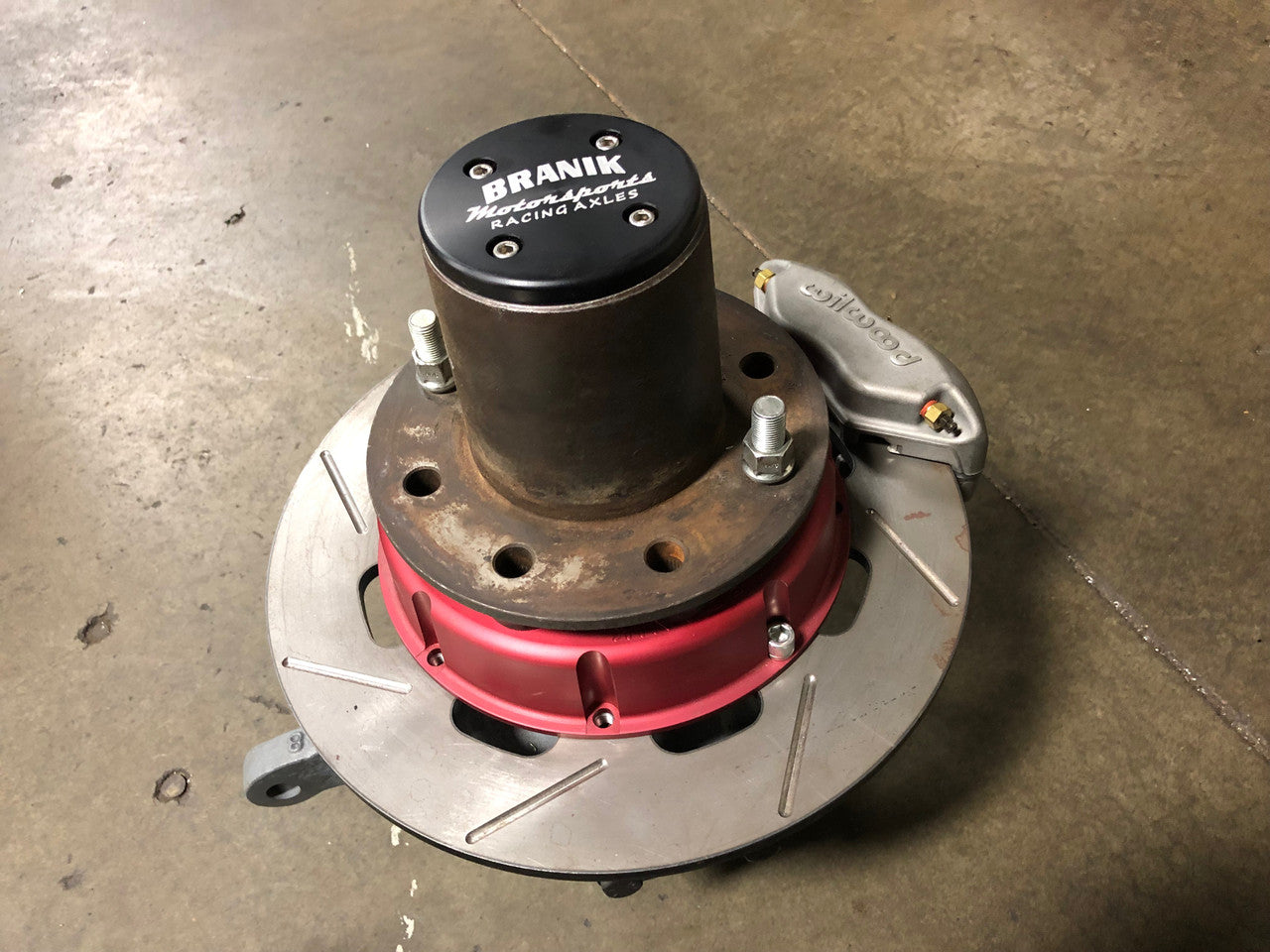

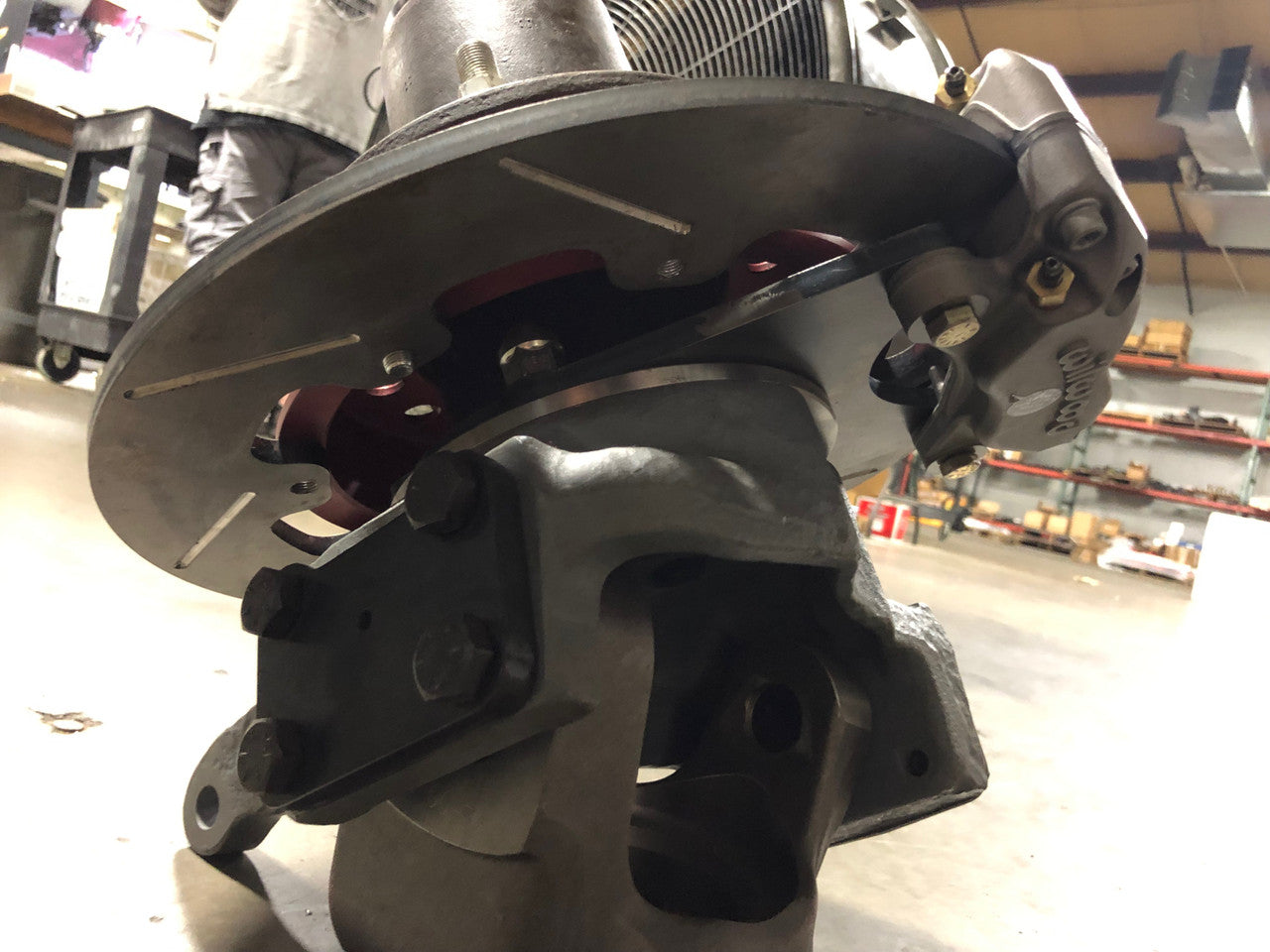

BRAKE HAT ASSEMBLES LIKE A FACTORY BRAKE ROTOR, BEHIND HUB. PRESS STUDS THROUGH BACK OF HAT INTO HUB.
