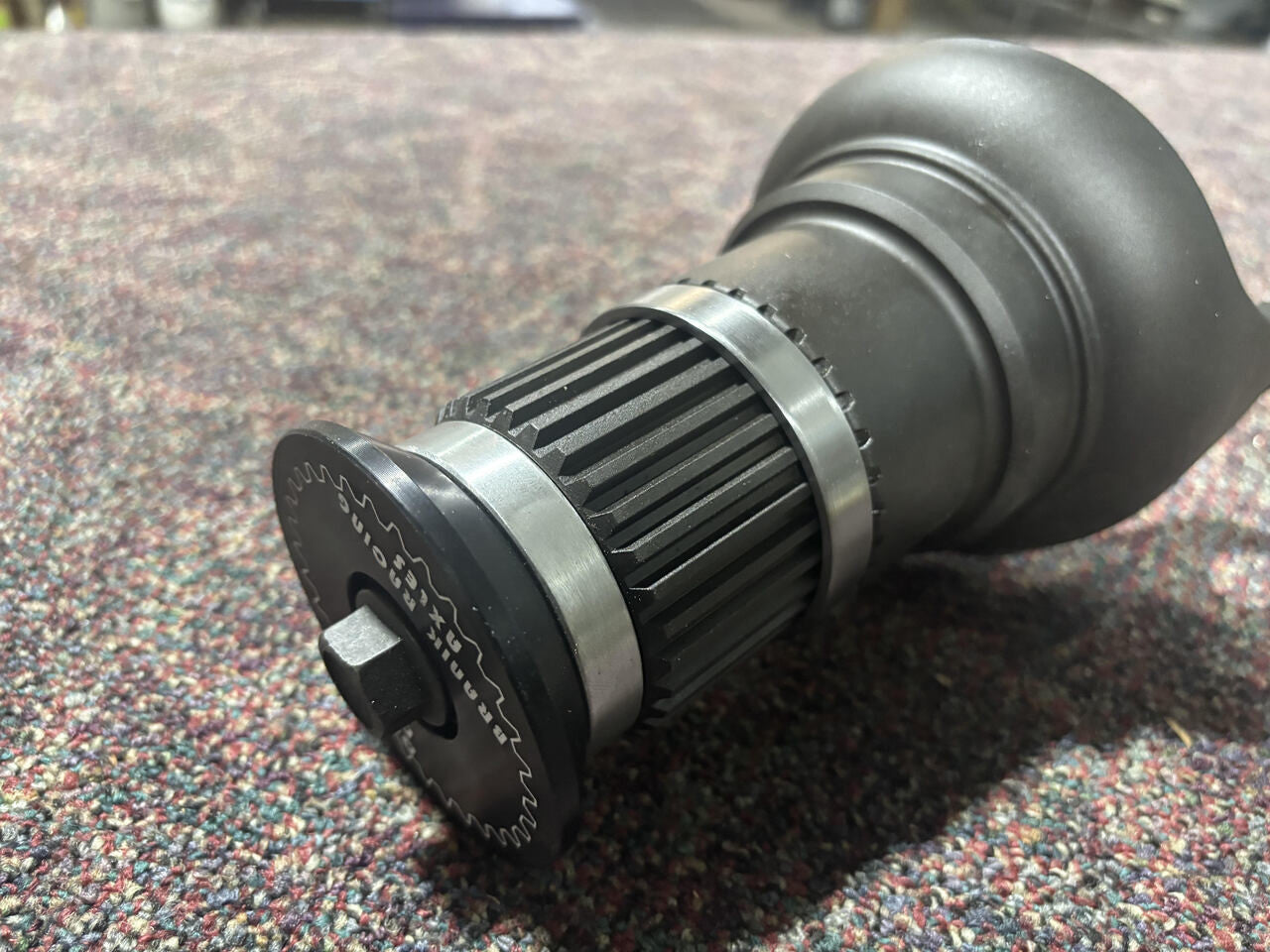

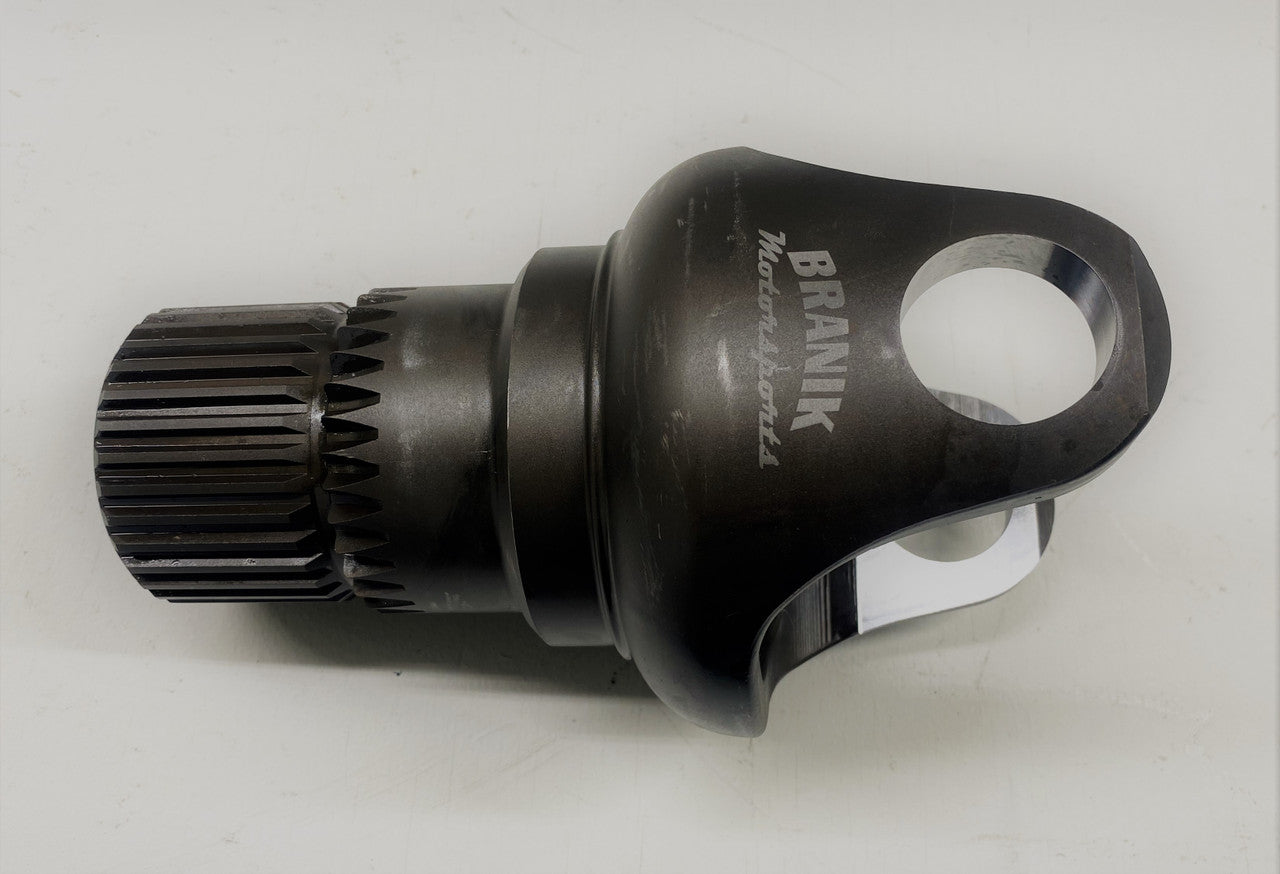

Introducing the Branik Motorsports Legacy Pro 32 Spline Direct Spline Billet Outer Axle Shaft — the massive 1550 series outer built for 2005-and-up Ford Super Duty F250 and F350 front axles. This is a direct spline design, eliminating the conventional unit bearing and stub shaft arrangement for maximum strength and simplicity.

Each kit includes one billet outer axle shaft, one aluminum unit bearing cap with hardware, and one custom retaining washer with hardware.

F250/F350 outer specs — 7.030" center of joint to end of splines.

F450/F550 option is also available. Two spacers are included to locate the axle on the correct centerline for F450/F550 knuckle and unit bearing setups. F450/F550 outer specs are 7.500" center of joint to end of splines. This F450/F550 option is only for use with the F450/F550 knuckle and unit bearing setup.

SKU: 1550-LGCY-32-OUTER | Made in USA — Branik Motorsports, Fort Wayne, IN | Skinny Pedal Racing is an Authorized Branik Motorsports Dealer
