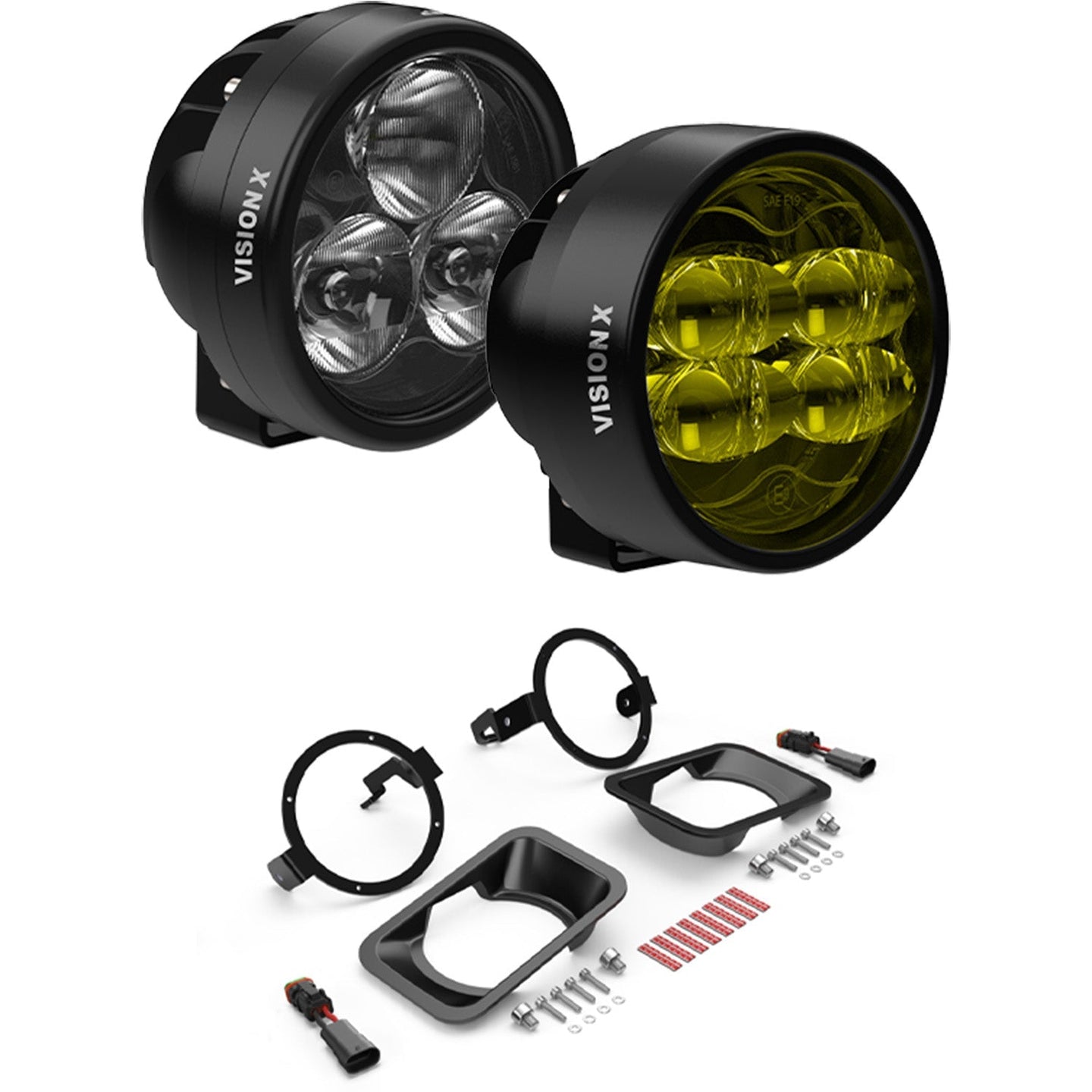

This clever retrofit kit transforms our Vision X CR-4 Fog or CR-3 Hybrid Driving Light into a vehicle-specific lamp assembly for direct replacement and plug-&-play connection to Ford F-Series Trucks. Significantly increase your light output and give your F150, F250 or F350 a sleek modern look by upgrading your weak factory fog lights to a set of high-intensity Vision X LED Driving Lights.

Choose our high-powered ECE and SAE-approved CR-4 Fog Lights for street-legal always-on use in North America and EU Countries or choose our CR-3 Driving Light that is equipped with a hybrid lens that is a piercing ECE and SAE-approved driving beam.

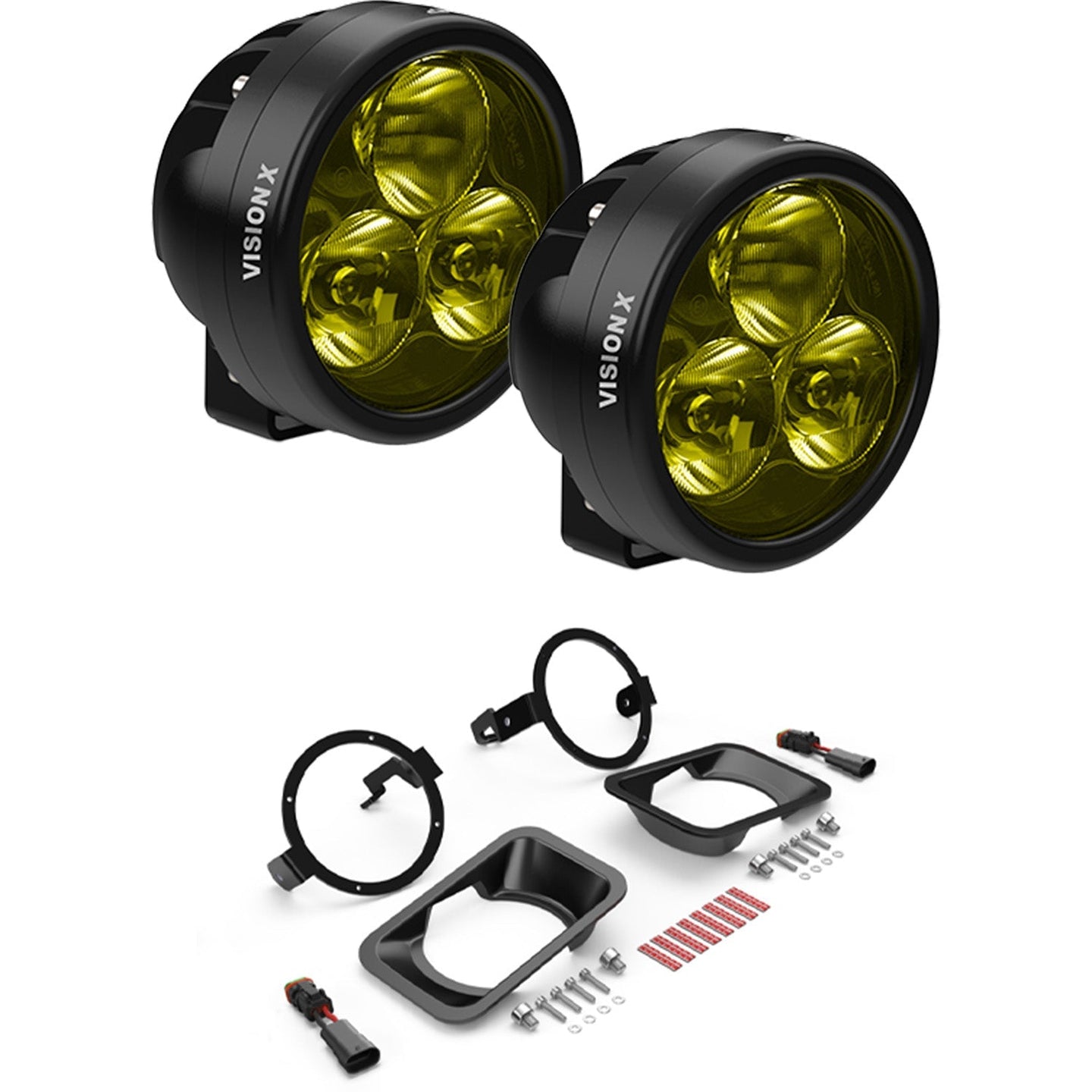

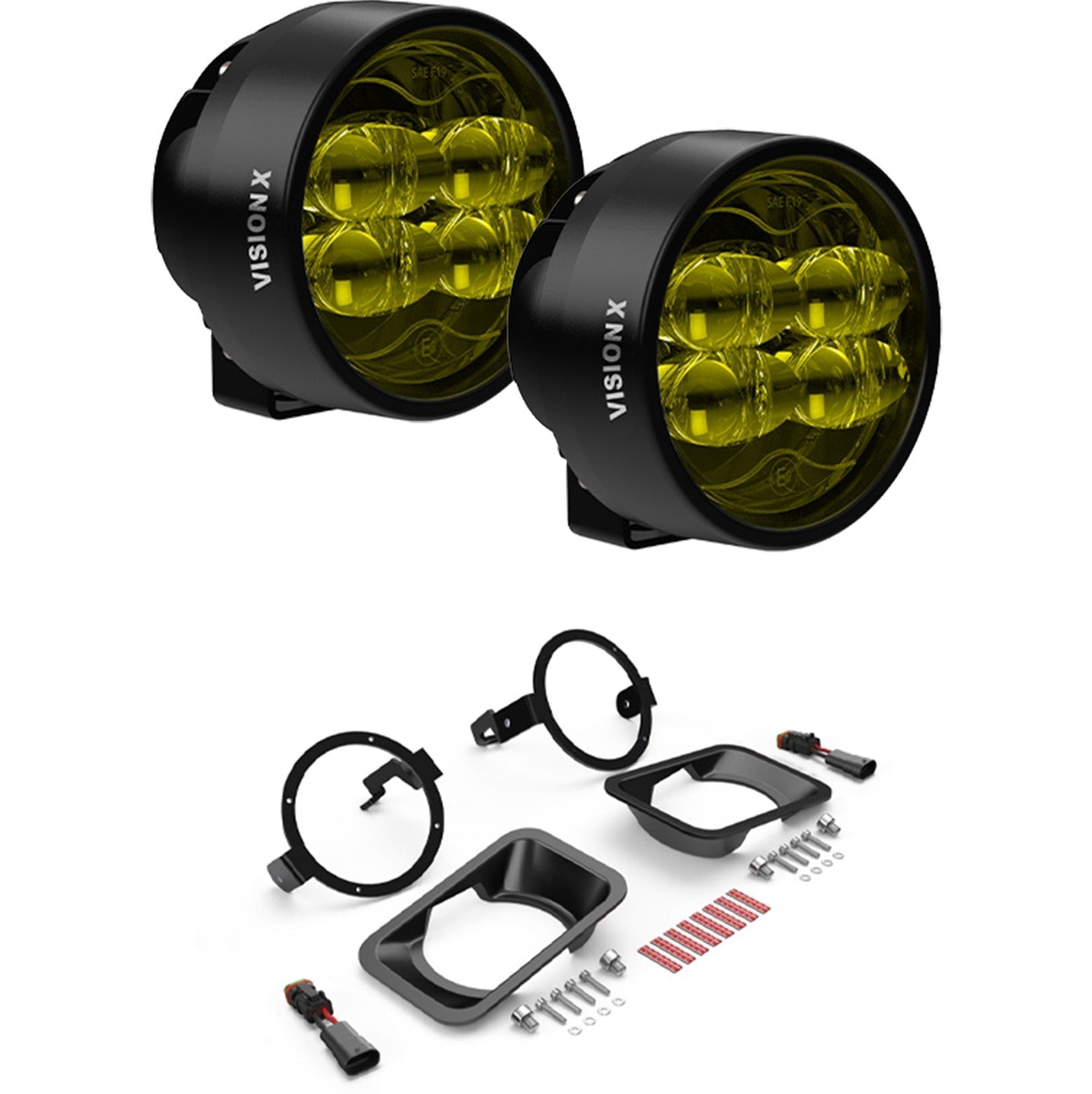

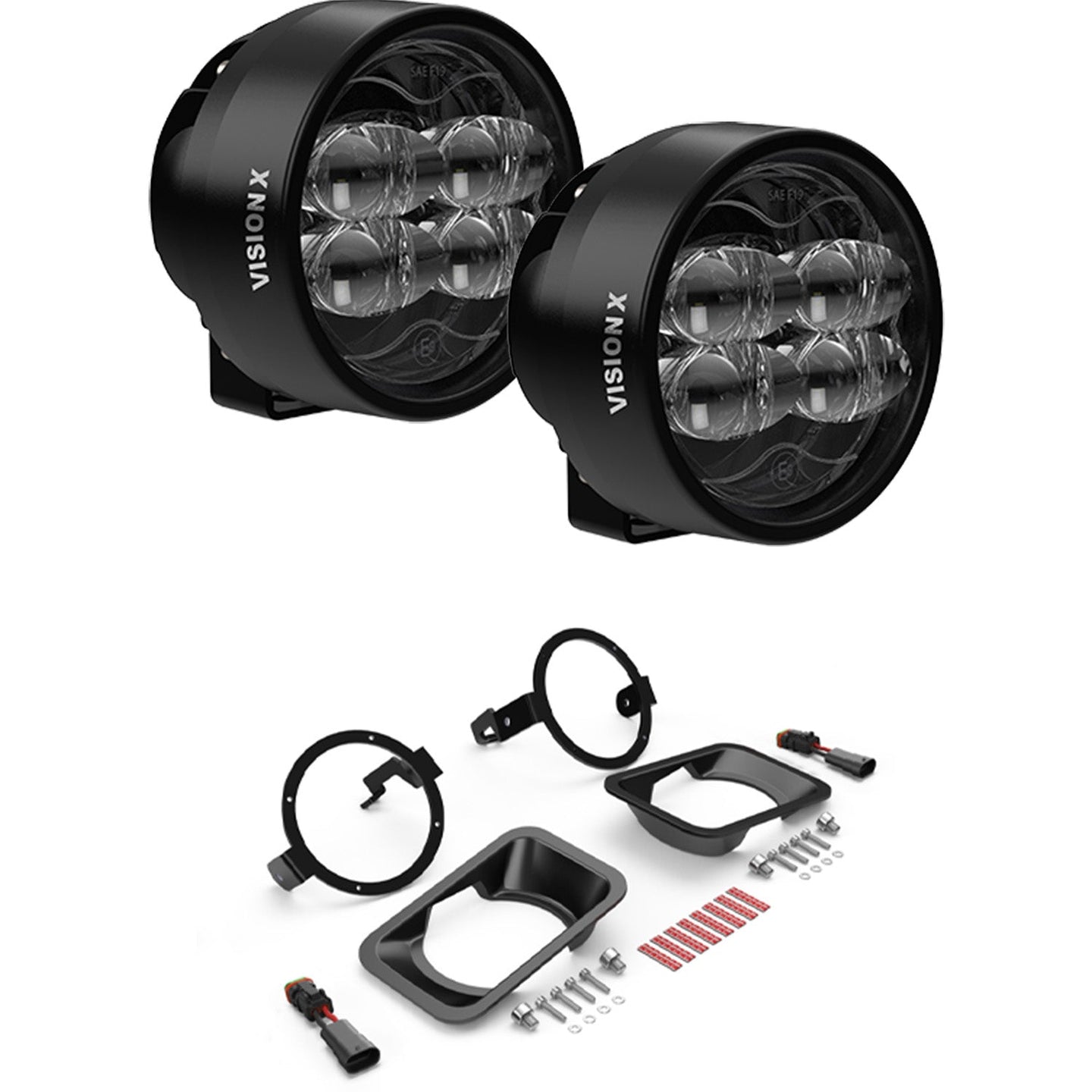

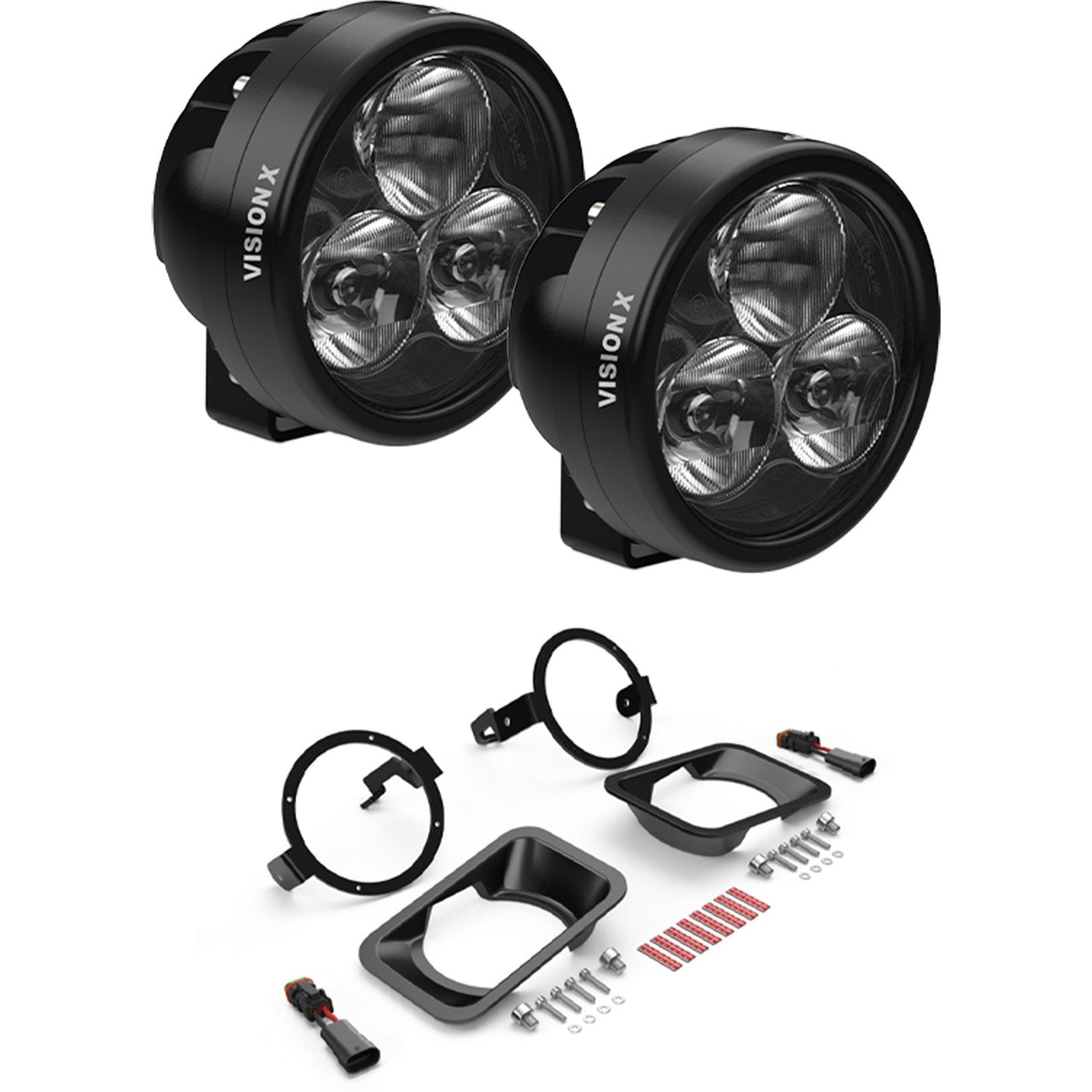

The CR-4 Fog and CR-3 Driving Lights are both available in clear, and selective yellow lens options.

Key Features:

ECE and SAE Street Legal Beam Patterns
High Output Fog Beam (CR-4) Option
Perfected Hybrid Driving Beam (CR-3) Option
Clear and Selective Yellow Lens Options

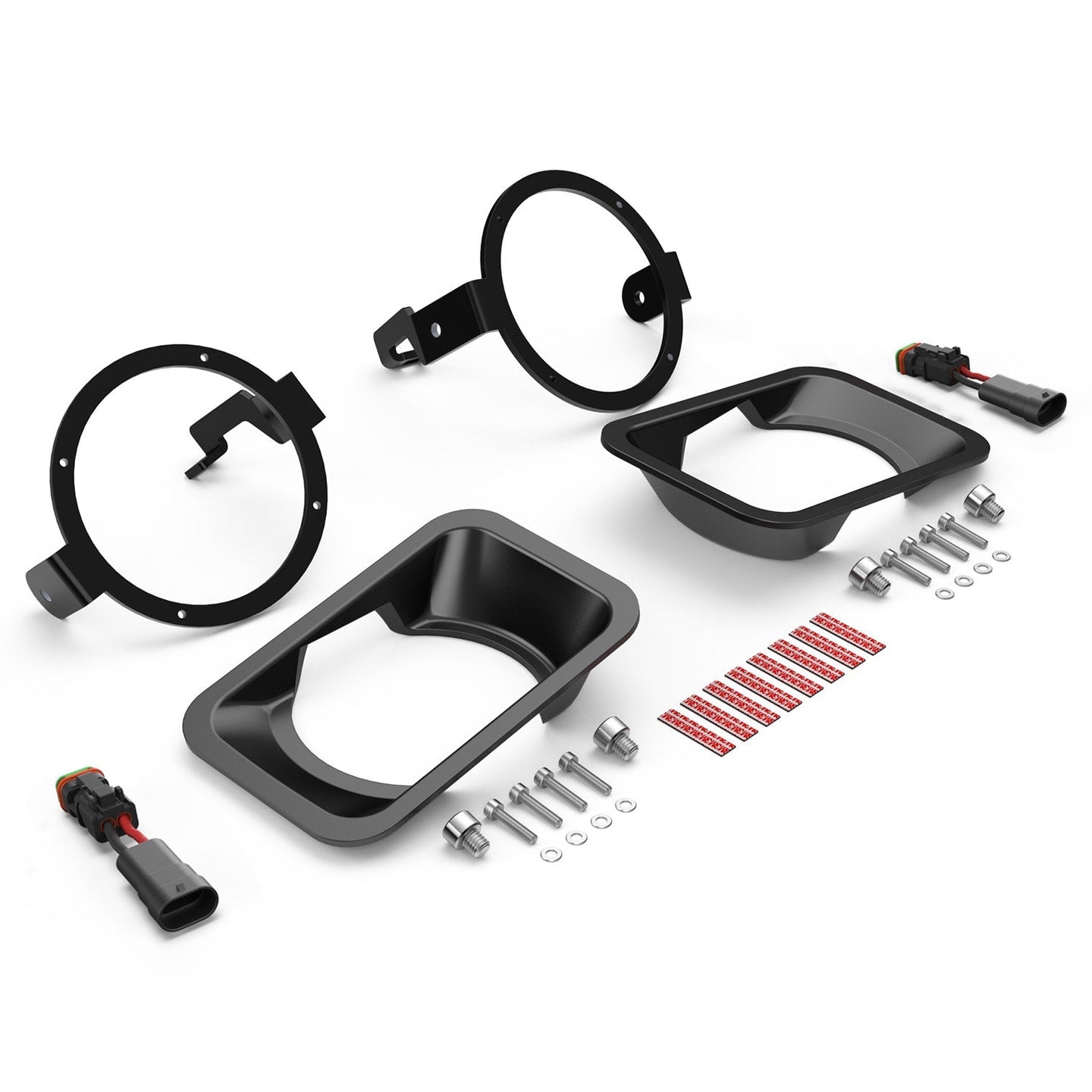

Complete Bolt-On, Plug-n-Play LED Upgrade Kit

Specifications

Model	CR-3 (Pair)	CR-4 (Pair)
Beam Pattern	Hybrid	Fog
Product LxWxH	3.54x2.62x3.74	3.54x3.01x3.74
Input Voltage	9-32V DC	9-32V DC
AMP Draw	6A	6.66A
Watts	72W	80W
Raw Lumens	4,200 lm	5,600 lm
Distance	1,050ft	450ft
Warranty	Limited Lifetime	Limited Lifetime

Vehicle Fitment

2015 Ford F150
2016 Ford F150
2017 Ford F150
2018 Ford F150
2019 Ford F150
2020 Ford F150
2017 Ford F250 Superduty
2018 Ford F250 Superduty
2019 Ford F250 Superduty
2020 Ford F250 Superduty
2021 Ford F250 Superduty
2017 Ford F350 Superduty
2018 Ford F350 Superduty
2019 Ford F350 Superduty
2020 Ford F350 Superduty
2021 Ford F350 Superduty

Downloads

Click Here For Instructions

CR-Series Performance LED Fog Light Upgrade Kit - Ford F150, F250, F350 Trucks

SKU XIL-OEFRDT1CR

Regular price: $73.99

Regular price: $73.99

Kit Options: Brackets & Connectors Only CR-3 Hybrid Clear CR-3 Hybrid Selective Yellow CR-4 Fog Clear CR-4 Fog Selective Yellow

Product variants

Quantity

The CR-4 Fog and CR-3 Driving Lights are both available in clear, and selective yellow lens options.

Key Features:

ECE and SAE Street Legal Beam Patterns
High Output Fog Beam (CR-4) Option
Perfected Hybrid Driving Beam (CR-3) Option
Clear and Selective Yellow Lens Options
Complete Bolt-On, Plug-n-Play LED Upgrade Kit

Specifications

Model	CR-3 (Pair)	CR-4 (Pair)
Beam Pattern	Hybrid	Fog
Product LxWxH	3.54x2.62x3.74	3.54x3.01x3.74
Input Voltage	9-32V DC	9-32V DC
AMP Draw	6A	6.66A
Watts	72W	80W
Raw Lumens	4,200 lm	5,600 lm
Distance	1,050ft	450ft
Warranty	Limited Lifetime	Limited Lifetime
