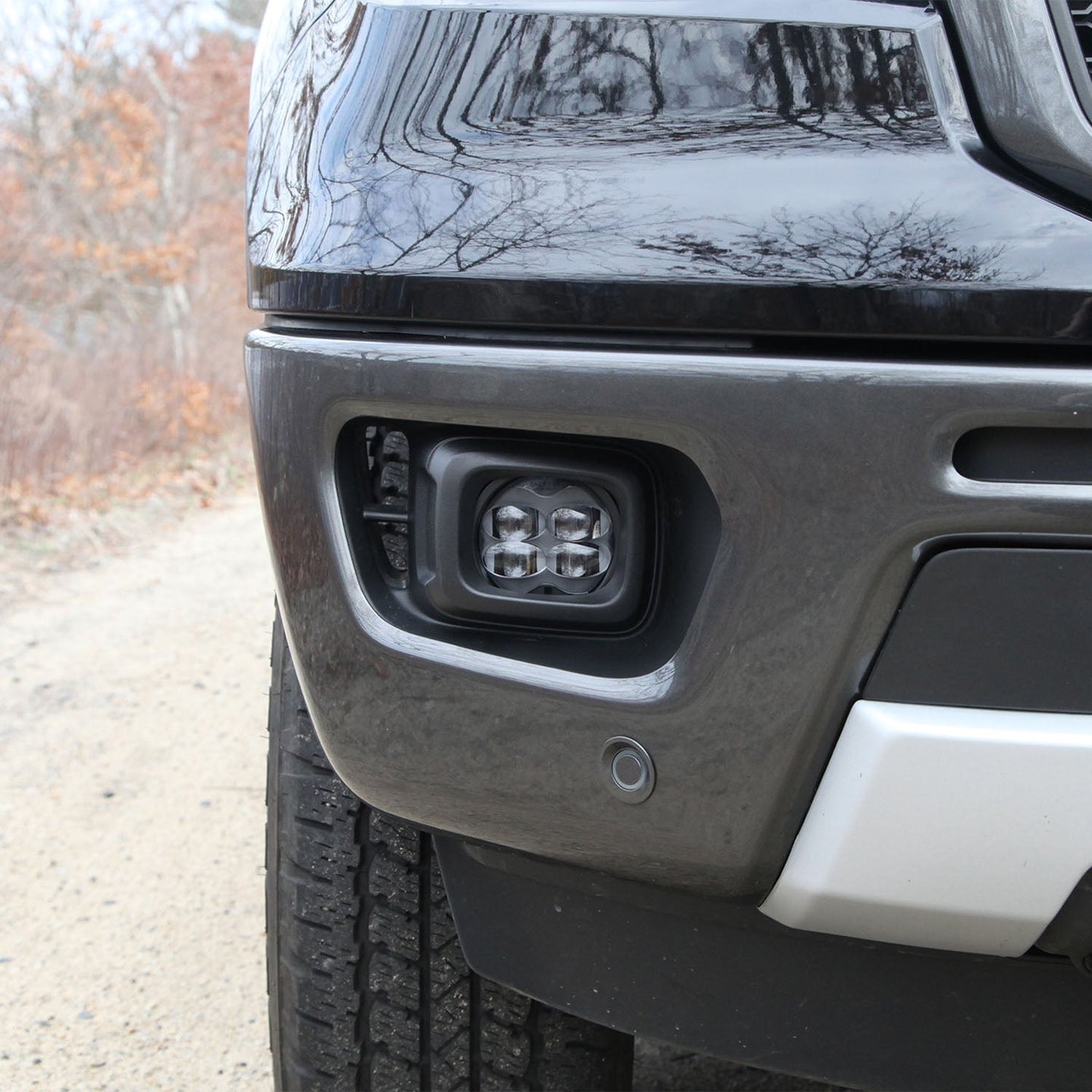

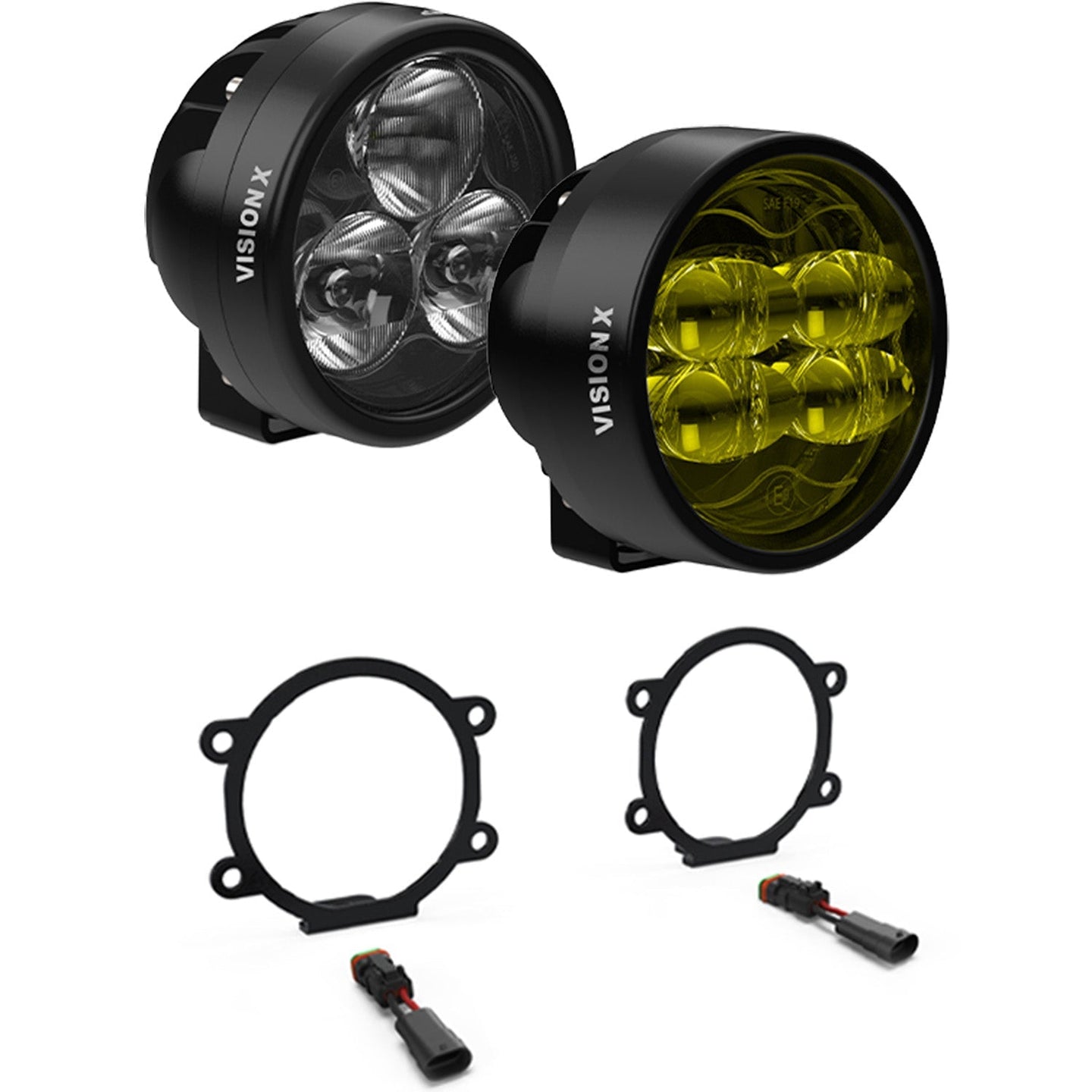

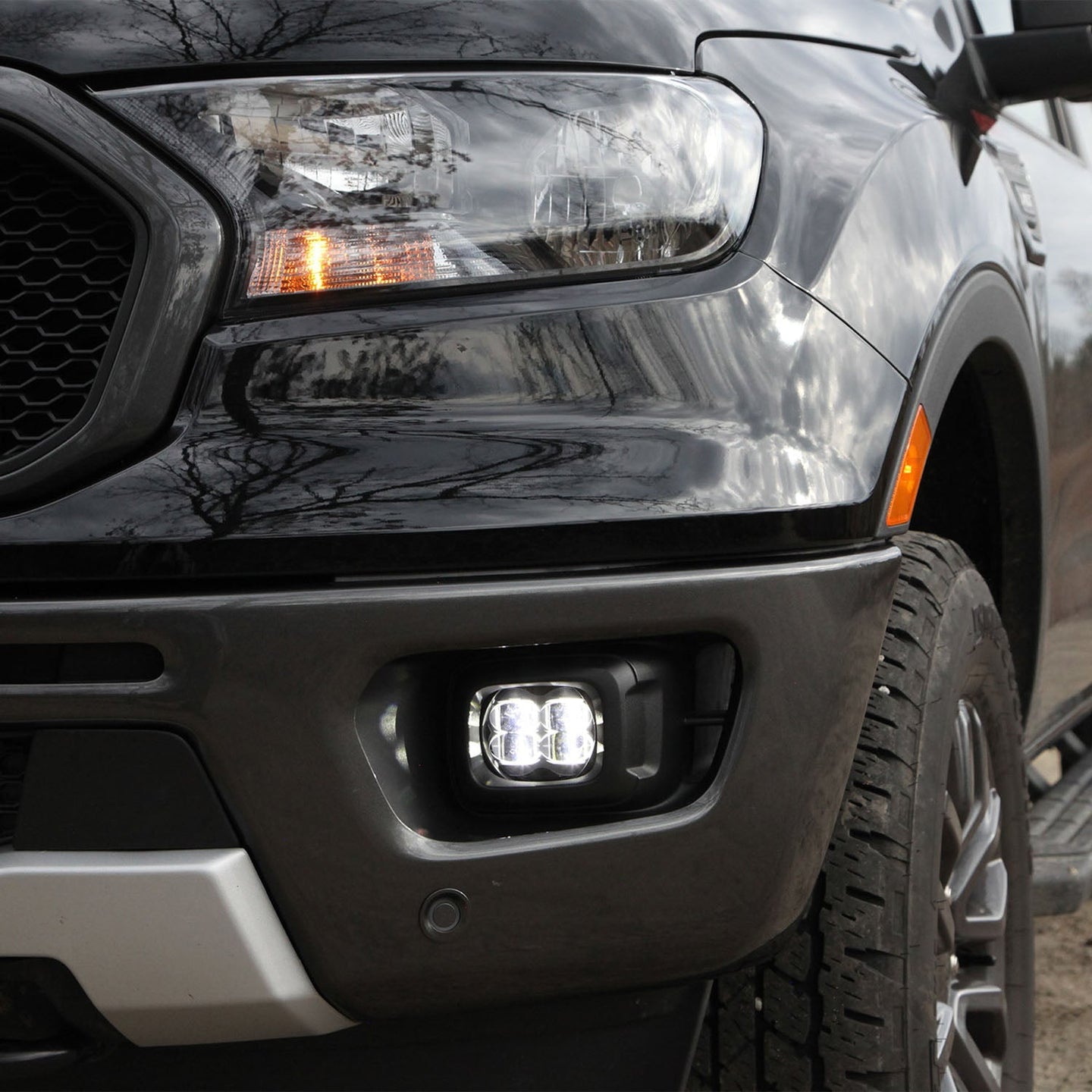

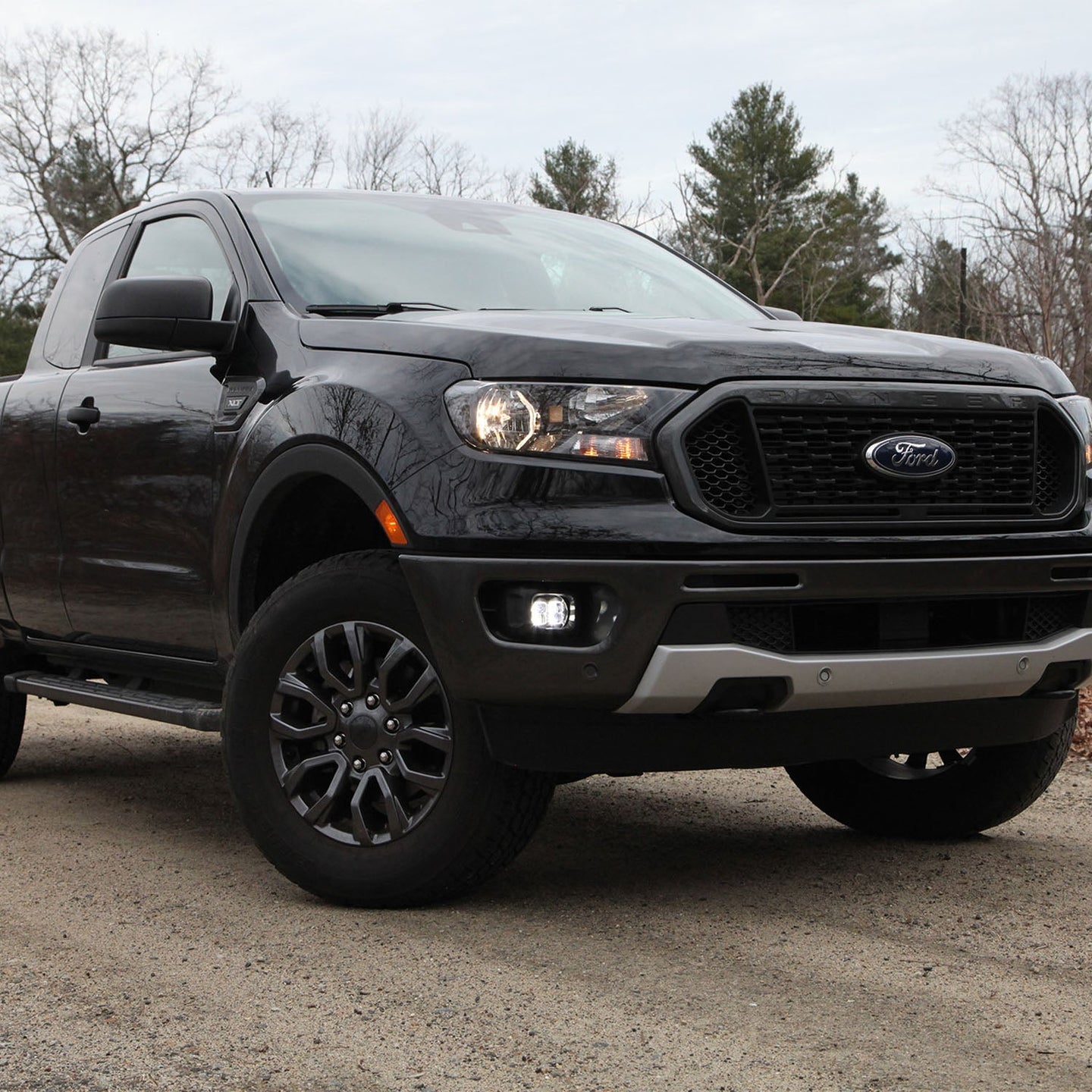

This clever retrofit kit transforms our Vision X CR-4 Fog or CR-3 Hybrid Driving Light into a vehicle-specific lamp assembly for direct replacement and plug-&-play connection to a range of Ford and Subaru vehicles. Significantly increase your light output and give your Ranger, Bronco and Subaru a sleek modern look by upgrading your weak factory fog lights to a set of high-intensity Vision X Driving Lights.

Choose our high-powered ECE and SAE-approved CR-4 Fog Lights for street-legal always-on use in North America and EU Countries or choose our CR-3 Driving Light that is equipped with a hybrid lens that is a piercing ECE and SAE-approved driving beam.

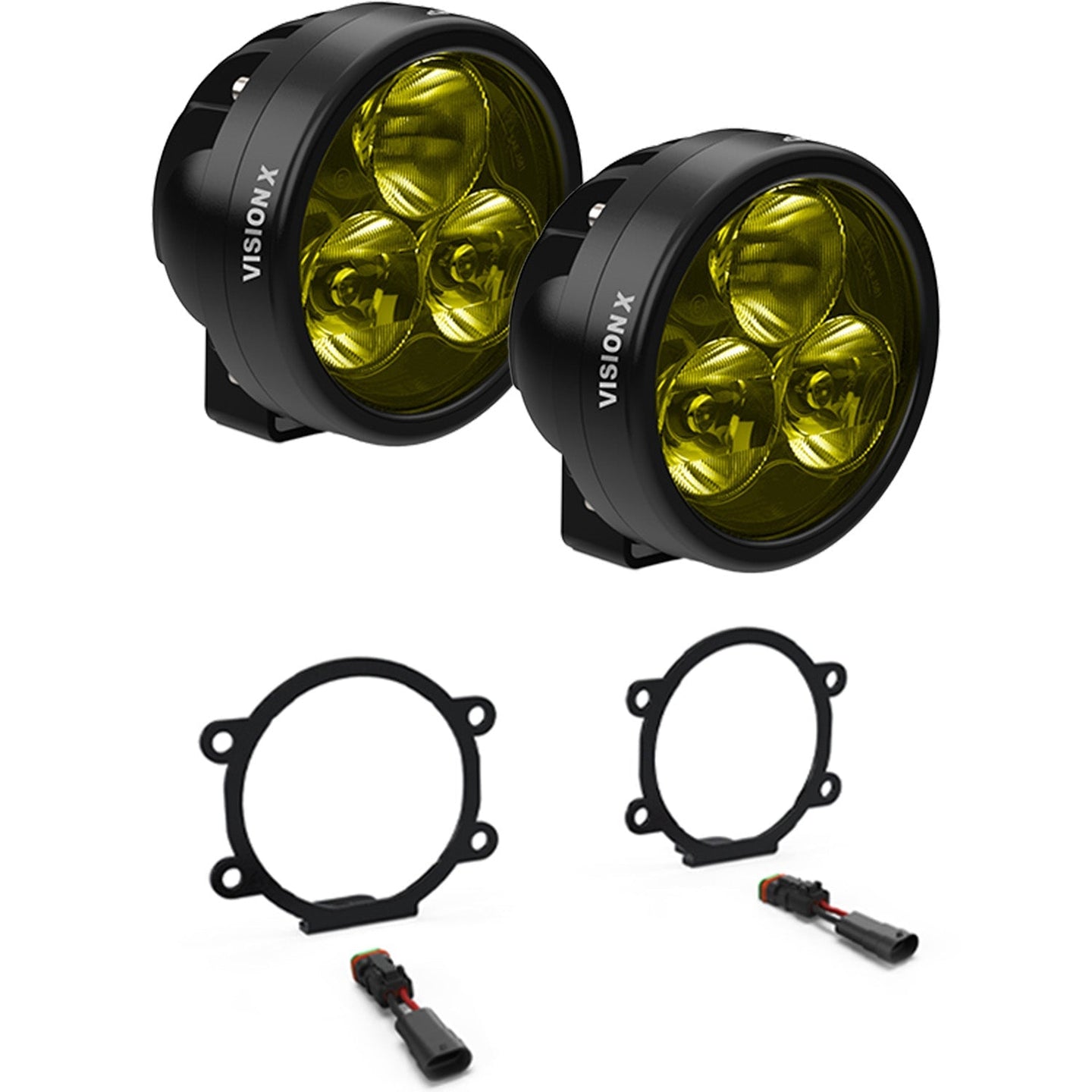

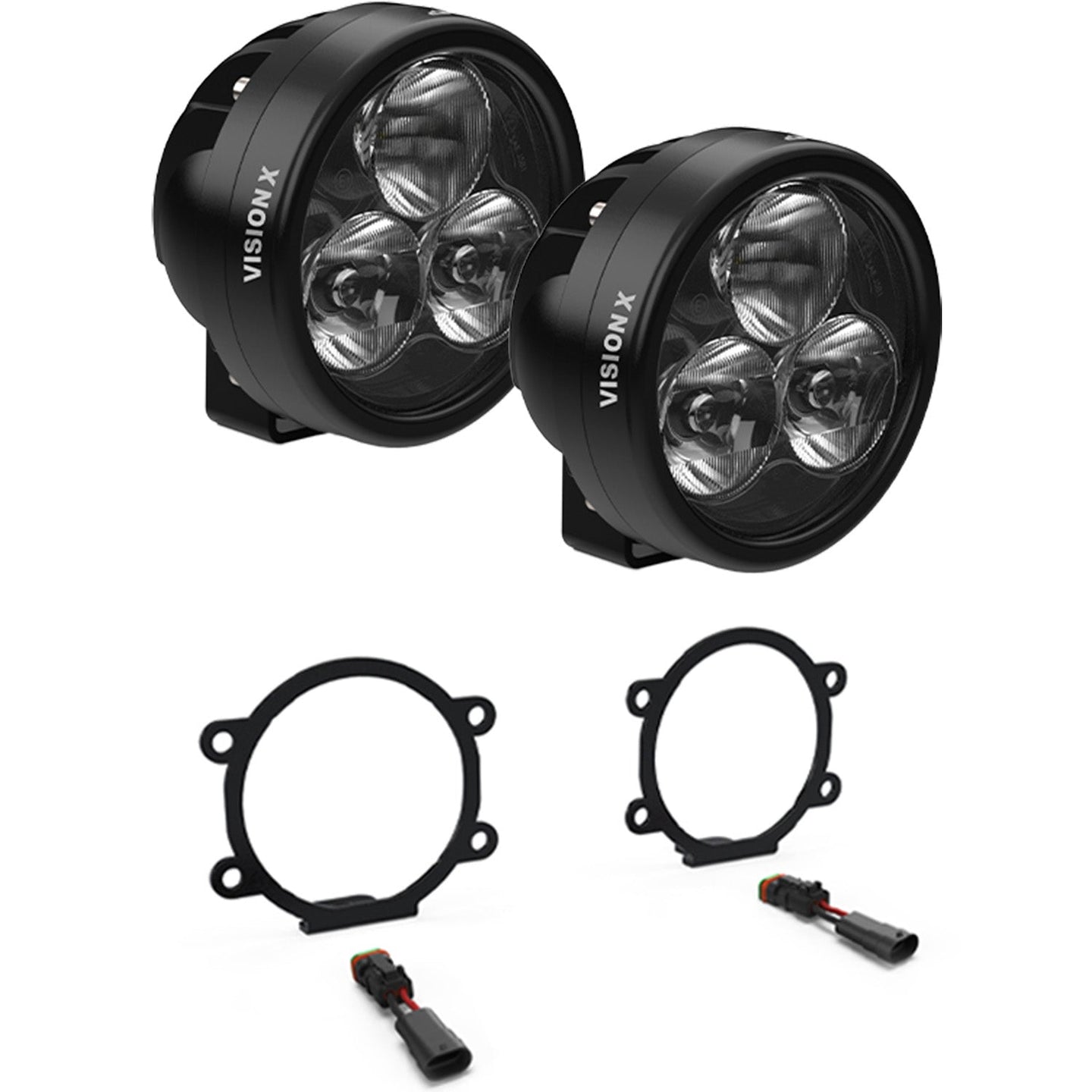

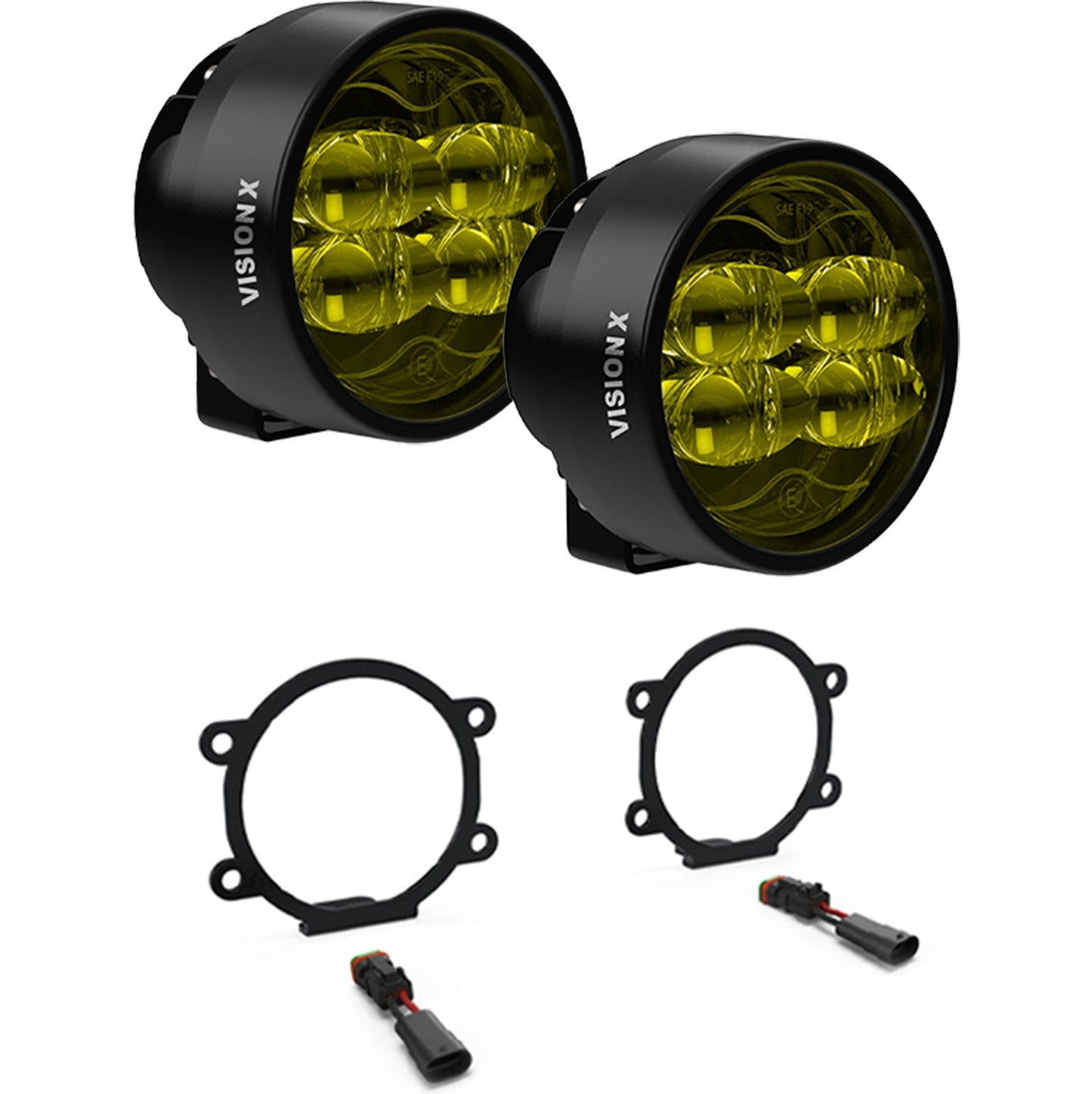

The CR-4 Fog and CR-3 Driving Lights are both available in clear and selective yellow lens options.

Key Features:

ECE and SAE Street Legal Beam Patterns
High Output Fog Beam (CR-4) Option
Perfected Hybrid Driving Beam (CR-3) Option
Clear and Selective Yellow Lens Options

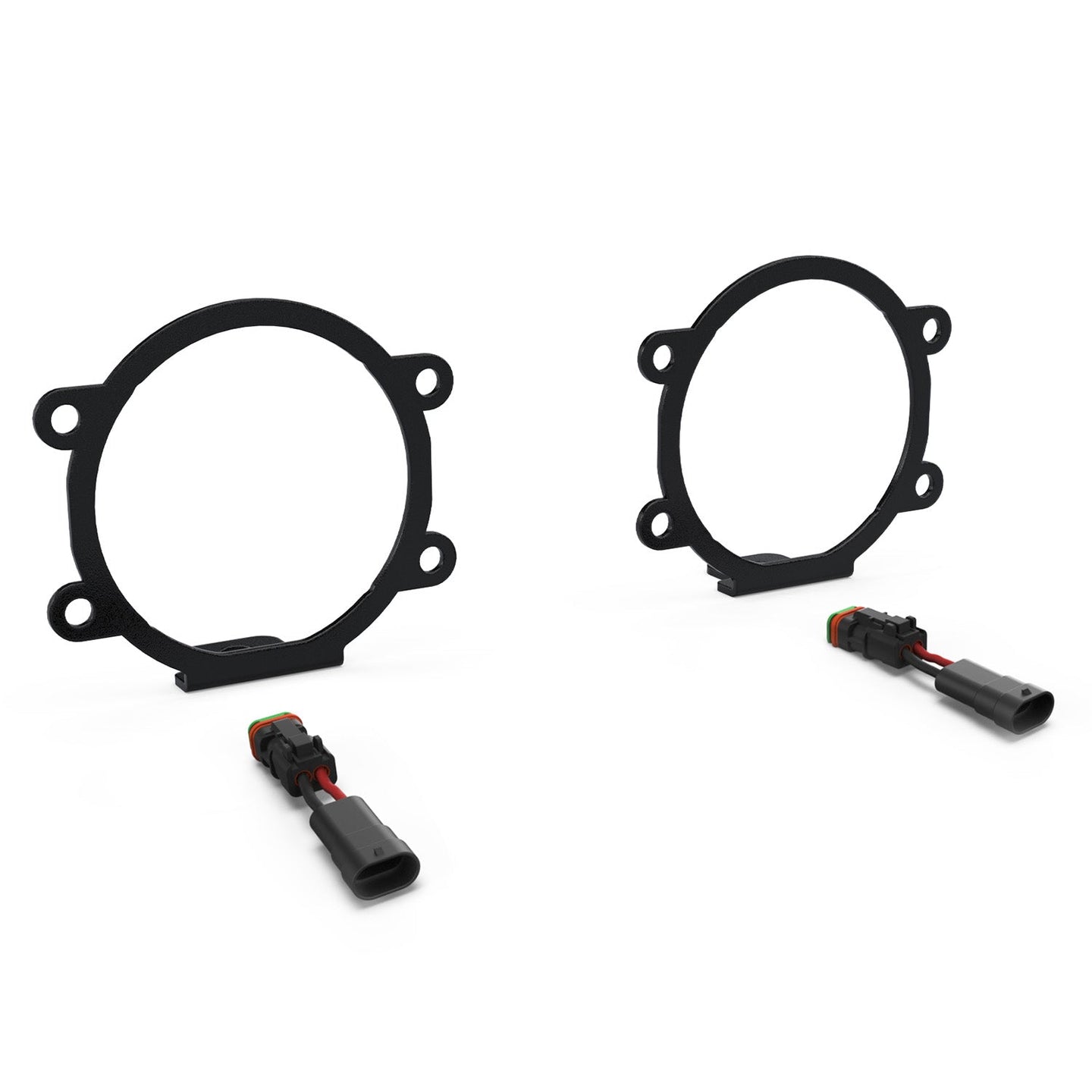

Complete Bolt-On, Plug-n-Play LED Upgrade Kit

Specifications

Model	CR-3 (Pair)	CR-4 (Pair)
Beam Pattern	Hybrid	Fog
Product LxWxH	3.54x2.62x3.74	3.54x3.01x3.74
Input Voltage	9-32V DC	9-32V DC
AMP Draw	6A	6.66A
Watts	72W	80W
Raw Lumens	4,200 lm	5,600 lm
Distance	1,050ft	450ft
Warranty	Limited Lifetime	Limited Lifetime

Vehicle Fitment

2019 Ford Ranger
2020 Ford Ranger
2021 Ford Ranger
2022 Ford Ranger
2022 Subaru Outback
2023 Subaru Outback
2013 Subaru Crosstrek
2014 Subaru Crosstrek
2015 Subaru Crosstrek
2016 Subaru Crosstrek
2017 Subaru Crosstrek
2018 Subaru Crosstrek
2019 Subaru Crosstrek
2020 Subaru Crosstrek
2021 Subaru Crosstrek

Downloads

Click Here For Instructions

CR-Series Performance LED Fog Light Upgrade Kit - Ranger, Subaru

SKU XIL-OEFRDSU1CR

Regular price: $52.99

Regular price: $52.99

Kit Options: Brackets & Connectors Only CR-3 Hybrid Clear CR-3 Hybrid Selective Yellow CR-4 Fog Clear CR-4 Fog Selective Yellow

Product variants

Quantity

The CR-4 Fog and CR-3 Driving Lights are both available in clear and selective yellow lens options.

Key Features:

ECE and SAE Street Legal Beam Patterns
High Output Fog Beam (CR-4) Option
Perfected Hybrid Driving Beam (CR-3) Option
Clear and Selective Yellow Lens Options
Complete Bolt-On, Plug-n-Play LED Upgrade Kit

Specifications

Model	CR-3 (Pair)	CR-4 (Pair)
Beam Pattern	Hybrid	Fog
Product LxWxH	3.54x2.62x3.74	3.54x3.01x3.74
Input Voltage	9-32V DC	9-32V DC
AMP Draw	6A	6.66A
Watts	72W	80W
Raw Lumens	4,200 lm	5,600 lm
Distance	1,050ft	450ft
Warranty	Limited Lifetime	Limited Lifetime
