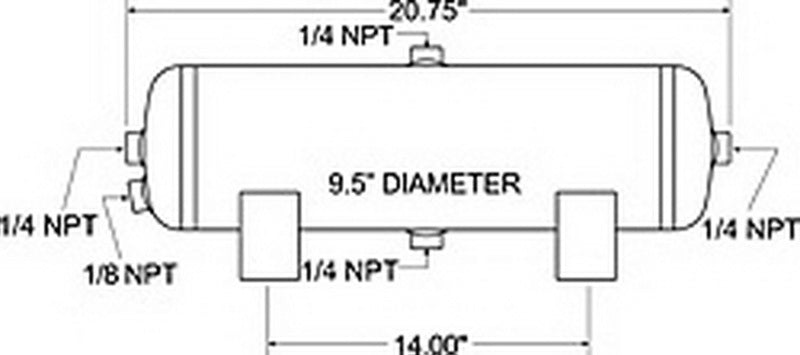

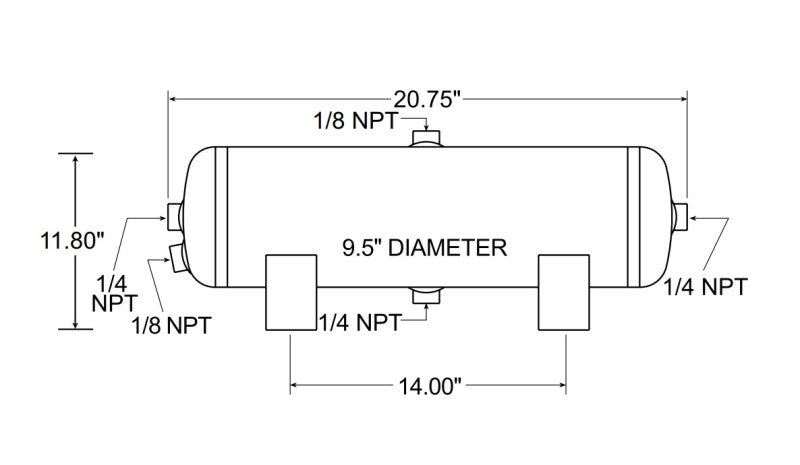

This Firestone air tank provides a source of compressed air for an air spring system. Tank has 5-gallon capacity, (4) 1/4 in. NPT ports and (1) 1/8 port. Tank is enamel coated, tested to be SAE J10 compliant and capable of 150 psi. Features: Provides compressed air source for an air helper spring system Allows for faster inflation of air springs Holds 5 gallons of compressed air Includes (4) 1/4 in. and (1) 1/8 NPT ports Resists corrosion with internal and external enamel coating Is SAE J10 compliant Operates at up to 150 psi of maximum pressure Specs: Tank dimensions: 20.75 in. long x 9.5 in. diameter Tank capacity: 5 gallons Inflation ports: 1/4 in. and 1/8 in. NPT PSI: Maximum of 150 2-Year limited warranty
Warranty

Firestone Air Tank 5 Gallon 9.5in. x 20.75in. (4) 1/4in. NPT Ports 150 PSI - Black (WR17609246)

SKU FIR9246
$170.98
$130.09
$170.98
$130.09
This Firestone air tank provides a source of compressed air for an air spring system. Tank has 5-gallon capacity, (4) 1/4 in. NPT ports and (1) 1/8 port. Tank is enamel coated, tested to be SAE J10 compliant and capable of 150 psi. Features: Provides compressed air source for an air helper spring system Allows for faster inflation of air springs Holds 5 gallons of compressed air Includes (4) 1/4 in. and (1) 1/8 NPT ports Resists corrosion with internal and external enamel coating Is SAE J10 compliant Operates at up to 150 psi of maximum pressure Specs: Tank dimensions: 20.75 in. long x 9.5 in. diameter Tank capacity: 5 gallons Inflation ports: 1/4 in. and 1/8 in. NPT PSI: Maximum of 150 2-Year limited warranty
Warranty
