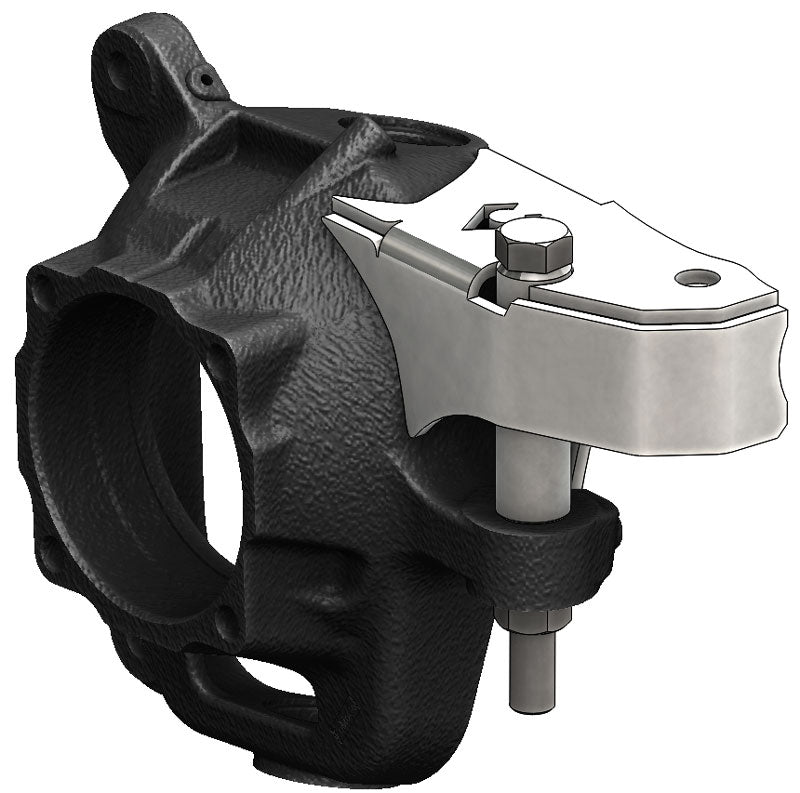

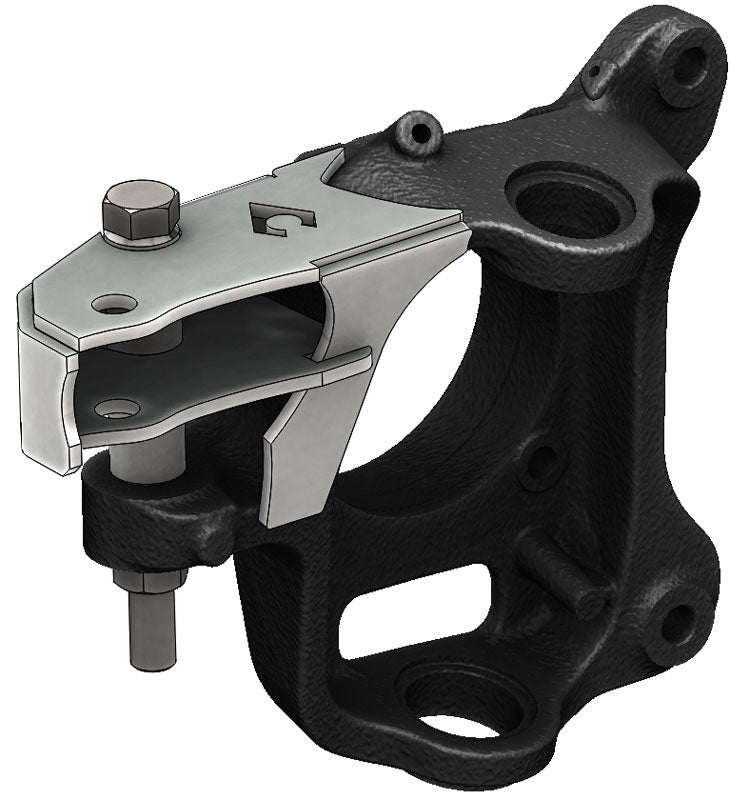

SuperDuty Knuckle Full Hydro Weld On High Steer Arms (Pair)

Affordable weld on arms for the 05+ SuperDuty Knuckles to help eliminate those swap steering issues.

  • Fully fabricated for the best steering geometry and clearances
  • Engineered for best alignment of tie rod and hydraulic steering ram, providing maximum strength and longevity
  • Best used with our new Superduty 60 Full Hydro Ram Mount. LINK
  • Included Knuckle Bolts and tapered spacers for tight fit and increased strength
  • Welds directly to factory knuckles (2005 and up SuperDuty)
  • 3/4" bolt holes for uncompromising steering strength
  • Precision Laser Cut from 1/4" steel and CNC Bent for accurate fitment
  • Minimal modification to OEM knuckle needed*
Sold in pairs only (DRIVER SIDE AND PASSENGER SIDE). Includes knuckle bolt kits (8" long bolt, sleeve and stover locking nut) and all internal gusseting.
Rod end bolts not included.

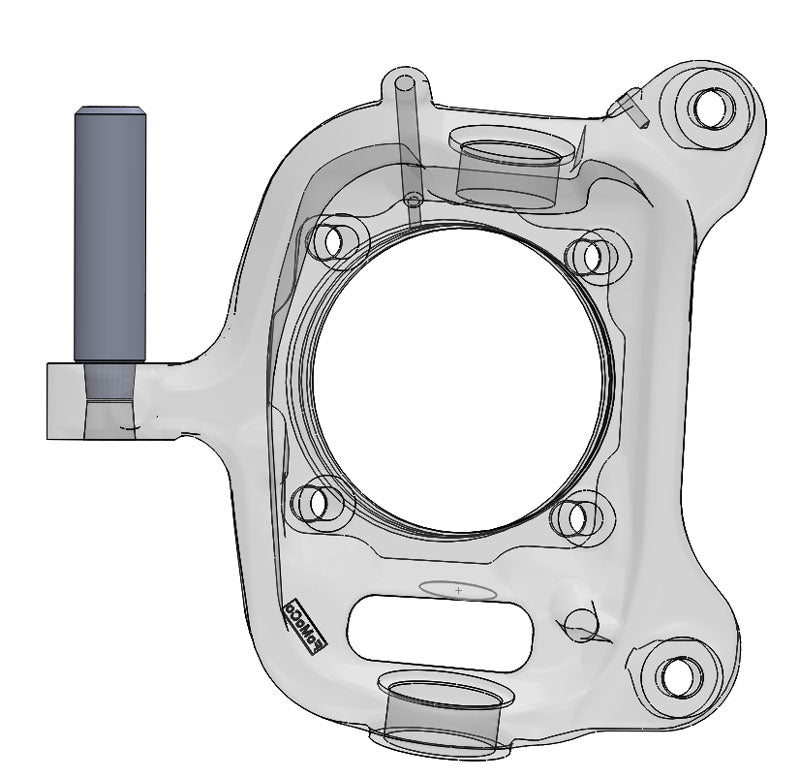

*Driver Side Knuckle hole will need to be drilled out to 3/4". Casting remnants on front of knuckle will need to be ground down. Knuckles from '05-'10 are slightly different than '11+ so we've etched a trim line on the laser cut part that will need to be trimmed off.
***Requires welding and minor fabrication. We highly recommend this kit only be installed by a competent welder.***

Full Hydro Weld-On High Steer Arms - 05+ SuperDuty

SKU HS6151
$296.99
$296.99
SuperDuty Knuckle Full Hydro Weld On High Steer Arms (Pair)

Affordable weld on arms for the 05+ SuperDuty Knuckles to help eliminate those swap steering issues.

  • Fully fabricated for the best steering geometry and clearances
  • Engineered for best alignment of tie rod and hydraulic steering ram, providing maximum strength and longevity
  • Best used with our new Superduty 60 Full Hydro Ram Mount. LINK
  • Included Knuckle Bolts and tapered spacers for tight fit and increased strength
  • Welds directly to factory knuckles (2005 and up SuperDuty)
  • 3/4" bolt holes for uncompromising steering strength
  • Precision Laser Cut from 1/4" steel and CNC Bent for accurate fitment
  • Minimal modification to OEM knuckle needed*
Sold in pairs only (DRIVER SIDE AND PASSENGER SIDE). Includes knuckle bolt kits (8" long bolt, sleeve and stover locking nut) and all internal gusseting.
Rod end bolts not included.

*Driver Side Knuckle hole will need to be drilled out to 3/4". Casting remnants on front of knuckle will need to be ground down. Knuckles from '05-'10 are slightly different than '11+ so we've etched a trim line on the laser cut part that will need to be trimmed off.
***Requires welding and minor fabrication. We highly recommend this kit only be installed by a competent welder.***
