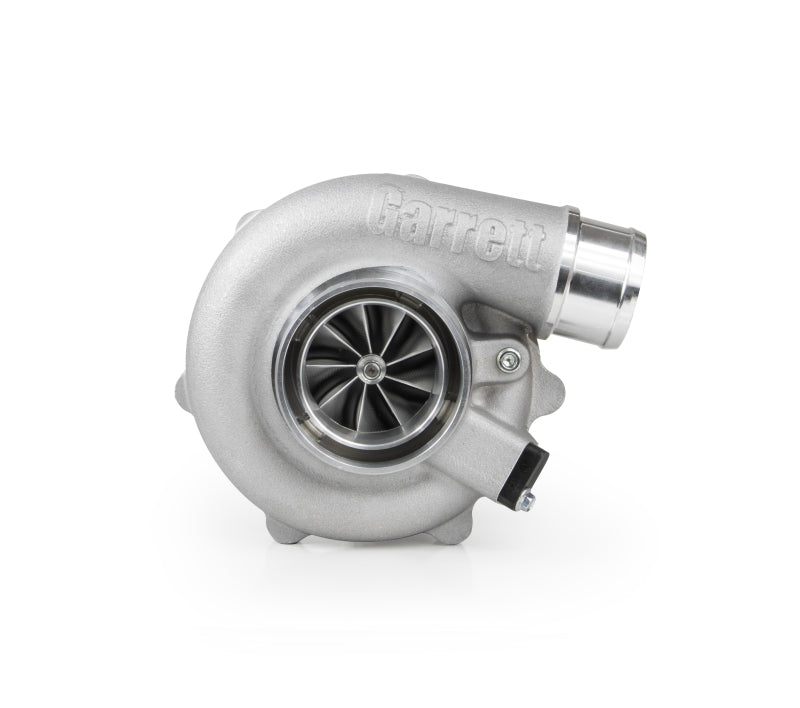

Garrett Model 934115-5004S

GARRETT 934115-5004S Turbocharger G-Series II G25-700 RR, 0.92 A/R, V-Band / V-Band, Internal Wastegate, Reverse Rotation

  • G-Series II G25-700 reverse rotation turbo is fully assembled and calibrated with a 0.5 bar actuator
  • New compressor aero technology increases power and performance
  • Direct upgrade path for Gen I customers with just a CHRA purchase
  • G-Series II utilizes Gen I compressor and turbine housings.
  • Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM
  • Calibration required to take advantage of increased flow for a horsepower upgrade
  • Increased efficiency at high flow rates
  • 54mm Compressor Inducer / 67mm exducer
  • Mar-M alloy turbine wheel rated up to 1050C degree
  • Stainless steel turbine housings are rated up to 1050C degree
  • Oil restrictor and water fittings included

Garrett G25-700 Reverse Rotation G-Series II Turbocharger 0.92 A/R V-Band / V-Band IWG

SKU GRT934115-5004S
$3,656.18
$3,071.19
$3,656.18
$3,071.19

Garrett Model 934115-5004S

GARRETT 934115-5004S Turbocharger G-Series II G25-700 RR, 0.92 A/R, V-Band / V-Band, Internal Wastegate, Reverse Rotation

  • G-Series II G25-700 reverse rotation turbo is fully assembled and calibrated with a 0.5 bar actuator
  • New compressor aero technology increases power and performance
  • Direct upgrade path for Gen I customers with just a CHRA purchase
  • G-Series II utilizes Gen I compressor and turbine housings.
  • Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM
  • Calibration required to take advantage of increased flow for a horsepower upgrade
  • Increased efficiency at high flow rates
  • 54mm Compressor Inducer / 67mm exducer
  • Mar-M alloy turbine wheel rated up to 1050C degree
  • Stainless steel turbine housings are rated up to 1050C degree
  • Oil restrictor and water fittings included
