Garrett Model 934118-5003S

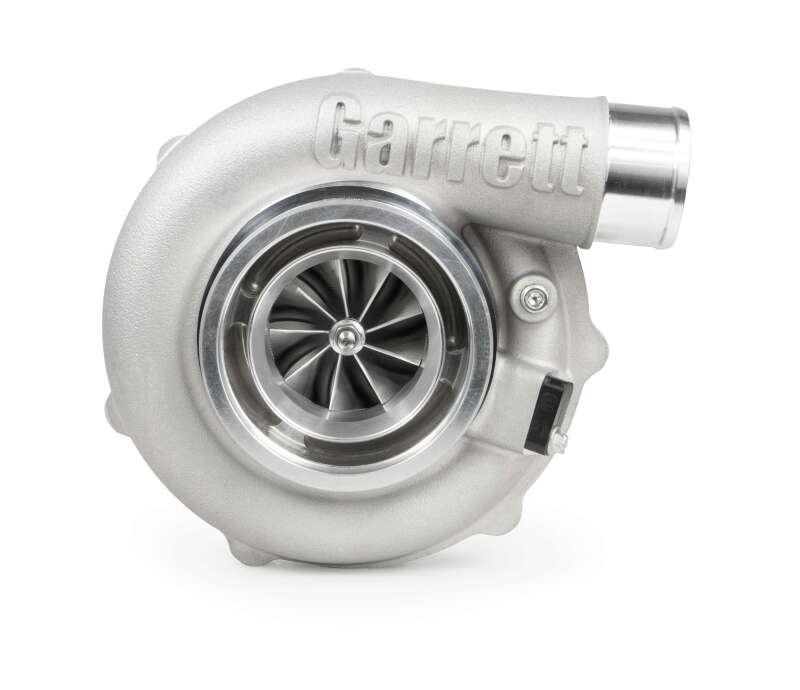

GARRETT 934118-5003S Turbocharger G-Series II G30-825, 0.83 A/R, V-Band / V-Band, Internal Wastegate

  • G-Series II G30-825 standard rotation turbo is fully assembled and calibrated with a 0.5 bar actuator
  • New compressor aero technology increases power and performance
  • Direct upgrade path for Gen I customers with just a CHRA purchase
  • G-Series II utilizes Gen I compressor and turbine housings.
  • Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM
  • Calibration required to take advantage of increased flow for a horsepower upgrade
  • Increased efficiency at high flow rates
  • 58mm Compressor Inducer / 71mm exducer
  • Mar-M alloy turbine wheel rated up to 1050C degree
  • Stainless steel turbine housings are rated up to 1050C degree
  • Oil restrictor and water fittings included

Garrett G30-825 G-Series II Turbocharger 0.83 A/R V-Band / V-Band IWG

SKU GRT934118-5003S
$3,750.57
$3,150.48
$3,750.57
$3,150.48

Garrett Model 934118-5003S

GARRETT 934118-5003S Turbocharger G-Series II G30-825, 0.83 A/R, V-Band / V-Band, Internal Wastegate

  • G-Series II G30-825 standard rotation turbo is fully assembled and calibrated with a 0.5 bar actuator
  • New compressor aero technology increases power and performance
  • Direct upgrade path for Gen I customers with just a CHRA purchase
  • G-Series II utilizes Gen I compressor and turbine housings.
  • Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM
  • Calibration required to take advantage of increased flow for a horsepower upgrade
  • Increased efficiency at high flow rates
  • 58mm Compressor Inducer / 71mm exducer
  • Mar-M alloy turbine wheel rated up to 1050C degree
  • Stainless steel turbine housings are rated up to 1050C degree
  • Oil restrictor and water fittings included
