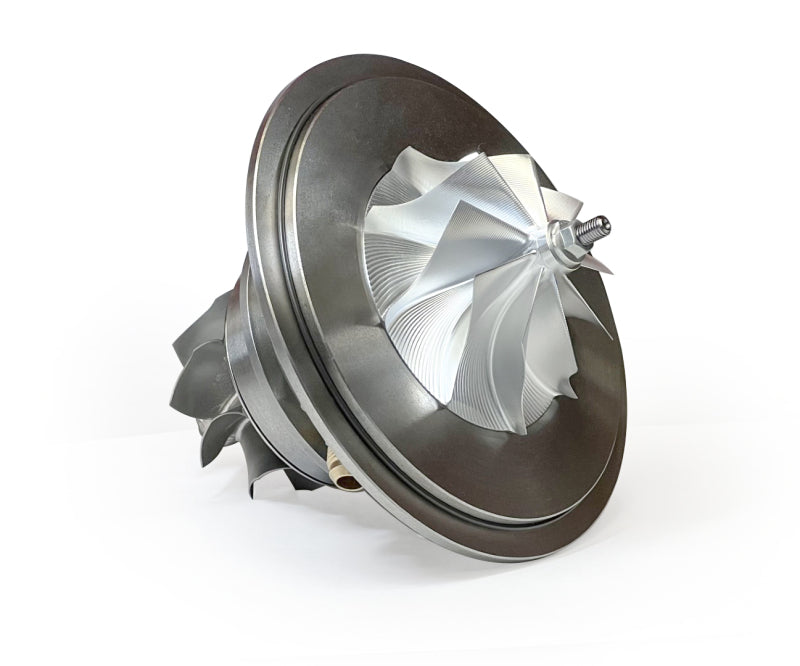

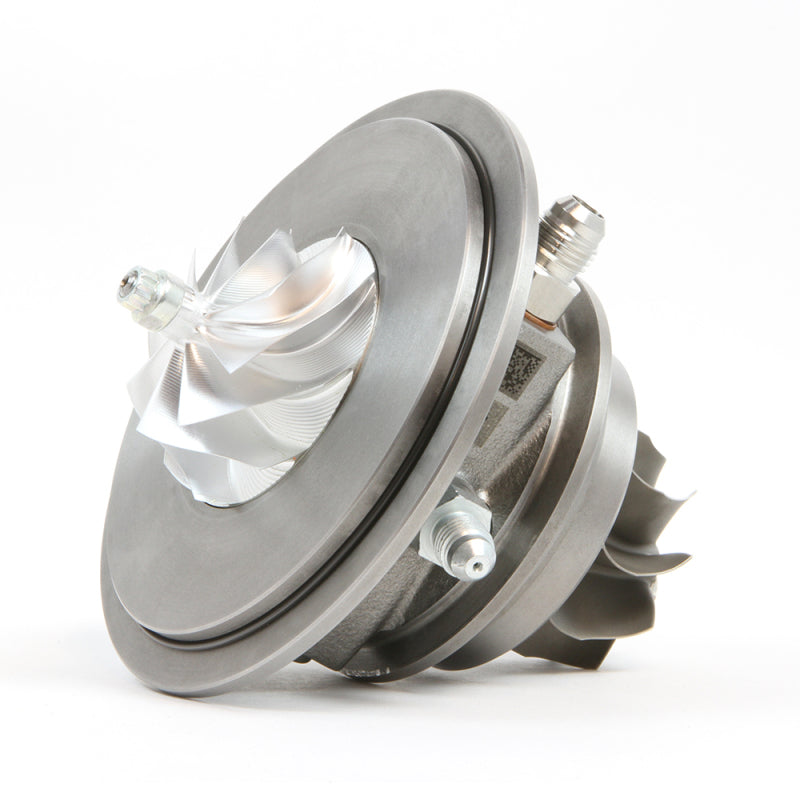

Garrett Model 934122-5001S

Garrett G35-990 G-Series II CHRA

• G-Series II G35-990 standard rotation CHRA
• New compressor aero technology increases power and performance
• Direct upgrade path for Gen I customers with just a CHRA purchase
• G-Series II utilizes Gen I compressor and turbine housings
• Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM
• Calibration required to take advantage of increased flow for a horsepower upgrade
• 62mm Compressor Inducer / 76mm exducer
• Increased efficiency at high flow rates
• Mar-M alloy turbine wheel rated up to 1050C degree
• Stainless steel turbine housings are rated up to 1050C degree (sold separately)
• Oil restrictor and water fittings included
