Part# KRHX10

Fits; Kryptonite and Many Other Brand UTV Tie Rod and Radius Rod Systems. Left Hand Thread 5/8" Shank 5/8" Bore 3/4" Offset.

HEIM SPECS:

• Left Hand Thread
• 5/8" Shank
• 5/8" Bore
• 3/4" Offset

IMPORTANT INFO:

• Sold Individually
• jam nut sold separately
• These parts will NOT work with OEM tie rods

FEATURES:

• High Strength Aircraft-Grade 4130 Chromoly Steel
• Kevlar-Reinforced Teflon Lining
• Zinc Plated for Corrosion Resistance
• Center Ball: 52100 Bearing Steel, Heat Treated, Hard Chromed, and Precision Ground

DESCRIPTION:

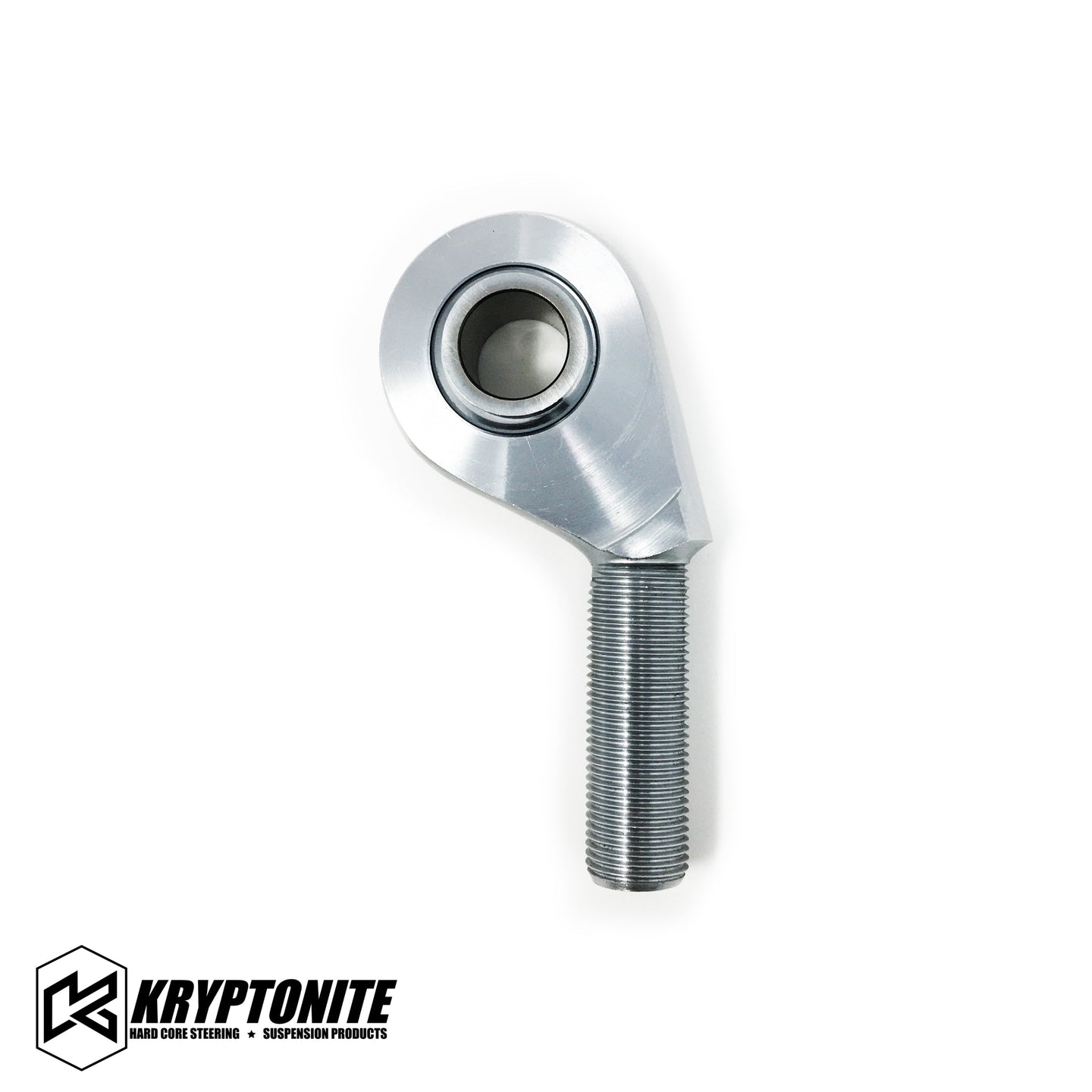

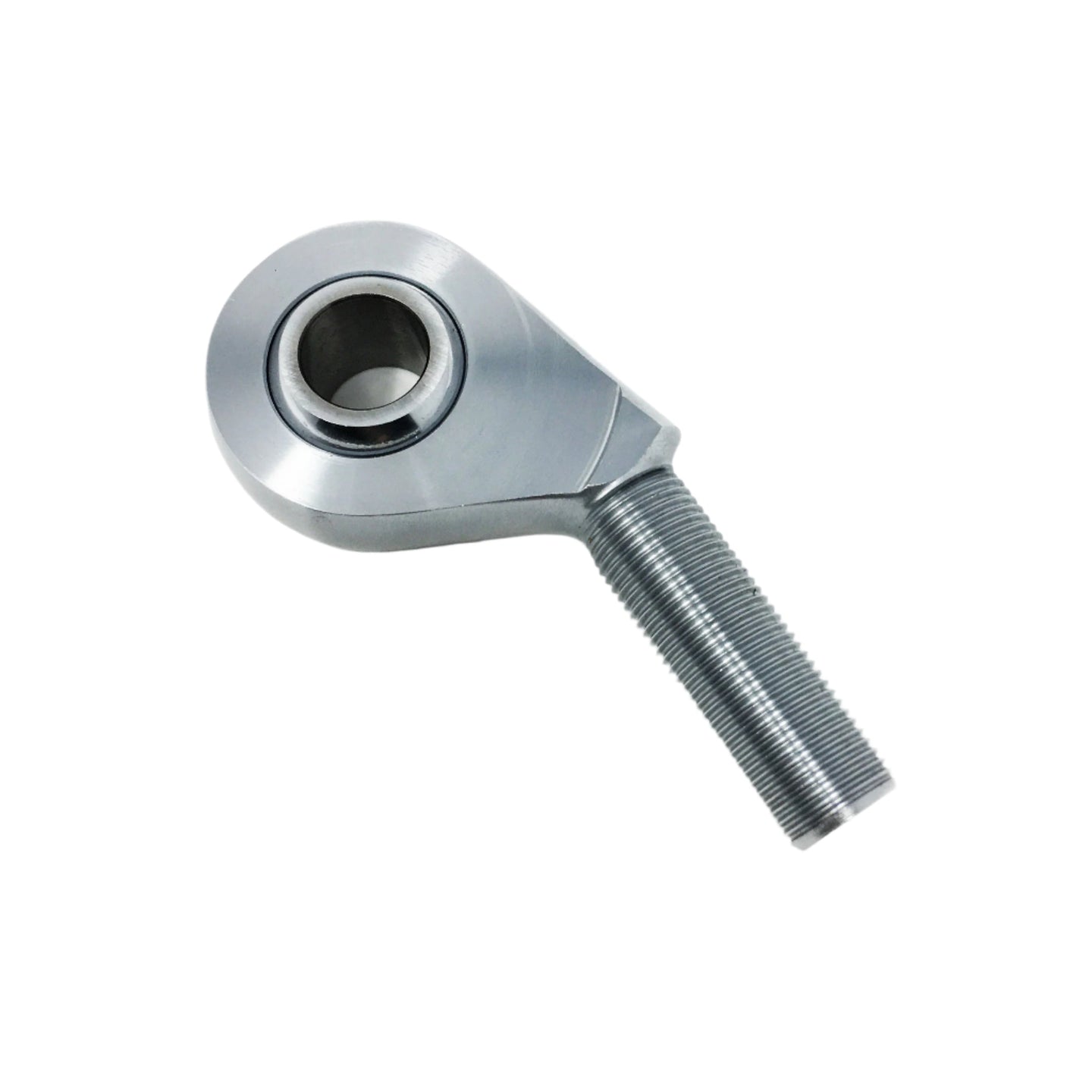

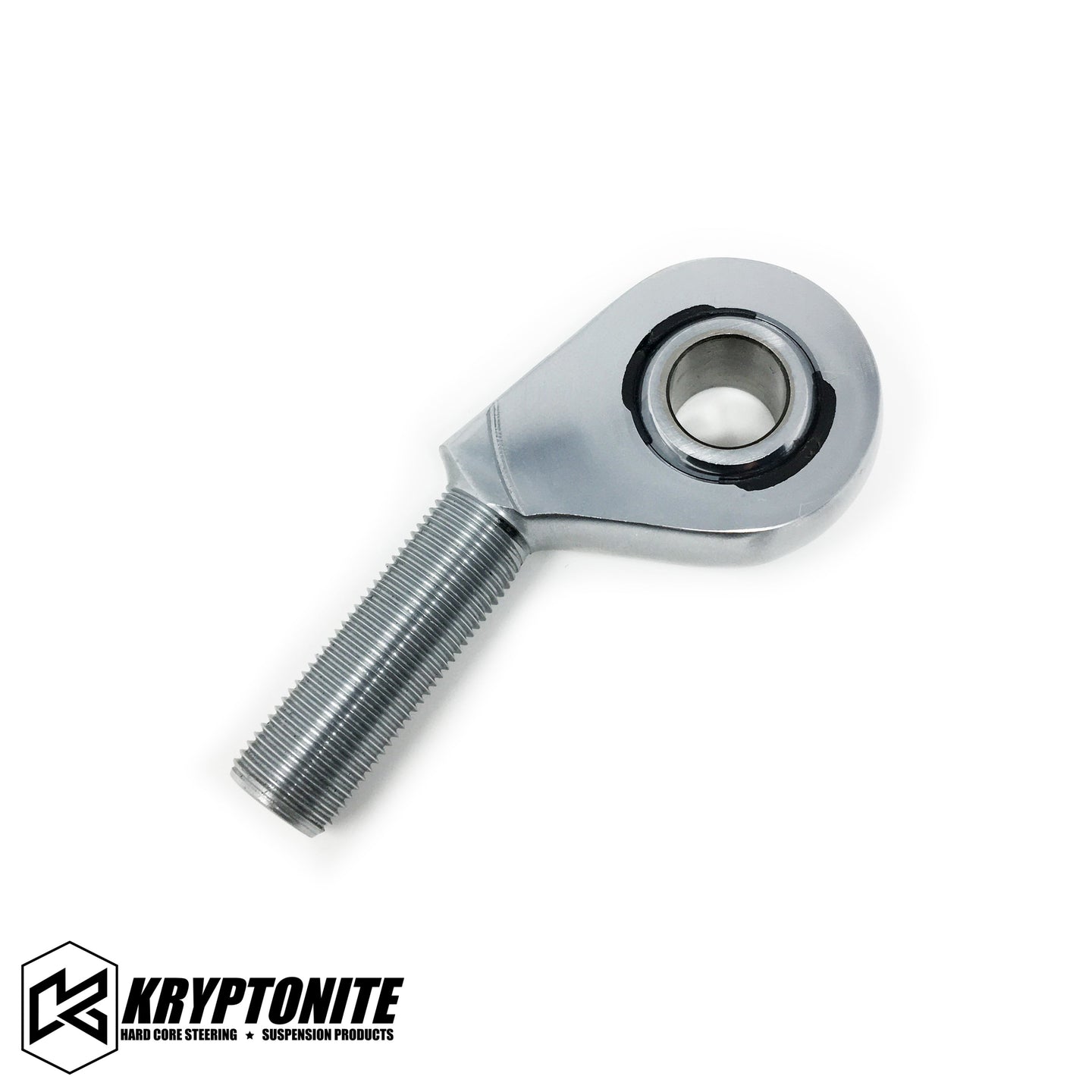

Finally, a 5/8" x 5/8" Offset Heim Joint option!

This unique joint is designed to allow for tie rod and other steering/suspension linkage fitment in tight spots where clearance and offset are required. Manufactured from the highest quality materials, these rod ends combine high strength alloy construction with a Kevlar-reinforced Teflon liner for maximum durability.

All rod ends are wearable parts — meaning replacement will be needed after extended use. Choose your thread direction/style in the drop-down above.
