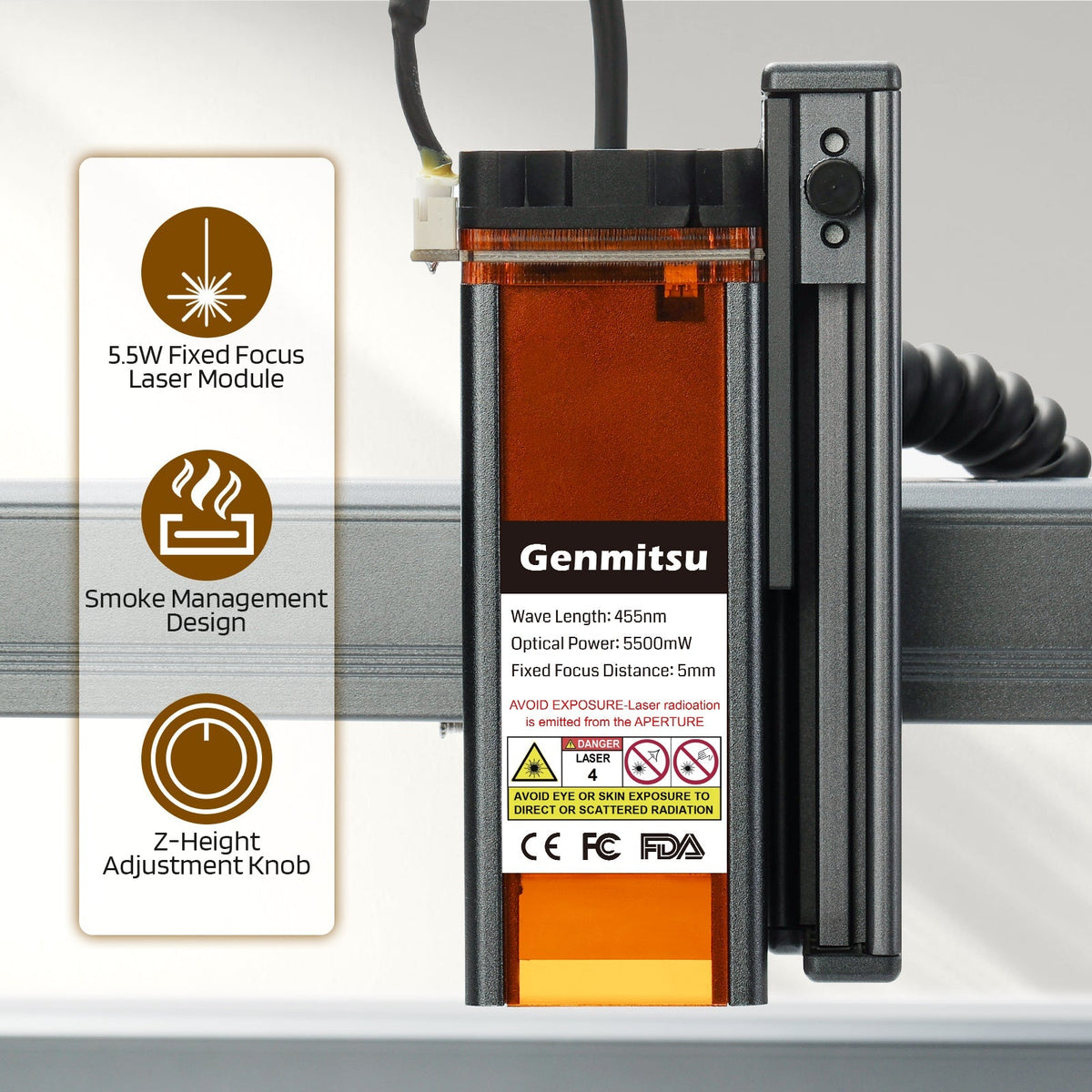

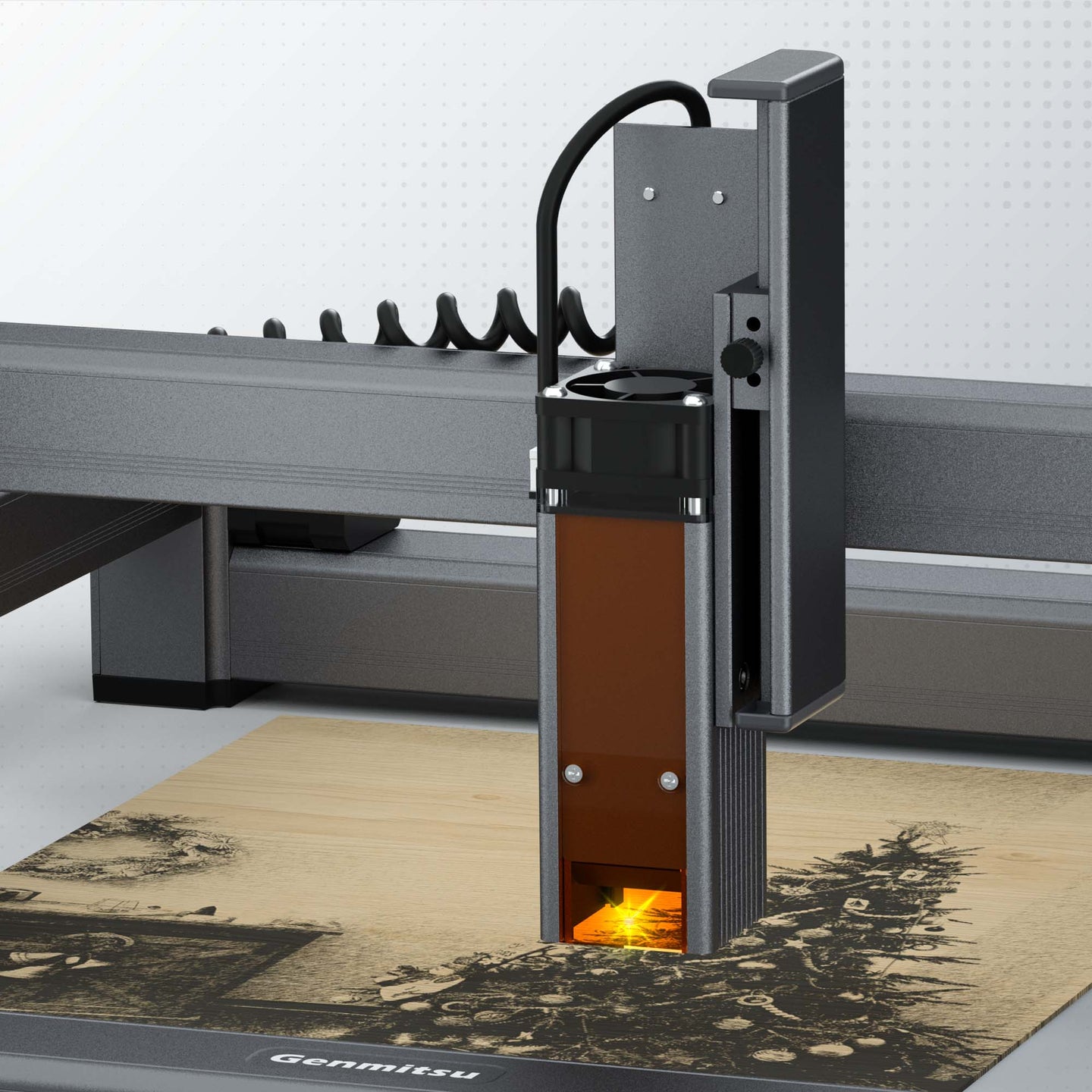

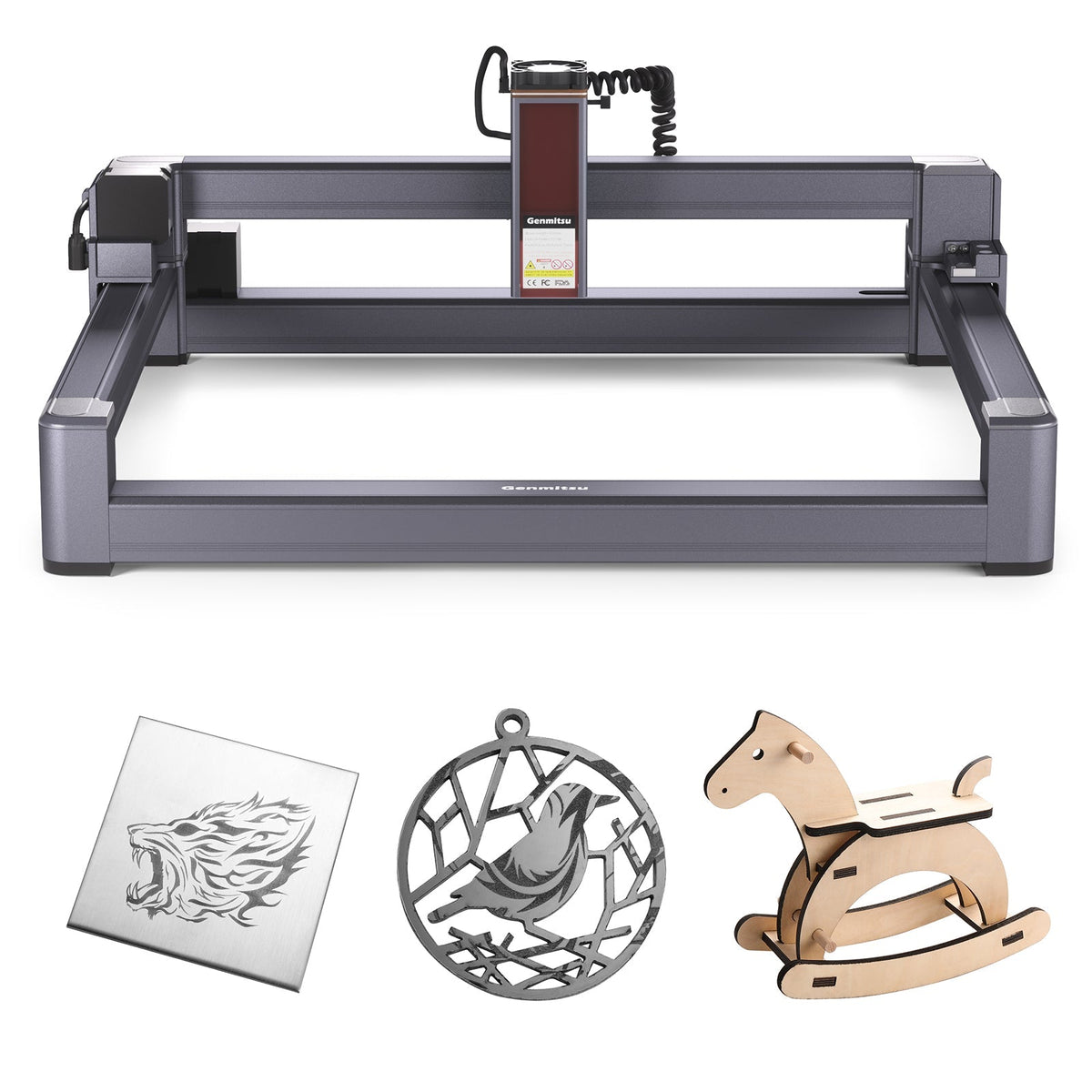

Compressed FAC 5.5-10W Laser

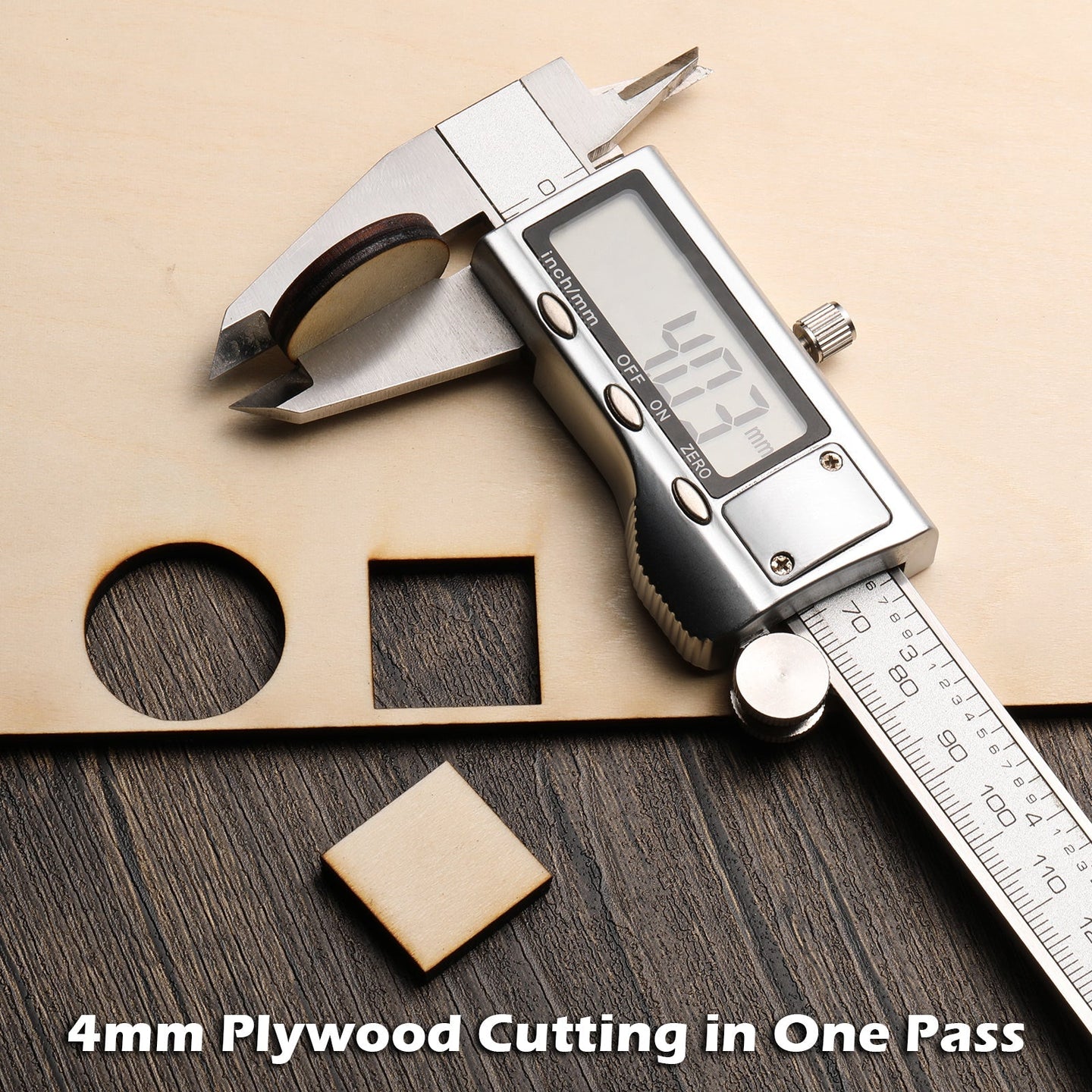

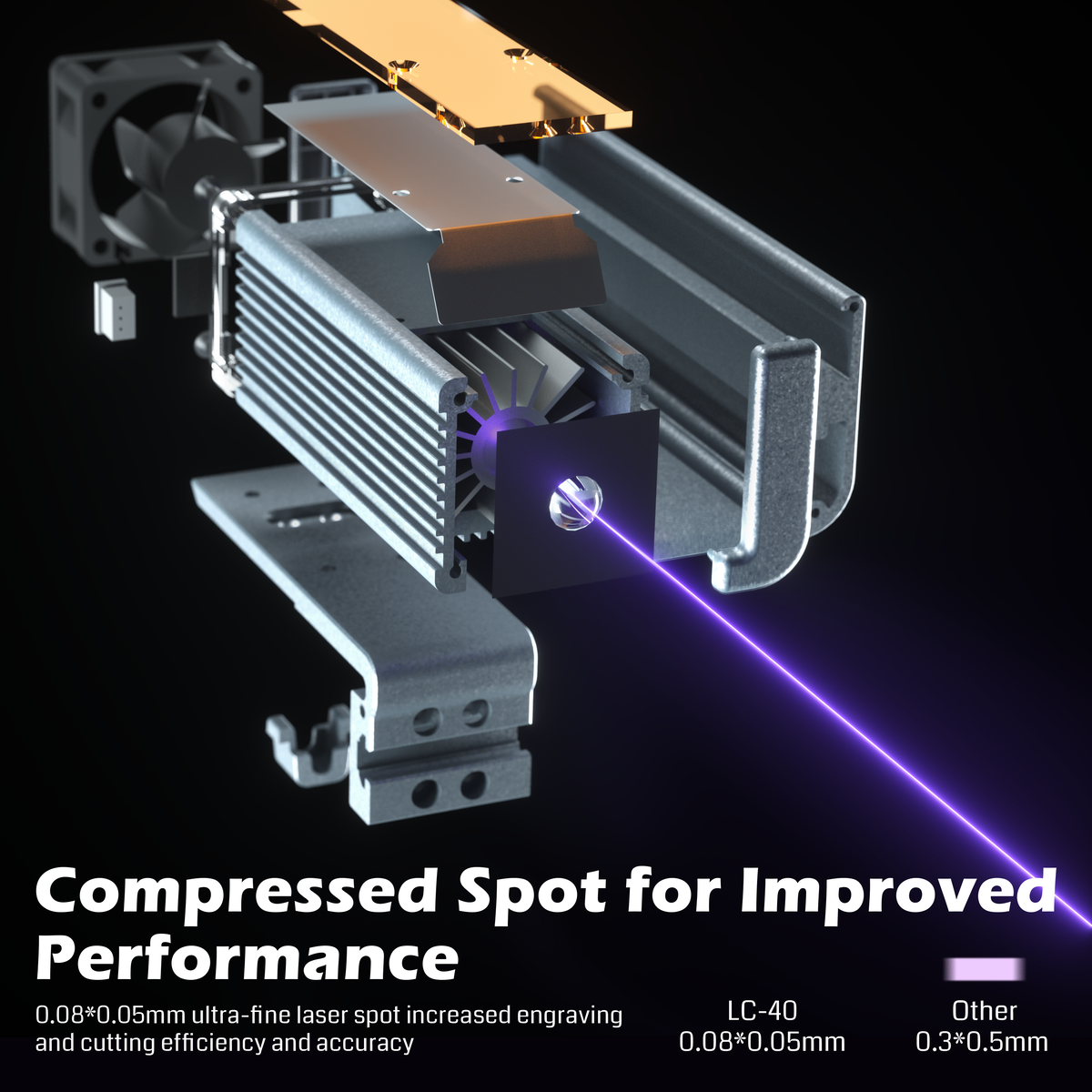

Jinsoku LC-40 is the latest true power, 5.5W and 10W laser module is available for laser cutting and engraveing, adopting the latest dual-laser coupling technology adopts compressed spot technology that enables an ultra-fine laser spot 0.08mm*0.05mm, to achieve higher output power and performance that greatly improves engraving and cutting capabilities. At a speed up to 10,200mm/min, it can cut up to 10mm wood and 5mm acrylic in one pass.

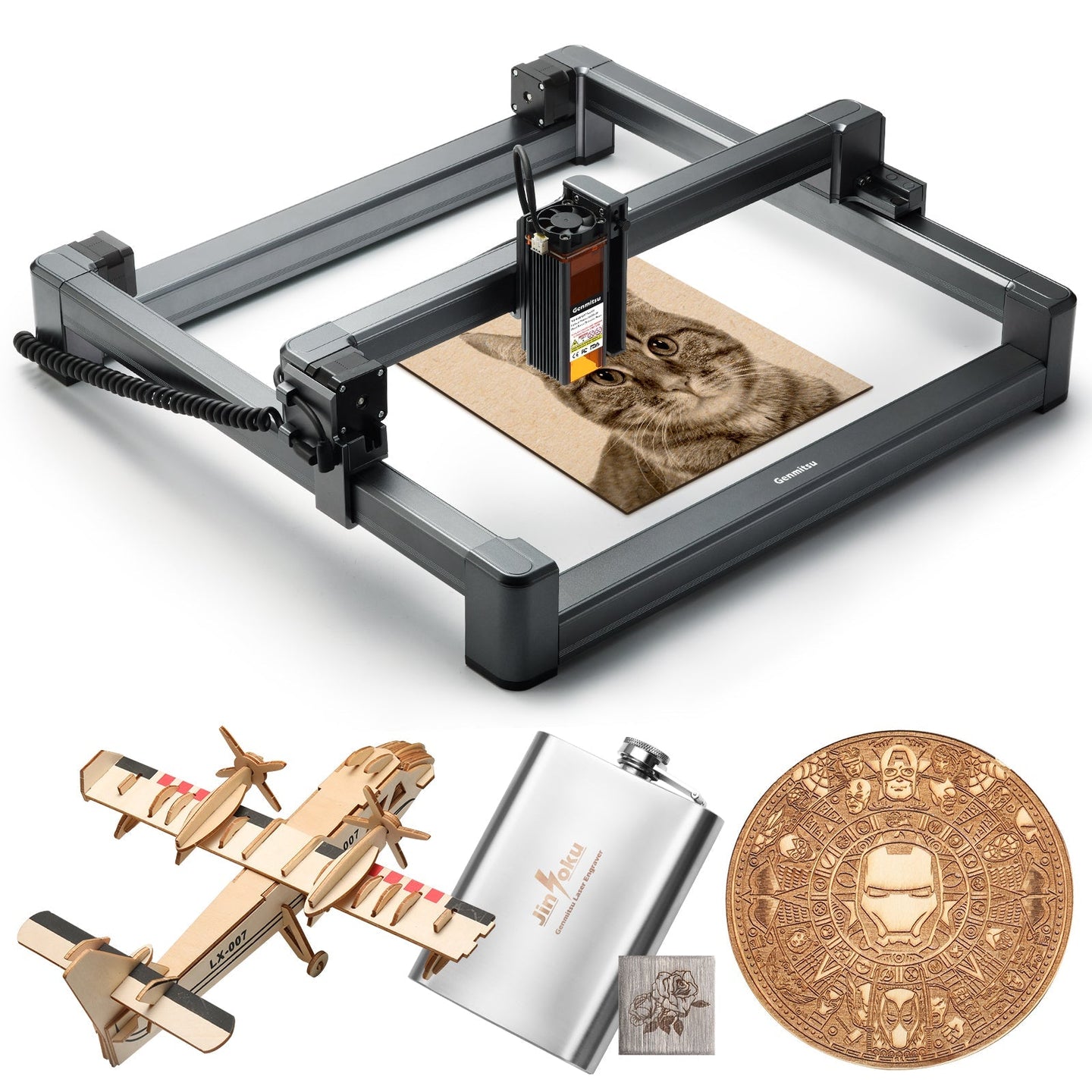

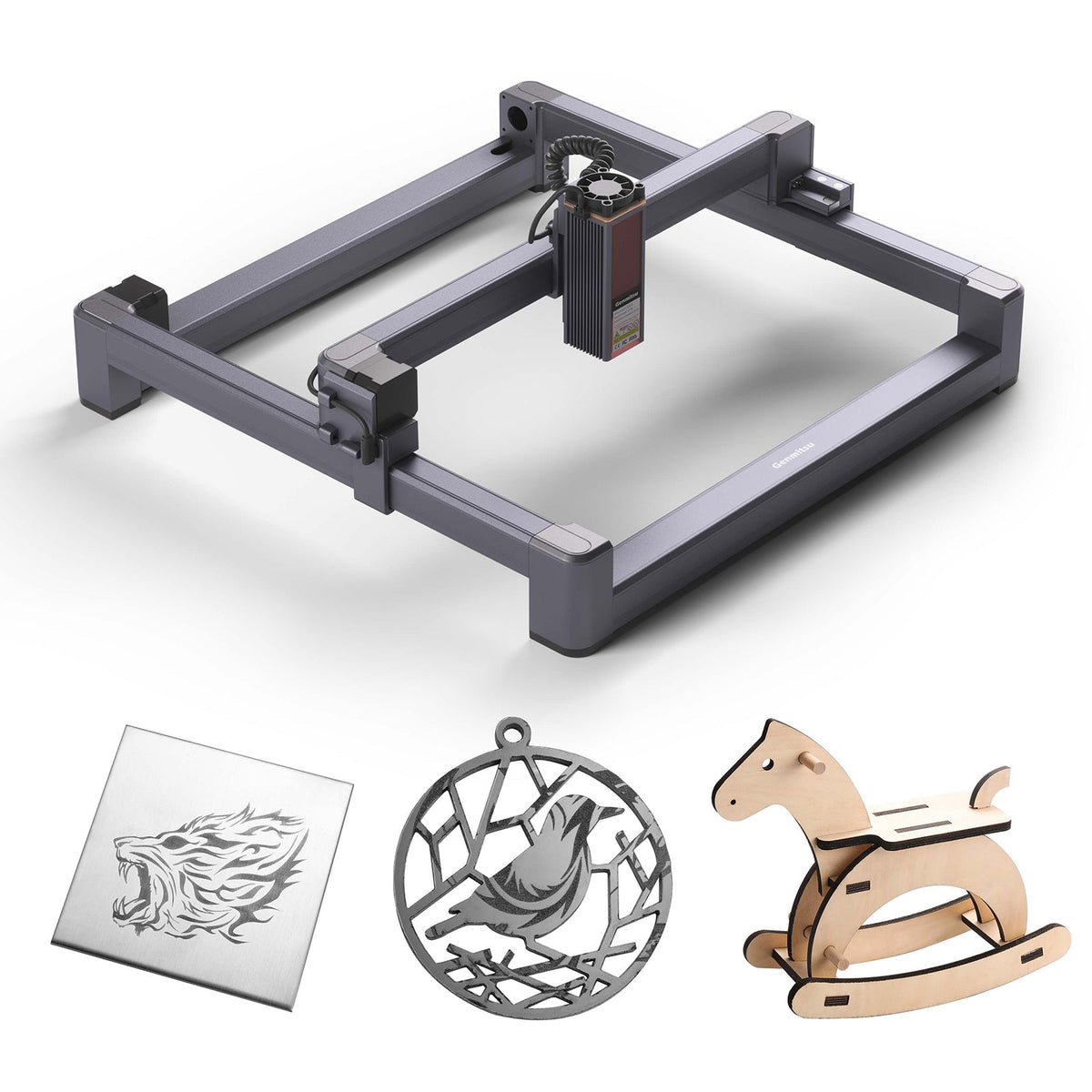

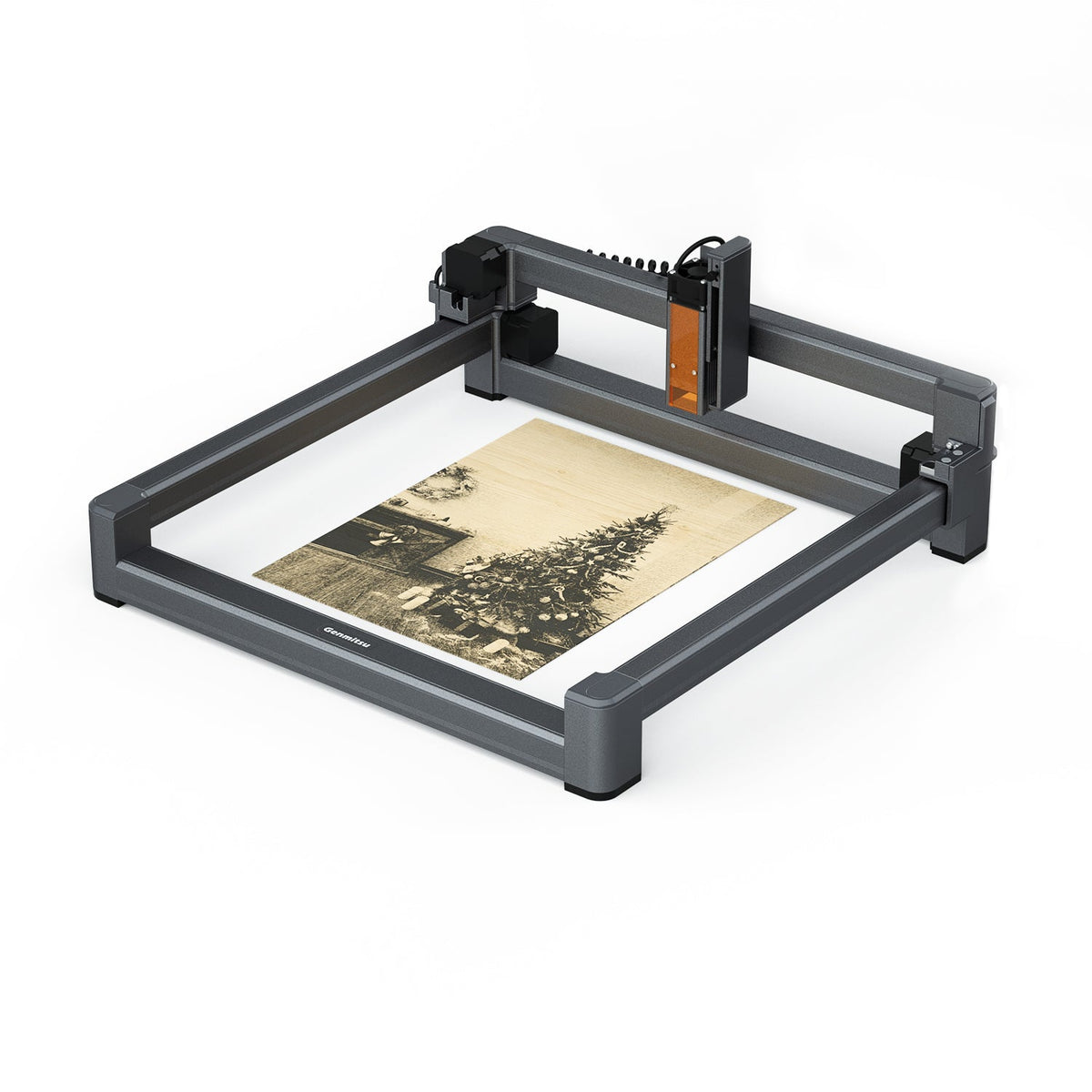

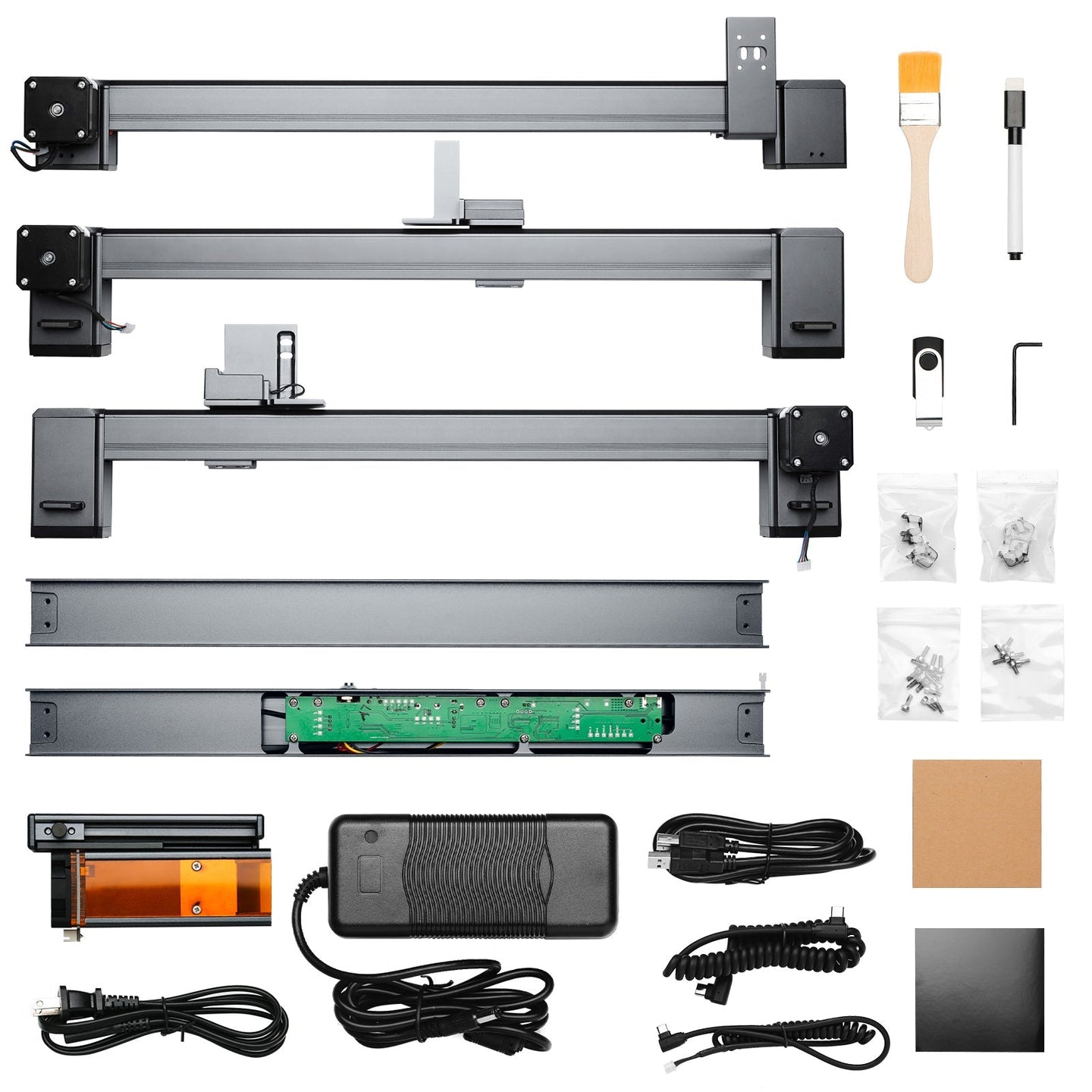

Modular Design, Easy Setup

It features a modular design for easy assembly, comes with a 400 x 400mm work area, and built around the fixed focus laser and focusing tool making getting this engraver assembled and focused effortlessly. In combination with the Laser Engraving APP that also prioritizes ease of use, anyone can get their engraving jobs done in just a few clicks.

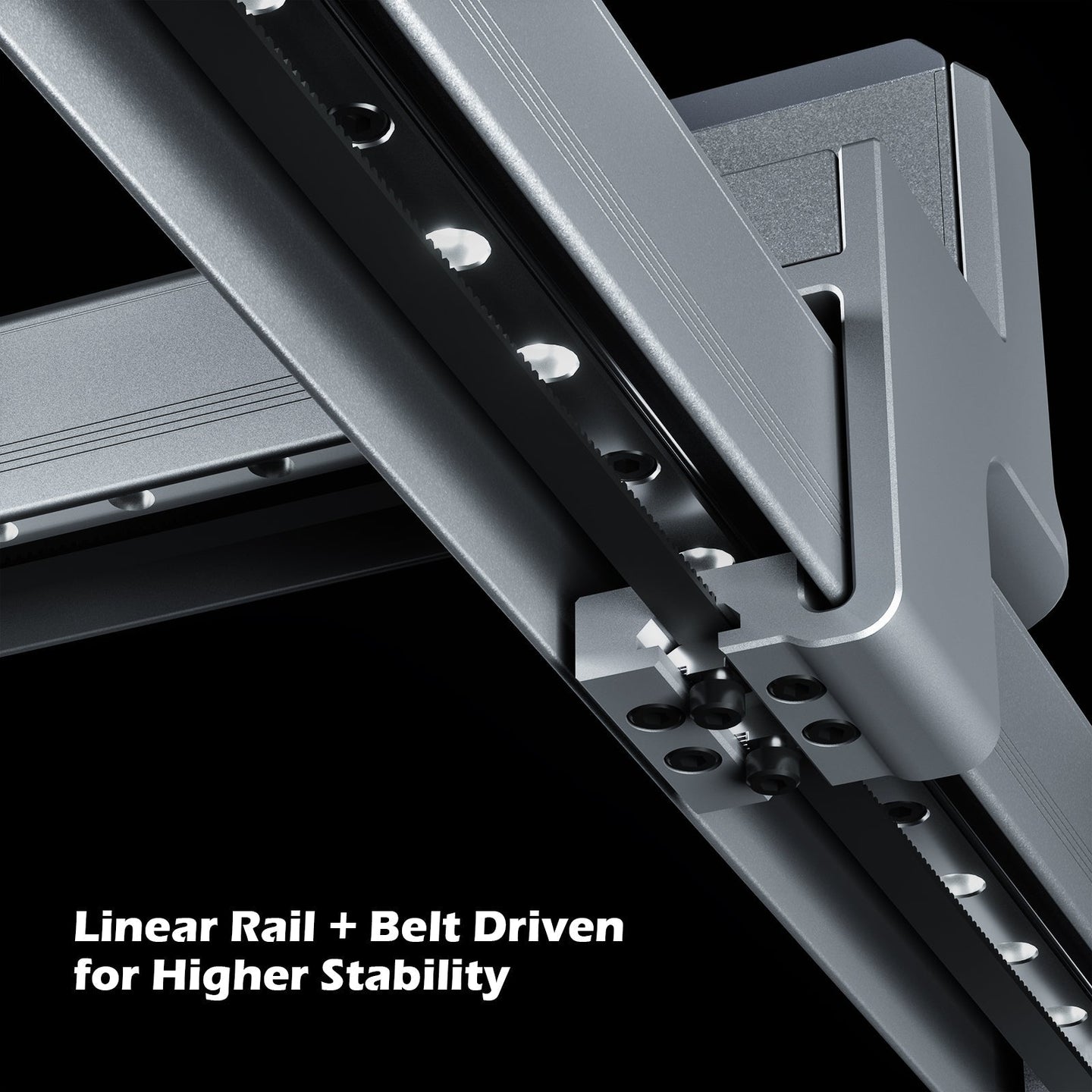

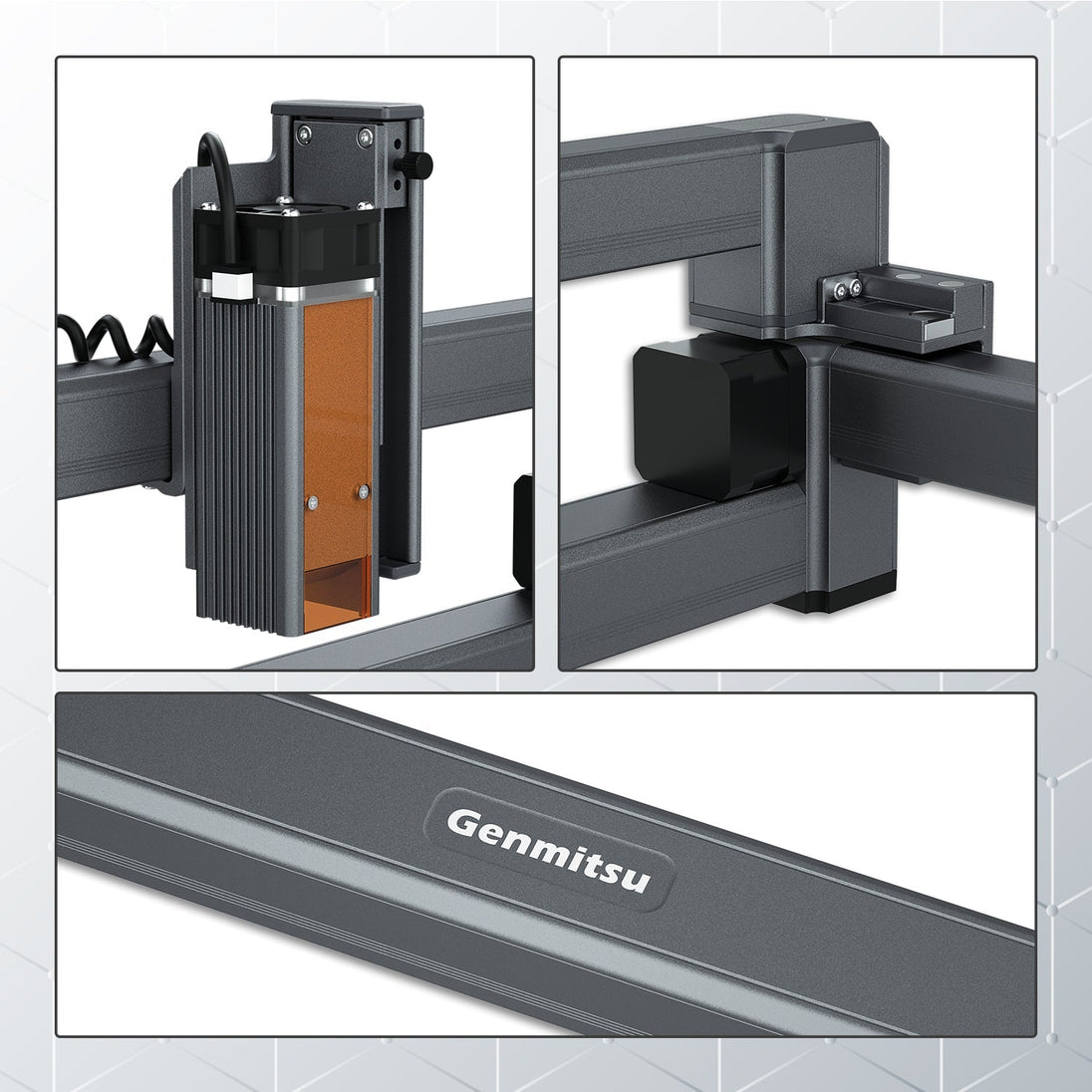

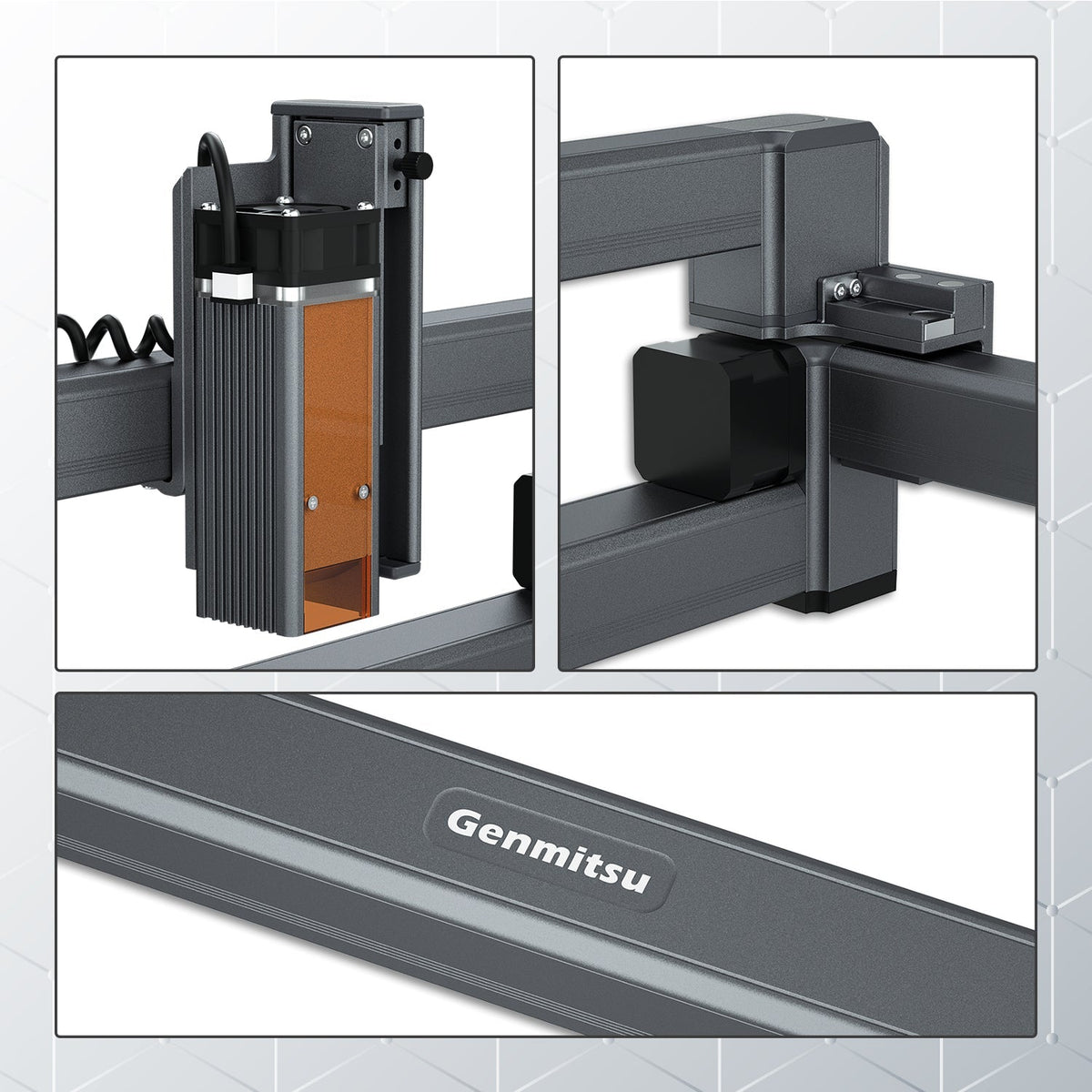

Robust Build Linear Rails

Linear rail motion system and solid aluminum frame ensure engraving accuracy of the Jinsoku LC-40. The smoke management design on the machine also helps deliver crisp and clean engraving results.

More Features

One-Click Repeat Button
Repeat your last laser project in just one click.

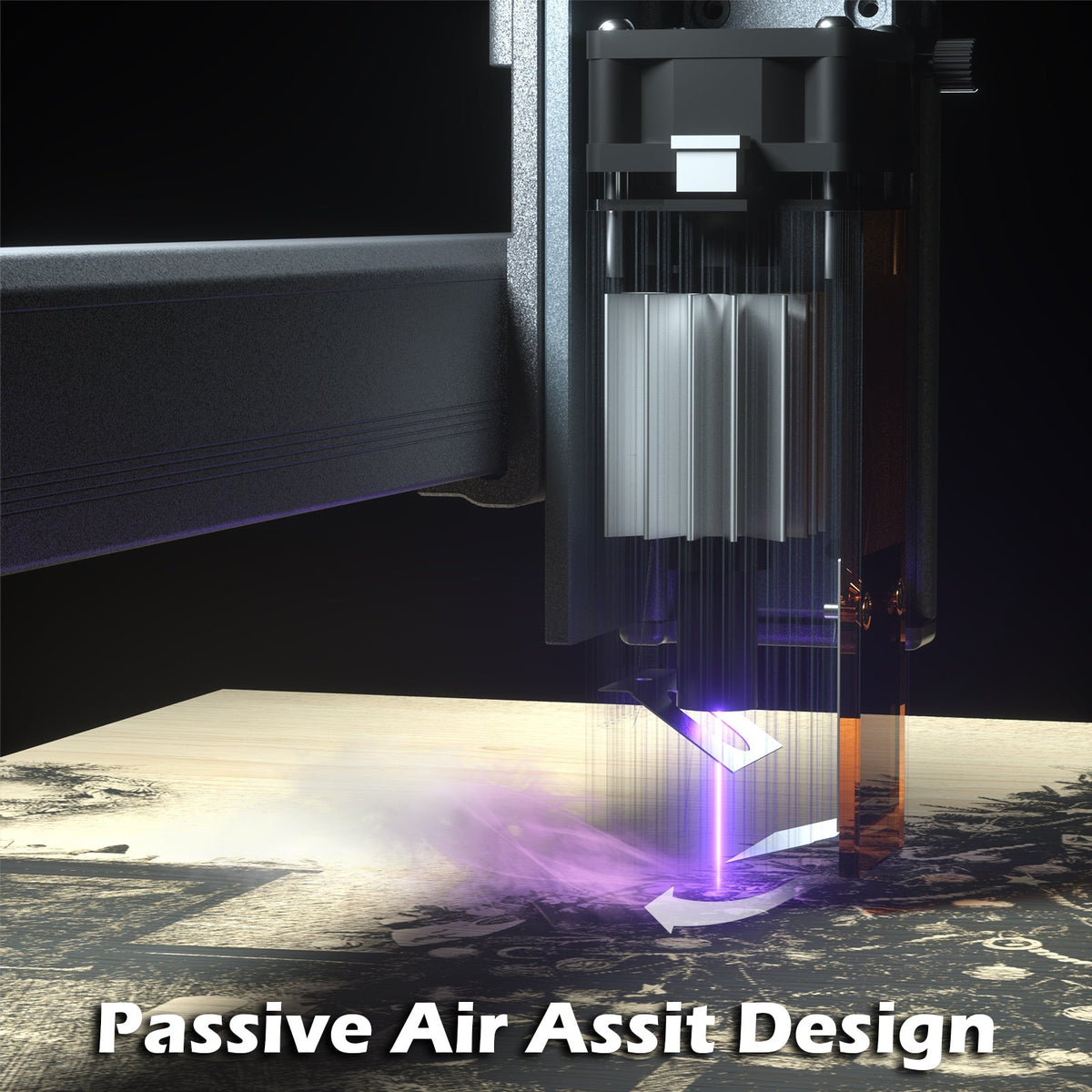

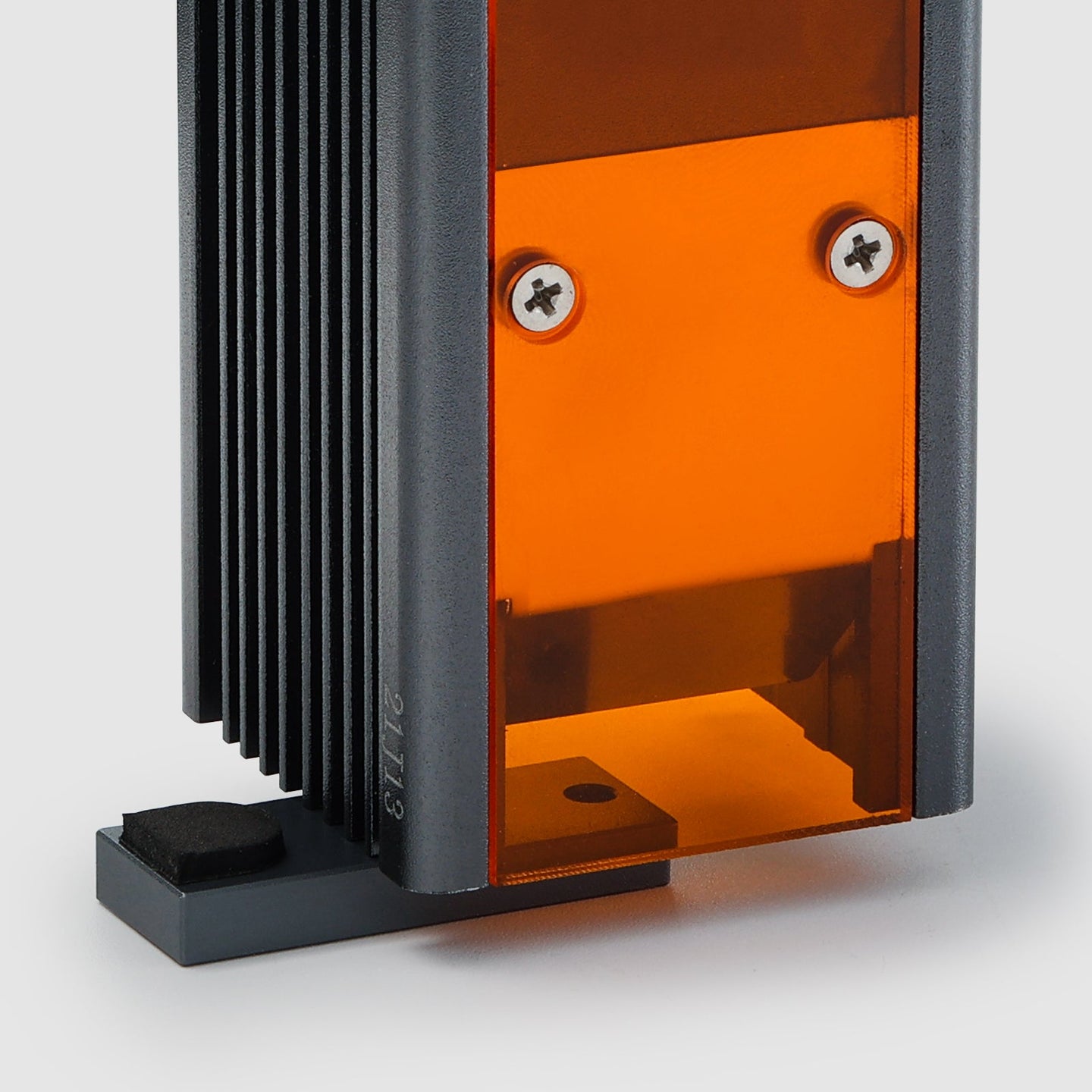

Smoke Management Design
The metal pad at the bottom of the laser module will regulate the smoke and push it away from the laser lens to improve the engraving and cutting performance of this laser.
The flue design will be different from the model of the laser head, but the effect is the same.



Hidden Limit Switches
Limit switches are crucial for consistent positioning. With that included, you don't test and retest position after shutting the machine off.

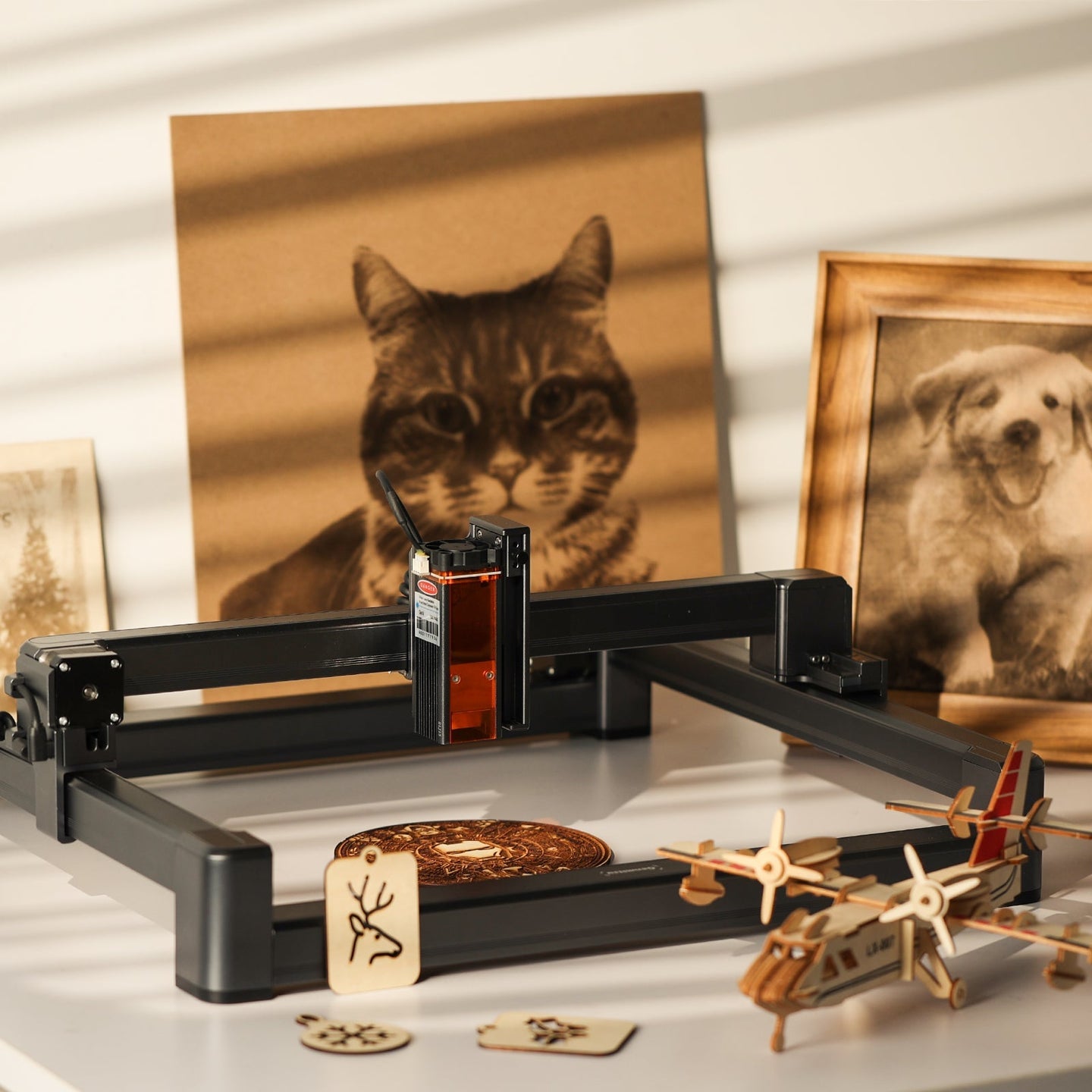

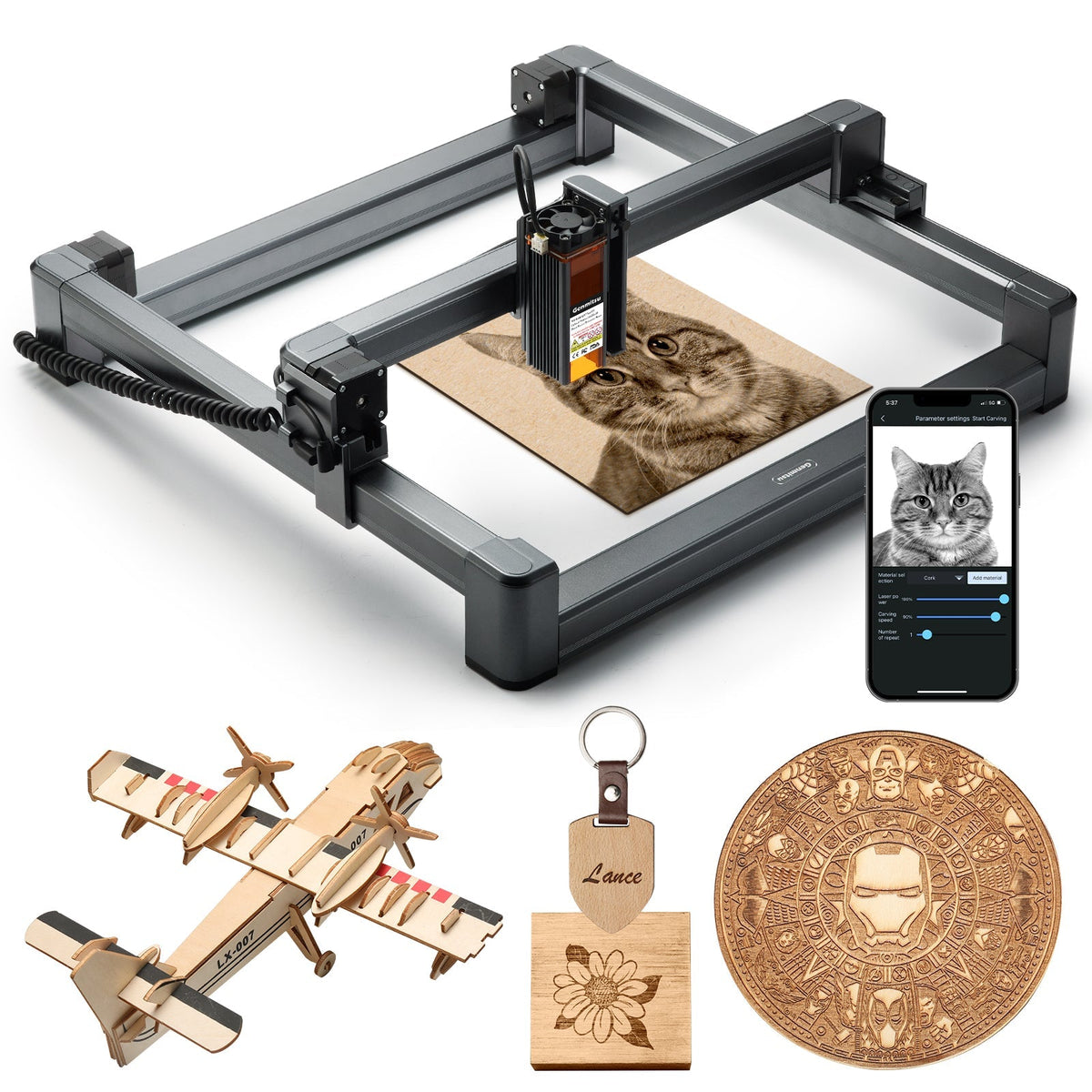

What Can I Do With It?

Jinsoku LC-40 can reach up to 10W, besides laser engraving, it also has a powerful cutting ability, bringing a lot of DIY ideas for the upcoming holidays, commemorative personalized gifts, DIY home decorations such as lampshades, and Christmas Ornaments, you can even start your own small business.



Efficient Mainboard

Stock limit switches on the Jinsoku LC-40 Laser Engraver allow for easy and consistent positioning, movement sensor and laser shield for improved safety, one-click repeat button for smooth and efficient engraving workflow. With all these features combined, it will provide you with an unrivaled user experience.

Quality Assurance

Jinsoku LC-40 has been certified by international testing organizations and has received safety certification from multiple countries, such as the United States, China, European Union, Japan, and United Kingdom. Trustworthy quality, safe to own.

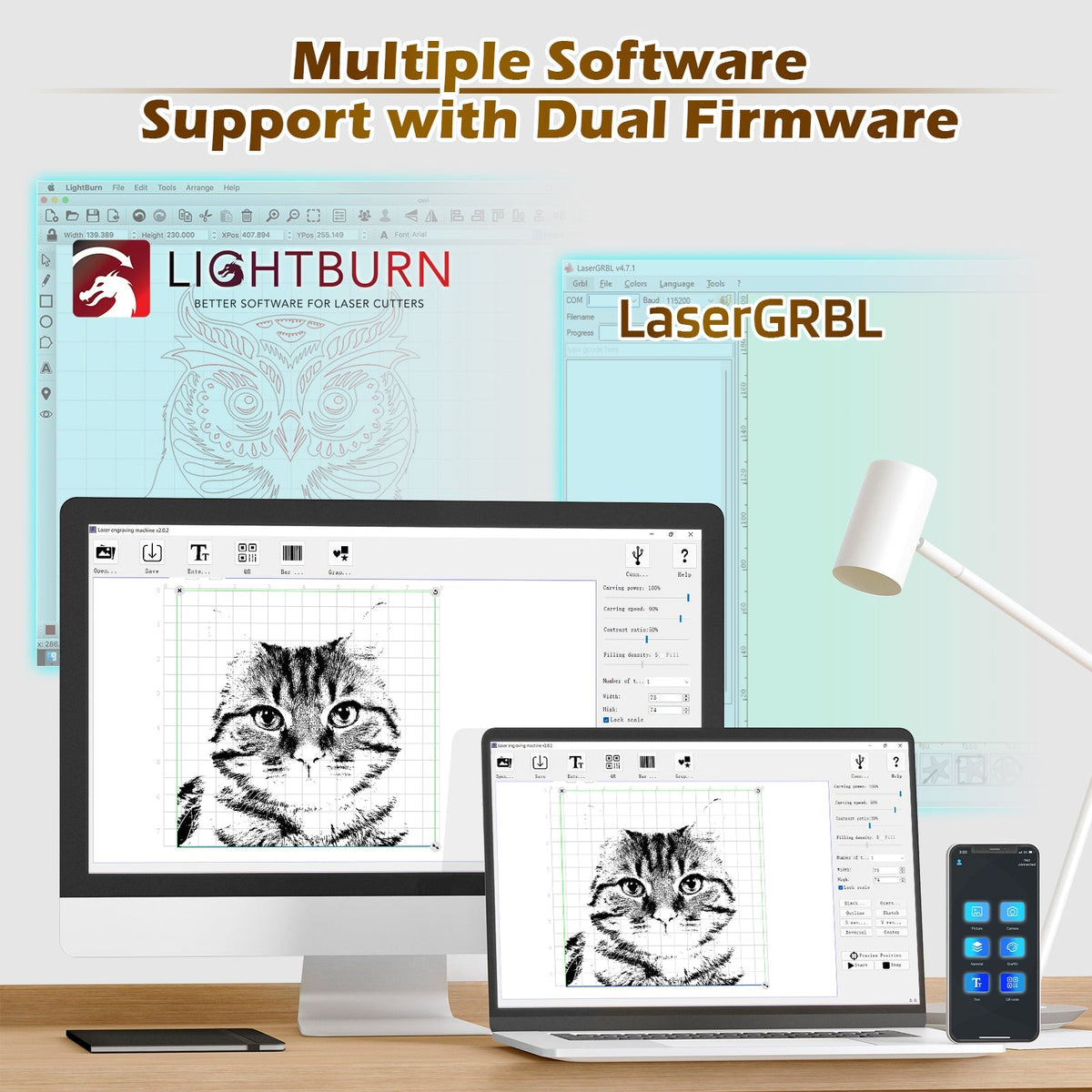

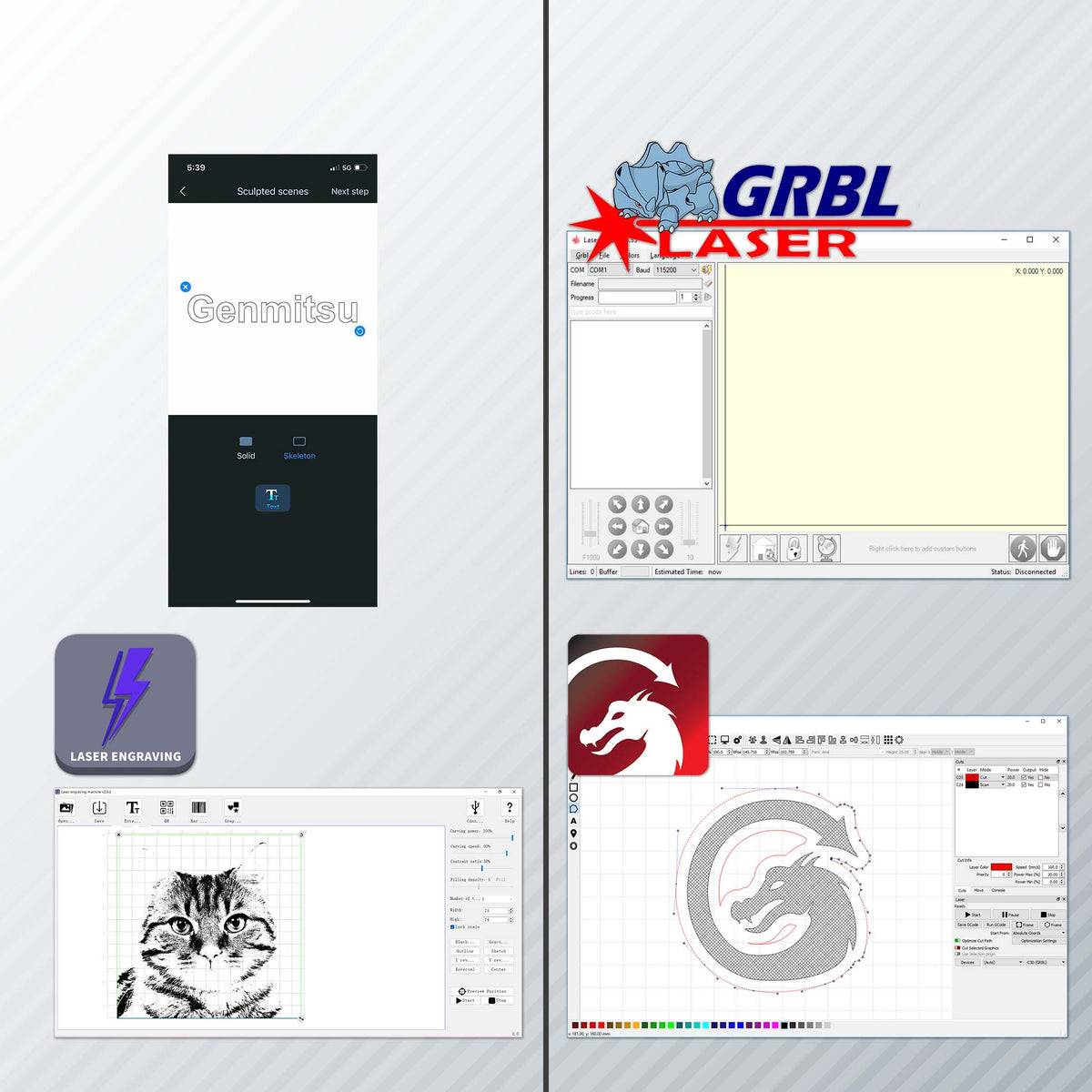

Dual Firmware Support

In addition to operating with the mobile app, GRBL-based firmware is also available for the Jinsoku LC-40. If you want to do more customization to your engraving projects when you gain more experience in laser engraving, simply flash the firmware (How to upgrade firmware?), and you can use LightBurn and LaserGrbl to control the LC-40.

Cylindrical Object Engraving

Jinsoku LC-40 laser engraving machine could be equipped optional flat rotary roller (purchased separately)that supports engraving cylindrical objects up to 390mm in diameter.





Comparison

Laser Type Optical Power Laser Spot Size Cutting In One Pass
5W Fixed Focus >4W 0.2 * 0.15mm Up to 3mm wood board
5W Compressed FAC >4W 0.08 * 0.05mm Up to 5mm wood board
10W Compressed FAC >8W 0.08 * 0.05mm Up to 10mm wood board



[Open Box] Jinsoku LC-40 Laser Engraver, Wireless Control & GRBL Controller Support

SKU 101-60-LC40-AJ*SEC
$399.00
$199.00
$399.00
$199.00
