We are pleased to bring you our top of the line tubular design for:


2010-2013 Dodge 2500/3500 Long Arm Upgrade

Product Description:

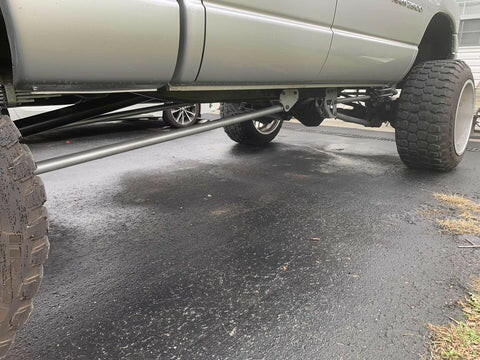

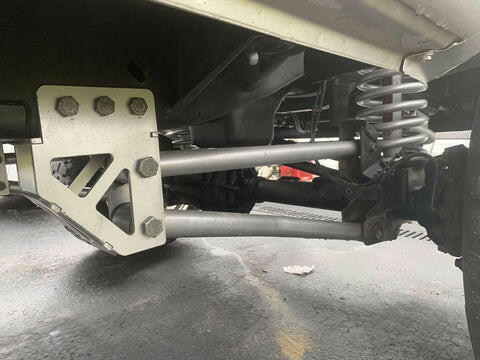

We are proud to bring you our Heavy Duty Tubular Long Arm Upgrade. Once you go above 4 inches of lift the stock location control arm angle creates a harsh ride and odd handling conditions as the axle is trying to pitch forward and backwards as the suspension cycles. Our kit relocates the arms down below the frame and also rearward to the transmission crossmember. The end result is a better than stock ride and killer looks. The truck pictured has 4 inches of lift and the angles are like stock! The lower arms are bent for tire clearance as well as aesthetics. These are completely bolt on once the OEM control arm brackets are removed. They require (4) holes to be drilled into the frame on each side and attach with 5/8" bolts which are included in the kit. There are a few other companies making a similar setup with boxed arms but this is the ORIGINAL design that has more correction than their setups.

Don't let the price fool you, our long arm kits come ready to install and are built from the highest quality materials. We use the same heavy wall DOM in the construction and rather than using heim joints that are noisy and seize/wear out quickly like some other bars on the market we use the same high quality high density polyurethane bushings found in our control arms. These bushings are grease able (Upon Request) , and just like our bars carry a lifetime warranty against failure.


(*Please note that all kits are build to order. Raw will typically ship in 4 weeks and Black or Powder coated bars will typically ship in 8 weeks. Feel free to call us if you have any questions or concerns regarding build times, thank you.)
Product Finish:

These are offered RAW (bare steel), with black powder coating, or we will shoot any color prismatic powders offers.

For available colors please obtain color code from Prismatic Powder at the link below:

Prismatic Powders

Please note the possibility of shipping damage with custom colors. 2 stage candy colors are not as immune to mishandling by the shipping companies, they do chip much easier than black. We have no issue shooting colors, the shipping companies mishandling the packages does happen however, and is out of our control. All custom color sales are final.




Ready To Install Kit Includes:
2 - Lower Control Arms
2 - Upper Control Arms
2 - Frame Brackets
8 - Lower Bushings
8 - Upper Bushings
4- Lower Sleeves
4 - Upper Sleeves
8 - 5/8x5 Bolts & Lock Nuts
4 - 3/4x5 Bolts & Lock Nuts
1 - Instructions Sheet

Hardware:
This particular kit comes complete with high quality zinc coated Grade 8 hardware which includes locking washers to ensure a fast and easy installed followed by a lifetime of trouble free use.


Instructions:
All of our products come complete with detailed step by step install instructions to ensure installation is a breeze. Average install time for this kit is 60-90 minutes.

https://cdn.shopify.com/s/files/1/0630/9304/7546/files/Dodge_Long_Arm_Upgrade_2.pdf?v=1685546520

Pro Form Fab 10-13 Ram 2500/3500 Long Arm Upgrade

SKU sku-42602287956218
$750.00
$750.00
Color:
Suspension Lift Amount:

We are pleased to bring you our top of the line tubular design for:


2010-2013 Dodge 2500/3500 Long Arm Upgrade

Product Description:
We are proud to bring you our Heavy Duty Tubular Long Arm Upgrade. Once you go above 4 inches of lift the stock location control arm angle creates a harsh ride and odd handling conditions as the axle is trying to pitch forward and backwards as the suspension cycles. Our kit relocates the arms down below the frame and also rearward to the transmission crossmember. The end result is a better than stock ride and killer looks. The truck pictured has 4 inches of lift and the angles are like stock! The lower arms are bent for tire clearance as well as aesthetics. These are completely bolt on once the OEM control arm brackets are removed. They require (4) holes to be drilled into the frame on each side and attach with 5/8" bolts which are included in the kit. There are a few other companies making a similar setup with boxed arms but this is the ORIGINAL design that has more correction than their setups.

Don't let the price fool you, our long arm kits come ready to install and are built from the highest quality materials. We use the same heavy wall DOM in the construction and rather than using heim joints that are noisy and seize/wear out quickly like some other bars on the market we use the same high quality high density polyurethane bushings found in our control arms. These bushings are grease able (Upon Request) , and just like our bars carry a lifetime warranty against failure.


(*Please note that all kits are build to order. Raw will typically ship in 4 weeks and Black or Powder coated bars will typically ship in 8 weeks. Feel free to call us if you have any questions or concerns regarding build times, thank you.)
Product Finish:

These are offered RAW (bare steel), with black powder coating, or we will shoot any color prismatic powders offers.

For available colors please obtain color code from Prismatic Powder at the link below:

Prismatic Powders

Please note the possibility of shipping damage with custom colors. 2 stage candy colors are not as immune to mishandling by the shipping companies, they do chip much easier than black. We have no issue shooting colors, the shipping companies mishandling the packages does happen however, and is out of our control. All custom color sales are final.




Ready To Install Kit Includes:
2 - Lower Control Arms
2 - Upper Control Arms
2 - Frame Brackets
8 - Lower Bushings
8 - Upper Bushings
4- Lower Sleeves
4 - Upper Sleeves
8 - 5/8x5 Bolts & Lock Nuts
4 - 3/4x5 Bolts & Lock Nuts
1 - Instructions Sheet

Hardware:
This particular kit comes complete with high quality zinc coated Grade 8 hardware which includes locking washers to ensure a fast and easy installed followed by a lifetime of trouble free use.


Instructions:
All of our products come complete with detailed step by step install instructions to ensure installation is a breeze. Average install time for this kit is 60-90 minutes.

https://cdn.shopify.com/s/files/1/0630/9304/7546/files/Dodge_Long_Arm_Upgrade_2.pdf?v=1685546520
