Pusher Model PGD1116BT

This product is not emissions compliant. Off-road use only.

Pusher Max HD Charge Tube replaces all factory passenger-side charge plumbing from the outlet of the intercooler to the factory y-bridge. Included with the Pusher Max Compound Turbo System for LML trucks.

• Super HD support system and two piece design proven to provide flex for engine movement but with stand over 70 PSI of boost.

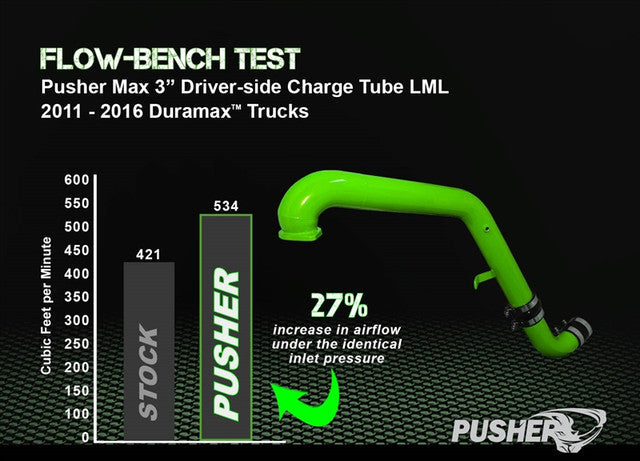

• 3" mandrel bent tubing supplies your engine with 27% more air than the OEM parts it replaces and follows a 7.5% shorter and more efficient flow path.
• Fully TIG welded with precise settings to produce beautiful welds and optimal penetration without impacting air flow.
• CNC machined and laser cut flanges for flawless mounting to your Duramax engine.
• This is the same Max HD Charge Tube used in our compound turbo system for the LML trucks.
• Included is all of the hardware, gaskets, a machined turbo Silencer Eliminator cap, and even wire loom for a complete install.

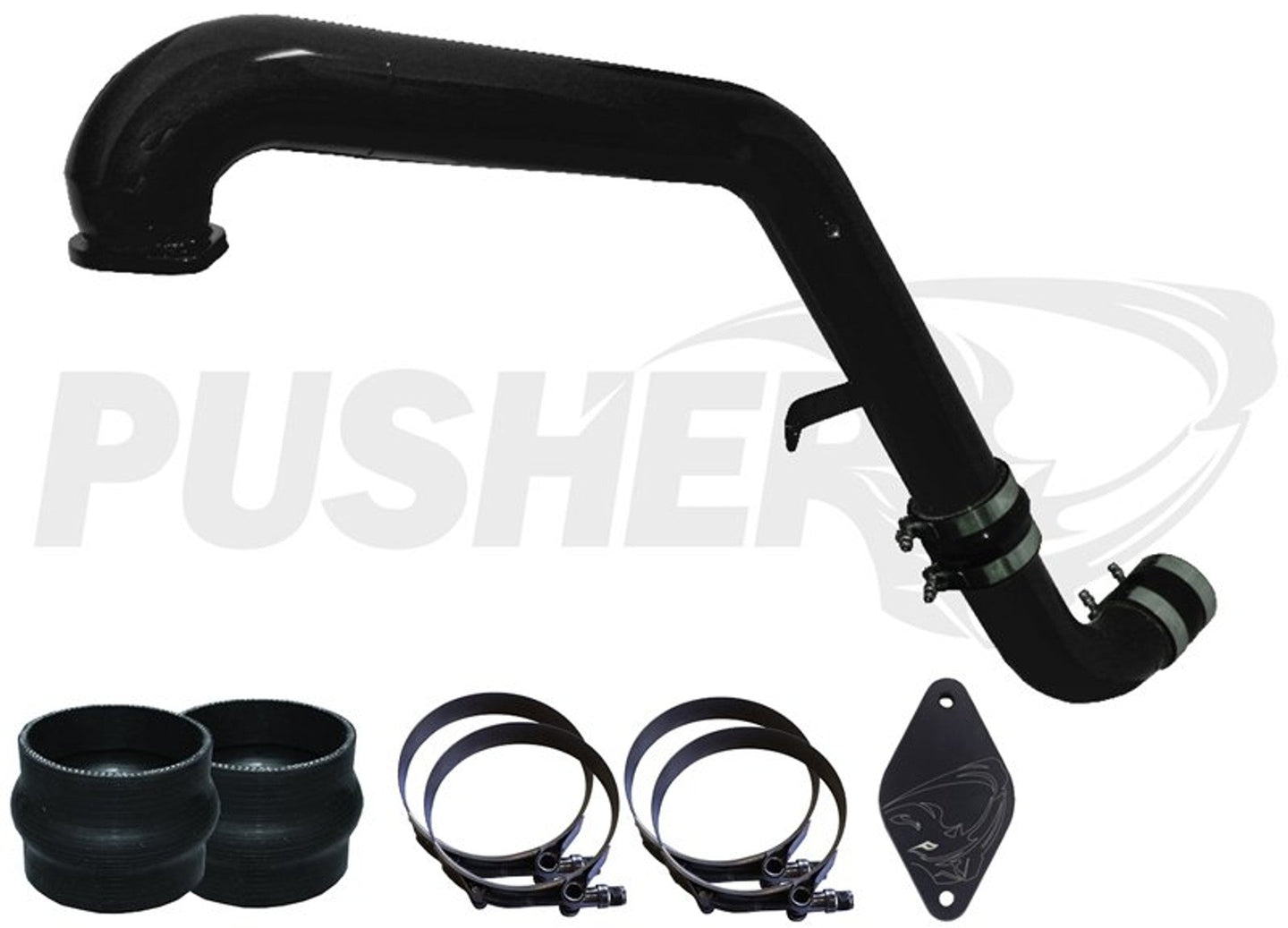

Additional options include various powder coat colors and extra ports.

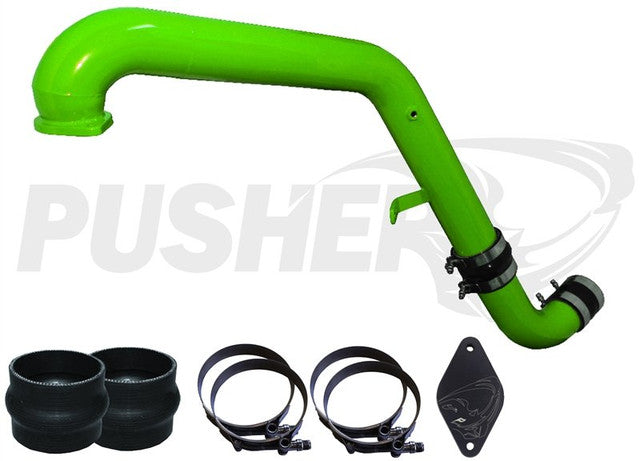

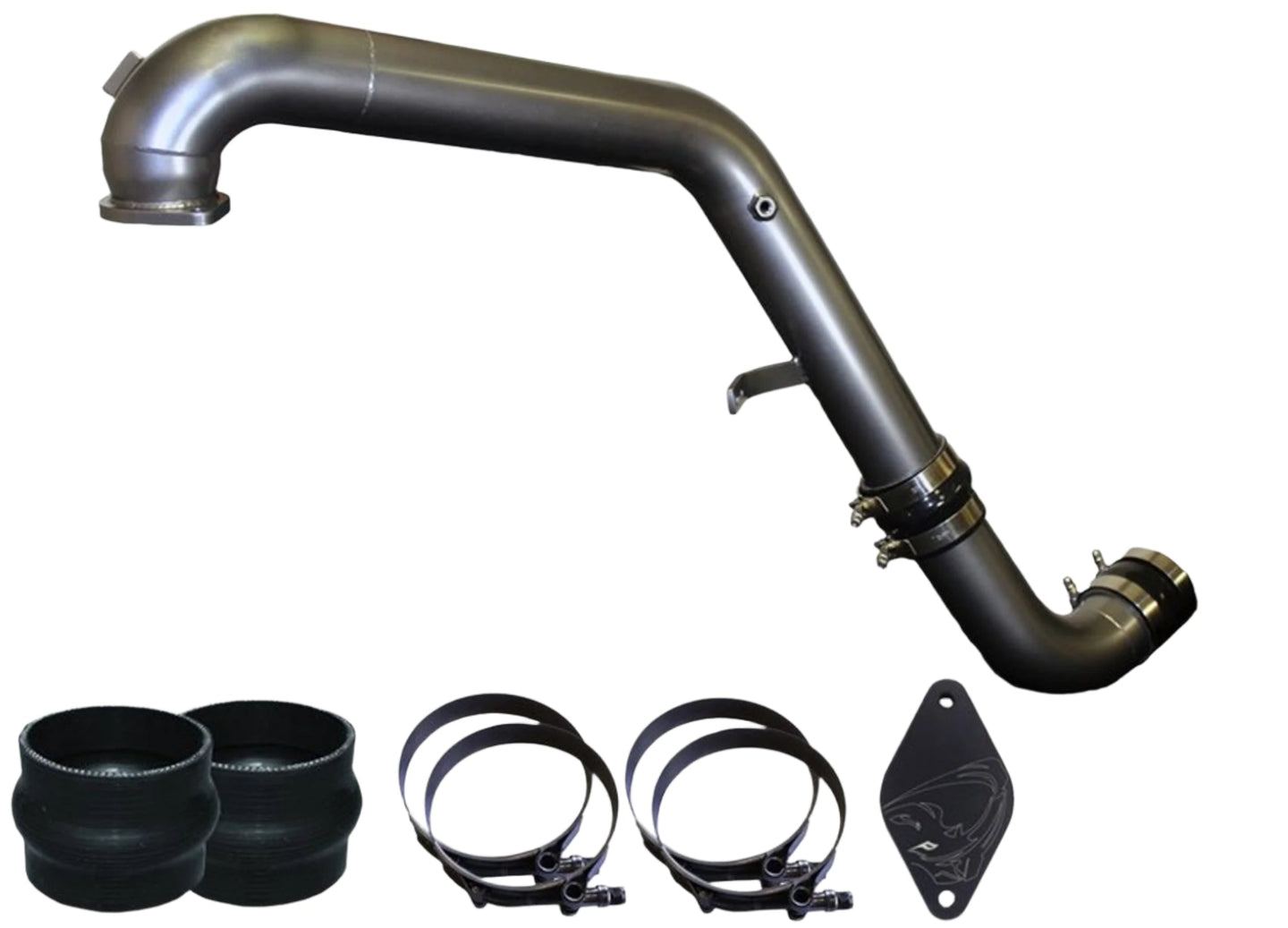

What’s in the box?

(1) GD1116BTupper | Pusher Max HD Charge Tube
(1) GD1116BTlower | Pusher Max HD Charge Tube
(2) PSS3 x 4 | Silicone 3" Black 5-Ply 4" Long
(4) TC_3 | 3" Stainless T-Bolt Clamp
(1) PGD1116RE | Pusher Turbo Resonator Eliminator
(Optional) 1/8" NPT Port Plugs
(5) 5/16" Washers
