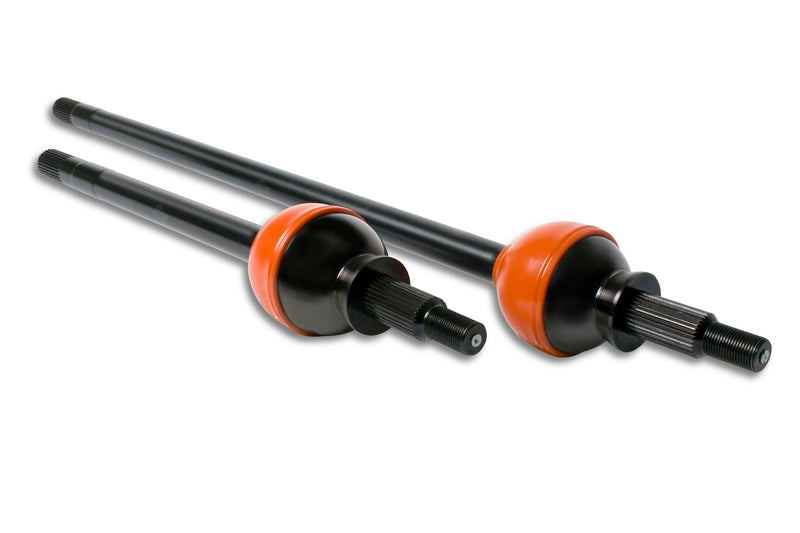

RCV Performance Ultimate CV Axles simply replace your Jeep JK's weak Dana 44 U-joint axle shafts with a high-strength constant velocity design using 300M inner shafts. Designed to be used with a 35-spline ARB RD-147/157 locker, but can be used with other 35-spline carriers. May require modification to length on some setups. Tests prove Ultimate CV Axles to be twice as strong as OEM Jeep JK shafts, and they're just as tough at a straight angle as they are at extreme angles - where U-joints are weakest. Ultimate CV Axles also eliminate U-joint binding to allow smooth transfer of power to the ground. Even if you have big tires and big power there are no worries. And we back it all with a "No Questions Asked" limited lifetime warranty.
300M is the same ultra-high-strength steel alloy used in aerospace applications and top-level motorsports - the maximum strength option for your 35-spline locker build.
Axle set includes: right and left CV axle shafts, SST seals, synthetic moly grease, and installation hardware. Black oxide coating is standard. Optional nickel plating available.
| Part # | Axle Model | Type | Modified ARB Inner Spline | OEM Outer Spline | RCV Inner Spline | RCV Outer Spline | Left Inner Length | Right Inner Length | Outer Stub Length | Warranty Voided |
|---|---|---|---|---|---|---|---|---|---|---|
| CVJ44-JK-35M | Dana 44 (35 spline) | Unit Bearing | 35 | 32 | 35 | 32 | 19.132" (adjusted for non-stock carrier) | 34.182" (adjusted for non-stock carrier) | 6.25" | Over 40" tire |
Fitment: 2007-2018 Jeep Wrangler JK Rubicon and JKU Rubicon with ARB RD-147 or RD-157 35-spline locker, or other 35-spline carrier configurations.
Part Number: CVJ44-JK-35M | Made in USA | Skinny Pedal Racing is an Authorized RCV Performance Dealer
- Regular price
- $1,891.45
- Regular price
- $1,891.45
RCV Performance Ultimate CV Axles simply replace your Jeep JK's weak Dana 44 U-joint axle shafts with a high-strength constant velocity design using 300M inner shafts. Designed to be used with a 35-spline ARB RD-147/157 locker, but can be used with other 35-spline carriers. May require modification to length on some setups. Tests prove Ultimate CV Axles to be twice as strong as OEM Jeep JK shafts, and they're just as tough at a straight angle as they are at extreme angles - where U-joints are weakest. Ultimate CV Axles also eliminate U-joint binding to allow smooth transfer of power to the ground. Even if you have big tires and big power there are no worries. And we back it all with a "No Questions Asked" limited lifetime warranty.
300M is the same ultra-high-strength steel alloy used in aerospace applications and top-level motorsports - the maximum strength option for your 35-spline locker build.
Axle set includes: right and left CV axle shafts, SST seals, synthetic moly grease, and installation hardware. Black oxide coating is standard. Optional nickel plating available.
| Part # | Axle Model | Type | Modified ARB Inner Spline | OEM Outer Spline | RCV Inner Spline | RCV Outer Spline | Left Inner Length | Right Inner Length | Outer Stub Length | Warranty Voided |
|---|---|---|---|---|---|---|---|---|---|---|
| CVJ44-JK-35M | Dana 44 (35 spline) | Unit Bearing | 35 | 32 | 35 | 32 | 19.132" (adjusted for non-stock carrier) | 34.182" (adjusted for non-stock carrier) | 6.25" | Over 40" tire |
Fitment: 2007-2018 Jeep Wrangler JK Rubicon and JKU Rubicon with ARB RD-147 or RD-157 35-spline locker, or other 35-spline carrier configurations.
Part Number: CVJ44-JK-35M | Made in USA | Skinny Pedal Racing is an Authorized RCV Performance Dealer
