Wehrli Big Hitch Products Model BHP4010

    • Universal Kill Switch for Competition Pulling Vehicles to cut ground wire circuit of Ignition, Fuel pumps, ECMs, or any other required electronic device kill to be operated by pulling sled
      - High Quality detent switch with pigtail wire harness included for connection to your pulling vehicle

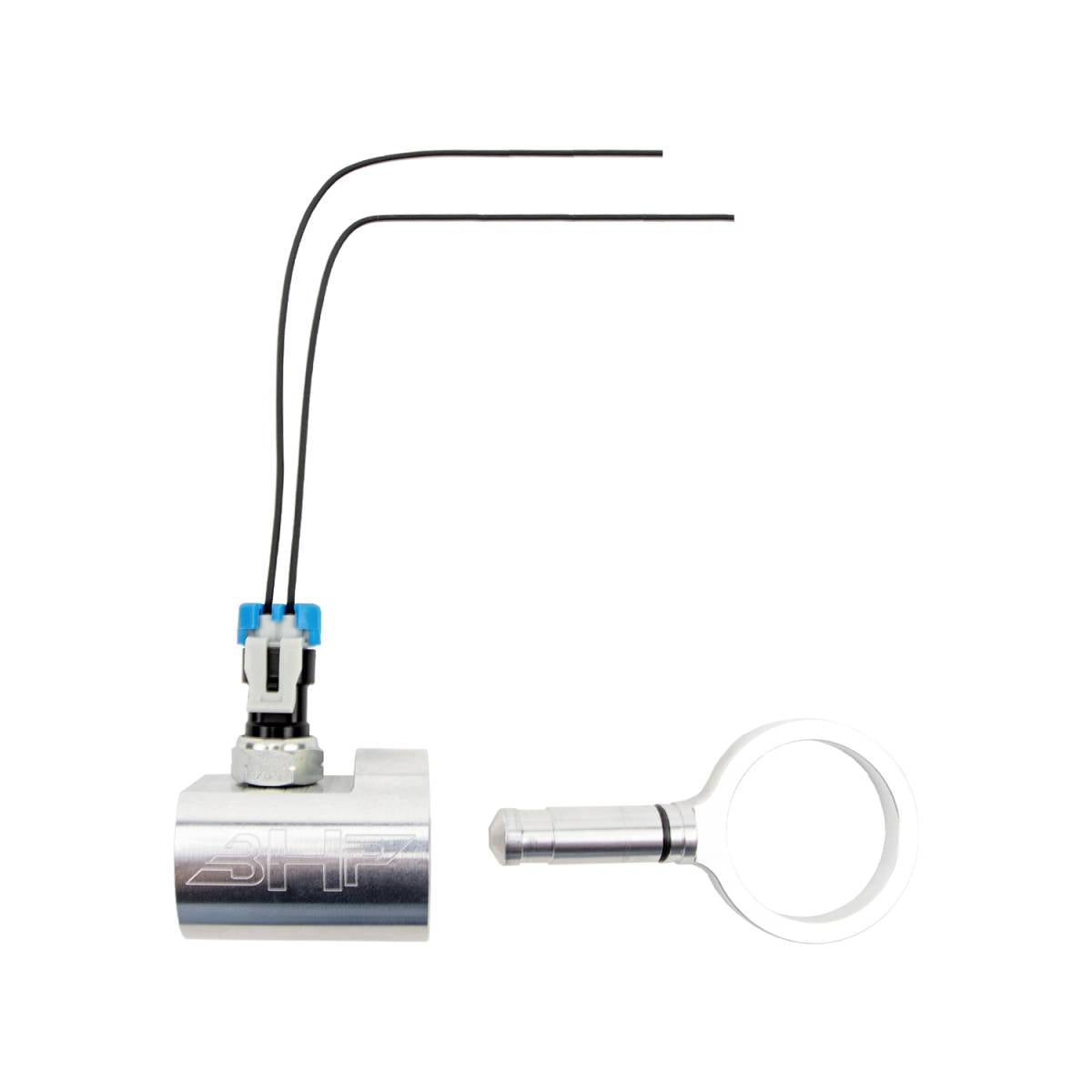

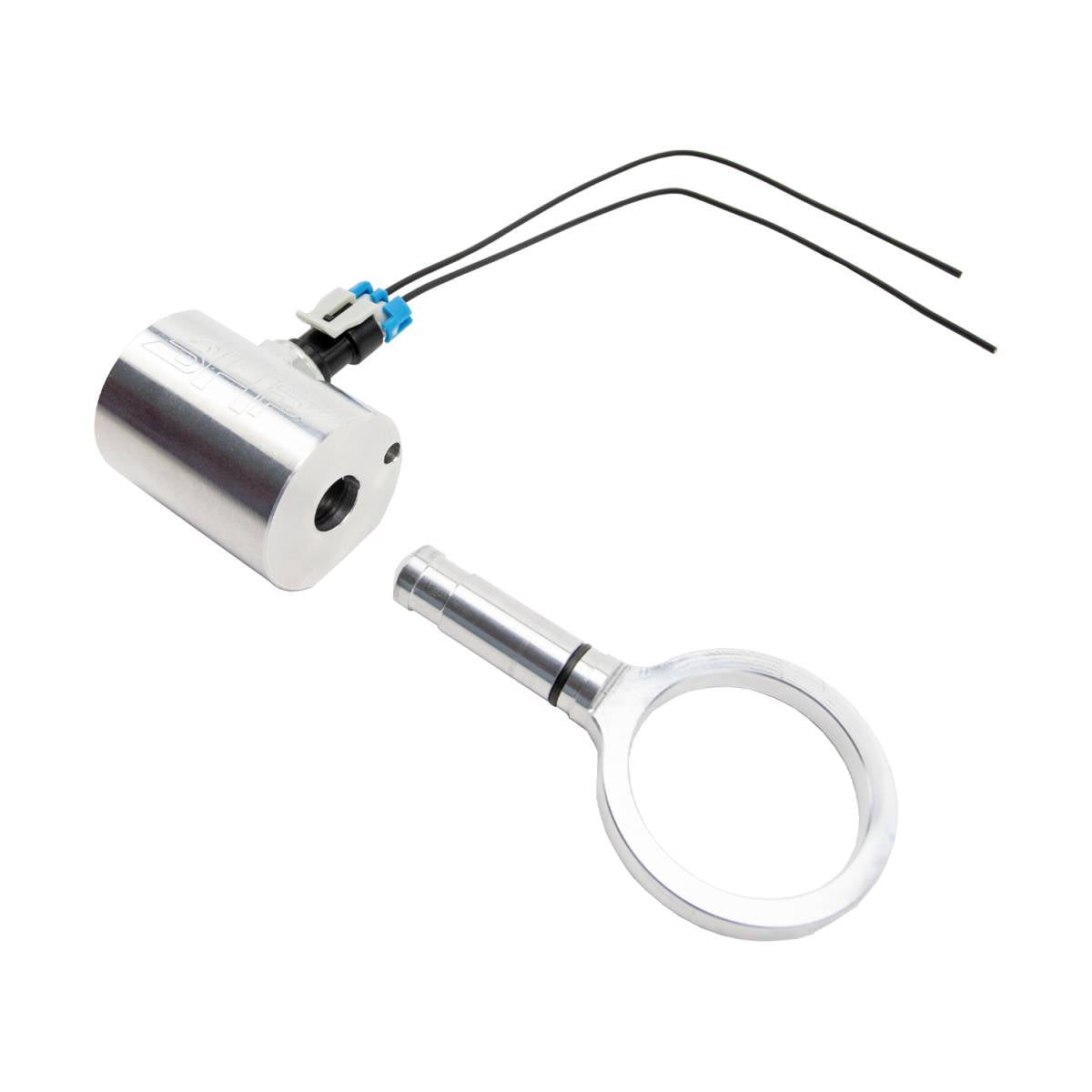

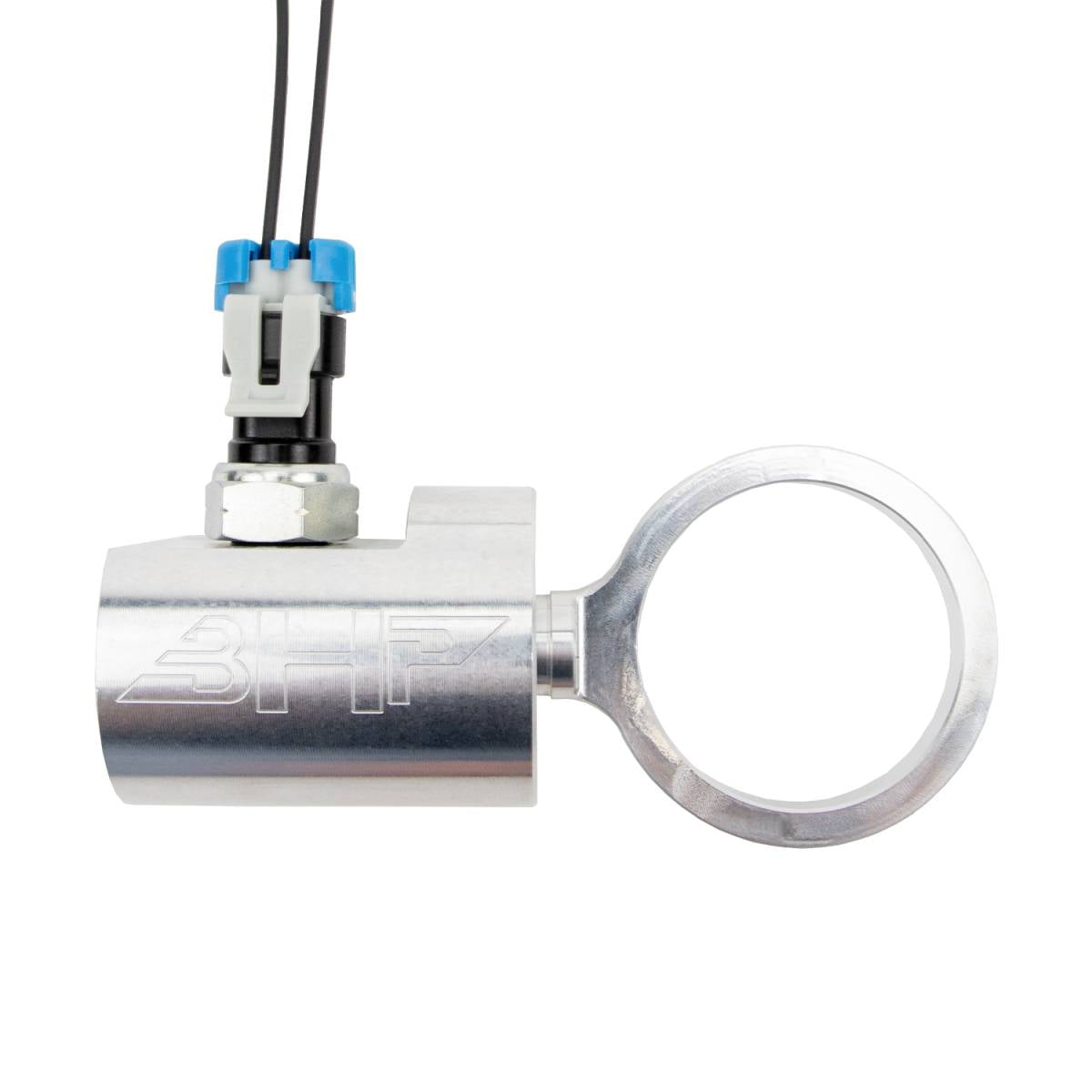

      - 2.5” OD Ring for connection of pulling sled cable/kill

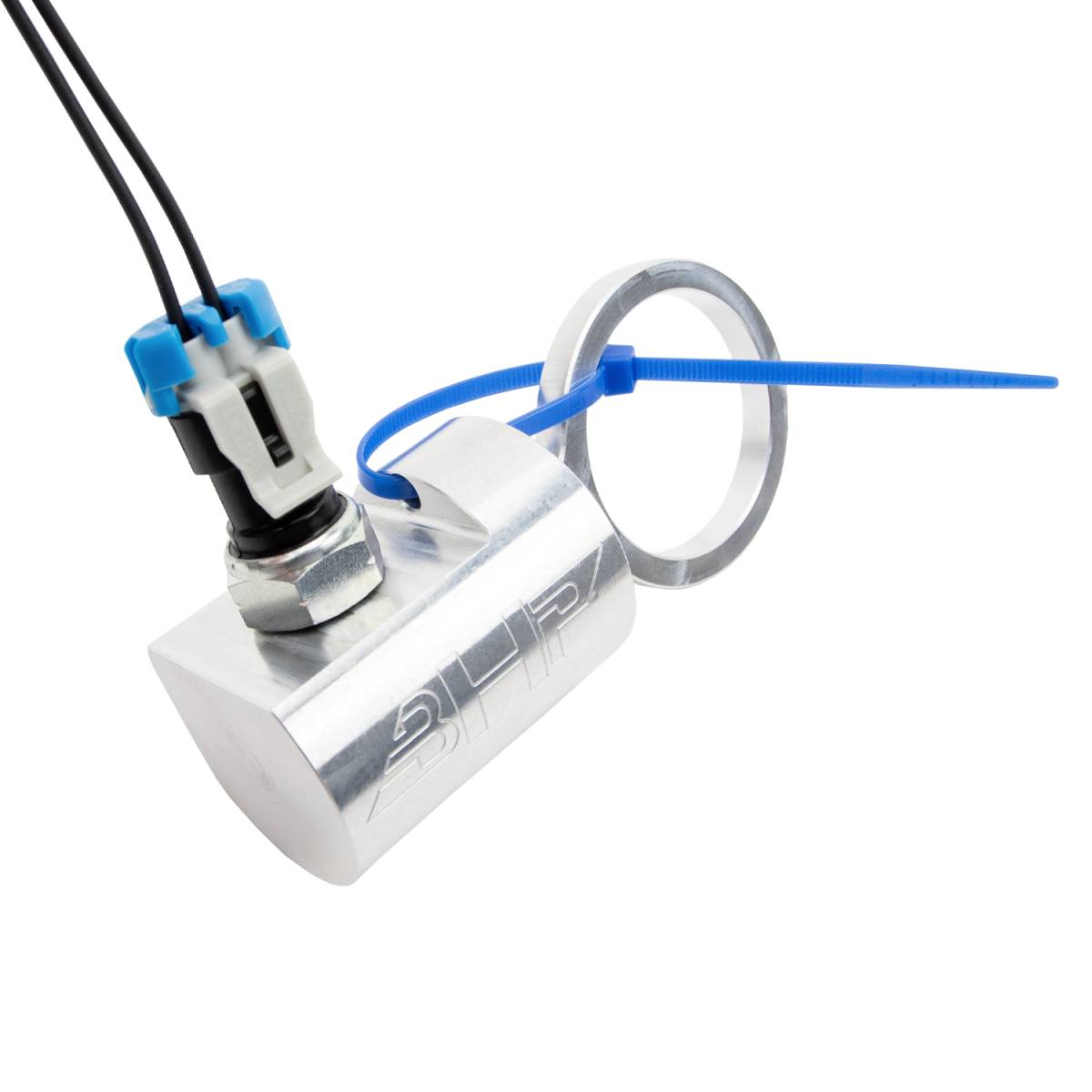

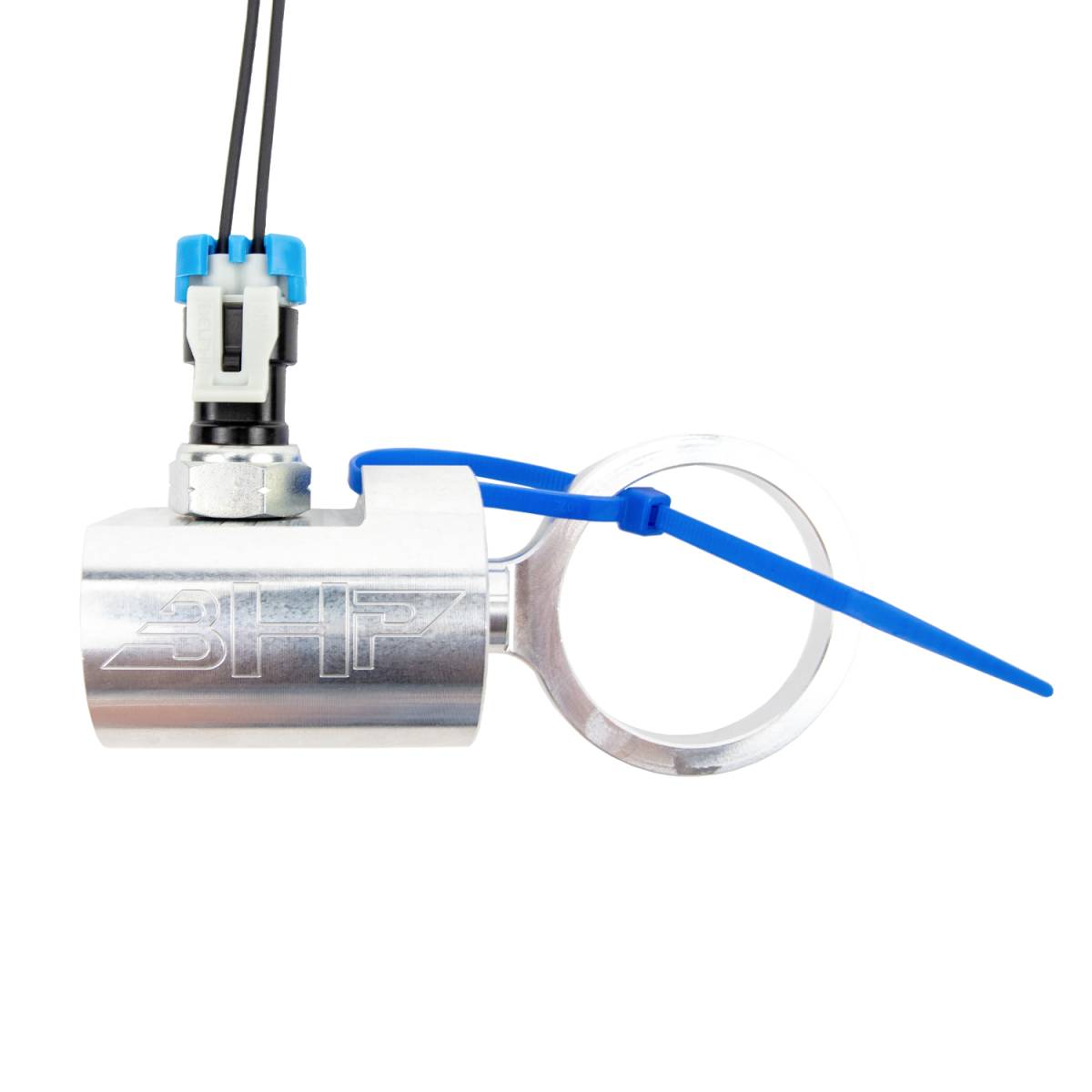

      - Thru Hole for connection of Pulling Organization Zip-Tie for safety test/check of Vehicles kill switch function
      - 5/16-18" Thread Mounting Holes
      - Light Weight Billet Aluminum Construction
      - 2 Position Switch - Single Pole Single Throw
      - Compatible with 6V, 12V, 16V and 24V Electrical Systems
      - Circuit is Normally Closed with PIN in place and Open when PIN is Pulled / Removed
      - For applications requiring an Normally Open switch that closes in the event of an emergency (such as a magneto style ignition), we recommend wiring this product together with a electrical relay (purchased separately)

    • Have a safe and reliable way to kill your vehicle in the event of an emergency during a competition event!

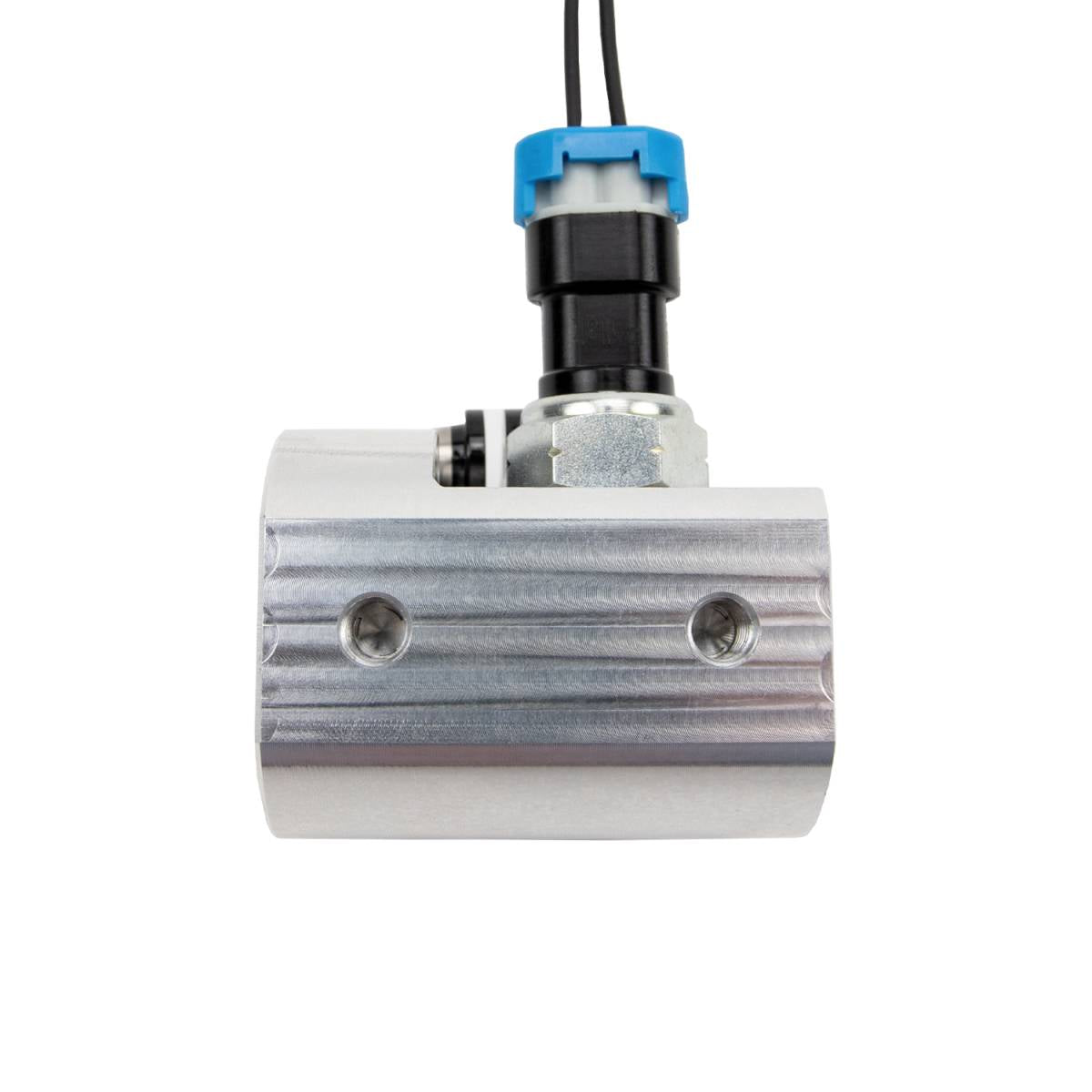

      The body of this kill switch is made out of a single block of aluminum with a mounting hole drilled on the back side.

      This kill switch will work on any vehicle where you need to break the flow of power to a module (such as the ECM).
      Most applications just require a fuse to be pulled out and then this kill switch put in between.

    Wehrli Big Hitch Products Billet Aluminum Competition Kill Switch

    SKU BHP4010
    $195.00
    $195.00

    Wehrli Big Hitch Products Model BHP4010

      • Universal Kill Switch for Competition Pulling Vehicles to cut ground wire circuit of Ignition, Fuel pumps, ECMs, or any other required electronic device kill to be operated by pulling sled
        - High Quality detent switch with pigtail wire harness included for connection to your pulling vehicle
        - 2.5” OD Ring for connection of pulling sled cable/kill
        - Thru Hole for connection of Pulling Organization Zip-Tie for safety test/check of Vehicles kill switch function
        - 5/16-18" Thread Mounting Holes
        - Light Weight Billet Aluminum Construction
        - 2 Position Switch - Single Pole Single Throw
        - Compatible with 6V, 12V, 16V and 24V Electrical Systems
        - Circuit is Normally Closed with PIN in place and Open when PIN is Pulled / Removed
        - For applications requiring an Normally Open switch that closes in the event of an emergency (such as a magneto style ignition), we recommend wiring this product together with a electrical relay (purchased separately)

      • Have a safe and reliable way to kill your vehicle in the event of an emergency during a competition event!
        The body of this kill switch is made out of a single block of aluminum with a mounting hole drilled on the back side.

        This kill switch will work on any vehicle where you need to break the flow of power to a module (such as the ECM).
        Most applications just require a fuse to be pulled out and then this kill switch put in between.
