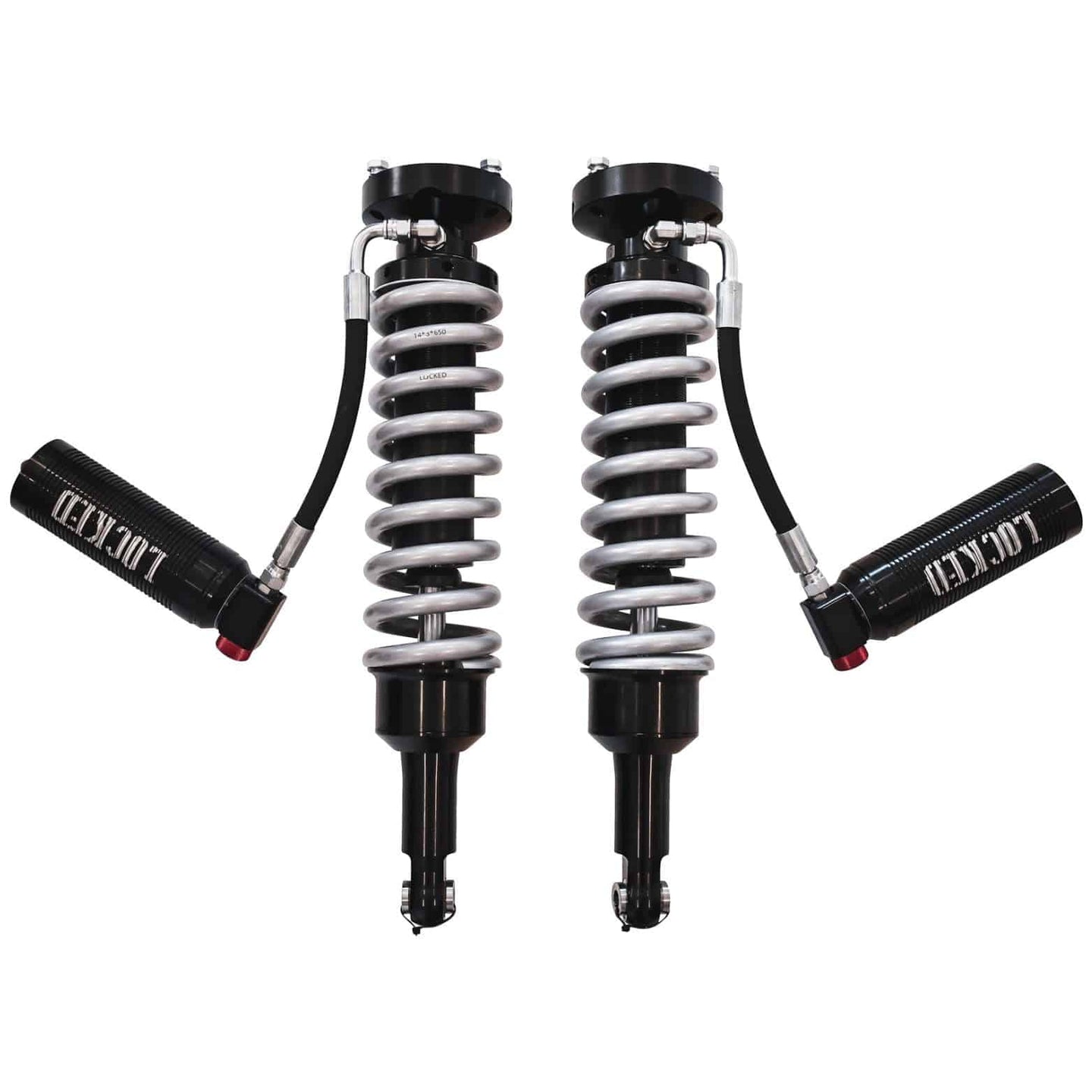

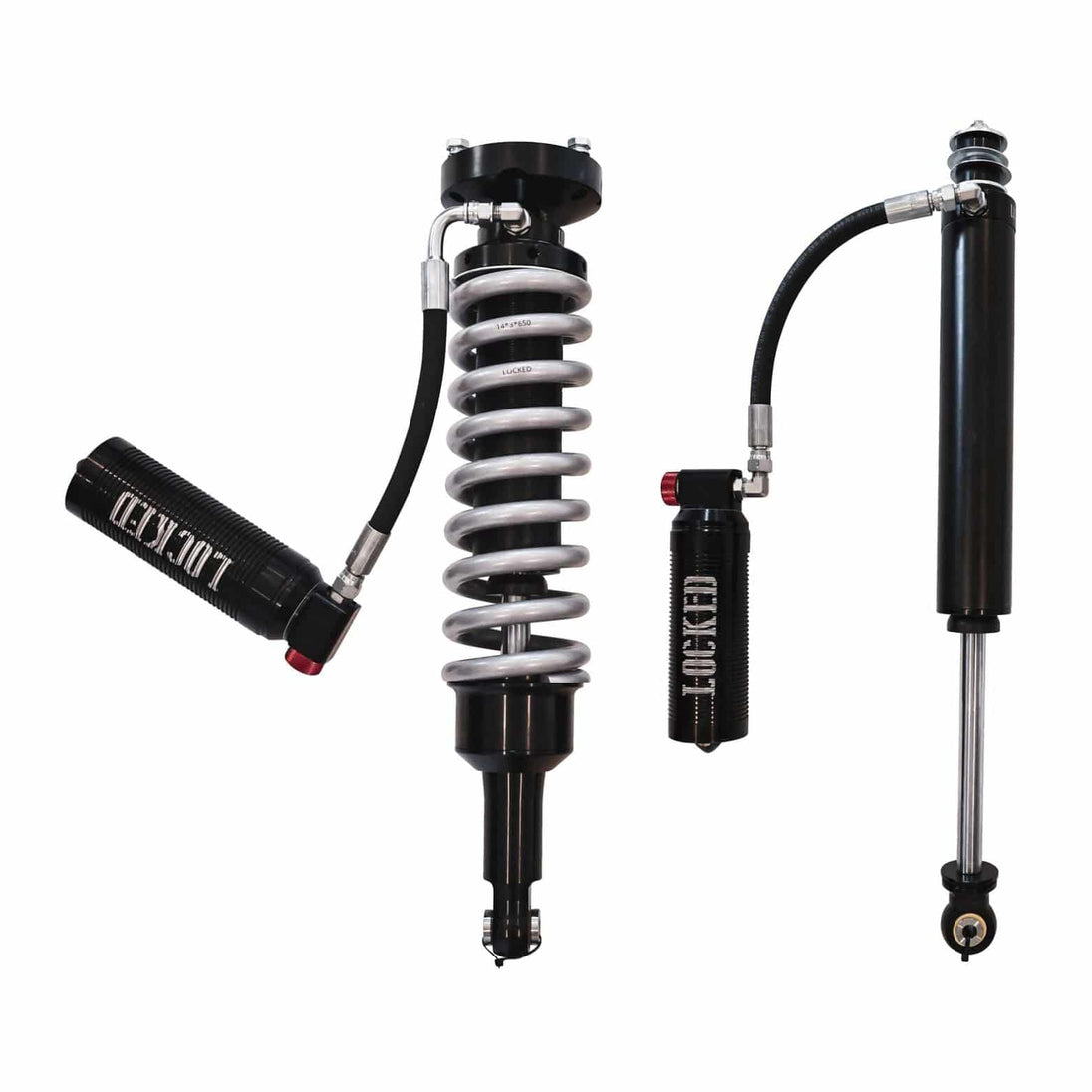

2005–2023 Toyota Tacoma 2.5" Coilover Lift Kit

Built to Order – Coilovers and 12” smooth body shocks ship in 3-5 days.
OEM Rears & 14” smooth body shocks have a 4-5 week build time.

Overview

Upgrade your Tacoma with Locked Offroad’s 2.5" coilover lift kit—engineered for excellent handling on and off-road. Specifically tuned for 2005–2023 Toyota Tacomas, this kit increases front wheel travel by up to 25% and includes 22 points of compression adjustment for complete ride control.

Built to Perform

• Oversized 2.5” shock bodies for greater oil capacity and heat dissipation
• Black zinc-coated steel bodies for corrosion resistance
• 4130 chromed shafts for strength and longevity
• Buna seals and anodized 6061 aluminum components

Key Features

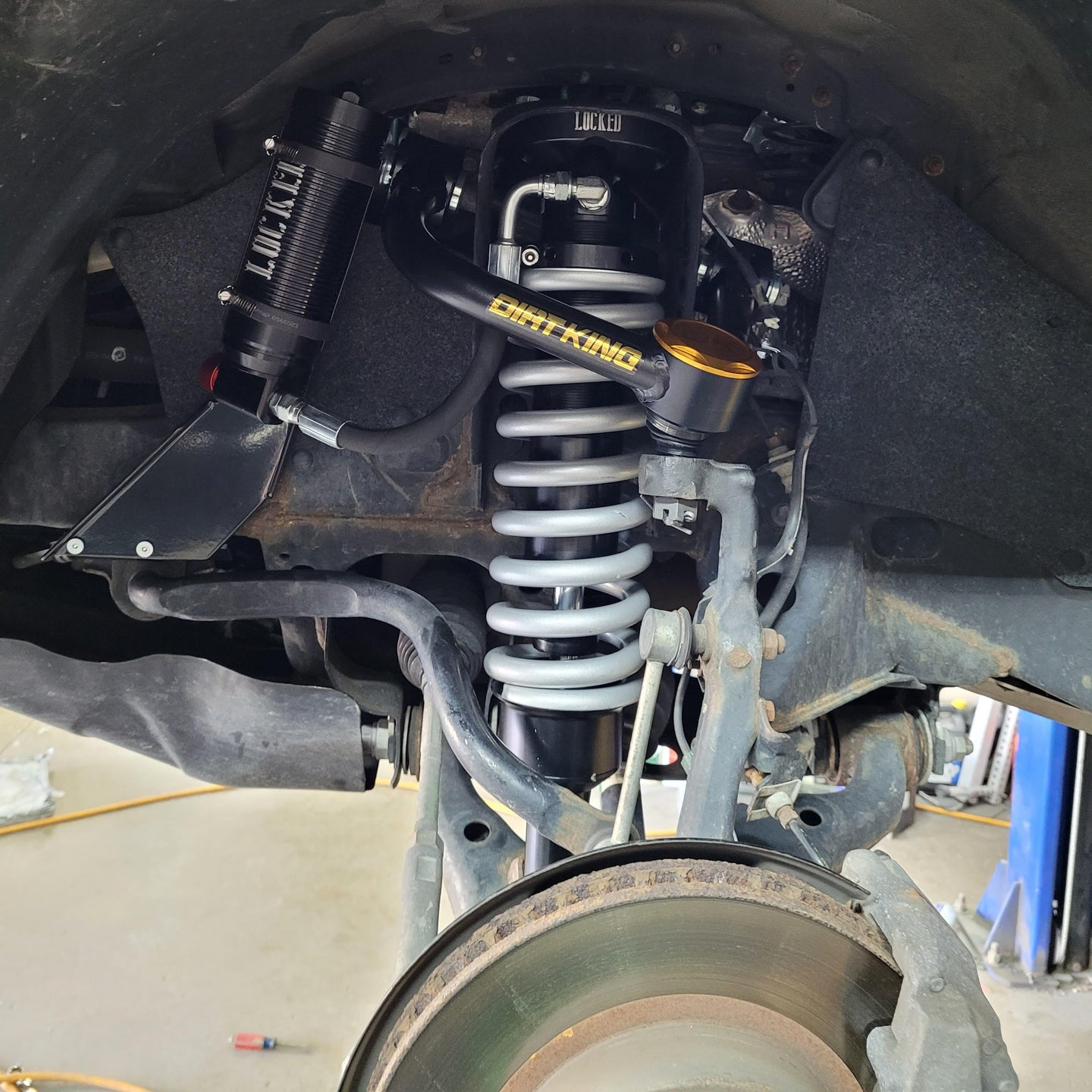

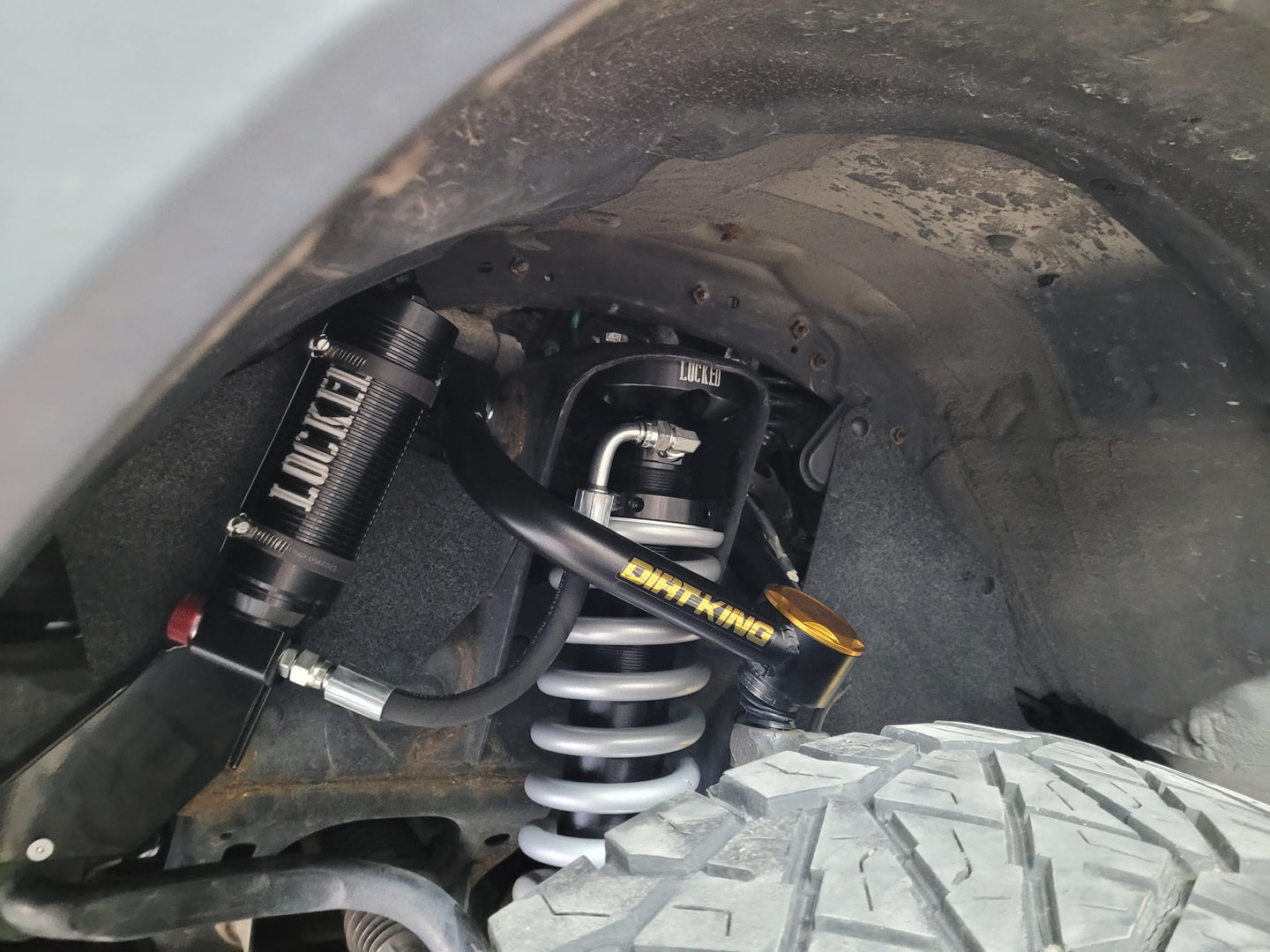

• Direct bolt-on installation for 2005–2023 Toyota Tacoma
• Adjustable ride height (spanner wrench included)

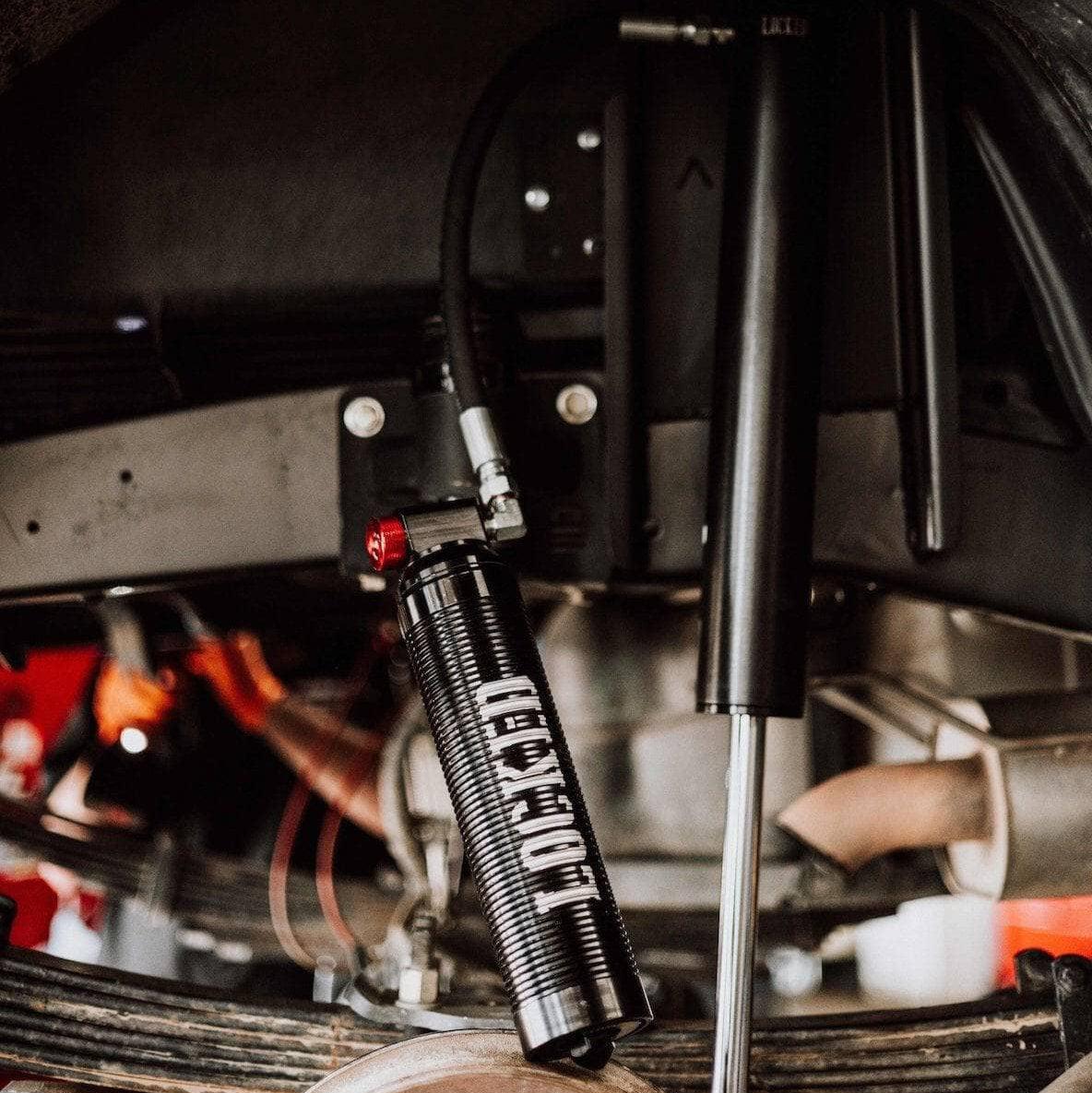

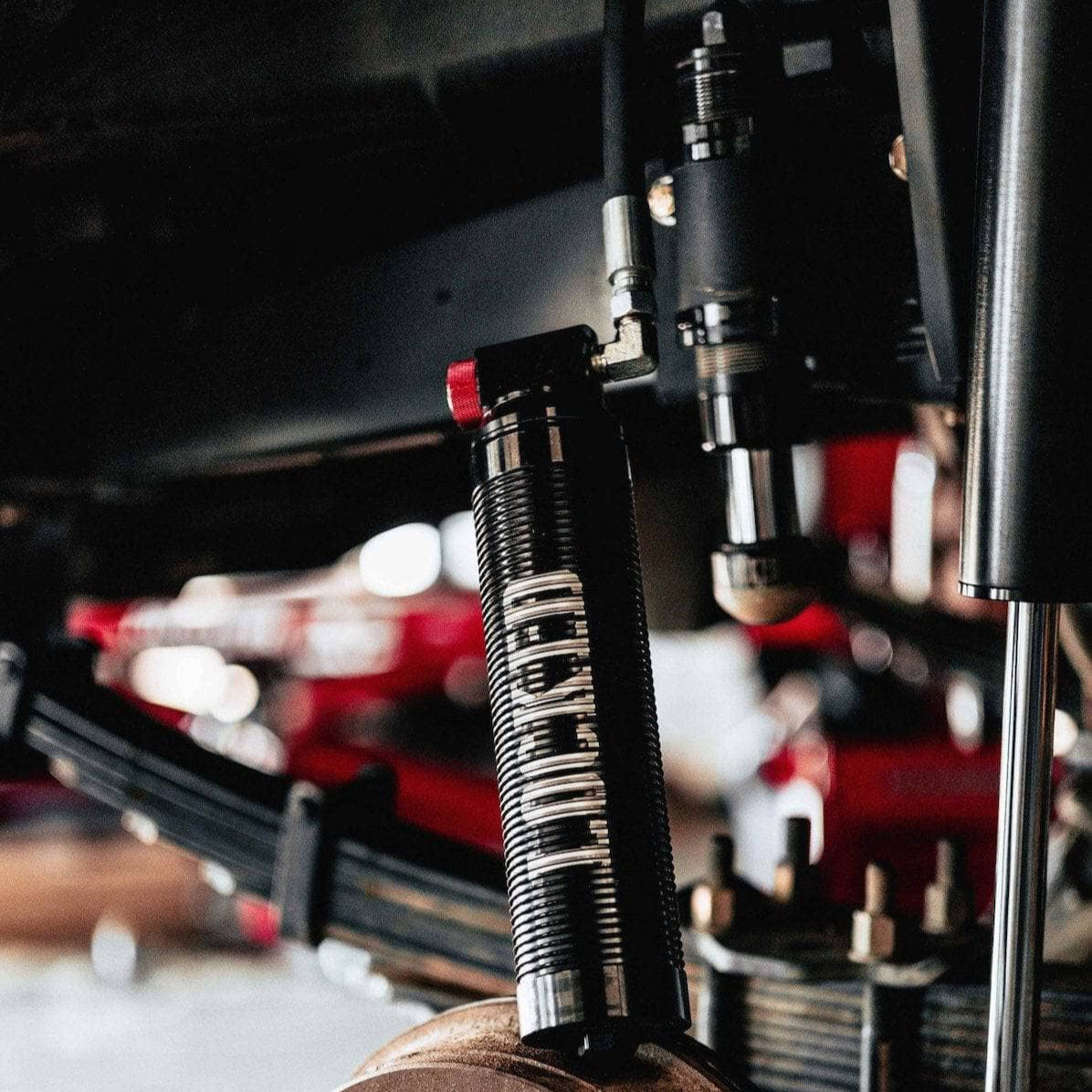

• Finned Remote Reservoirs for improved cooling under load
• 22-position compression adjusters for precision tuning
• Up to 25% more front wheel travel over stock
• Excellent handling both on-road and off-road
• Fully rebuildable, serviceable, and tunable
• Aftermarket upper control arms required

Spring Rate Options

• 600 lb/in – For factory weight or light modifications (closest to OEM ride)
• 650 lb/in – For a front bumper, winch, and possibly rock sliders
• 700 lb/in – For bumper, winch, rock sliders, and full skid plates

Warranty

1-Year Warranty – Valid with proper installation.

Important Notes

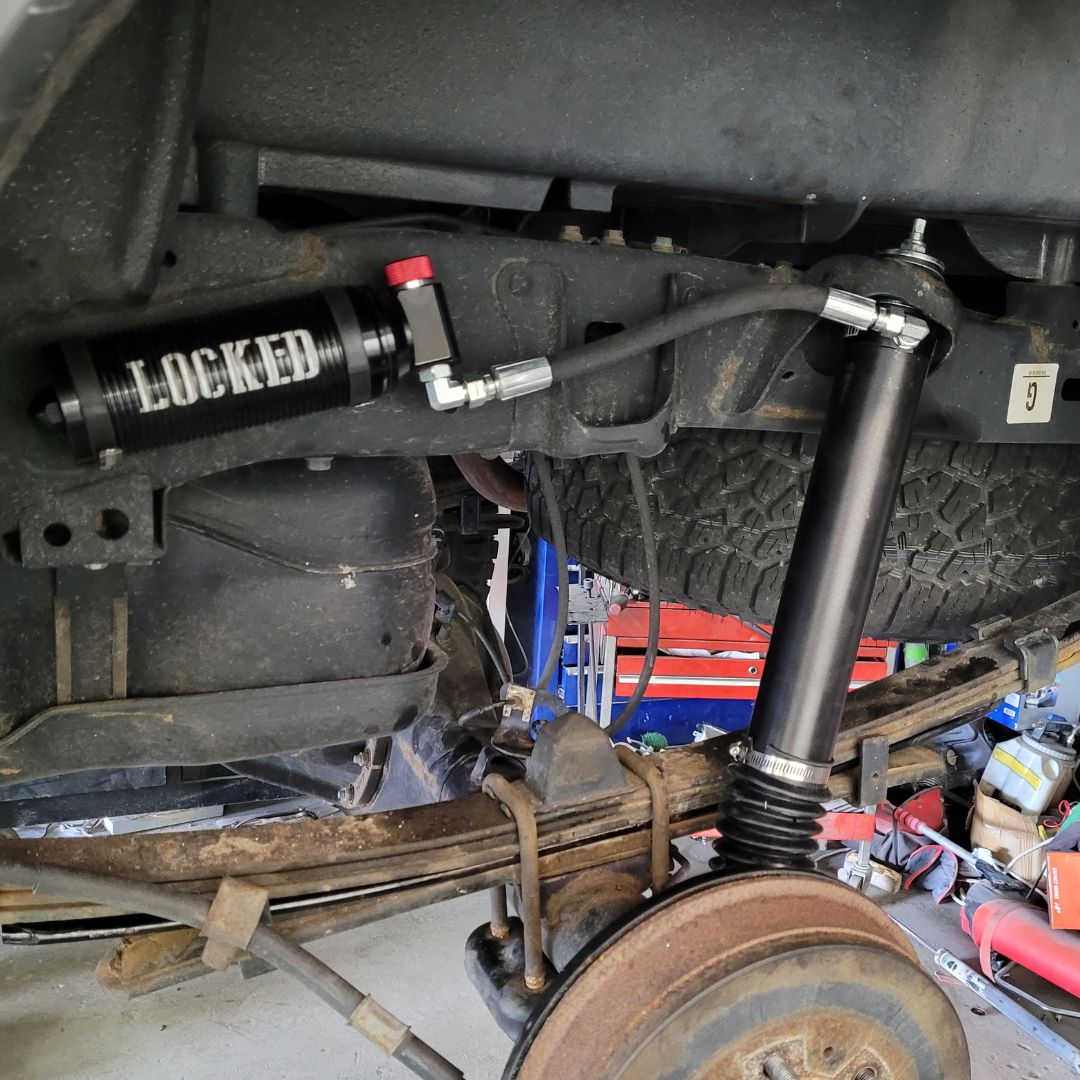

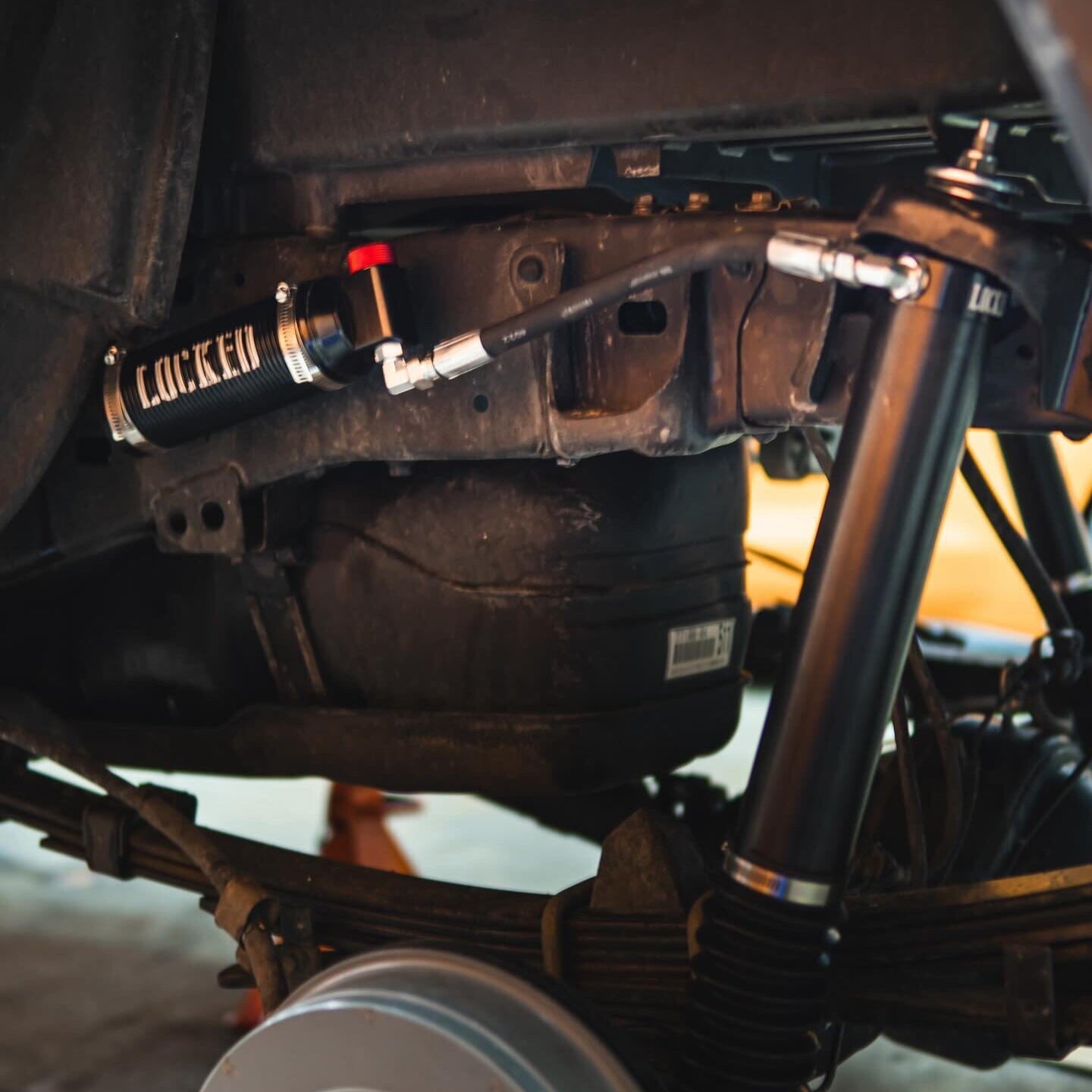

Tundra rear shock requires slight modification to the Tacomas upper shock mount. Hole will need to be widened away from the frame.

Rear shock relocation kit only required when using 12" or 14" rear smooth body shocks.
