DS18 DTX 2.2" Sound Quality Titanium Dome Tweeter with Aluminum Body

Amazing option for those wanting competition level tweeters that not only sound great, but have that intense volume that DS18's tweeters are known around the world for.

This tweeter maximizes and emphasizes volume over all with high power and high frequency notes. The high quality design gives it a unique look that demands attention from everyone around it. This 2.2 inch tweeter can handle 15w AES and 60w Peak power so it will be sure to deliver all the high range frequencies you are looking for.

Highlights

  • 2.2 inch tweeter design is made to bring crisp and bright high frequencies to maximum loudness for your system.

  • Small design makes it easy to mount and even easier to pair together for great looks and easy installations.

  • Power rating of 15w AES and 60 peak which will allow the high frequencies to play with authority.

Technical Details
DTX Product Manual
SPECIFICATIONS
Nominal Diameter 2.2” / 58 mm
Nominal Impedance 4 Ohms
AES Power Handling 15 Watts
Program Power Handling 30 Watts
Peak Power Handling 60 Watts
Sensitivity (1w/1m) 95.2 dB
Frequency Response 900 Hz - 20 KHz
Recommended Hi Pass Crossover 3.8 KHz
BODY | FEATURES
Pair or Single Pair
Body Material Aluminum
Body Color Silver
MOTOR
Voice Coil Diameter 1” / 25.4 mm
Voice Coil Former Material KVC
Winding Material CCAW
Diaphragm Material Titanium
Magnet Material Neodymium

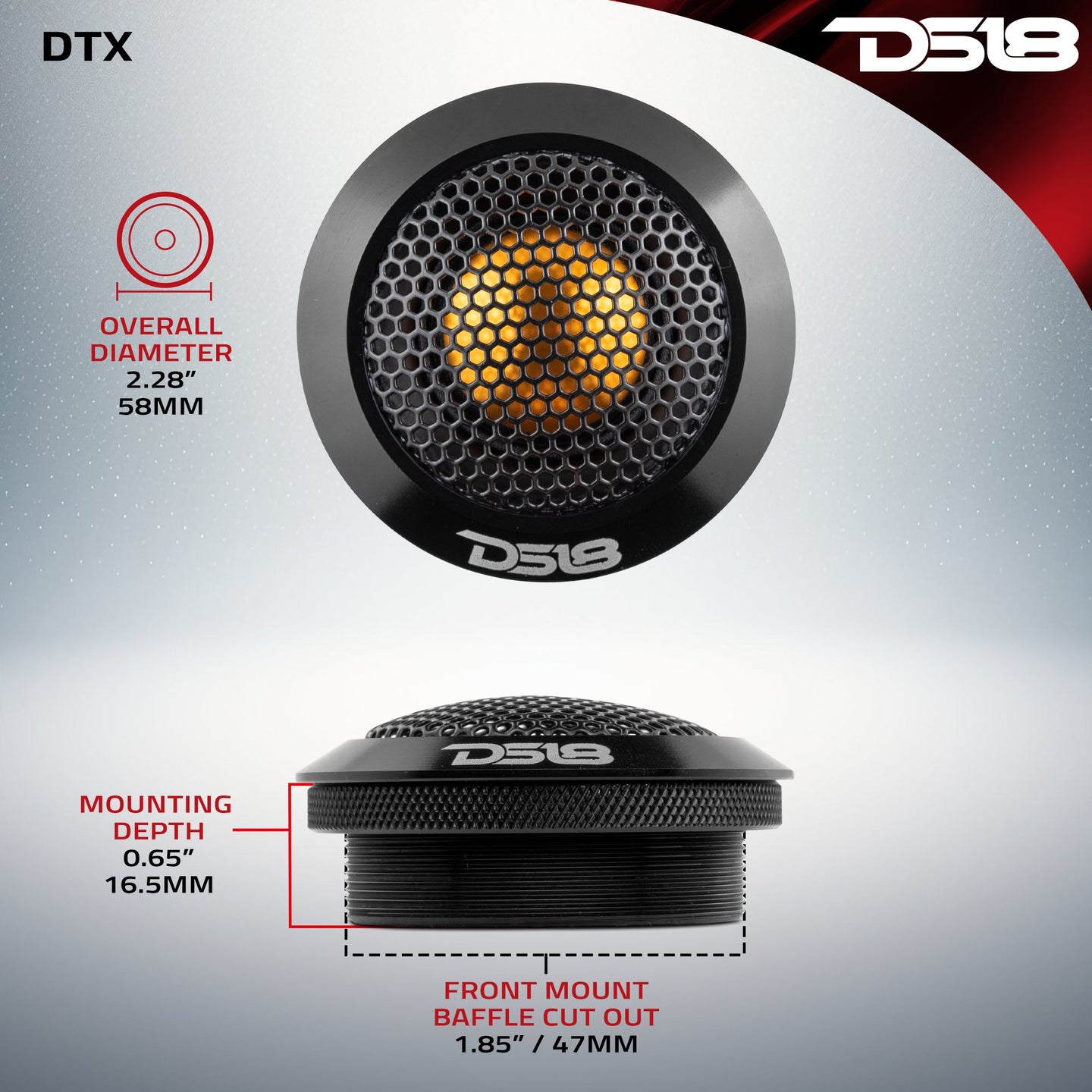

MEASUREMENTS
Overall Diameter 2.28”/ 58 mm
Overall Depth 1”/ 26 mm
Front Mount Baffle Cutout 1.85” / 47 mm
Mounting Depth 0.65” / 16.5 mm

2.2" Dome Neodymium Tweeter with Aluminum Body 30 Watts 1" Titanium 4-Ohm Vc

SKU DTX
$83.95
$83.95

DS18 DTX 2.2" Sound Quality Titanium Dome Tweeter with Aluminum Body

Amazing option for those wanting competition level tweeters that not only sound great, but have that intense volume that DS18's tweeters are known around the world for.

This tweeter maximizes and emphasizes volume over all with high power and high frequency notes. The high quality design gives it a unique look that demands attention from everyone around it. This 2.2 inch tweeter can handle 15w AES and 60w Peak power so it will be sure to deliver all the high range frequencies you are looking for.

Highlights

  • 2.2 inch tweeter design is made to bring crisp and bright high frequencies to maximum loudness for your system.

  • Small design makes it easy to mount and even easier to pair together for great looks and easy installations.

  • Power rating of 15w AES and 60 peak which will allow the high frequencies to play with authority.

Technical Details
DTX Product Manual
SPECIFICATIONS
Nominal Diameter 2.2” / 58 mm
Nominal Impedance 4 Ohms
AES Power Handling 15 Watts
Program Power Handling 30 Watts
Peak Power Handling 60 Watts
Sensitivity (1w/1m) 95.2 dB
Frequency Response 900 Hz - 20 KHz
Recommended Hi Pass Crossover 3.8 KHz
BODY | FEATURES
Pair or Single Pair
Body Material Aluminum
Body Color Silver
MOTOR
Voice Coil Diameter 1” / 25.4 mm
Voice Coil Former Material KVC
Winding Material CCAW
Diaphragm Material Titanium
Magnet Material Neodymium
MEASUREMENTS
Overall Diameter 2.28”/ 58 mm
Overall Depth 1”/ 26 mm
Front Mount Baffle Cutout 1.85” / 47 mm
Mounting Depth 0.65” / 16.5 mm
