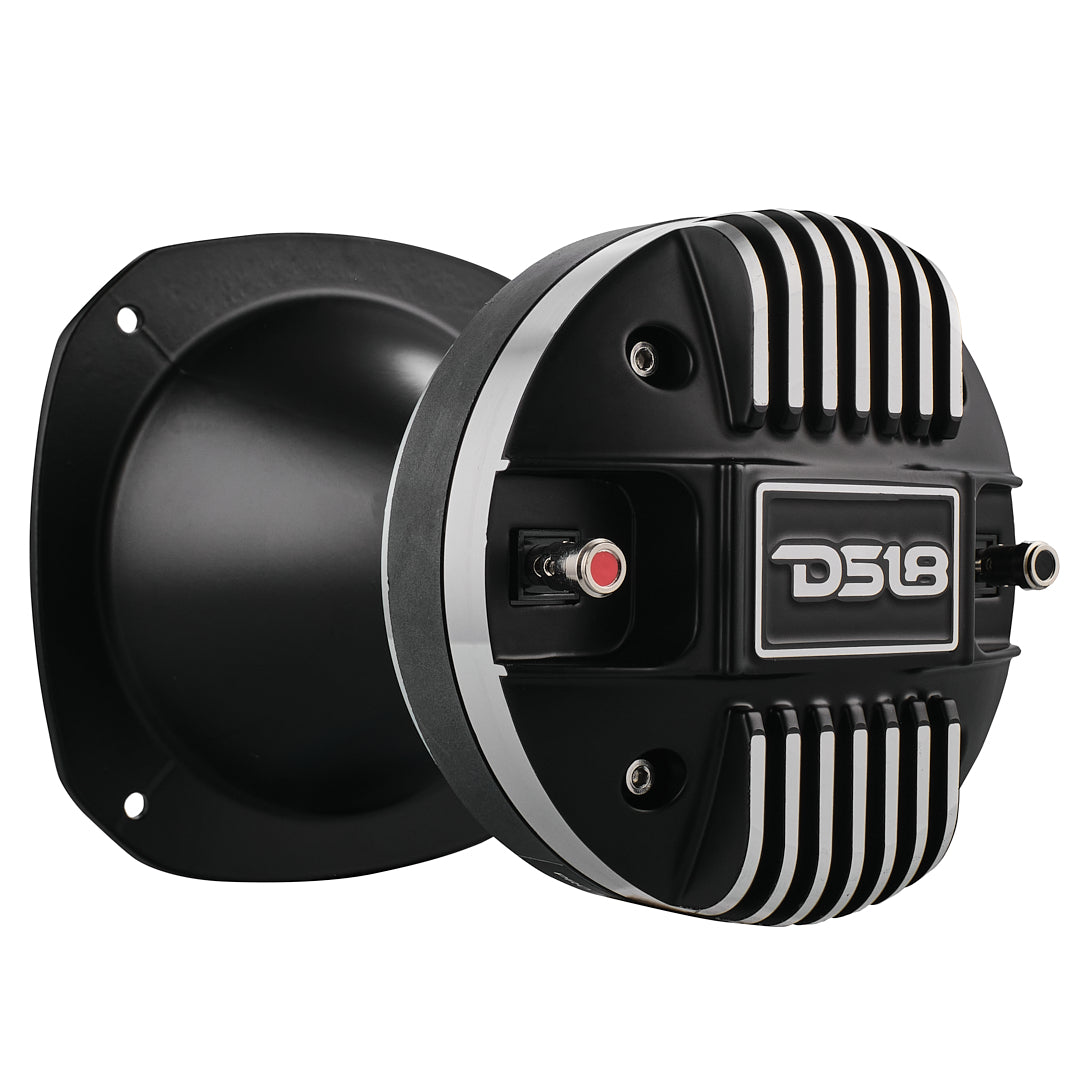

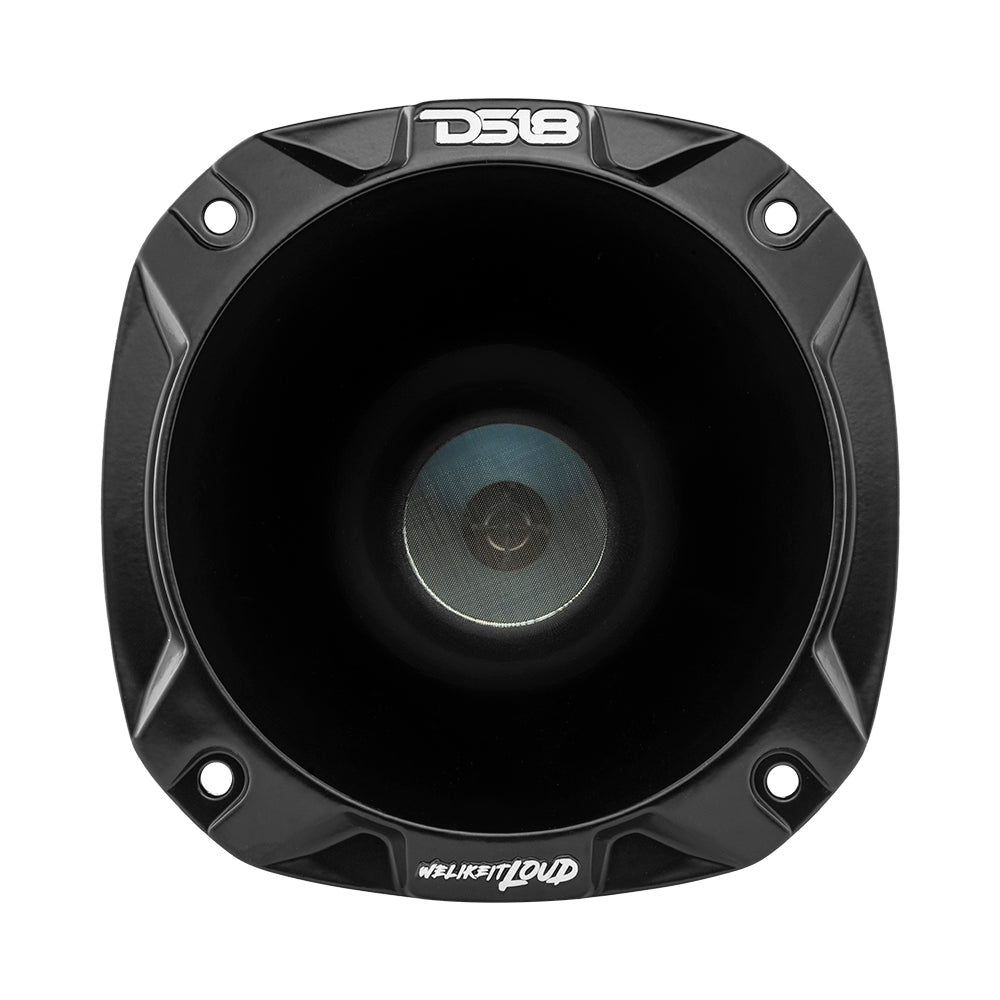

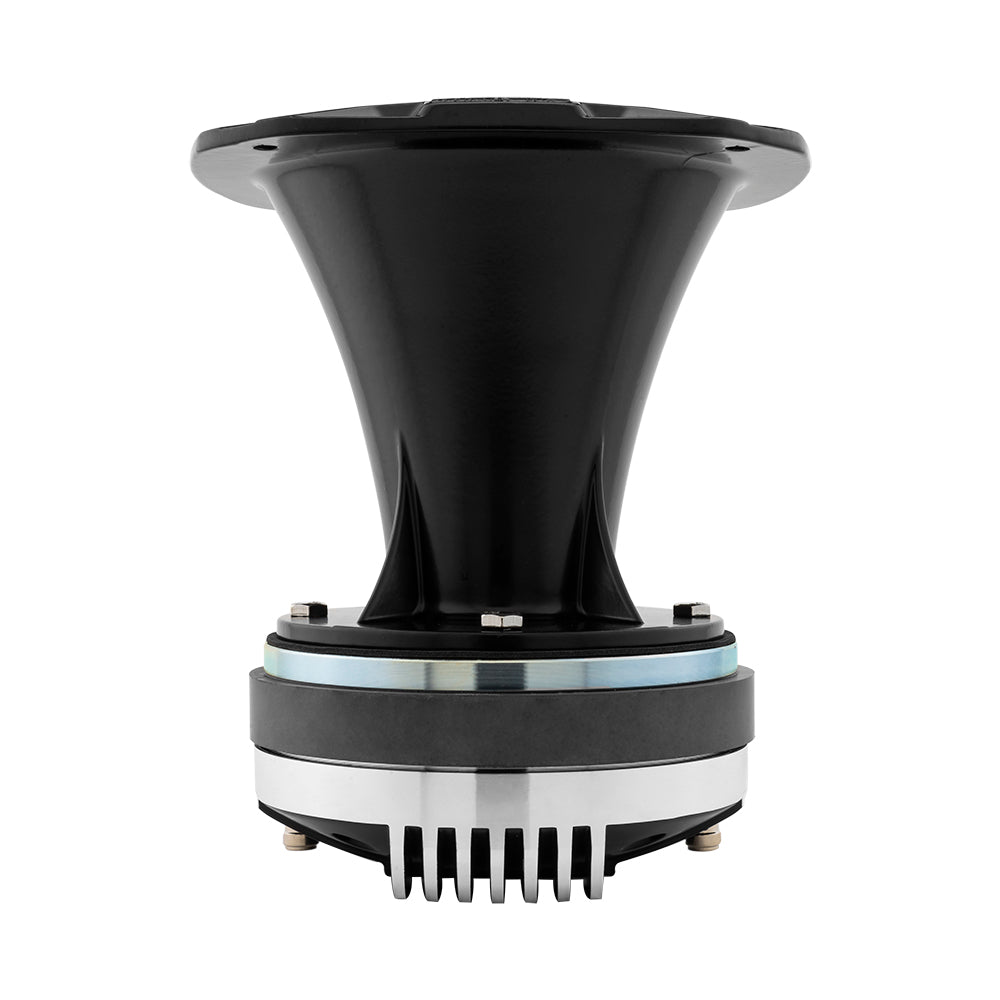

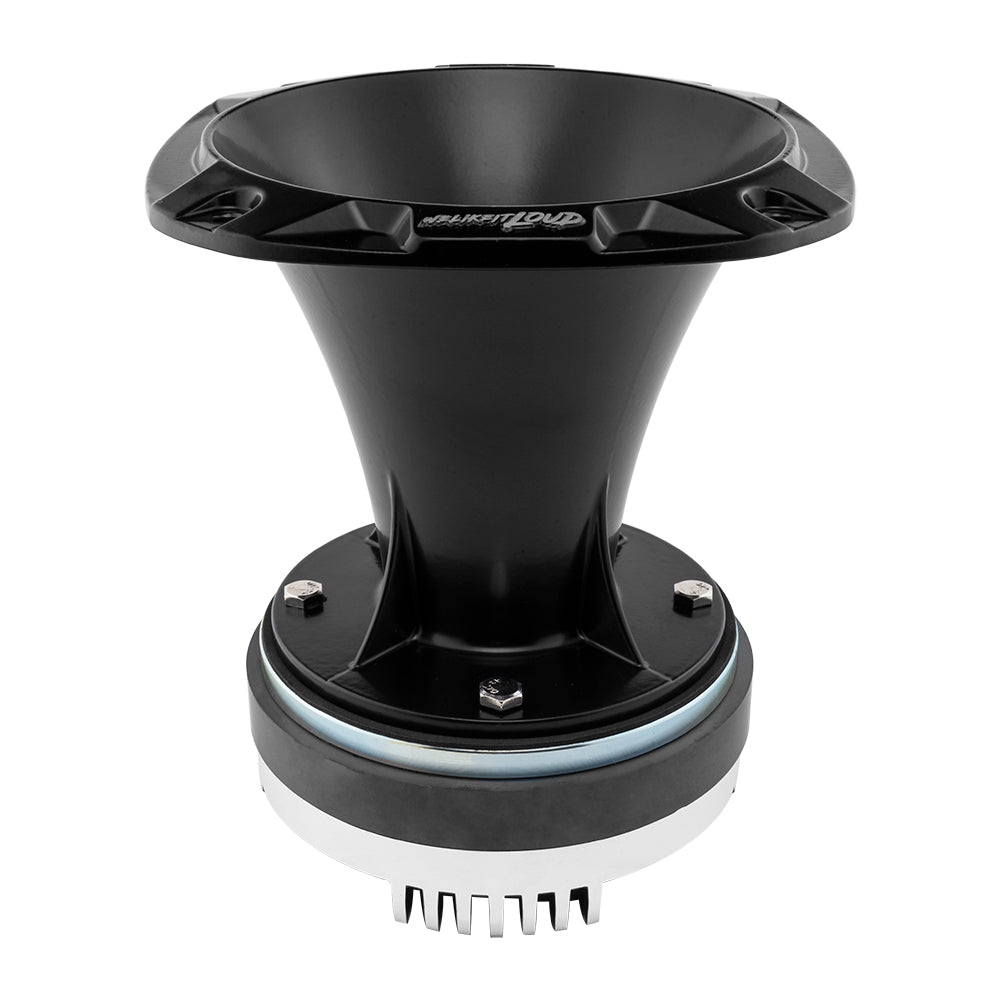

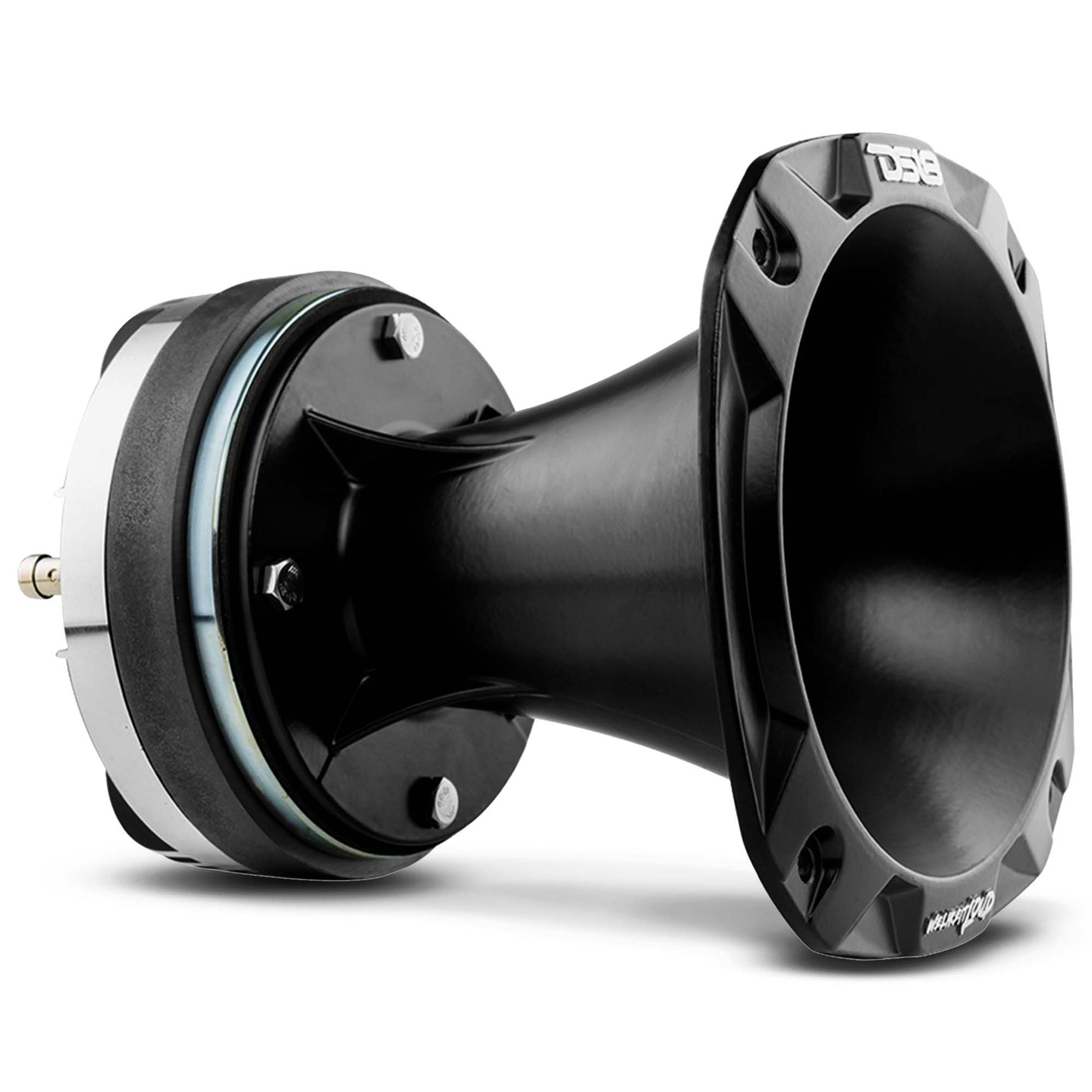

S18 PRO-DKH1 2" Bolt On Throat Compression Driver 2" Throat Titanium VC and PRO-HA102/BK Horn 640 Watts 111dB 8 ohm Mounting Depth 7.18"
Engineered and Designed in the US, the DS18 Compression Drivers with aluminum horns are the top of the line high frequency driver/tweeter/horns in the market. These bad boys deliver so much power that you'd think with one horn your whole sound system is ready to deploy for a major concert. Simply put, there are no compression drivers that can compare to the sophistication, beauty, and precision of these horns especially in the Pro Audio/Voceteo World. Thanks to the demands of our customers, after months of relentless tests and experiments, our team of audio-experts perfected the PRO line. We are ecstatic to share with you the product of hard-work and non-stop innovating attitude! We are sure that you will love your Compression Driver as much as we do. WARNING: EXTREMELY LOUD!! Highlights
|
Technical Details
Specifications | |
Peak Power Handling | 640 Watts |
Program Power handling | 320 Watts |
AES Rated Power | 160 Watts |
Sensitivity | 115 dB |
Frequency Response | 500Hz-18.5KHz |
Nominal Impedance | 8 Ohms |
Throat Diameter | 2" |
Recommended Hi Pass Crossover | 800 Hz |
Voice Coil Diameter | 2.03" |
Diaphragm Material | Titanium |
Magnet Material | Ferrite |
Magnet Weight | 35 oz |
Bolt Type | Bolt-on |
Measurements | |
Overall Diameter | 6.88" |
Overall depth | 7.5" |

- Regular price
- $119.95
- Regular price
- $119.95
S18 PRO-DKH1 2" Bolt On Throat Compression Driver 2" Throat Titanium VC and PRO-HA102/BK Horn 640 Watts 111dB 8 ohm Mounting Depth 7.18"
Engineered and Designed in the US, the DS18 Compression Drivers with aluminum horns are the top of the line high frequency driver/tweeter/horns in the market. These bad boys deliver so much power that you'd think with one horn your whole sound system is ready to deploy for a major concert. Simply put, there are no compression drivers that can compare to the sophistication, beauty, and precision of these horns especially in the Pro Audio/Voceteo World. Thanks to the demands of our customers, after months of relentless tests and experiments, our team of audio-experts perfected the PRO line. We are ecstatic to share with you the product of hard-work and non-stop innovating attitude! We are sure that you will love your Compression Driver as much as we do. WARNING: EXTREMELY LOUD!! Highlights
|
Technical Details
Specifications | |
Peak Power Handling | 640 Watts |
Program Power handling | 320 Watts |
AES Rated Power | 160 Watts |
Sensitivity | 115 dB |
Frequency Response | 500Hz-18.5KHz |
Nominal Impedance | 8 Ohms |
Throat Diameter | 2" |
Recommended Hi Pass Crossover | 800 Hz |
Voice Coil Diameter | 2.03" |
Diaphragm Material | Titanium |
Magnet Material | Ferrite |
Magnet Weight | 35 oz |
Bolt Type | Bolt-on |
Measurements | |
Overall Diameter | 6.88" |
Overall depth | 7.5" |
