The DS18 selection of rearview cameras are waterproof, sturdy, and underscore LEDs for night vision.

They provide the best resolution out of any similarly-priced rearview cameras on the market with CMOS color camera and color screen images. Allrearview camerascome with 120 degree lens angle with distance scale lane. Super low illumination and easy to install.

Highlights

  • Stainless Steel
  • Waterproof
  • High Resolution Night Vision
  • Distance Scale
  • Color camera
  • Wide Angle (120 degrees - 170 degrees)
Specifications
Image Sensor: PC7070
TV System: PAL/NTSC
Effective Pixels: 648 x 488 Pixels
Sensing Area: 5.55µm x 5.55µm
Scanning System: 2:1 Interlance
Sync System: Internal
Resolution: 420 TV Lines
Horizontal Sync, Frequency: 15.625KHz - 15.734KHz
Vertical Sync, Frequency: 50Hz - 60Hz
Minimum Illumination: 1.5 lux/F1.2
Video Output: 1.0VP -P.750hm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/60th - 1/15000 seconds
BLC: Auto
Current Consumption: 80Ma
Power Supply: DC 12V-24V
Operating Temperature: -10°C - 46°C RH 95% MAX
Storage Temperature: -30°C - 60°C RH 95% MAX
Lens: 1.8mm F=2.0
Lens Angle: 170°
Waterproof Grade: IP 67

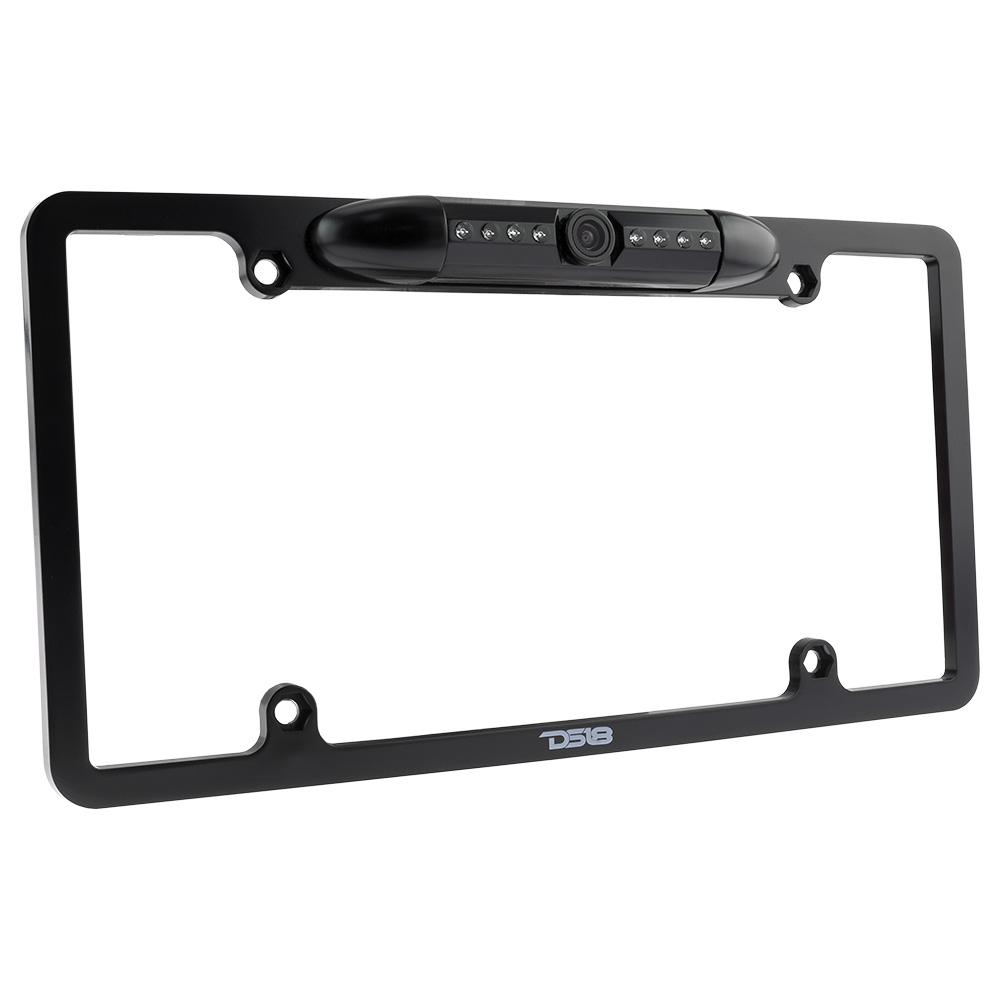

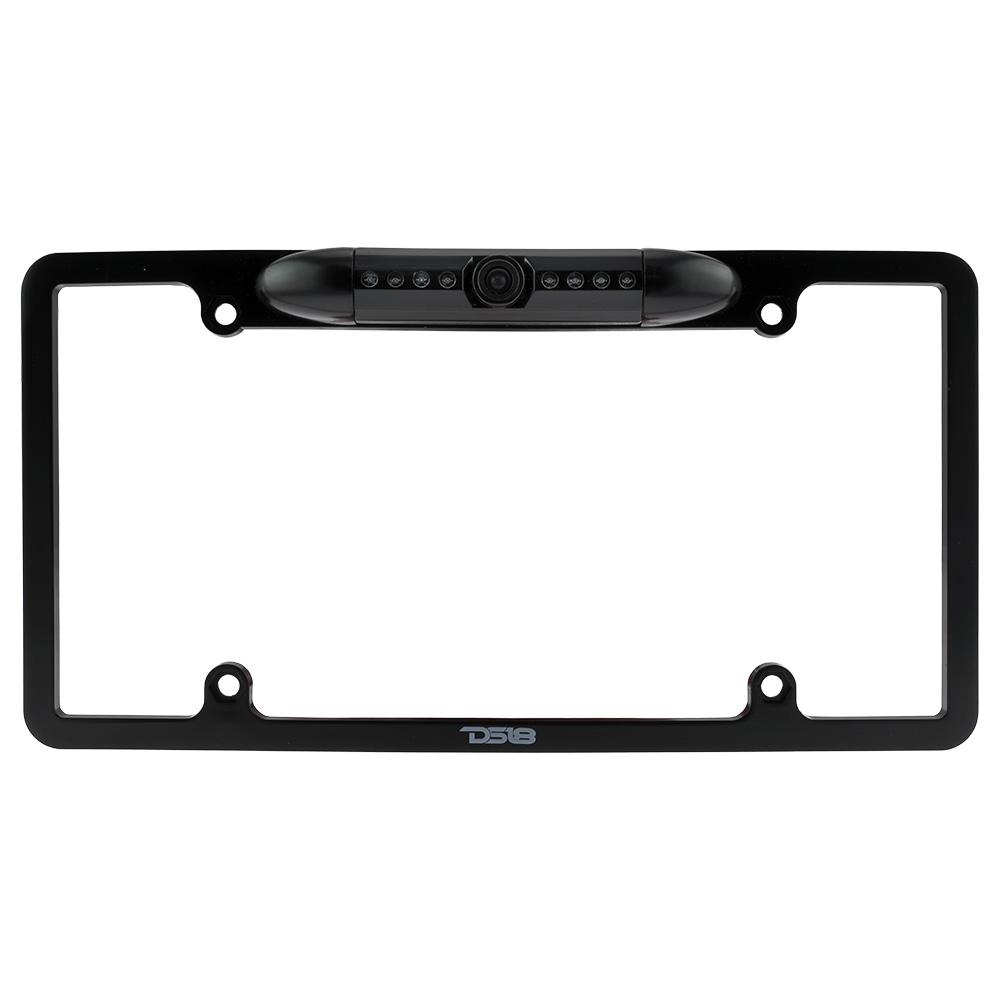

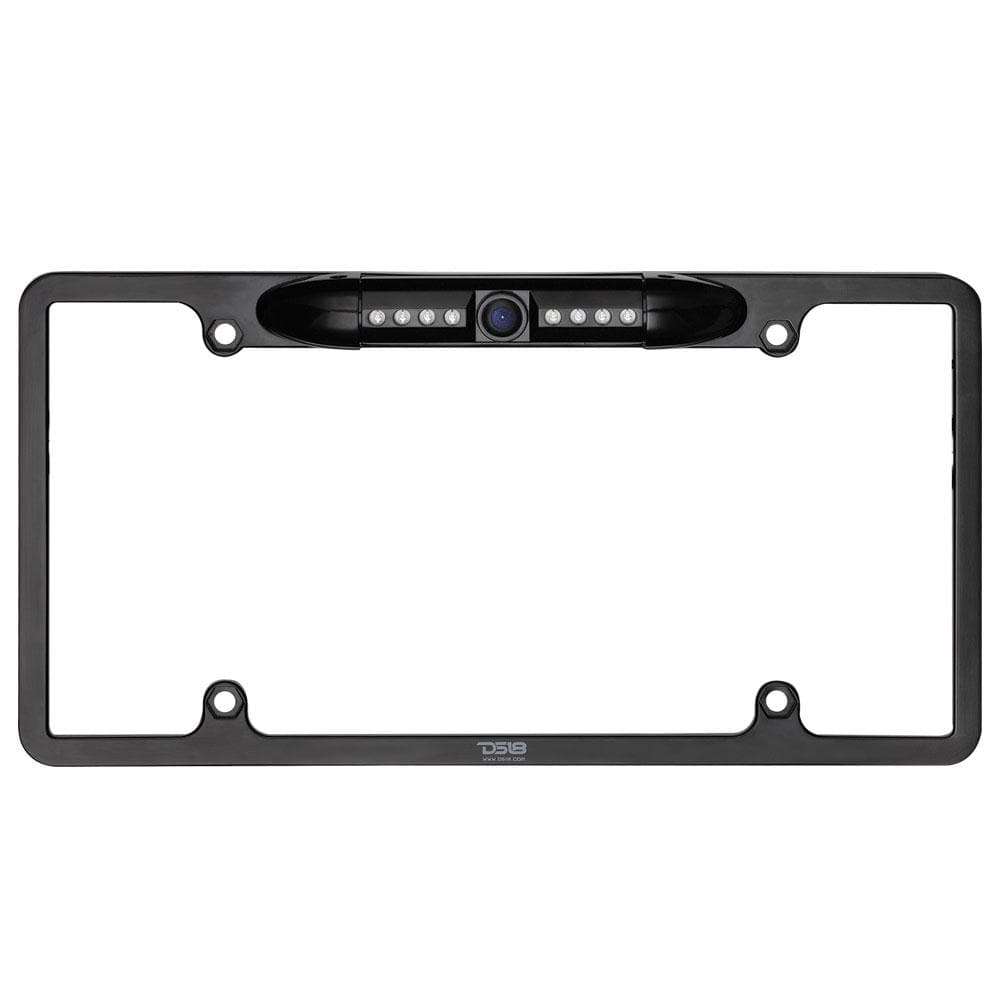

DS18 RCCP License Plate Backup Camera with Night Vision

SKU RCCPB
$49.95
$49.95
Color:
The DS18 selection of rearview cameras are waterproof, sturdy, and underscore LEDs for night vision.

They provide the best resolution out of any similarly-priced rearview cameras on the market with CMOS color camera and color screen images. Allrearview camerascome with 120 degree lens angle with distance scale lane. Super low illumination and easy to install.

Highlights

  • Stainless Steel
  • Waterproof
  • High Resolution Night Vision
  • Distance Scale
  • Color camera
  • Wide Angle (120 degrees - 170 degrees)
Specifications
Image Sensor: PC7070
TV System: PAL/NTSC
Effective Pixels: 648 x 488 Pixels
Sensing Area: 5.55µm x 5.55µm
Scanning System: 2:1 Interlance
Sync System: Internal
Resolution: 420 TV Lines
Horizontal Sync, Frequency: 15.625KHz - 15.734KHz
Vertical Sync, Frequency: 50Hz - 60Hz
Minimum Illumination: 1.5 lux/F1.2
Video Output: 1.0VP -P.750hm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/60th - 1/15000 seconds
BLC: Auto
Current Consumption: 80Ma
Power Supply: DC 12V-24V
Operating Temperature: -10°C - 46°C RH 95% MAX
Storage Temperature: -30°C - 60°C RH 95% MAX
Lens: 1.8mm F=2.0
Lens Angle: 170°
Waterproof Grade: IP 67
