drivers ass
With customer safety in mind, DS18 cameras and reverse sensors are manufactured with the most up-to-date parts in the industry. Engineered and designed in the United States our cameras have crystal clear night vision and are tested to work in the harshest environment.
Technical Details
Operation Temperature: -10°- + 46°C (RH95% Max)
TV System: NTSC
Distance Scale Line: 6-9M
Effective Pixels: NTSC: 648 x 488 pixels
Sensing Area: 5.55µm x 5.55µm
Horizontal Resolution: 420 TV Lines
Dimension: 24 x 25 x 21.6mm
Lens Angle: 135°
Minimum Illumination: 1.5 lux /F1.2
Electronic Shutter Time: 1/60th - 1/15000th seconds
S/N ratio: >48
Video Output: CCIR/EIA(PAL/NTSC) Standard video Signal 1.0 Vp-p, 75 ohm
Sync System: Internal Synchronization
Power Supply: 12V

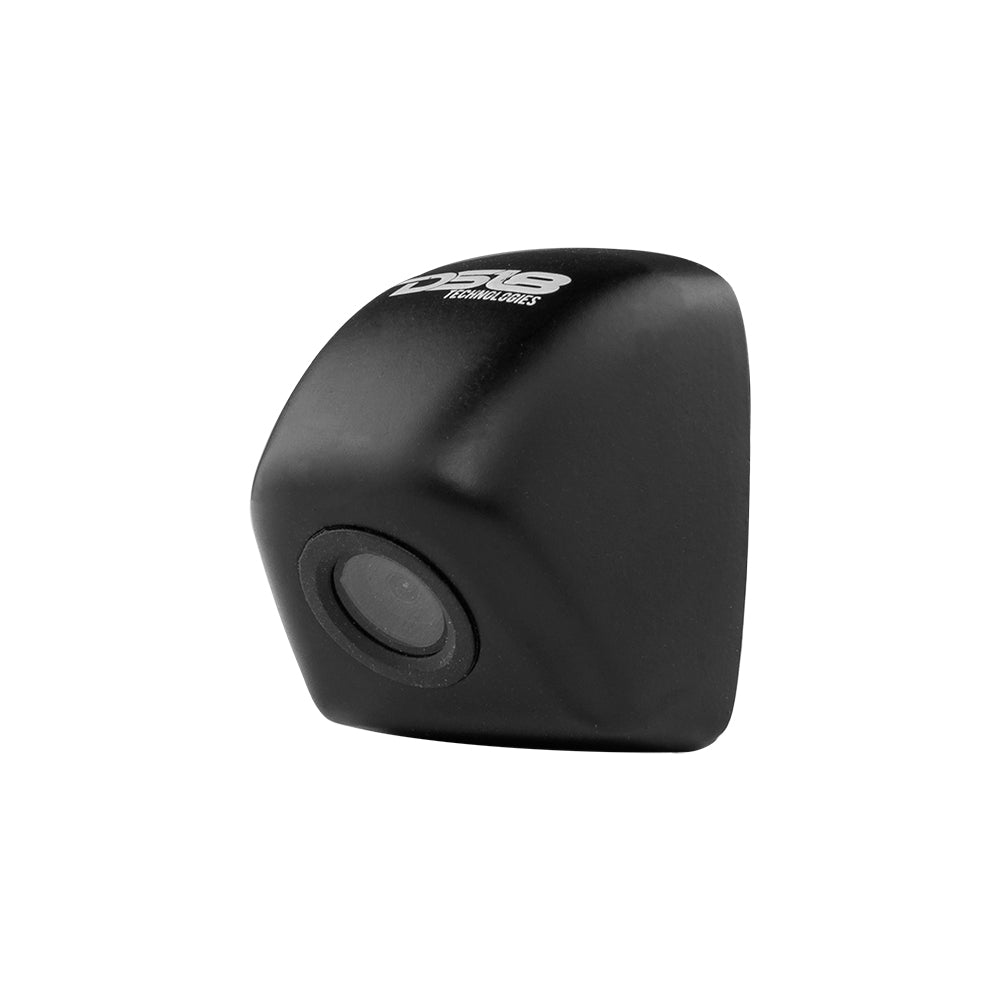

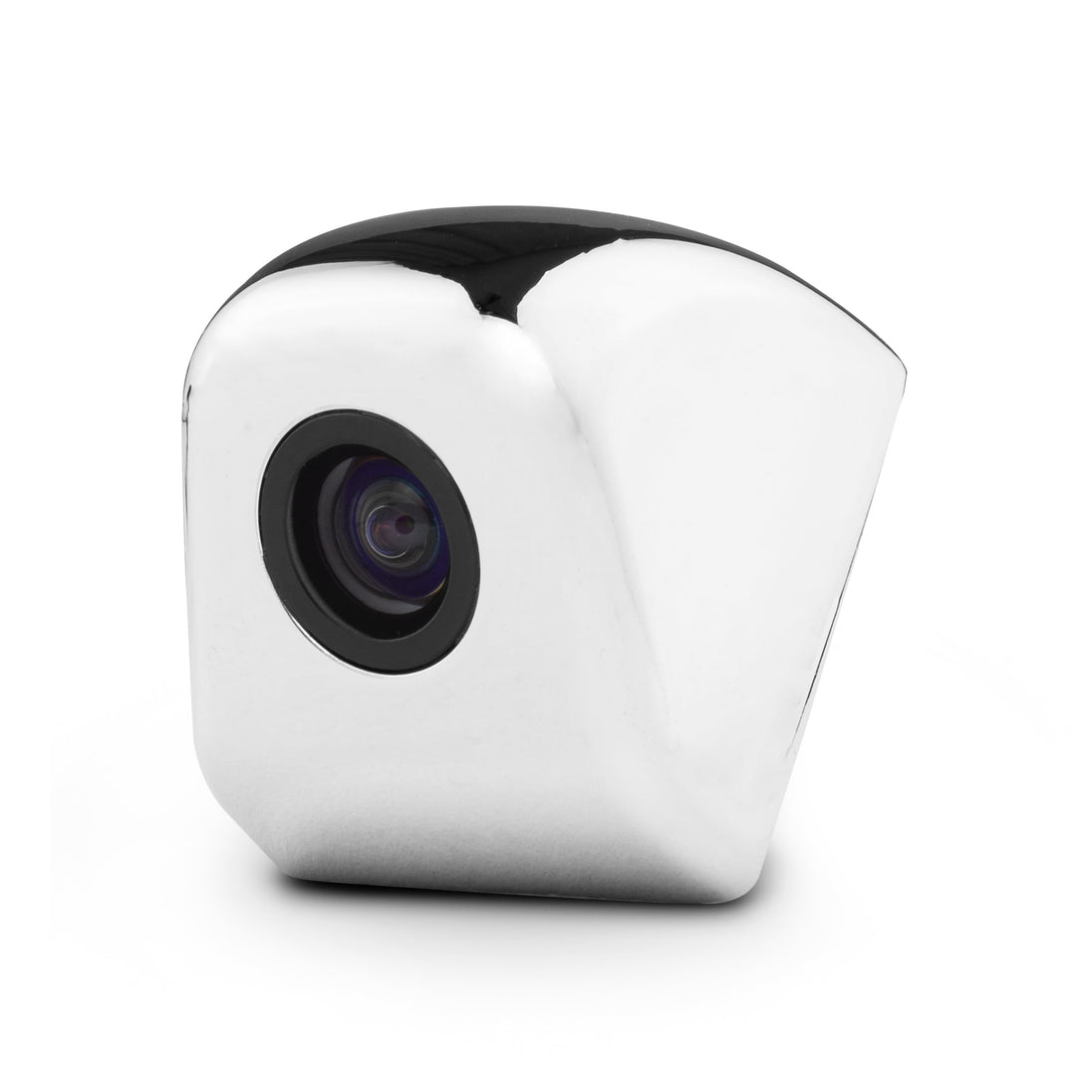

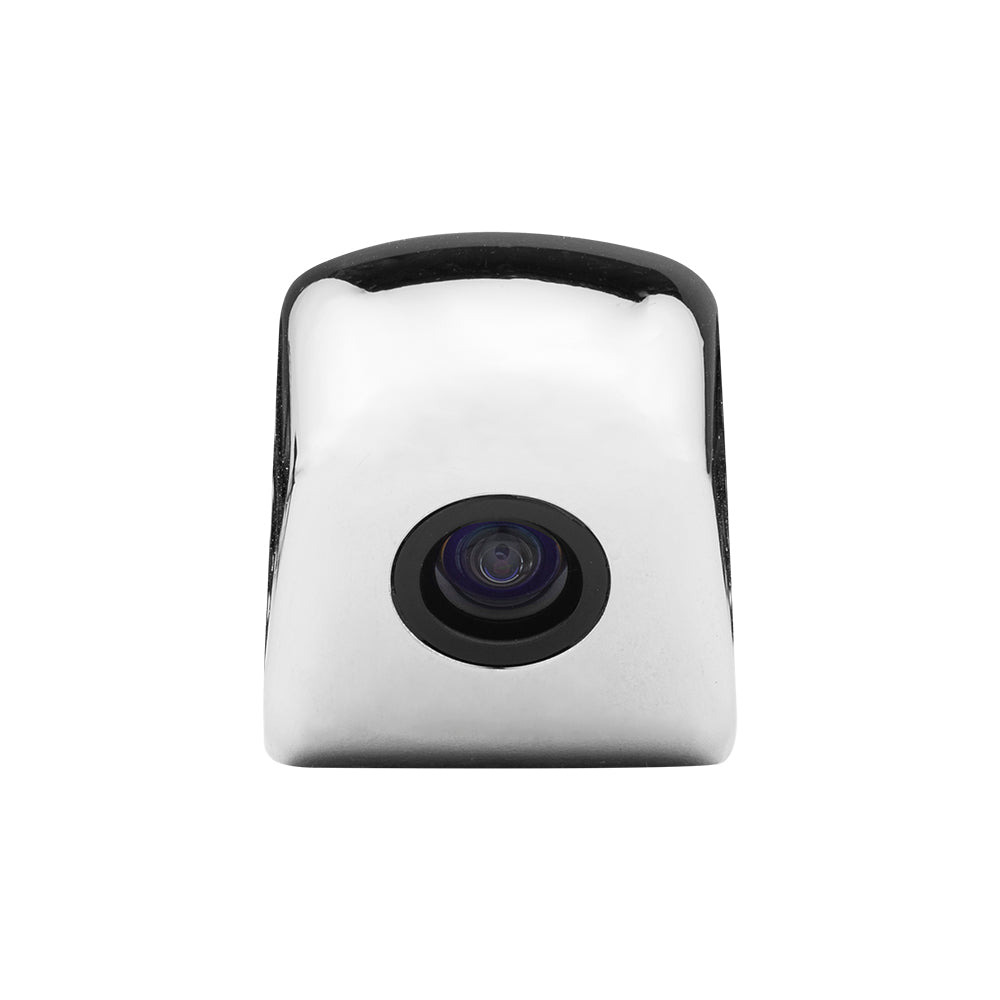

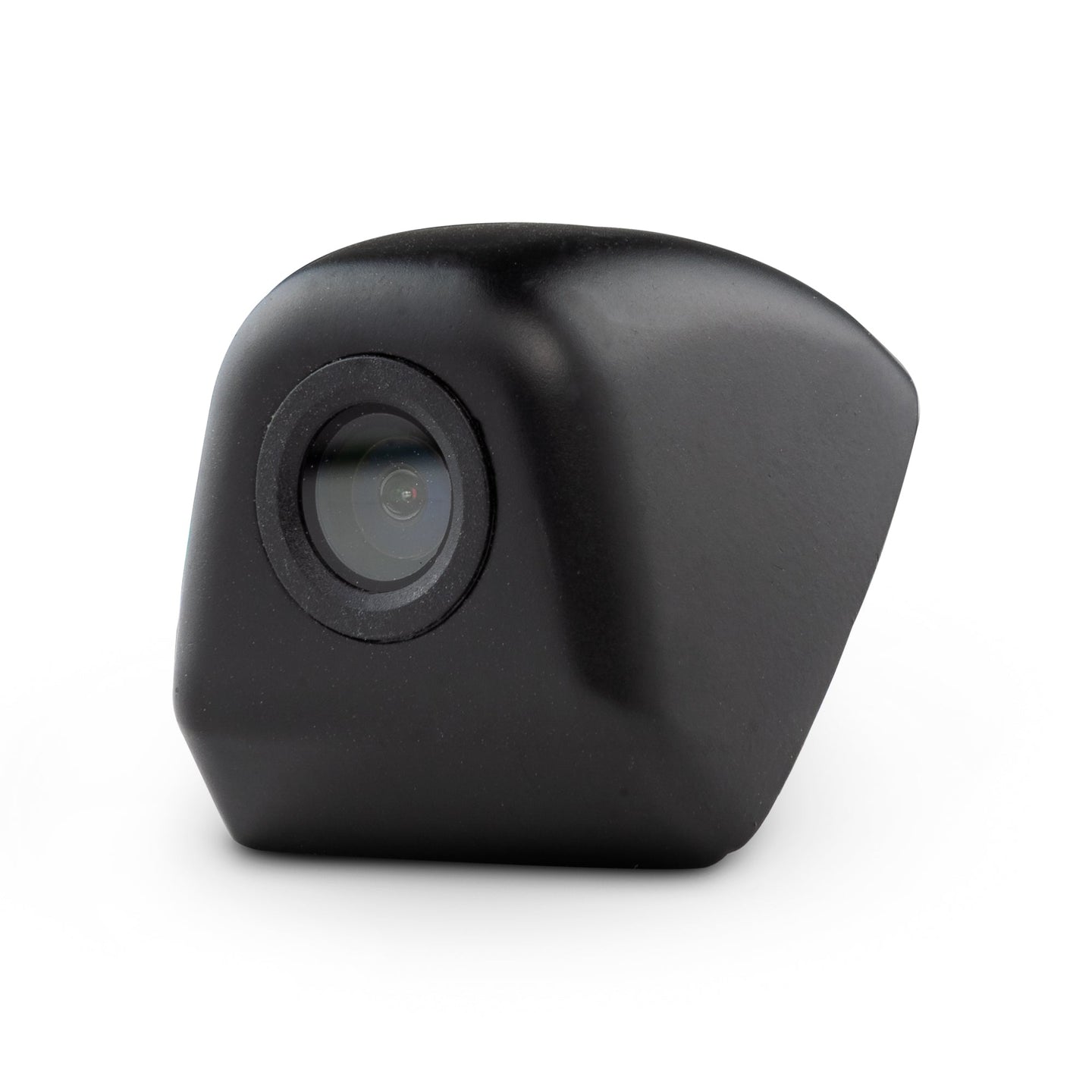

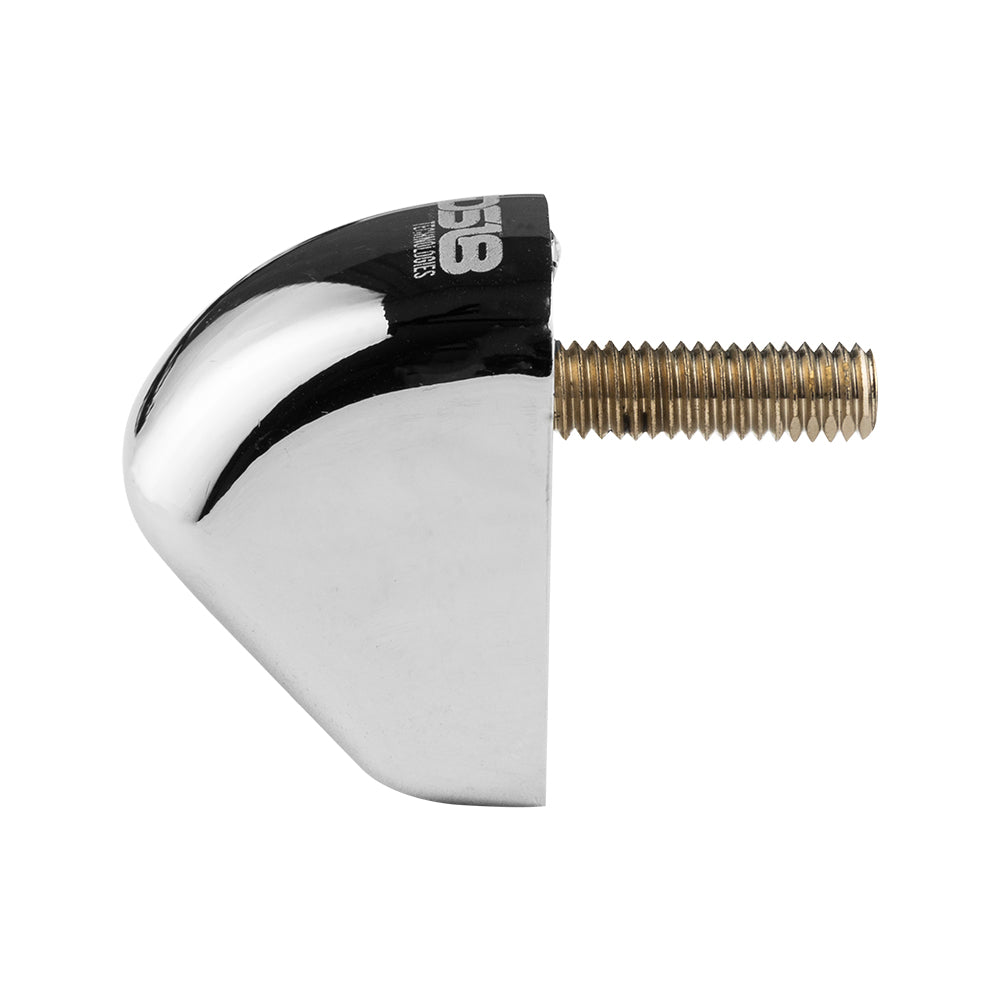

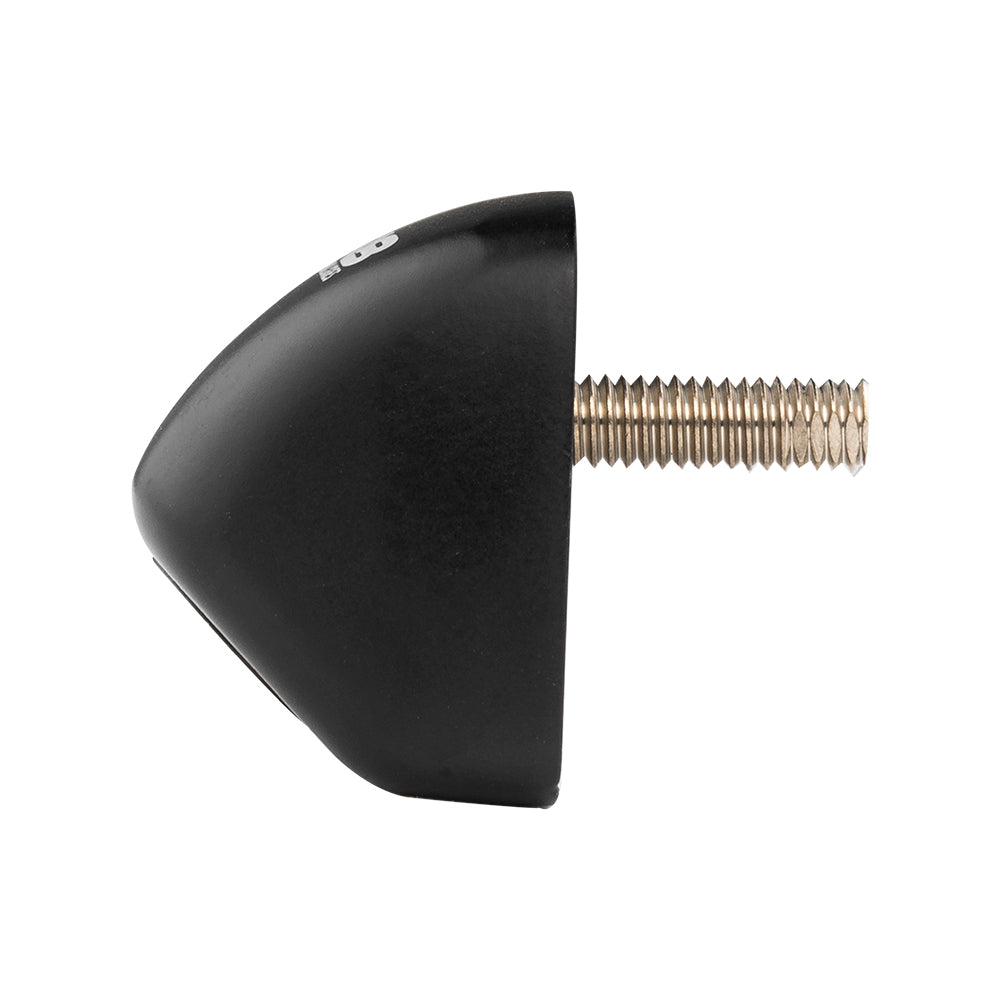

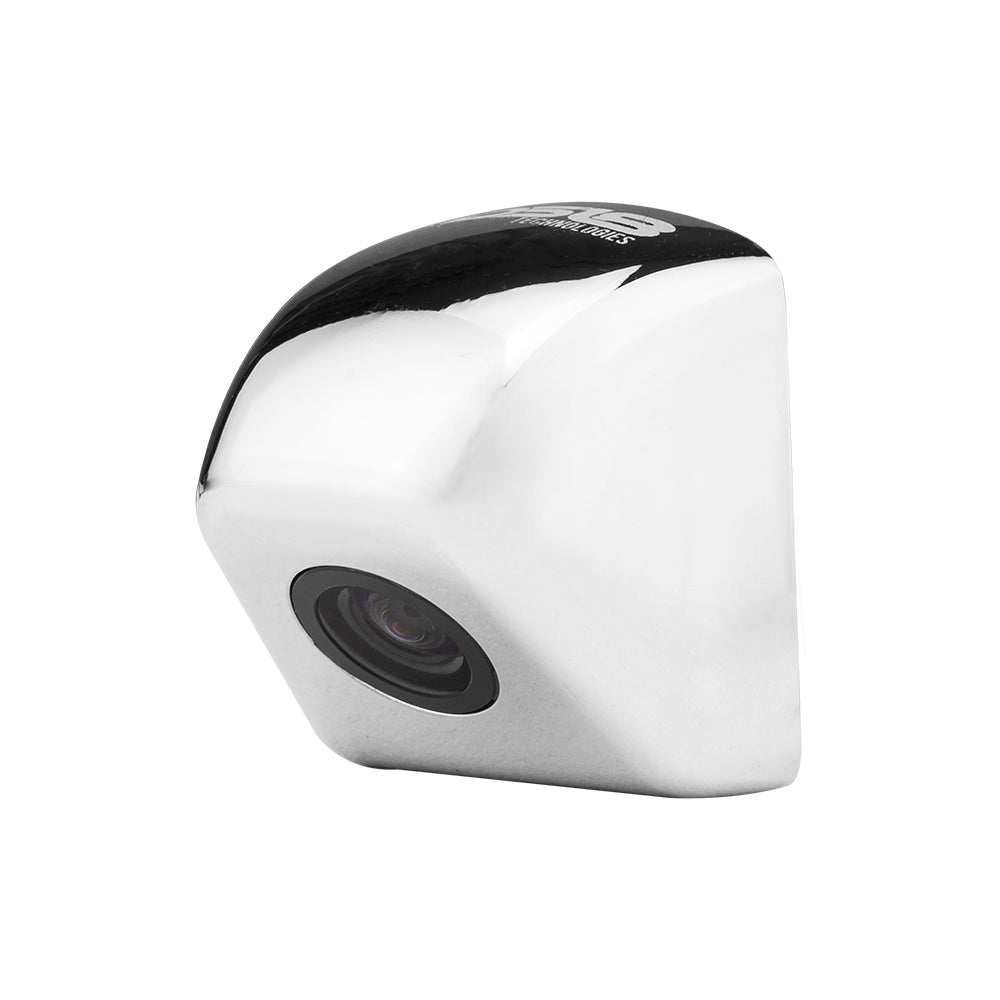

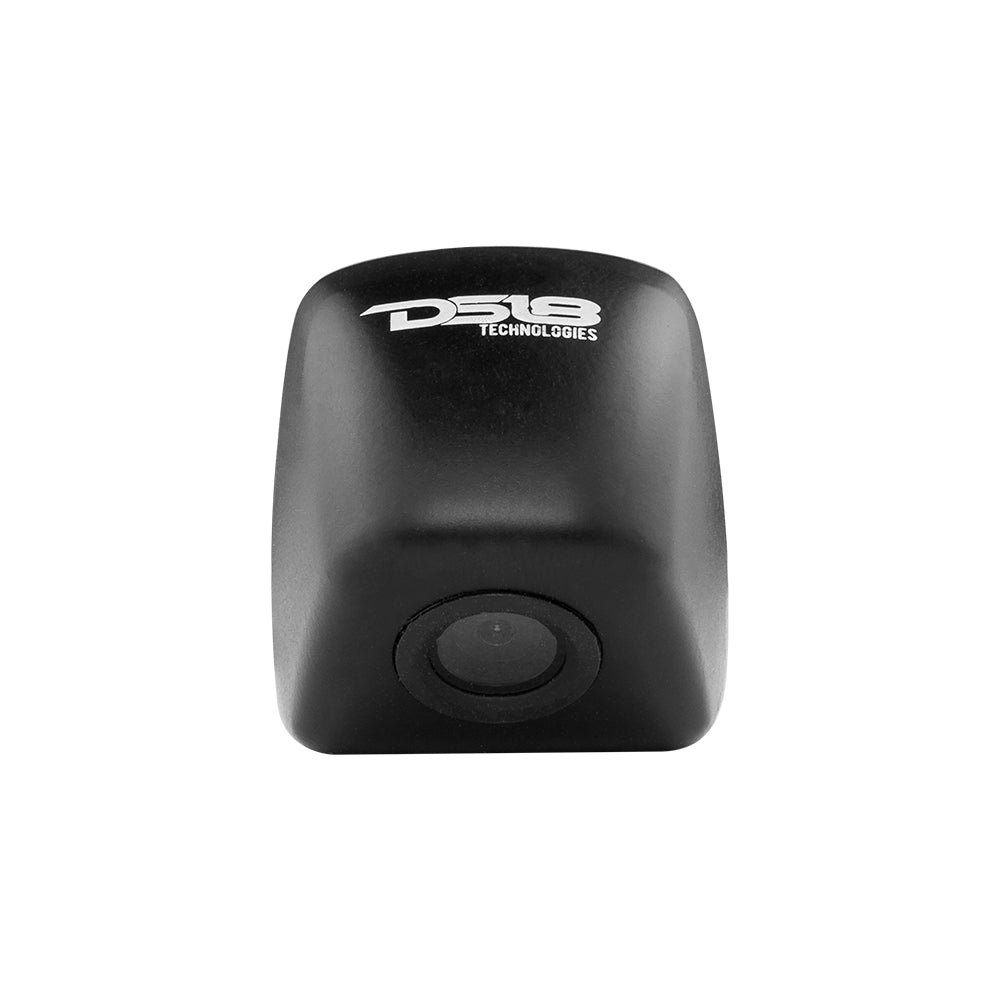

DS18 RCD20 Reverse Camera with Night Vision

SKU RCD20B
$24.95
$24.95
Color:
drivers ass
With customer safety in mind, DS18 cameras and reverse sensors are manufactured with the most up-to-date parts in the industry. Engineered and designed in the United States our cameras have crystal clear night vision and are tested to work in the harshest environment.
Technical Details
Operation Temperature: -10°- + 46°C (RH95% Max)
TV System: NTSC
Distance Scale Line: 6-9M
Effective Pixels: NTSC: 648 x 488 pixels
Sensing Area: 5.55µm x 5.55µm
Horizontal Resolution: 420 TV Lines
Dimension: 24 x 25 x 21.6mm
Lens Angle: 135°
Minimum Illumination: 1.5 lux /F1.2
Electronic Shutter Time: 1/60th - 1/15000th seconds
S/N ratio: >48
Video Output: CCIR/EIA(PAL/NTSC) Standard video Signal 1.0 Vp-p, 75 ohm
Sync System: Internal Synchronization
Power Supply: 12V
