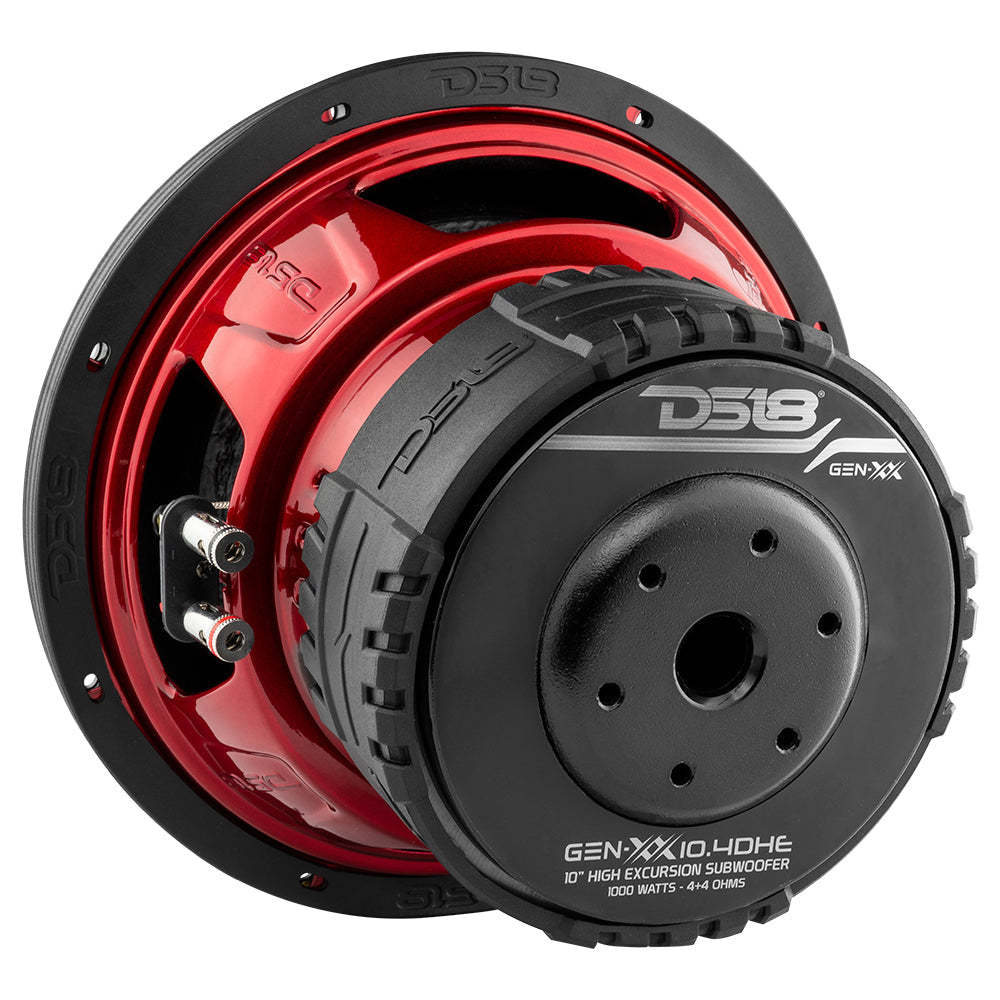

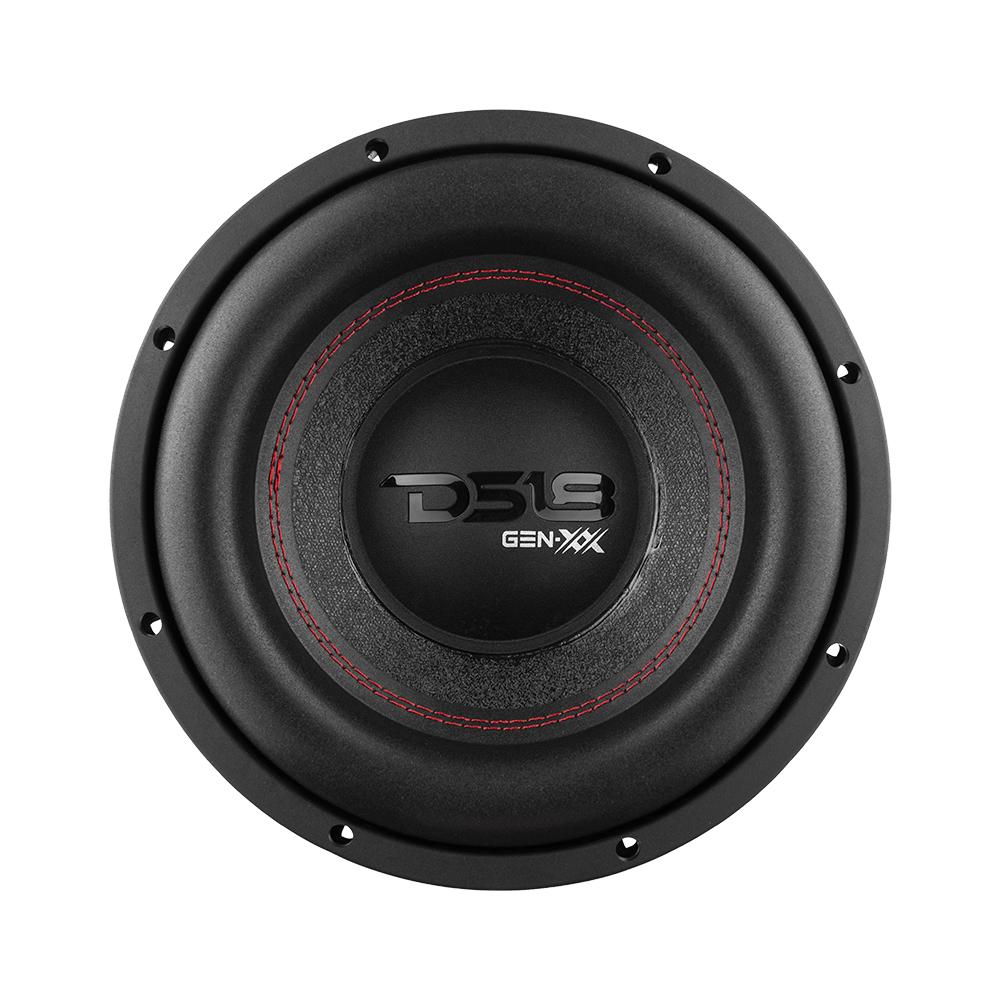

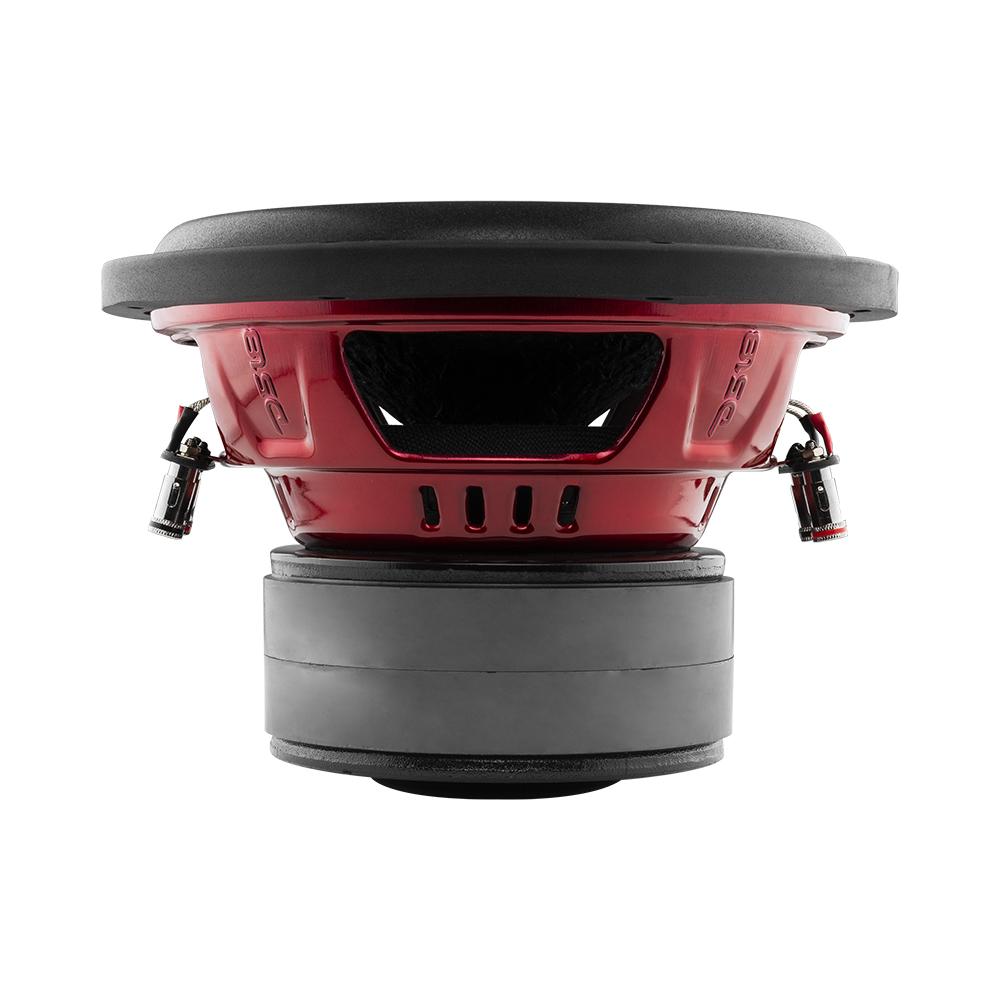

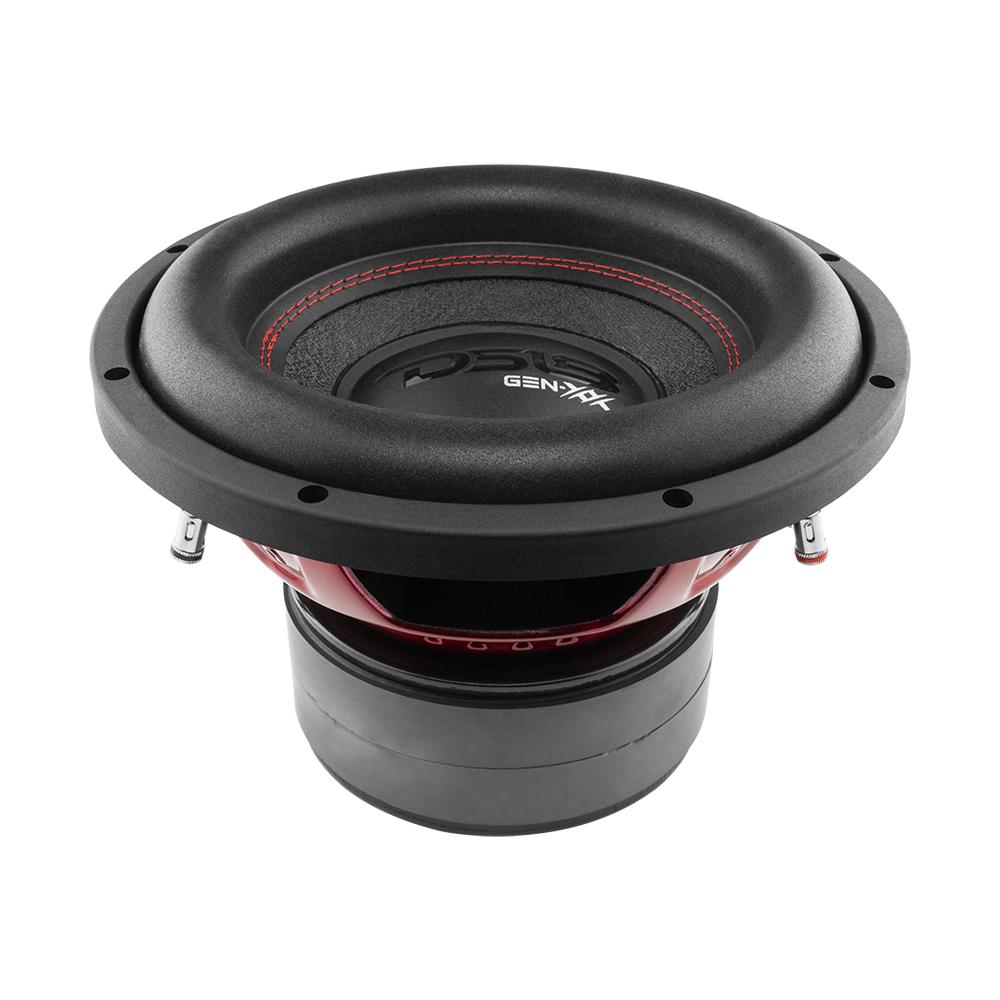

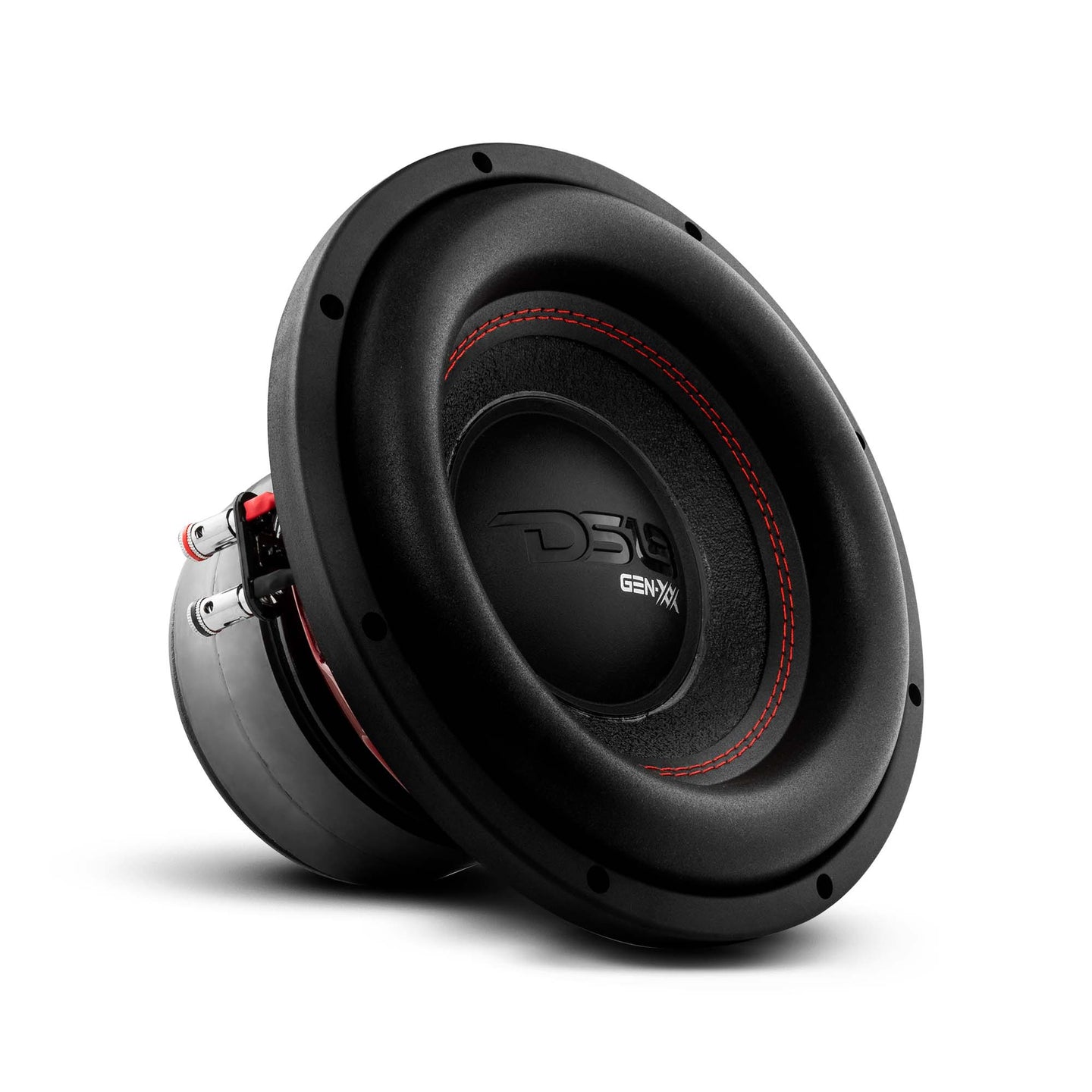

DS18 GEN-XX10.4DHE X 10" High Excursion Car Subwoofer
1000 Watts 4-Ohm DVC Double Magnet

High excursion is now the mainstream and usually this feature is very expensive, and enthusiasts sometimes miss out on amazing bass because of the large cost. We want to bring the experience of low frequency bass to even the entry level user. The GEN-XX10.4DHE is the answer to that issue. This subwoofer is a mid-tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with.
Also, with a power rating of 500w RMS and 1000w Max this sub does not require large amounts of power to come alive and beat up the block.

Highlights

• High Excursion surround for a very high amount of xmax.
• Great power handling of 500w RMS and 1000w max.
• Long three voice coil and extended magnet to accommodate the xmax increase.
• FS of 37.6 Hz so you can easily dip in the subsonic range with no issues along as your box is tuned correctly.

Technical Details

GEN-XX10.4DHE Product Manual

Nominal Diameter	10
Nominal Impedance	4+4 ohms
RMS Power Handling	500W
MAX Power Handling	1000W
Sensitivity (1w/1m)	84.6 dB
Frequency Response	20Hz - 1.1KHz
Recommended Lo Pass Crossover	90Hz
Motor:
VC Diameter	2
VC Former Material	Black Aluminum
Winding Material	SV
Cone Material	Paper
Dust Cap Material	PPI
Surround Material	Foam
Basket Material	Steel
Basket Color/Finish	Glossy Red
Magnet Material	Ferrite
Magnet Weight	136 Oz
Displacement Volume	1.82L
Thiele & Small Parameters
Equivalent Vol	Vas 16.583L
Excursion (one way)	Xmax 25 mm
Free Air Resonance	Fs 37.6 Hz
Mechanical Factor	Qms 4.705
Electrical Factor	Qes 0.476
Total Factor	Qts 0.432
Moving Mass	Mms 166.794g
Compliance	Cms 0.107mm/N
Bl Factor	BL 23.041N/A
VC Inductance	Le 0.6741mH
Diaphragm Area	Sd 330.64cm2
Dc Resistance	Re 3.2+3.2 ohms
Efficiency Bandwidth Product	EBP 78.99

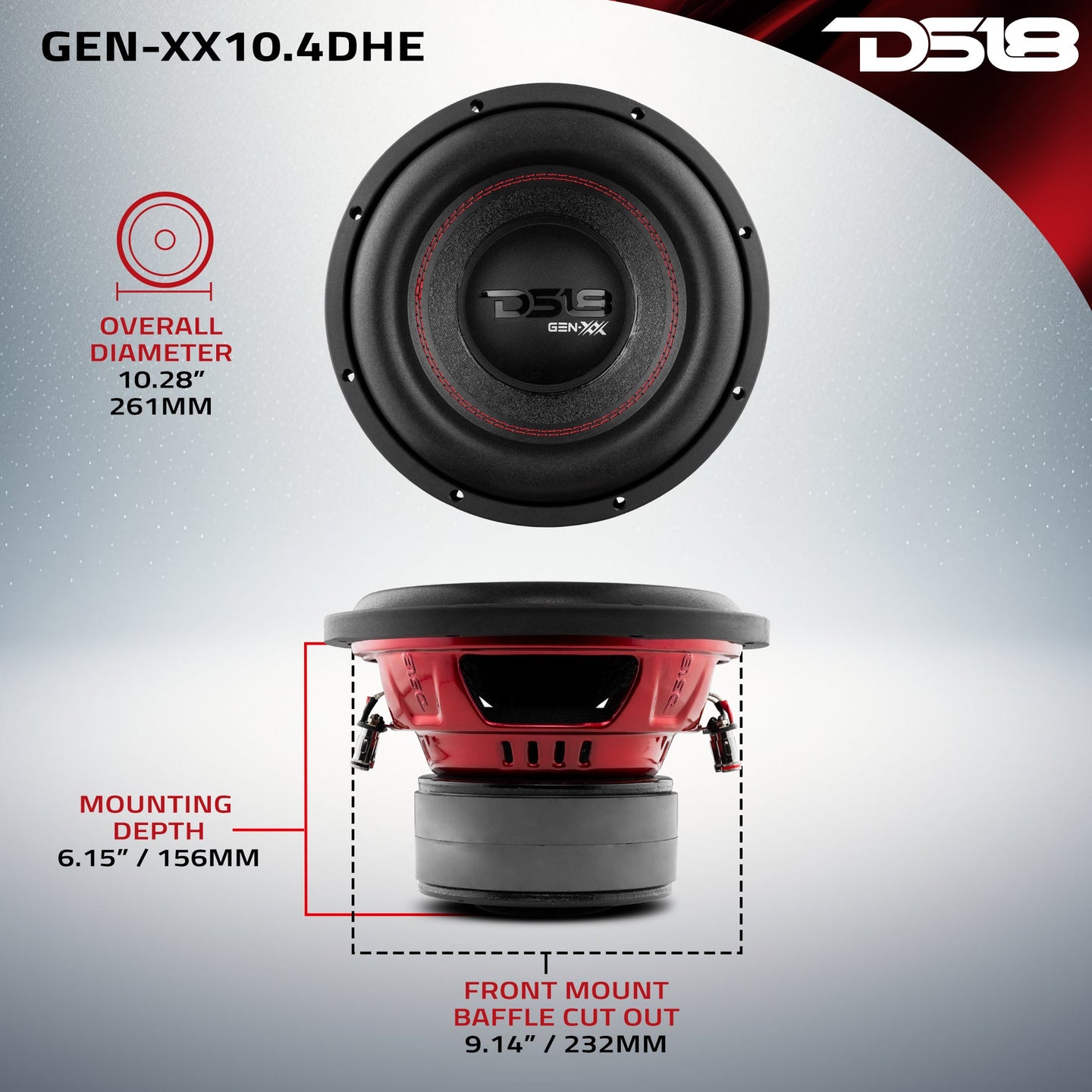

Measurements
Overall Diameter	10.28 / 261 mm
Overall Depth	7.21 / 183 mm
Front Mount Baffle Cutout	9.14 / 232 mm
Mounting Depth	6.15 / 156mm
Motor Diameter	6.15 / 156mm
