3-Link Kit with 1.25" Heims

Complete 3-link system—built for hardcore suspension setups.

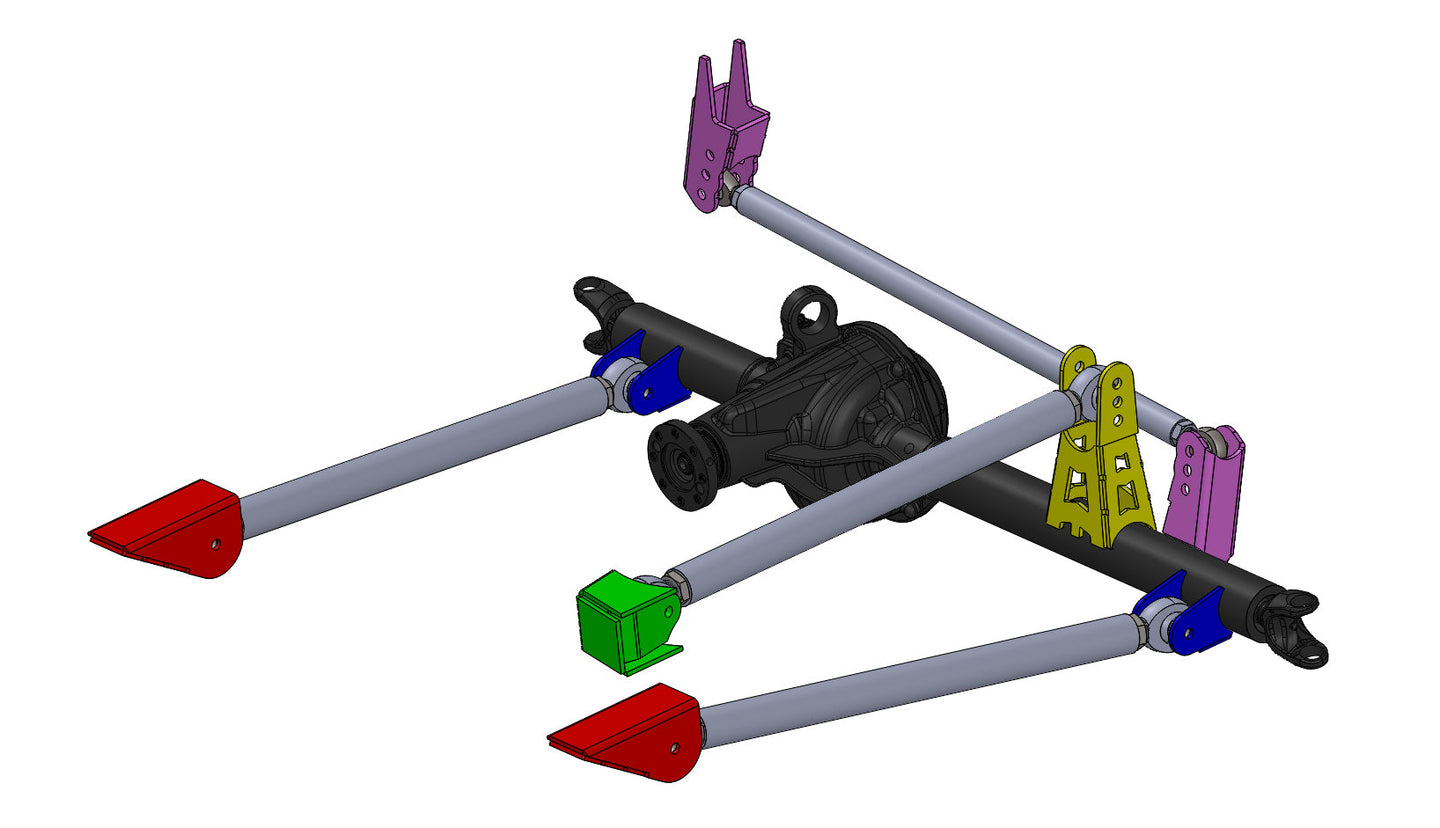

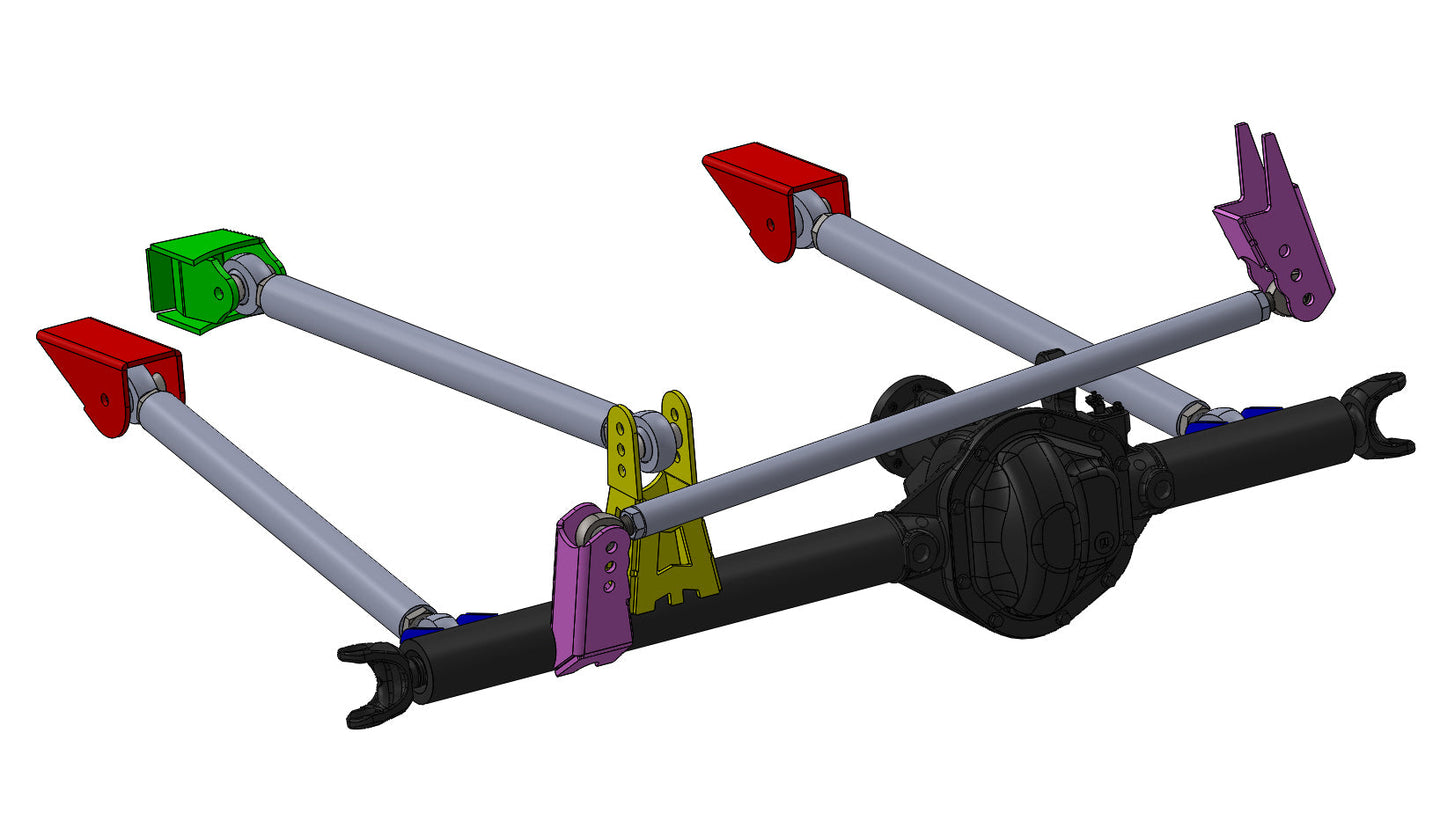

This 3-Link Kit gives you everything you need to build a proven front or rear suspension system—minus the DOM tubing. Built around six heat-treated 1.25" chromoly heims, this setup is what we’ve trusted on our own rigs through some of the gnarliest trails. Whether you’re building a comp buggy, trail crawler, or custom rear link setup, this kit brings the strength and versatility you need to get it done right.

The included panhard setup uses 7/8" heims and our offset axle panhard bracket to help dial in steering geometry on full hydraulic or mechanical setups. And since all brackets are built around 9/16" hardware, you won’t need to modify a thing to match our bolt kit. Just weld it up and hit the trail.

Key Features

• Part Number: R1036
• Includes six 1.25" chromoly rod ends with jam nuts and tube adapters
• Fully loaded panhard setup with brackets and 7/8" heims
• All brackets built for 9/16" hardware – no drilling or sizing needed
• Compatible with 1.5" ID x .250" wall DOM tubing (not included)

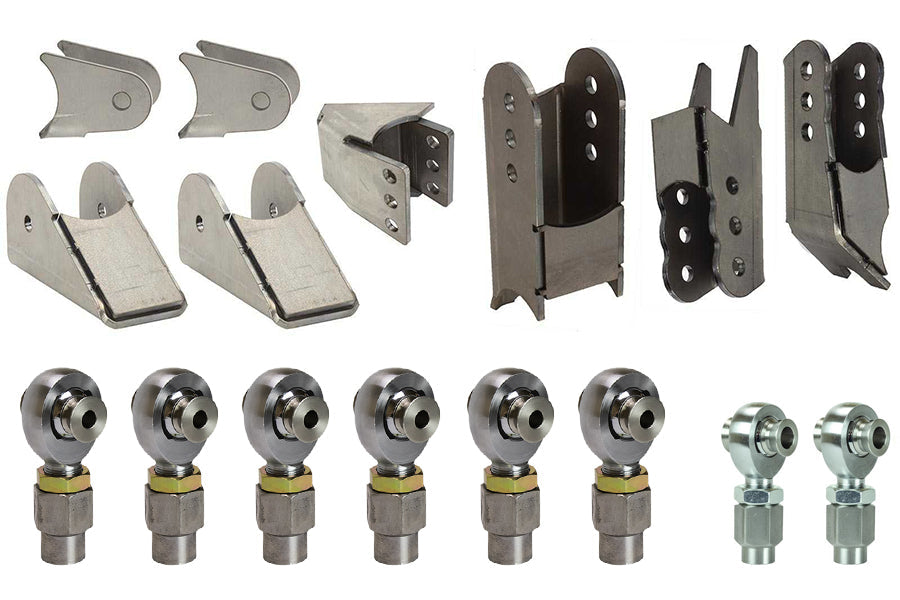

What’s Included

• 3x RH 1.25" Chromoly Heims with jam nuts and weld-in bungs
• 3x LH 1.25" Chromoly Heims with jam nuts and weld-in bungs
• 12x High Misalignment Spacers (9/16” ID, 2.625” width)
• 2x 7/8" Heims for Panhard Bar with 9/16” misalignment spacers
• 1x Offset Axle Panhard Bracket
• 1x Frame Panhard Bracket (inside or outside mount)
• 2x Axle-Side Lower Link Brackets (0°)
• 2x Frame-Side Link Brackets
• 1x Adjustable Upper Axle Link Tower
• 1x Upper Link Bracket (choose adjustable or 3-leg style)
• 1x Complete Grade 8 Bolt Kit – All 9/16"

Start your selection

Tech Tip: Only lubricate rod ends with Tri-Flow. Using WD-40, PB Blaster, or other petroleum-based products can damage the liner and will void the warranty.
