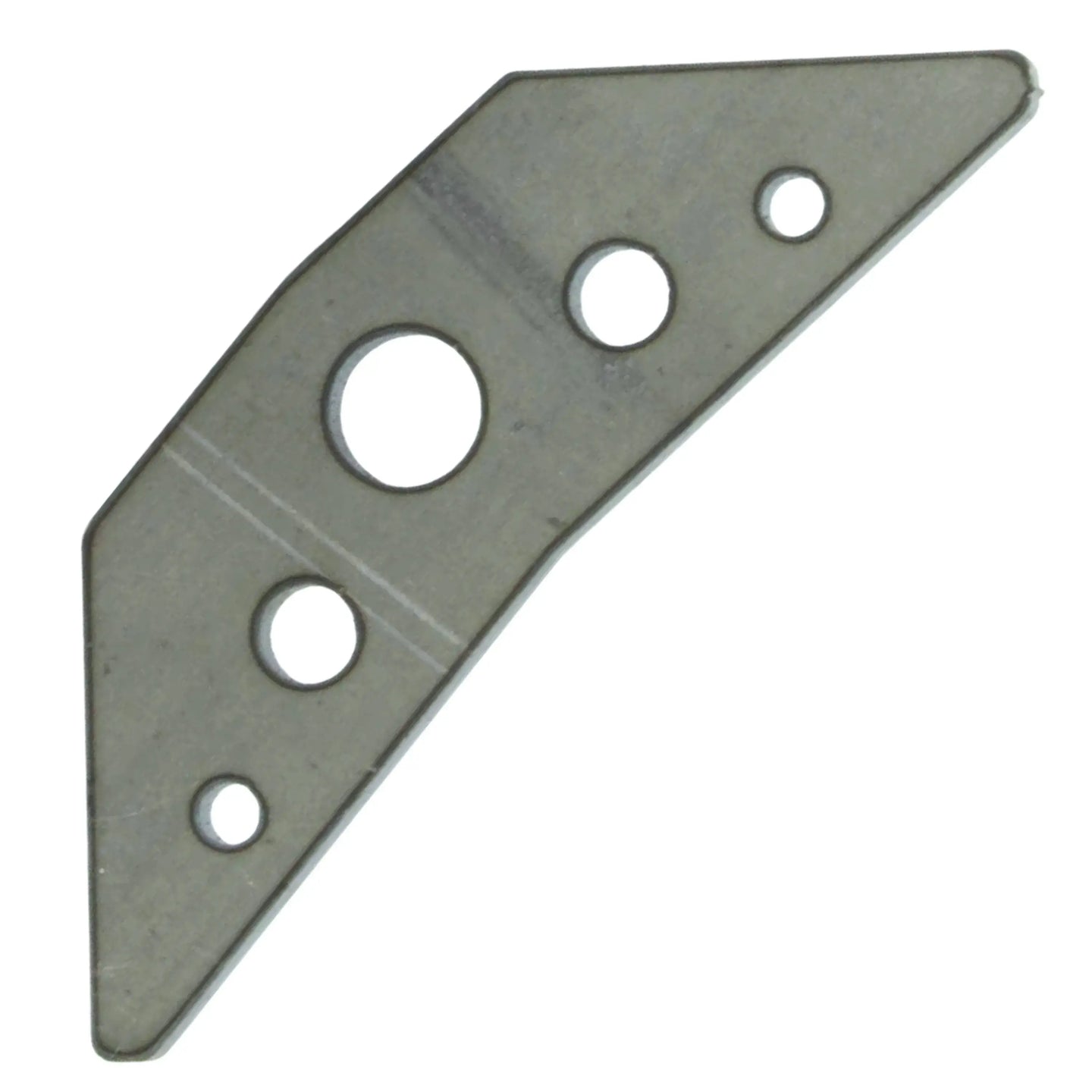

4" 90 Degree 5 Hole Gusset

Strong corner reinforcement with a clean, functional design

This 4" 90-degree 5-hole gusset is laser cut from 1/4" steel plate and built for strength and versatility. Each leg measures 4" along the right angle, with a trimmed inside corner for easy fitment around welds—perfect for tight joints on roll cages, bumpers, or chassis work. The five-hole design not only cuts weight but also serves as convenient attachment points for bungee cords or light-duty tie-downs, making it as practical as it is strong.

• Part Number: R1734
• Laser cut from 1/4" HR steel plate

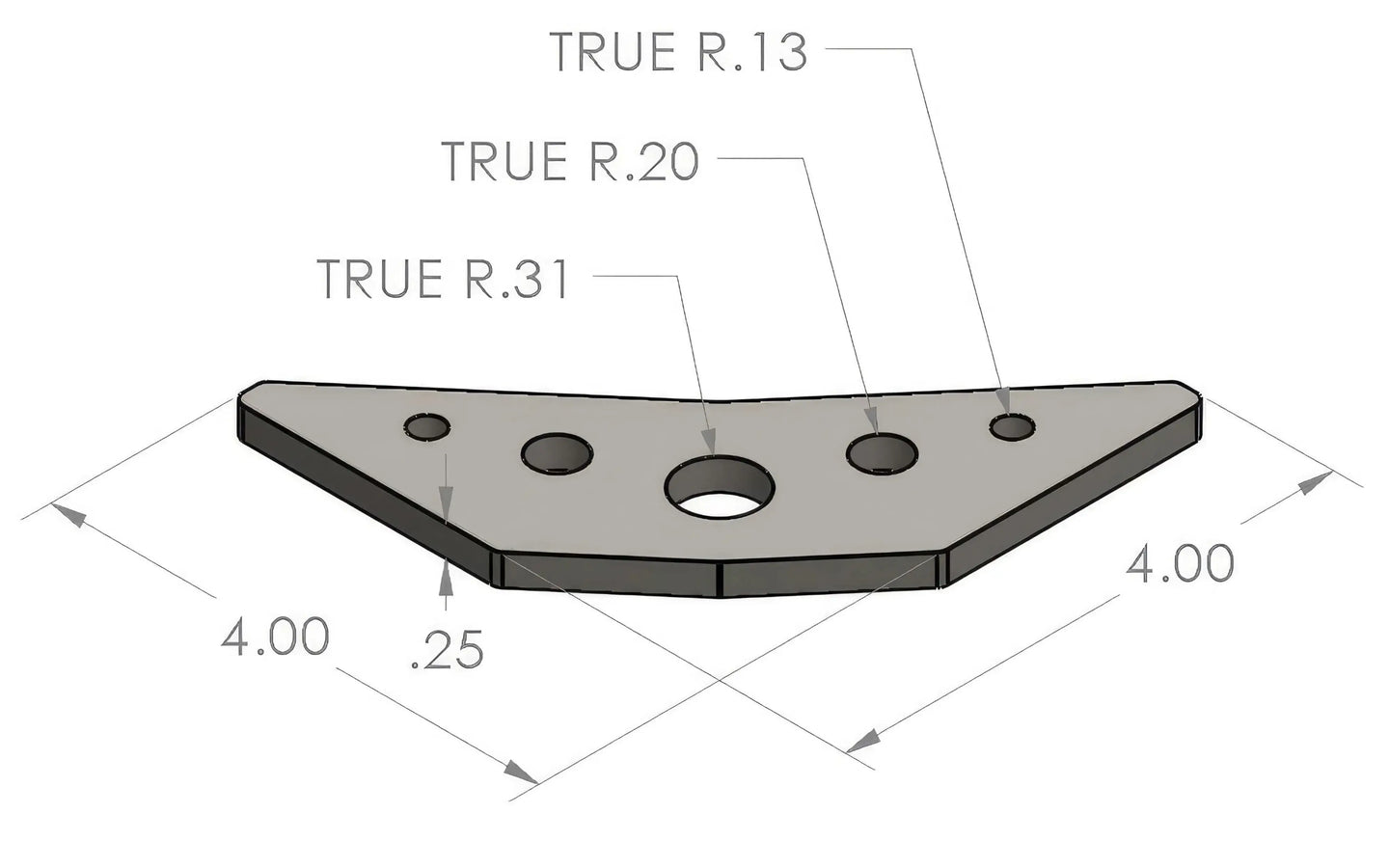

• 4" long on both legs of the 90° angle
• Corner notch improves fitment in tight weld zones
• 5-hole pattern offers tie-down points and weight savings
• Perfect for chassis, roll cages, bumpers, and custom fabrication

Sold Individually
