Crossmember Mounting Set

Heavy-Duty Crossmember Mount Kit with Vibration Dampening

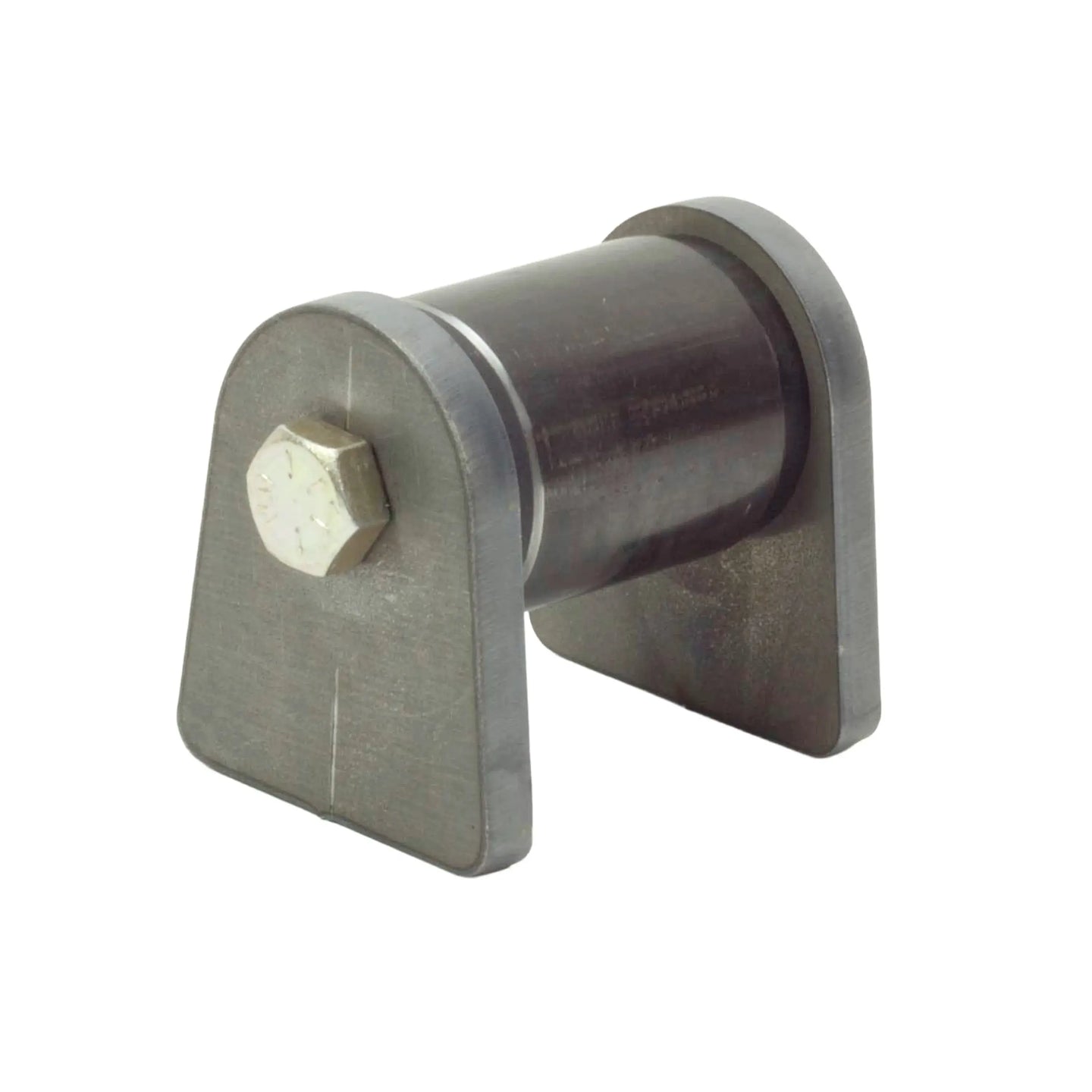

This kit gives you a solid and serviceable way to mount a removable crossmember. Built from 2.0" x .25 DOM tubing with 3/8" thick tabs for frame-side mounting. Includes bushings, sleeves, and hardware for a complete setup that handles abuse while reducing vibration.

Key Features

• Part Number: R1104
• 2.0" x .25" DOM tube bushing housings (2.5" long)
• 3/8" thick frame-side tabs
• 9/16" bolt hardware included
• Designed for crossmember mounting with bushing isolation
• Sold as a complete kit

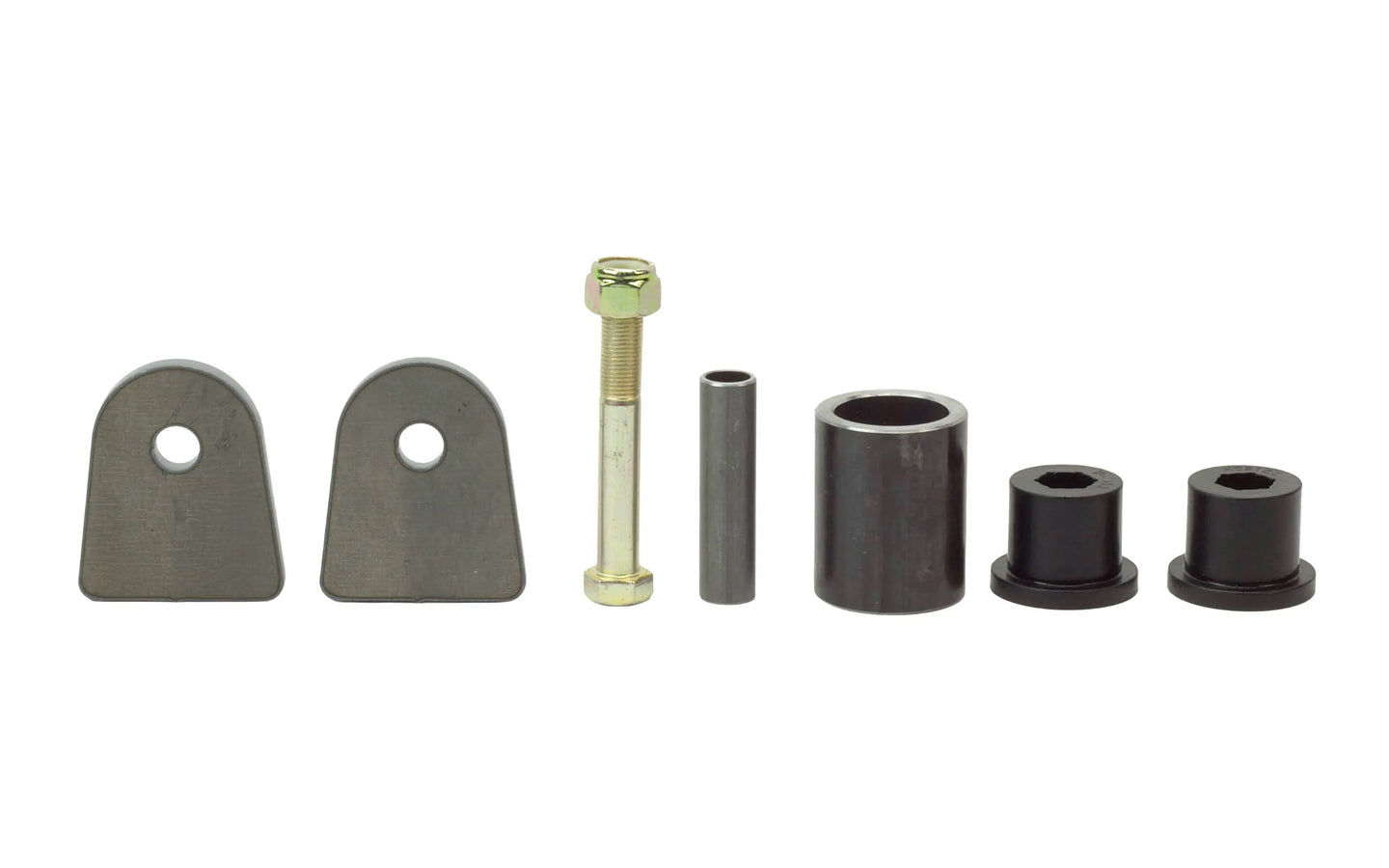

Kit Includes

• (4) Flat bottom link tabs (short)
• (4) Bushings
• (2) Inner bushing sleeves (9/16" bolt)
• (2) 2.0" x .25" DOM tubes (2.5" long, 3" with bushings)
• (2) 9/16" Grade 8 bolts
• (2) Lock nuts

Note: Welding required. Make sure installation is done with proper tools and technique.
