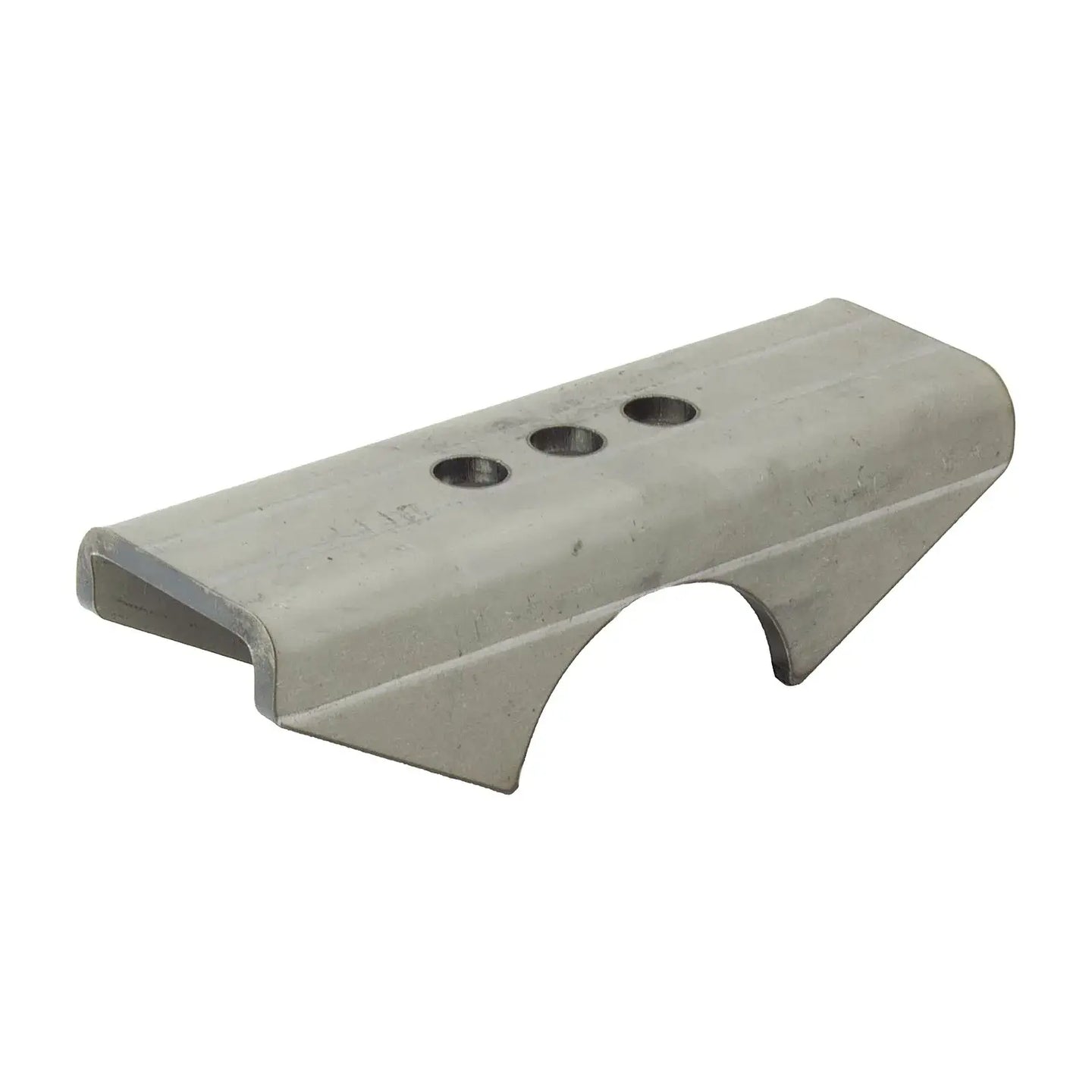

Dana 44 Spring Perches, 2.5" Wide
Weld-On Leaf Spring Perches for 2.75" Axle Tubes

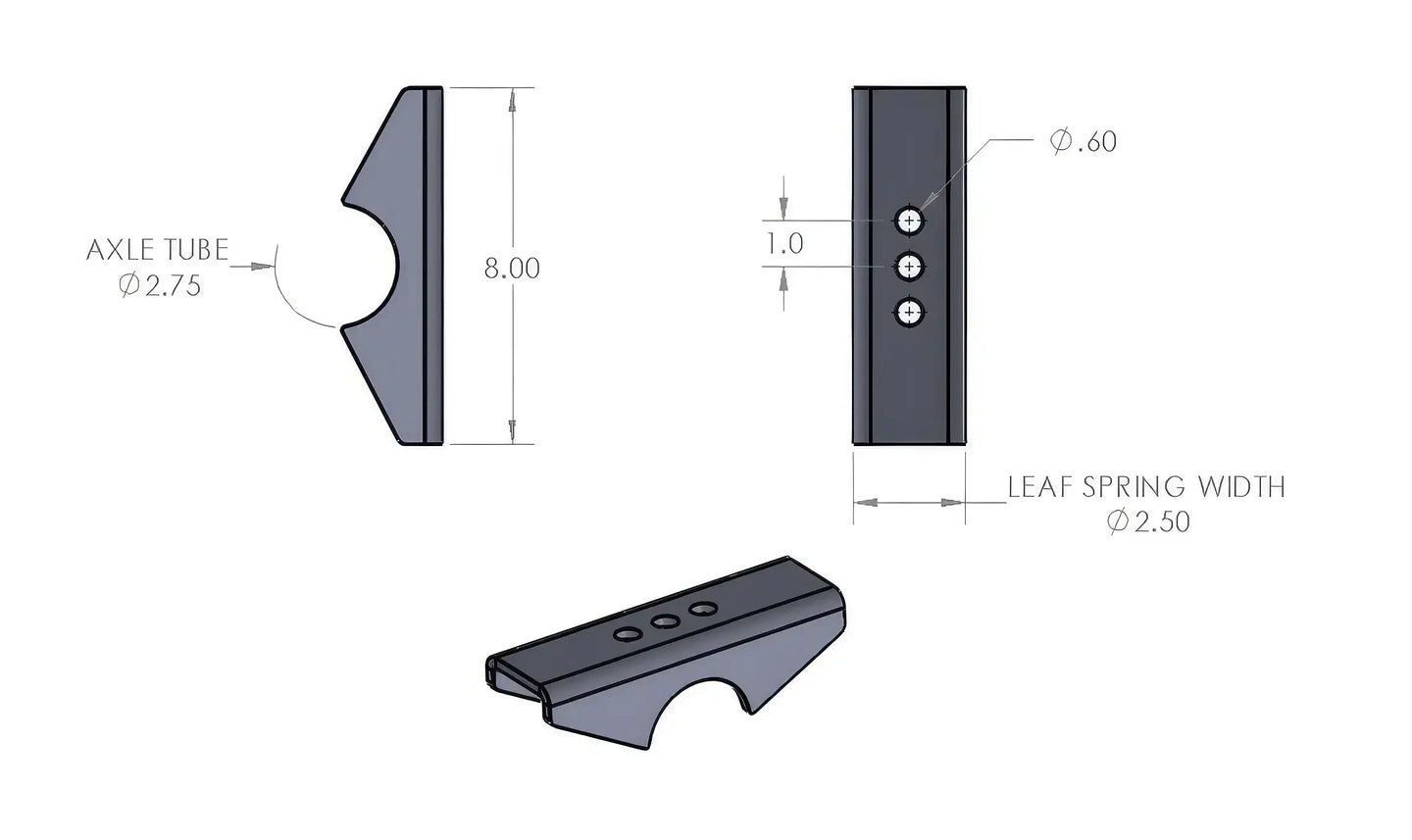

These spring perches are built for spring-over setups on Dana 44 axles with 2.75" axle tubes. Made from 1/4" HR P&O steel, CNC laser cut and brake-formed for accuracy. At 8" long, they help control axle wrap, and the 3 center pin locations allow for minor wheelbase adjustments. Easily modified with a grinder to fit axle tubes ±0.25" in diameter. Sold in pairs.
Key Features
- Part Number: R1110
- Fits 2.75" axle tubes (Dana 44)
- 2.5" wide spring platform
- 8.0" long to reduce axle wrap
- Three spring pin mounting options
- Made from 1/4" HR P&O steel
- Sold in pairs
Kit Includes
- (2) Spring perches – 2.5" wide, cut for 2.75" axle tube
Note: Welding required. Make sure installation is done with proper tools and technique.
- Regular price
- $36.00
