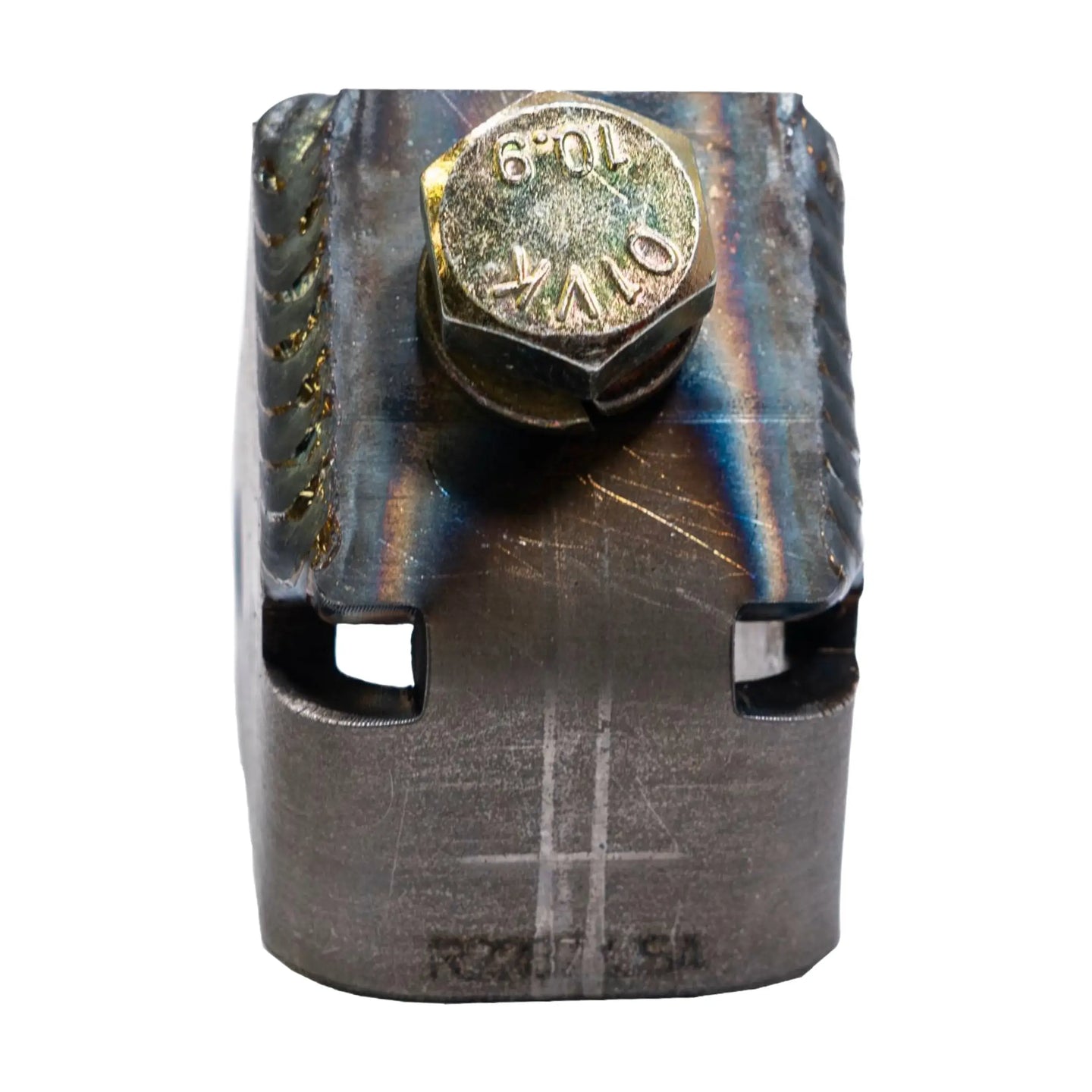

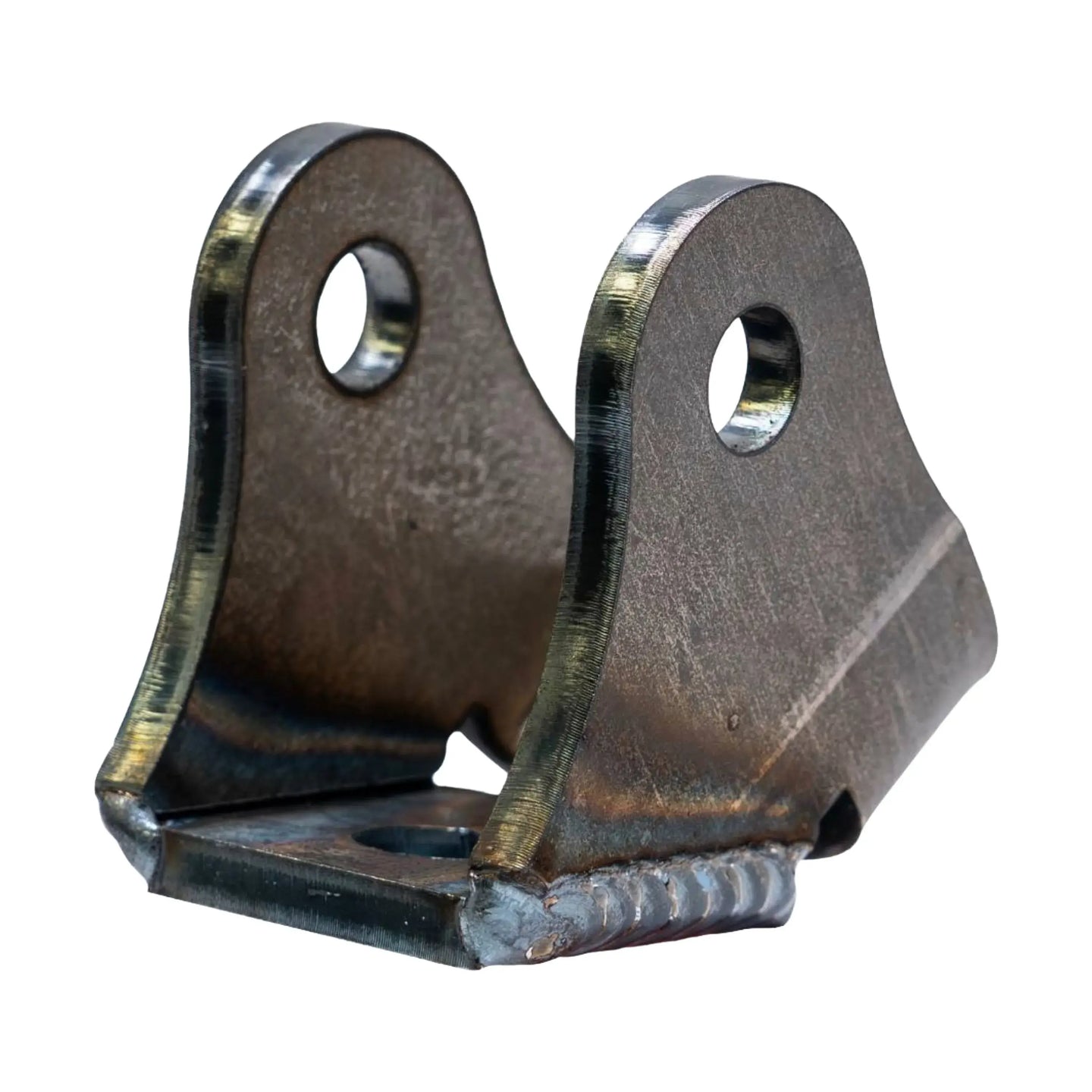

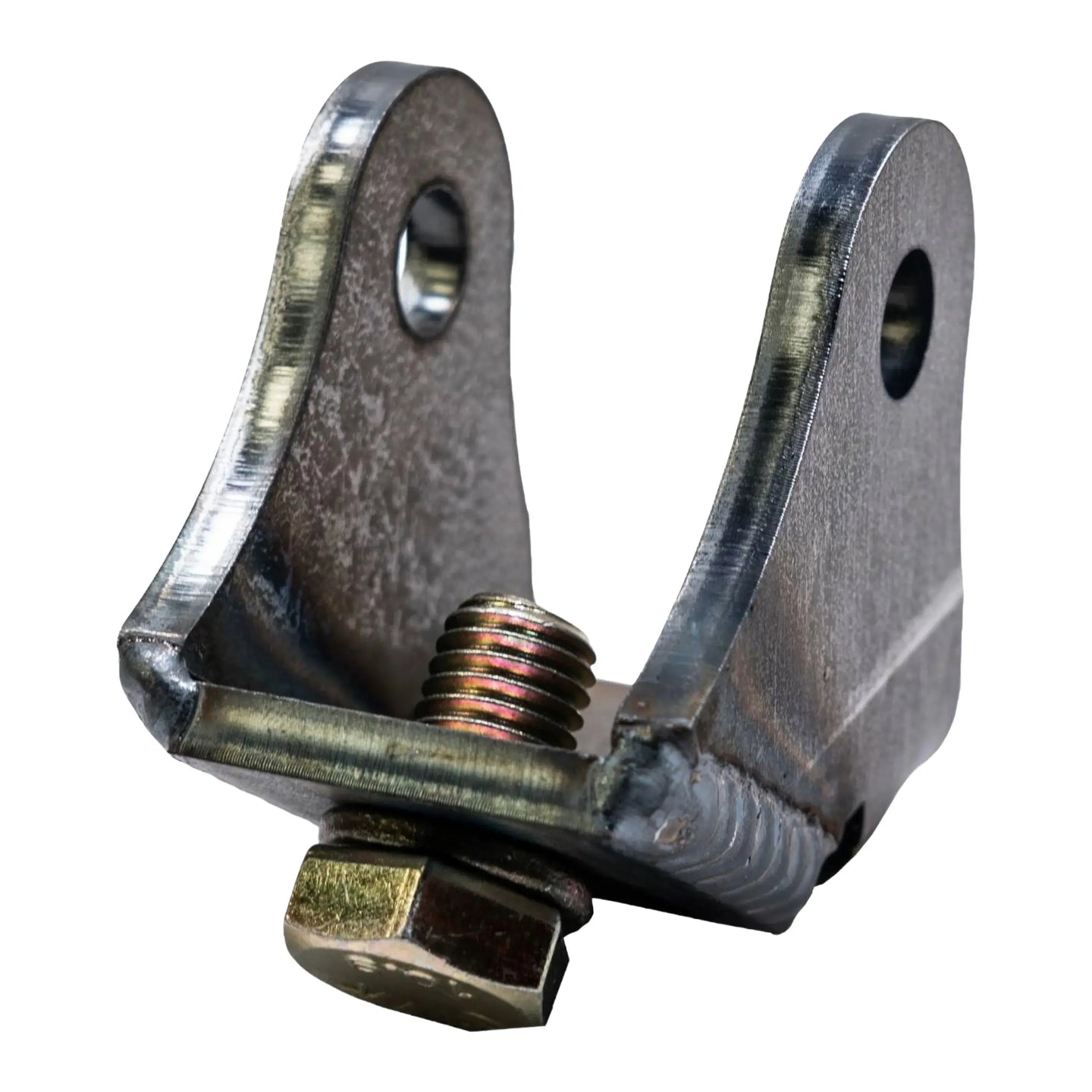

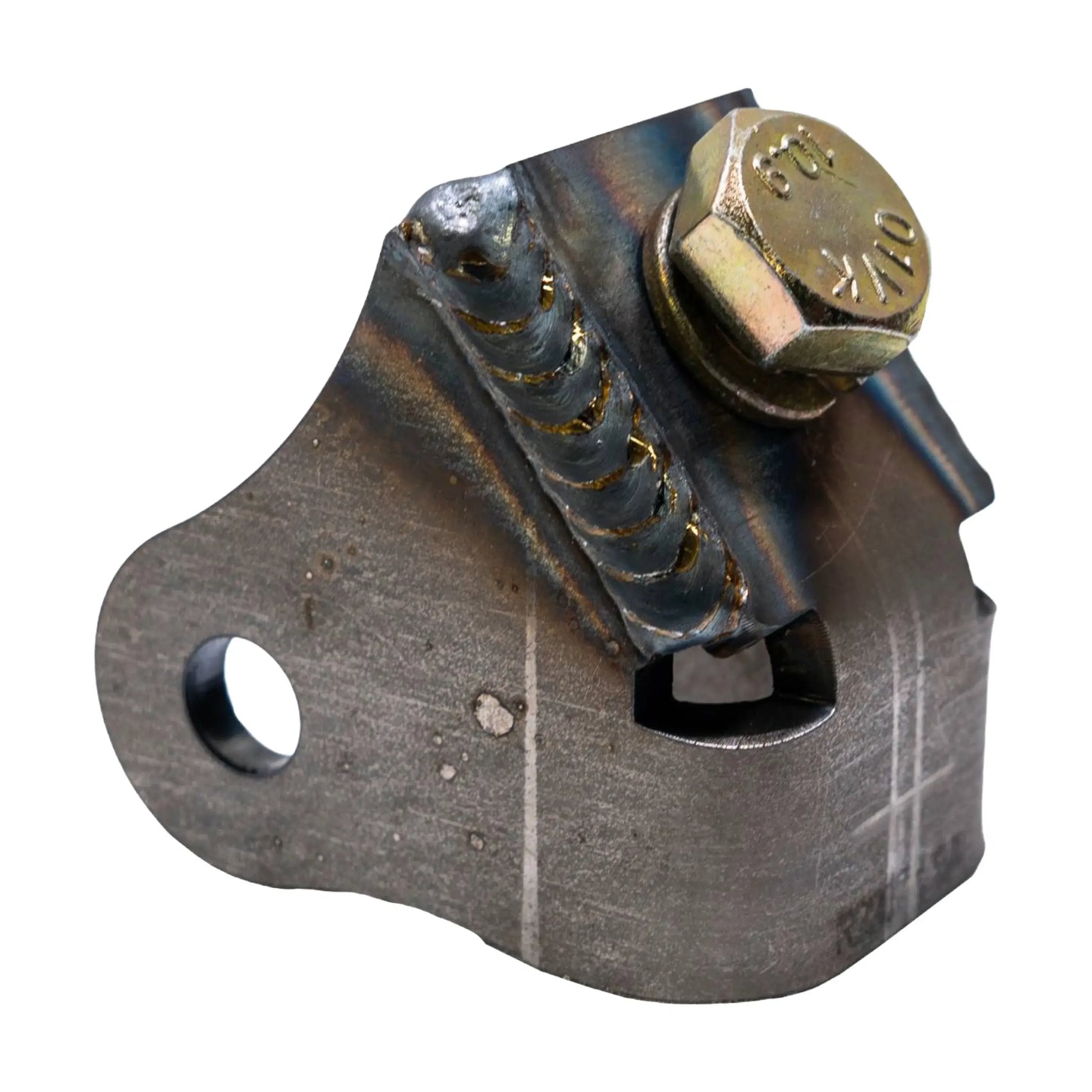

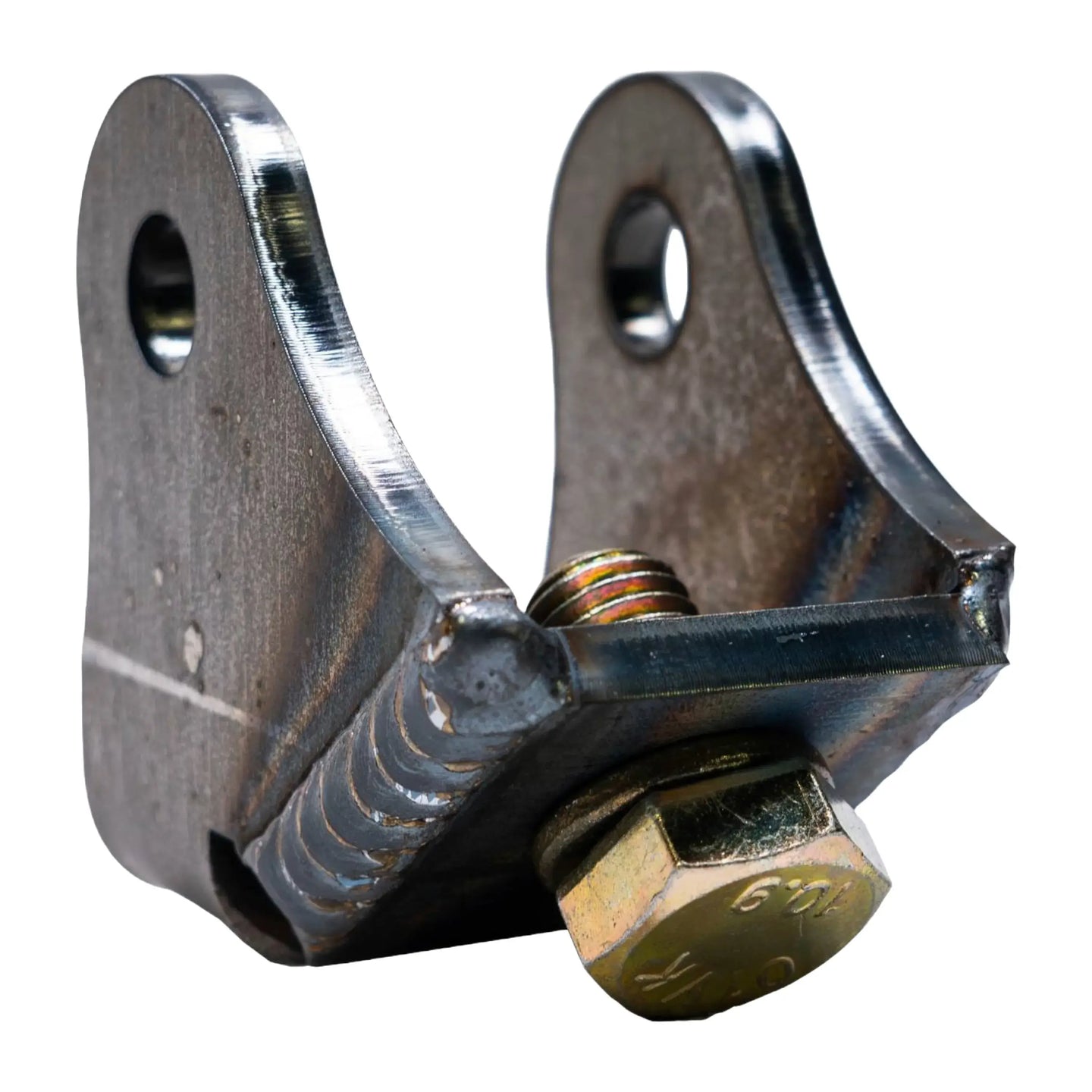

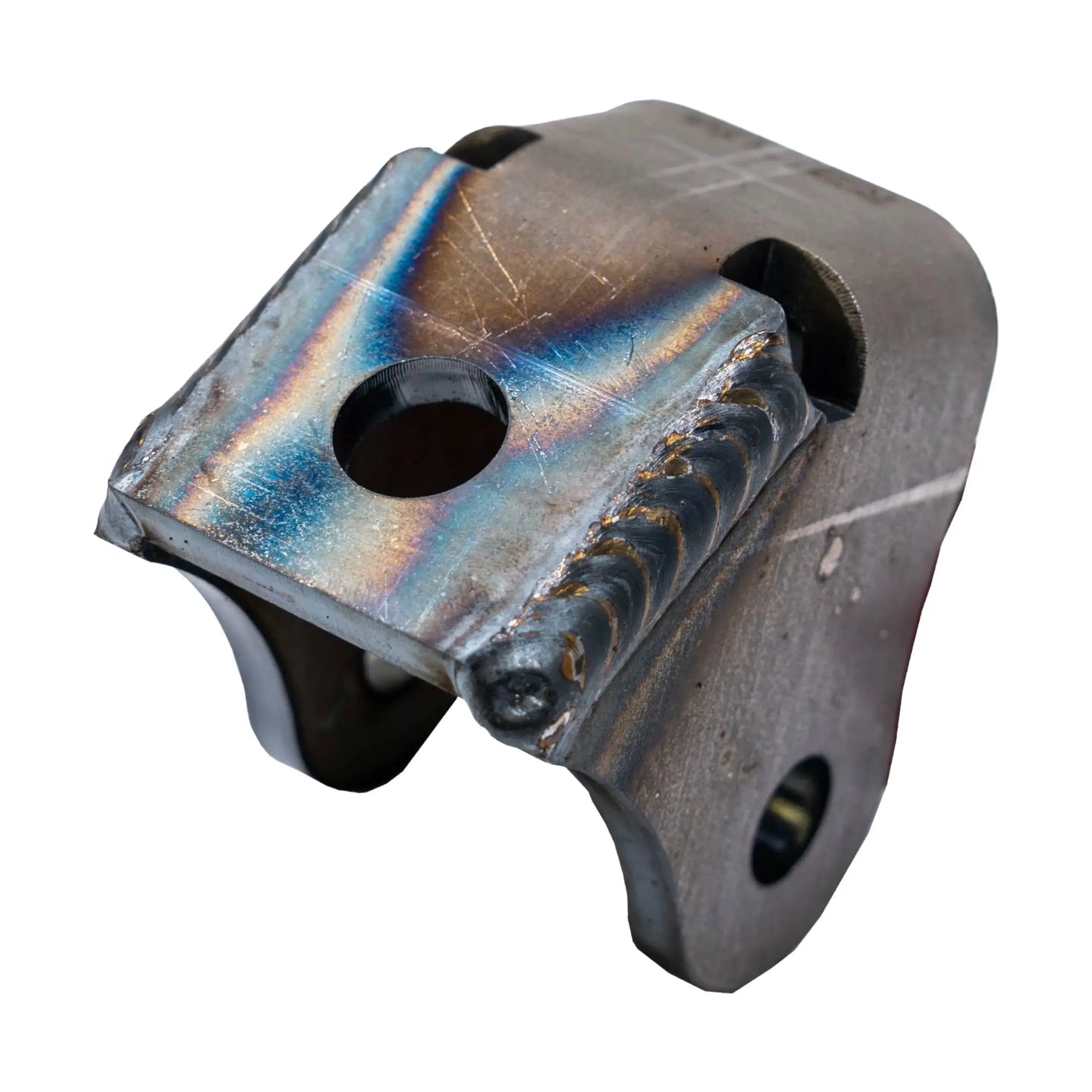

Ford Super Duty 2005+ Coil Over Shock Brackets

Simple, heavy-duty coilover shock mounts for 2005 and newer Ford Super Duty Dana 60 front axles.

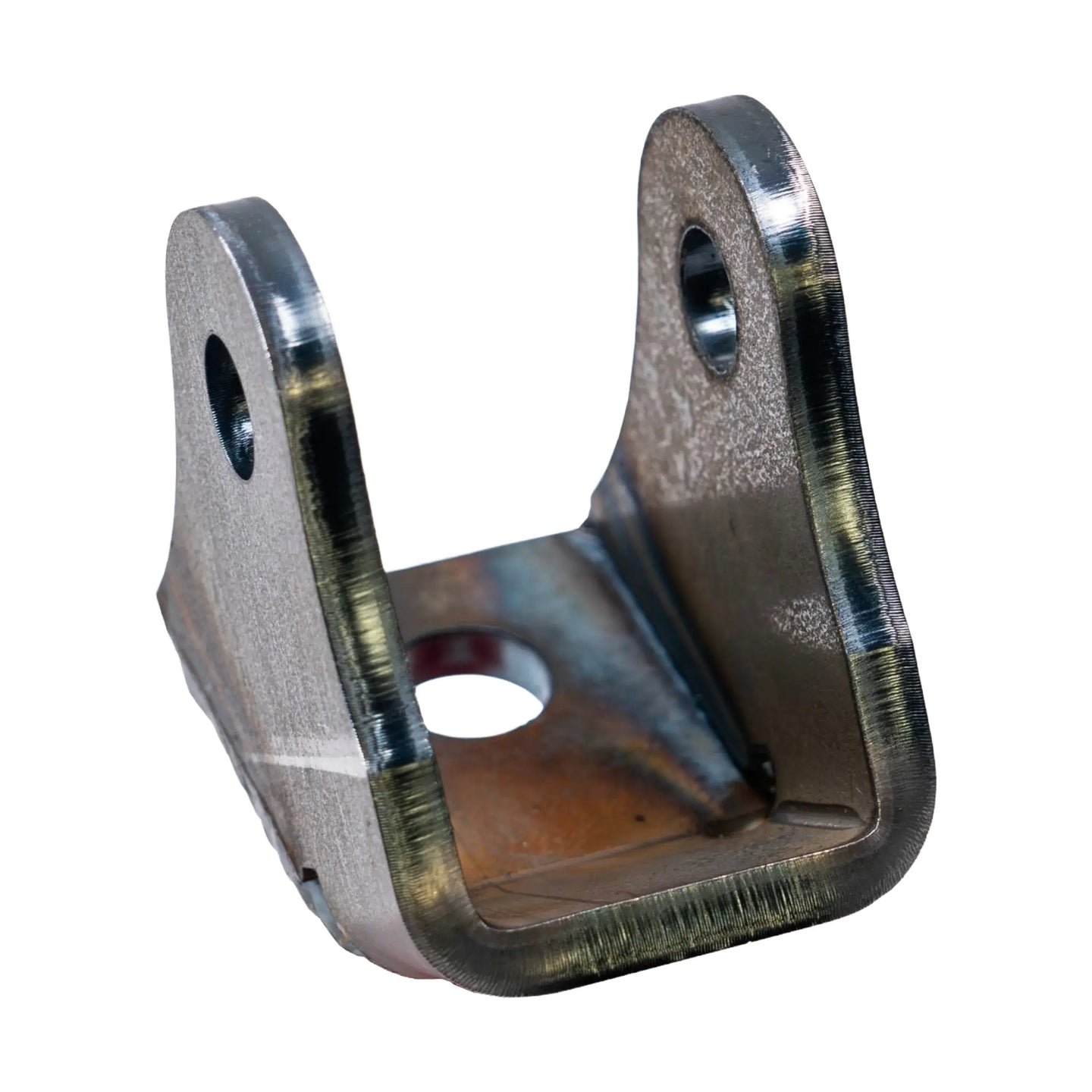

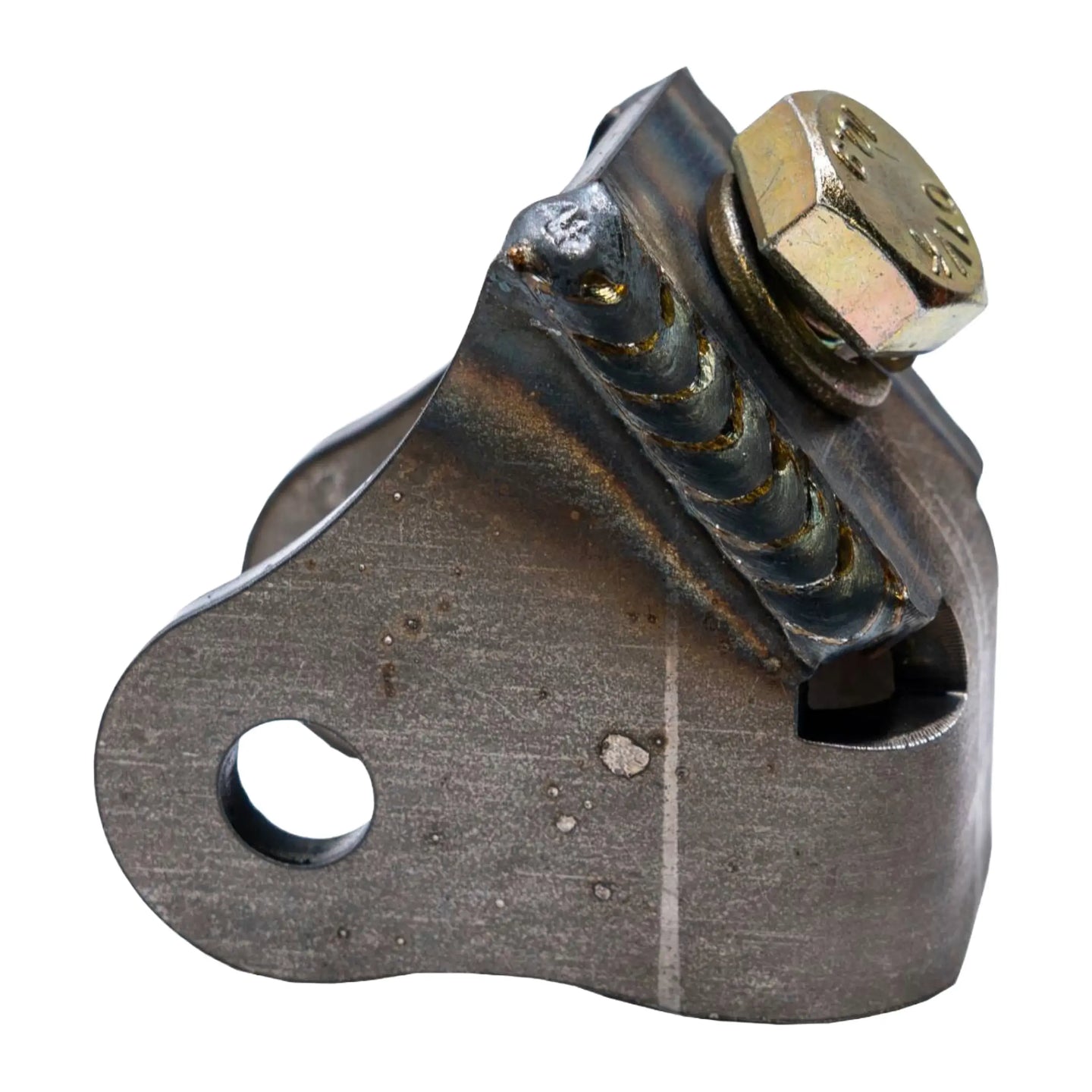

We designed these brackets to solve a common challenge on the 2005+ Ford Super Duty Dana 60 front axle: limited tube space for mounting shocks on the driver side. On these axles, the factory coil spring perch is held down by a single bolt on the inner C, leaving little room for traditional mounting solutions. These coilover brackets give you a solid, weld-on answer to that problem.

Perfect for builds with 6" or more of lift, these axles are popular swaps into everything from Jeeps to Duramax-powered rigs thanks to their strong ball joints and better road manners compared to kingpin axles. Each bracket is cut from 1/4" steel, sized for coilovers with a 1.5" mounting width, and can be easily adapted for narrower coilovers with spacers. Sold in pairs and supplied with Grade 8 hardware for a secure fit.

Key Features

• Part Number: R2287
• Fits 2005+ Ford Super Duty Dana 60 front axles
• 1/4" thick steel construction
• 1/2" bolt hole, 1.5" ID spacing (adaptable with spacers)
• Solves limited shock mounting space on driver side
• Works best with 6" or more suspension lift
• Sold in pairs
• Includes Grade 8 bolts with lock washers
• Welding required

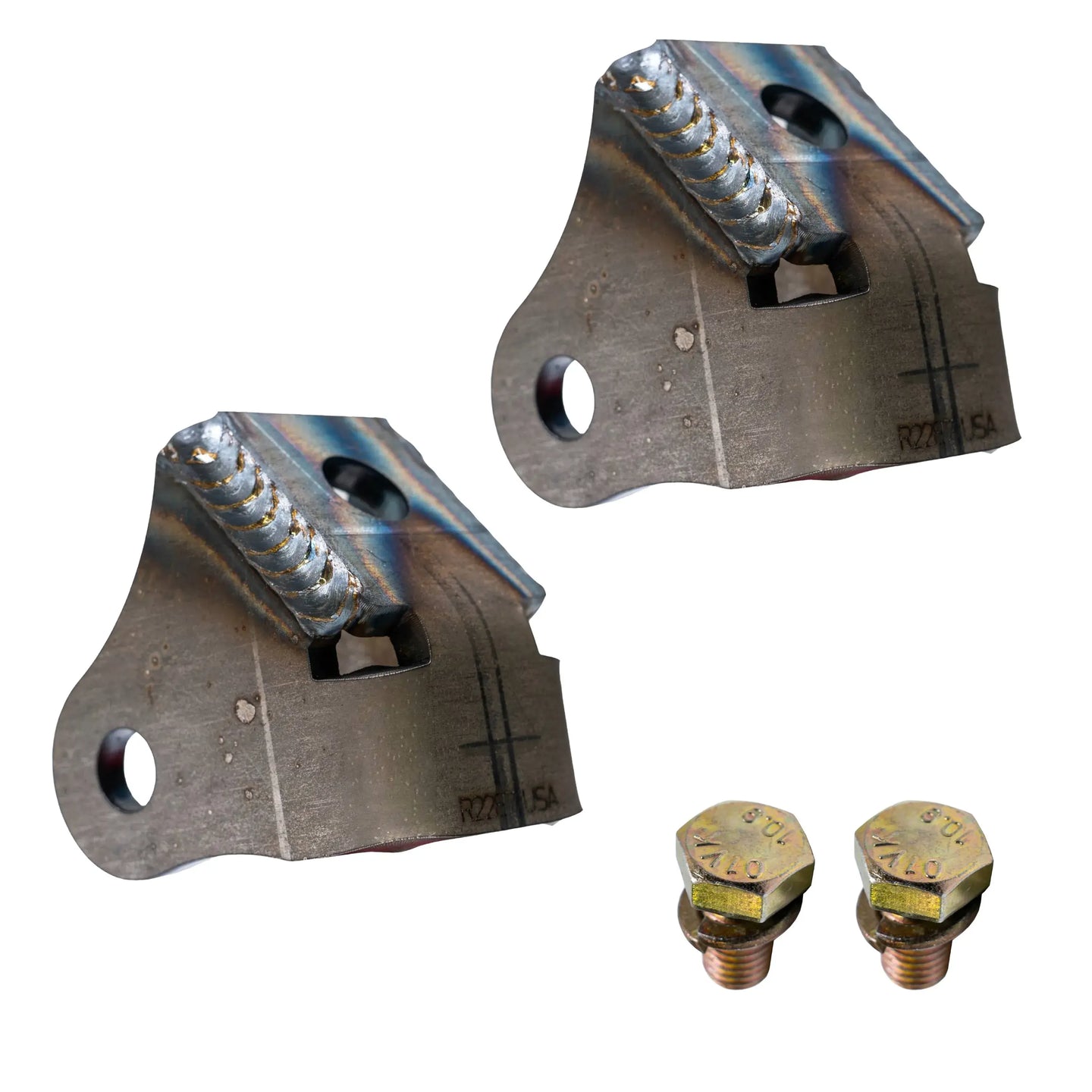

What's Included

• Driver-side coilover shock bracket
• Passenger-side coilover shock bracket

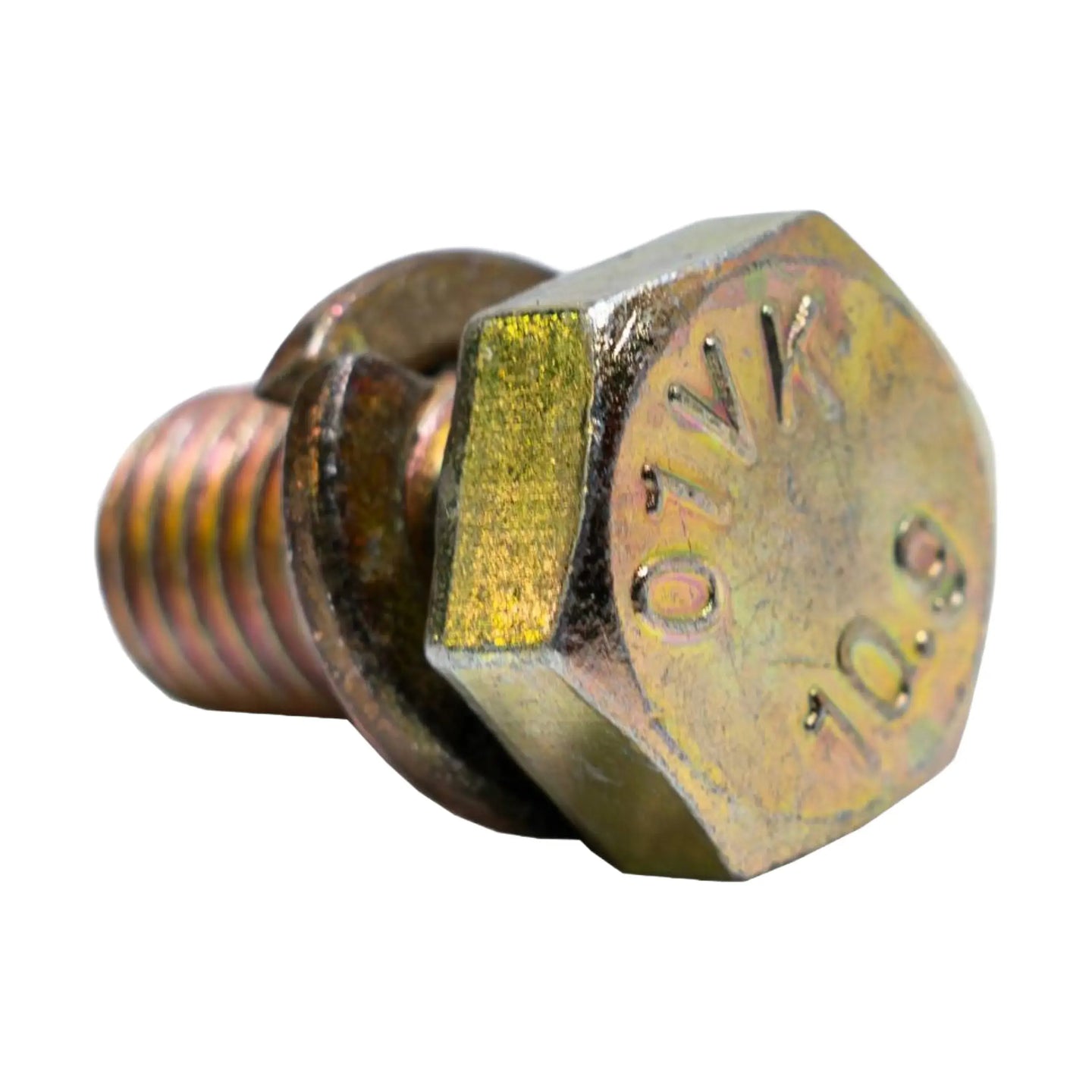

• Grade 8 bolts with lock washers

Note

Welding required. Designed for coilover shocks with 1.5" spacing, but can be adapted for narrower coilovers with spacers. Best suited for vehicles with 6" or more of lift. Verify fitment before final welding.
