Super Duty Dana 60 Front Radius Long Arm Kit 05 Plus

Heavy-duty 3-link radius arm suspension for serious Super Duty builds.

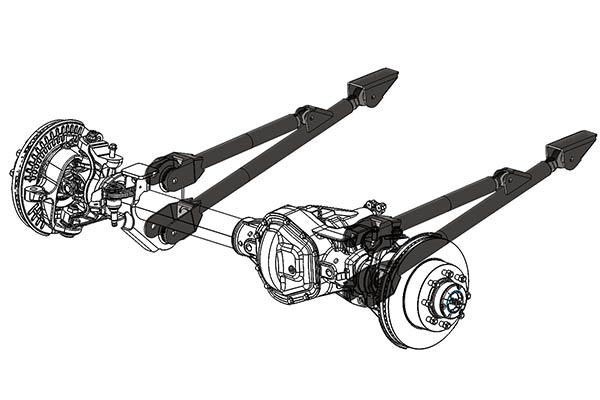

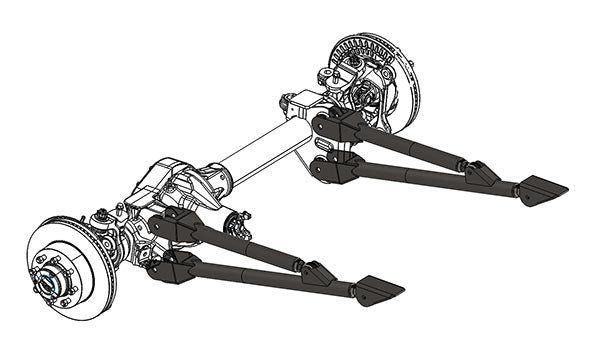

The Super Duty Dana 60 Front Radius Long Arm Kit is engineered for 2005+ F250/F350 trucks running a Dana 60 front axle. This complete 3-link suspension system delivers superior articulation, improved handling, and the strength needed for extreme off-road use. The radius arm design provides excellent axle control while maintaining proper caster and pinion angles through the full range of suspension travel. Built from heavy-duty steel with precision-machined components, this kit is designed for serious wheelers who demand performance and reliability.

This kit features long arm geometry for maximum articulation and ride quality. The radius arms are constructed from DOM tubing with heavy gussets and reinforcements at critical stress points. All mounting brackets are laser-cut from thick steel plate and include provisions for proper bolt-on installation to the frame. The kit is designed to work with the factory Dana 60 front axle and integrates with aftermarket steering and brake systems.

Key Features

• Part Number: R2348
• Fitment: 2005+ Ford F250/F350 Super Duty with Dana 60 front axle
• Heavy-duty DOM tubing construction with reinforced gussets
• 3-link radius arm design for superior axle control
• Long arm geometry for maximum articulation and ride quality
• Laser-cut steel mounting brackets for frame installation
• Precision-machined bushings and hardware included

What's Included

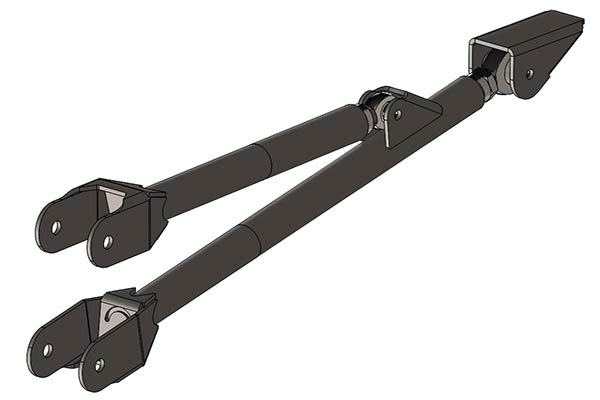

• Two radius arms (driver and passenger side)
• Upper link arm
• Frame mounting brackets
• Axle mounting brackets
• Bushings and mounting hardware

Notes

• Professional installation recommended - welding and fabrication required for frame bracket installation
• May require modifications to steering and brake lines for proper clearance
• Designed for off-road use - verify local regulations before installation
