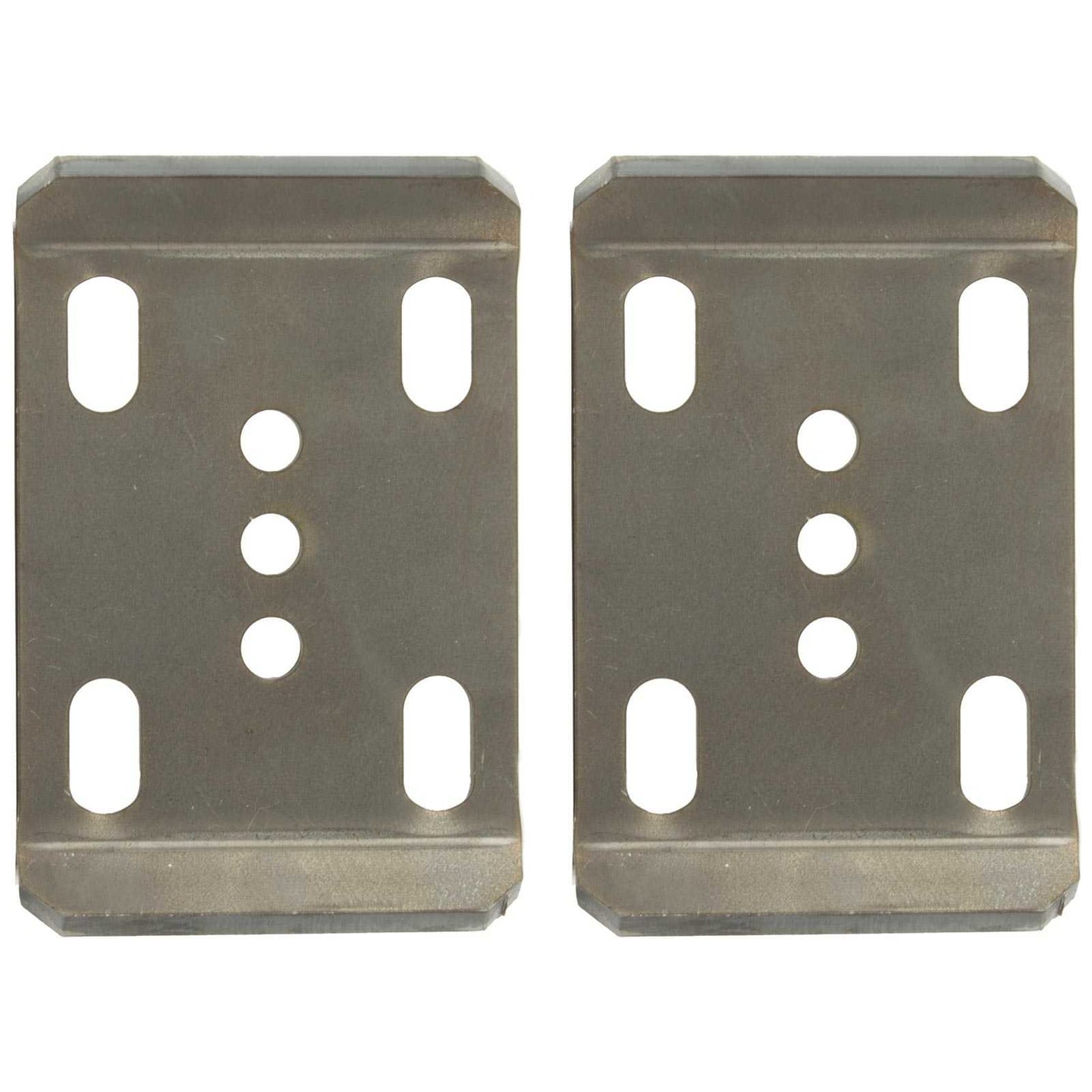

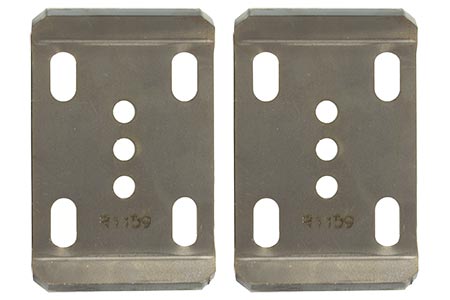

Toyota 2.5" U-Bolt Plate

Heavy-duty U-bolt plates for Toyota leaf springs.

These U-bolt plates are designed specifically for standard 2.5" Toyota leaf springs found on Toyota trucks. Perfect for axle swaps, spring upgrades, or replacing worn plates, they accommodate axles from 2.5" to 4" in diameter and work with 63" Chevy spring swaps. Essential for builds requiring reliable spring-to-axle mounting with multiple positioning options.

Made from .375" HR P&O steel plate for maximum strength and durability. At 8 lbs for the pair, these plates are built to handle serious off-road abuse. Features 3 spring pin location options for precise positioning and compatibility with 9/16" to 5/8" U-bolts.

Key Features

• Part Number: R1159-E
• Fitment: Toyota trucks with 2.5" leaf springs, 2.5"-4" axle diameter
• Material: .375" HR P&O steel plate
• Dimensions: 8 lbs total weight for pair
• Design: 3 spring pin locations, 9/16" to 5/8" U-bolt compatibility

What's Included

• 2x U-bolt plates (pair)

Notes

• Compatible with 63" Chevy spring swaps
• Recommend 5/8" U-bolts for maximum strength
• Sold as a pair for complete axle setup
