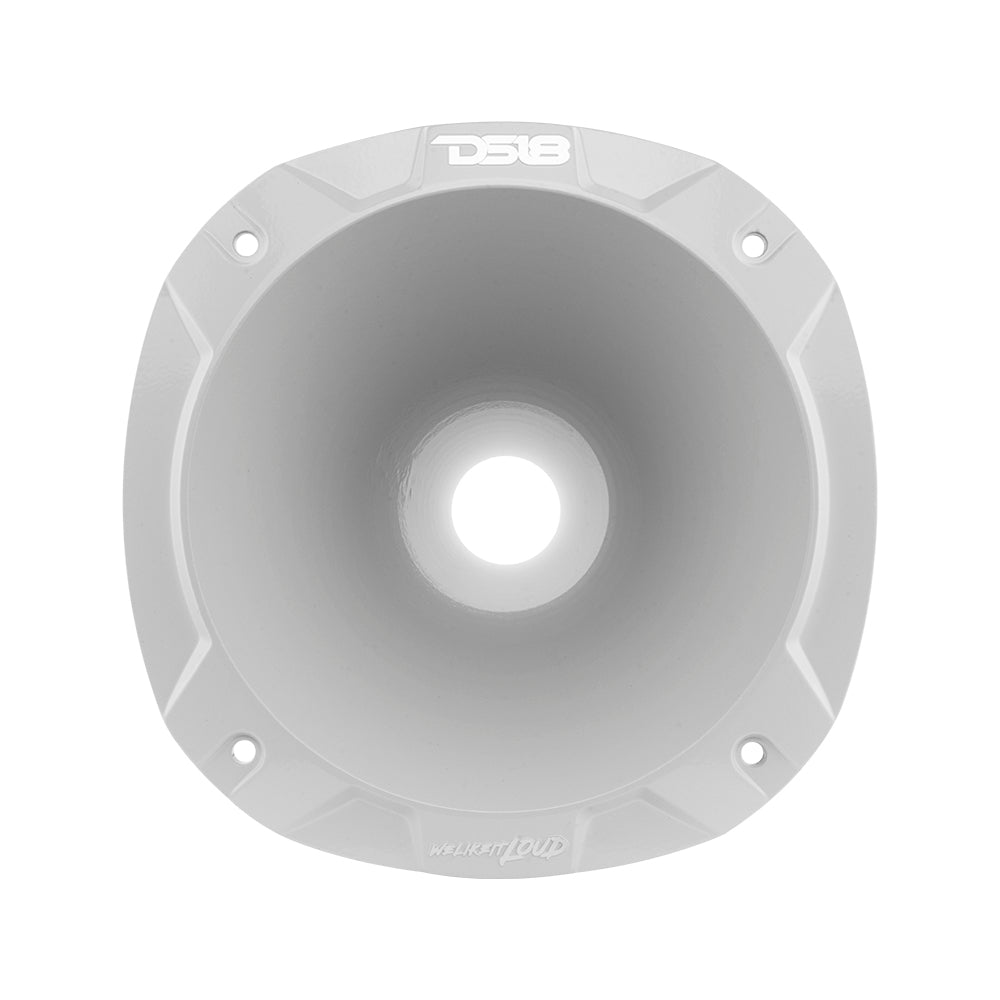

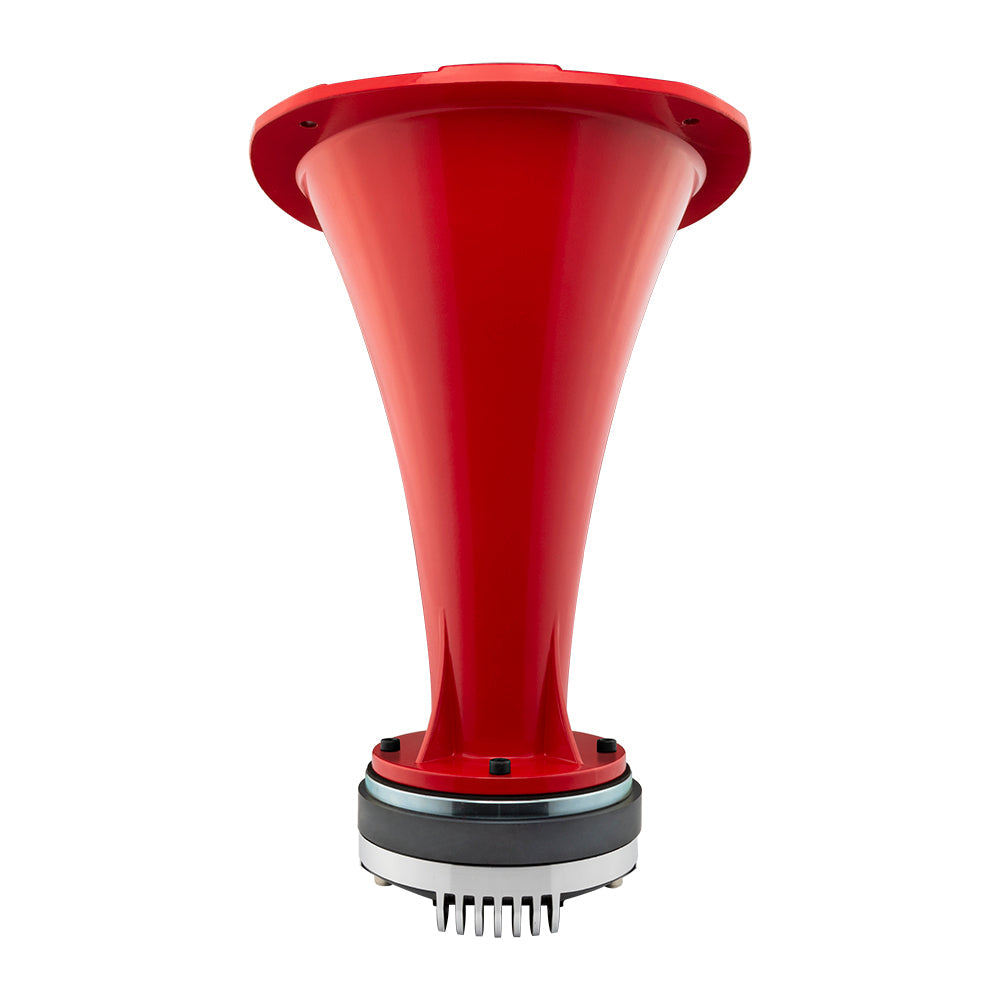

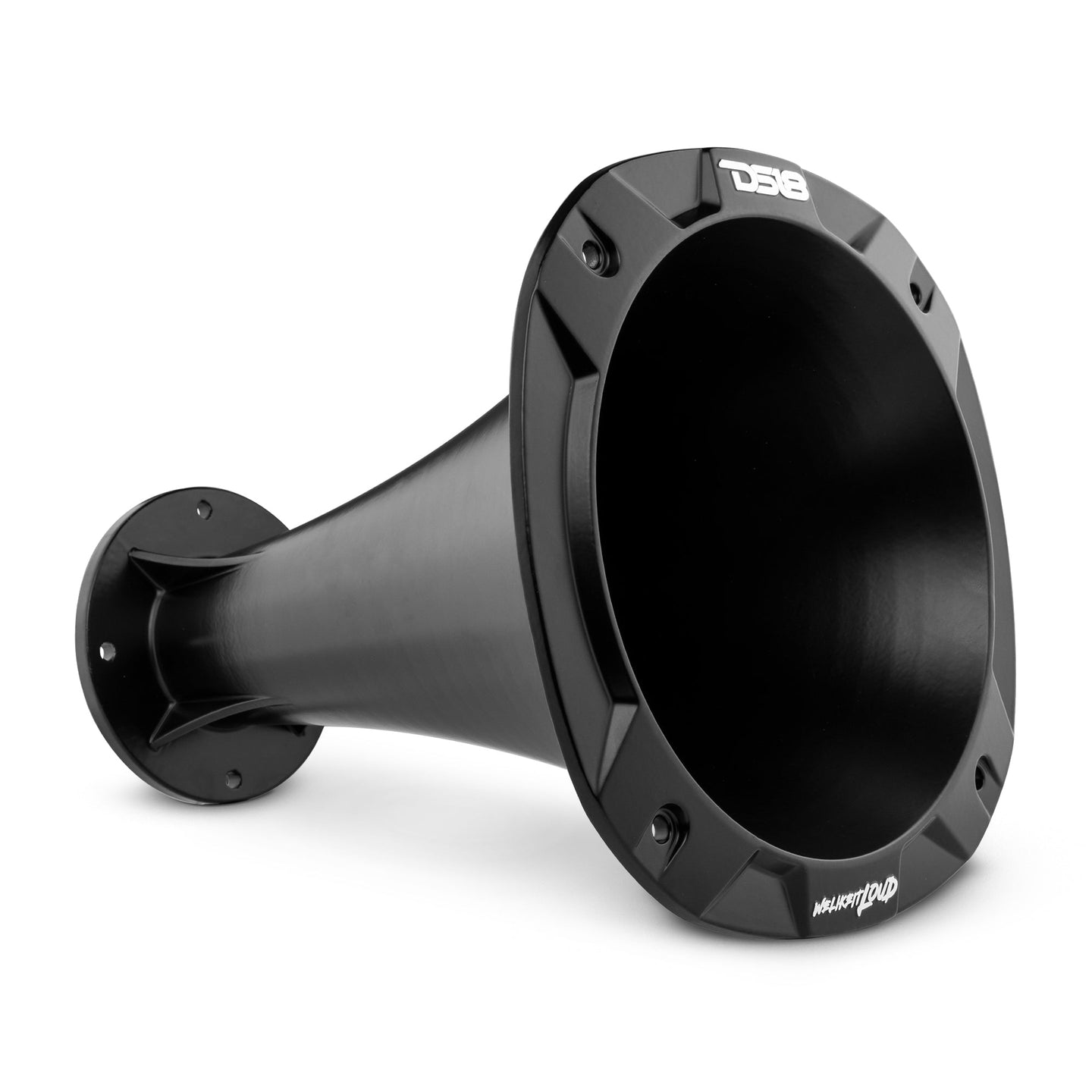

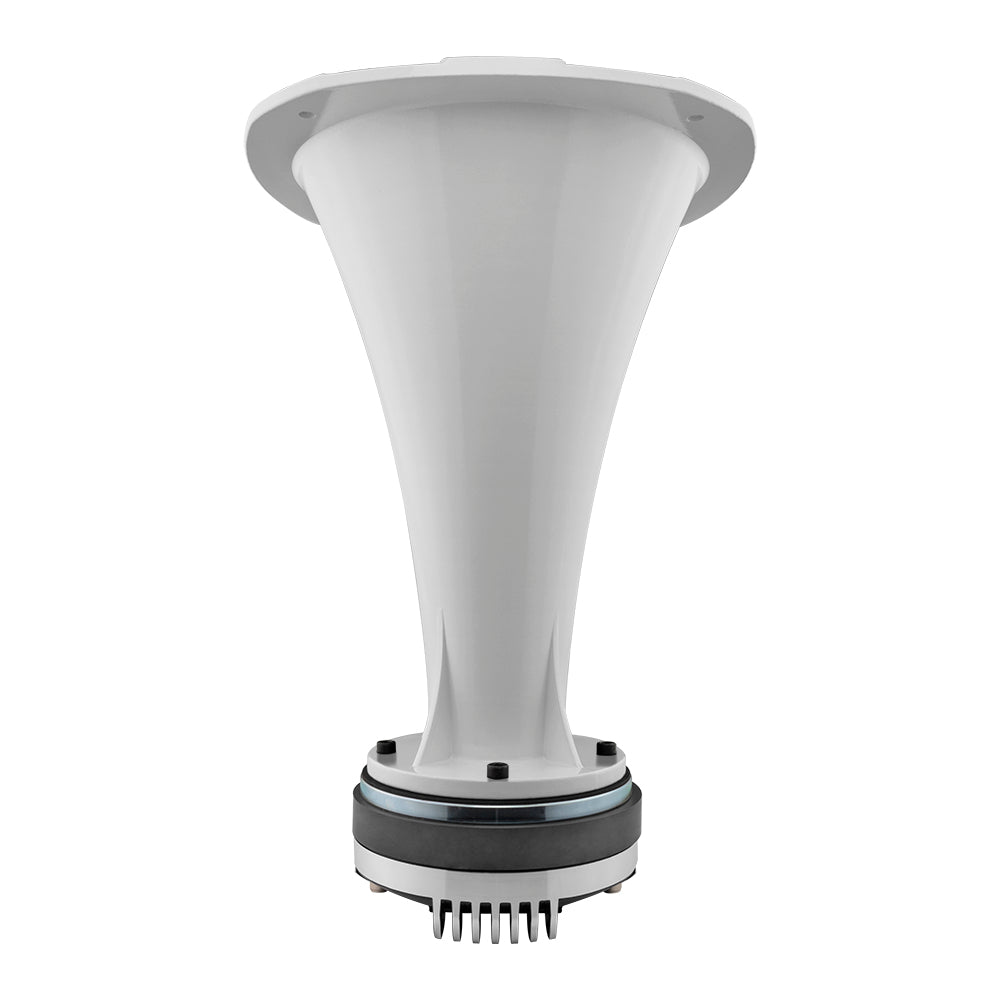

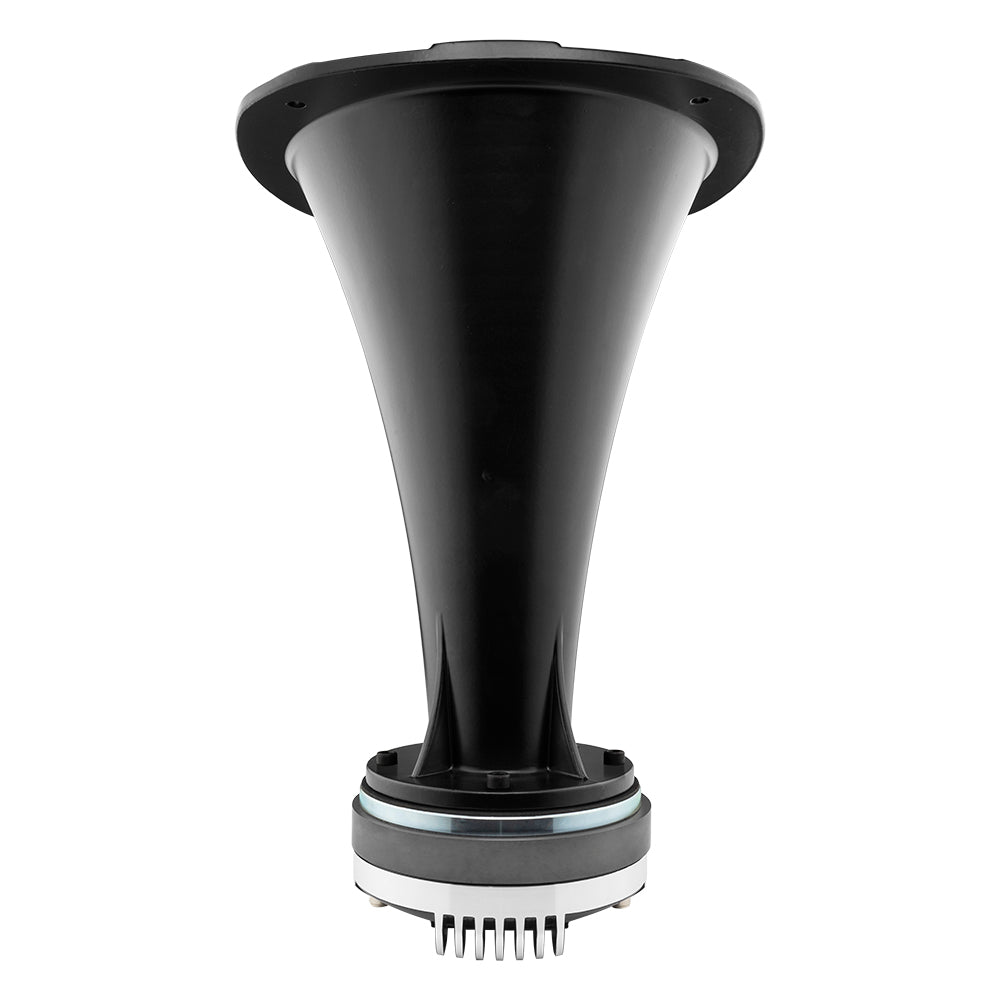

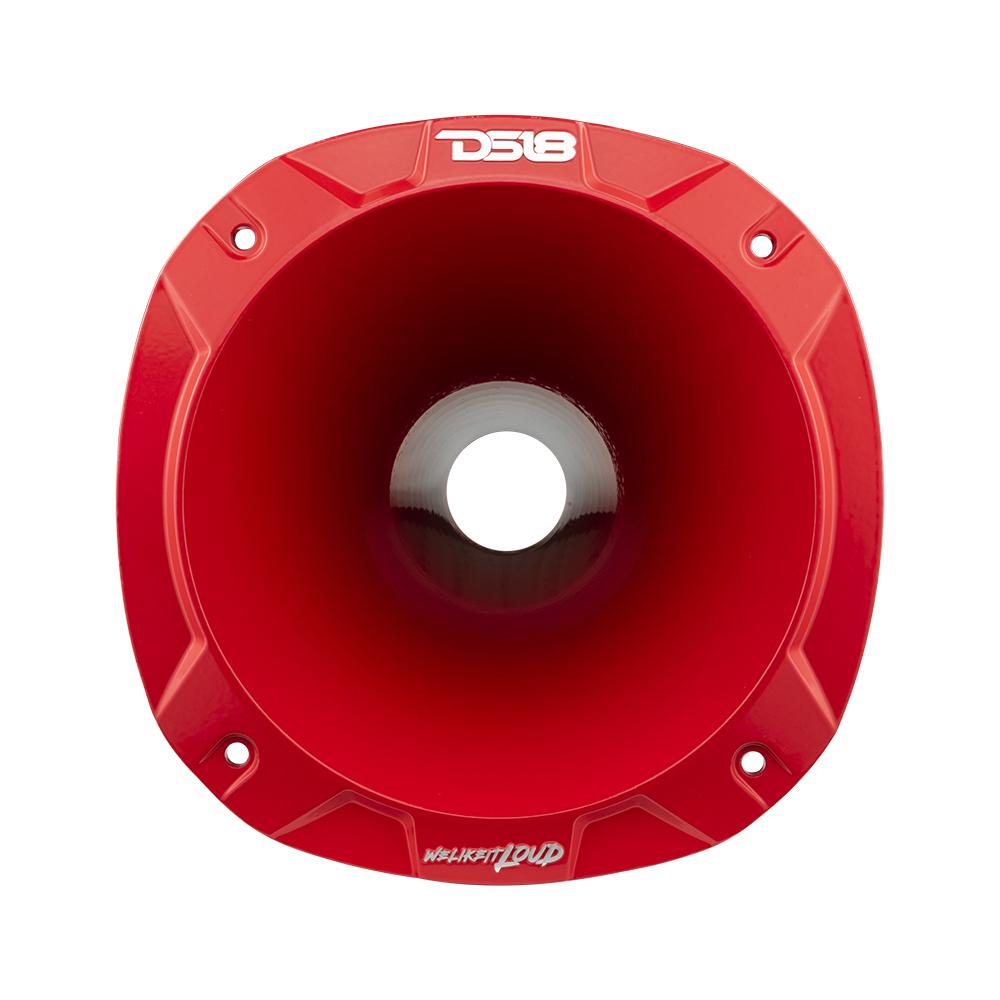

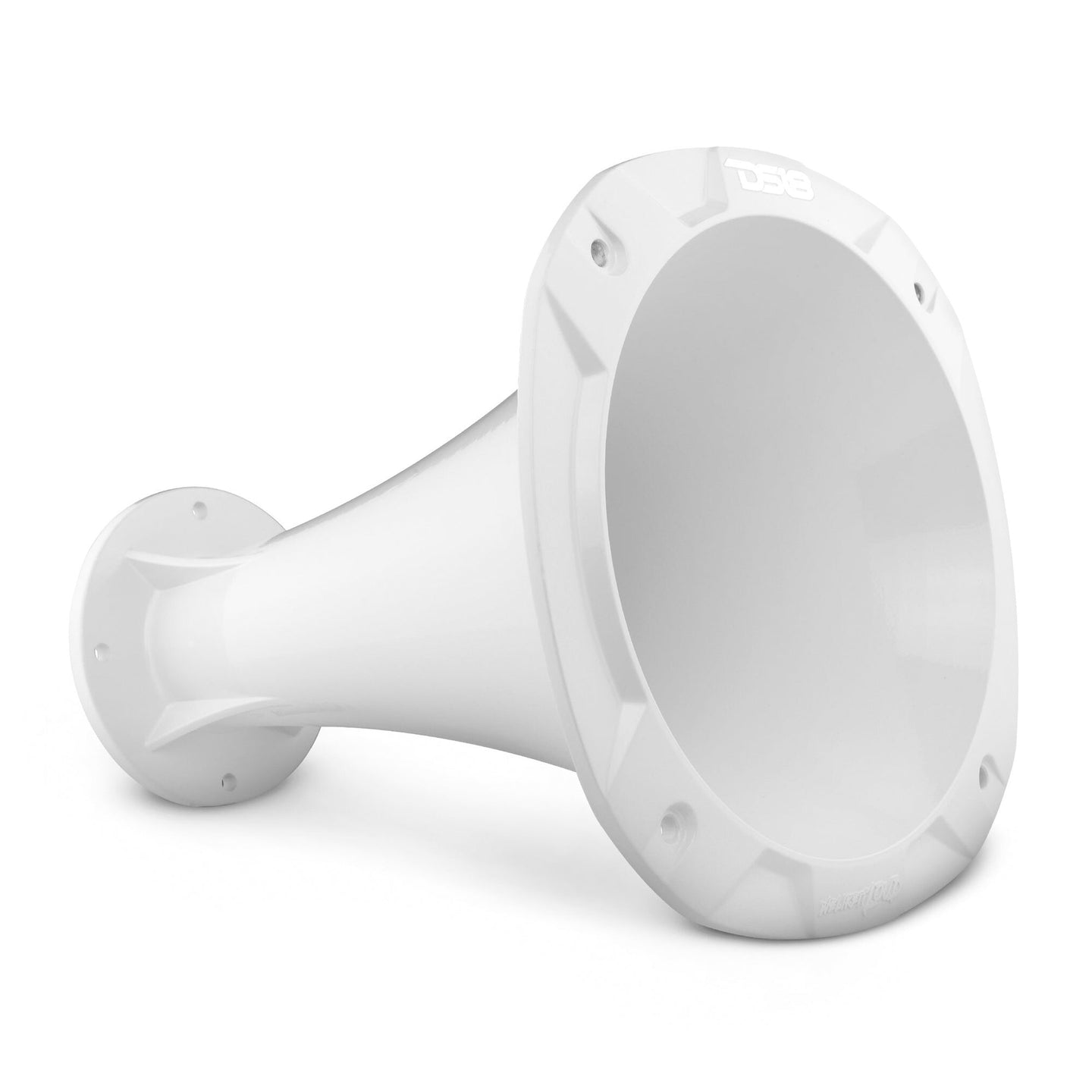

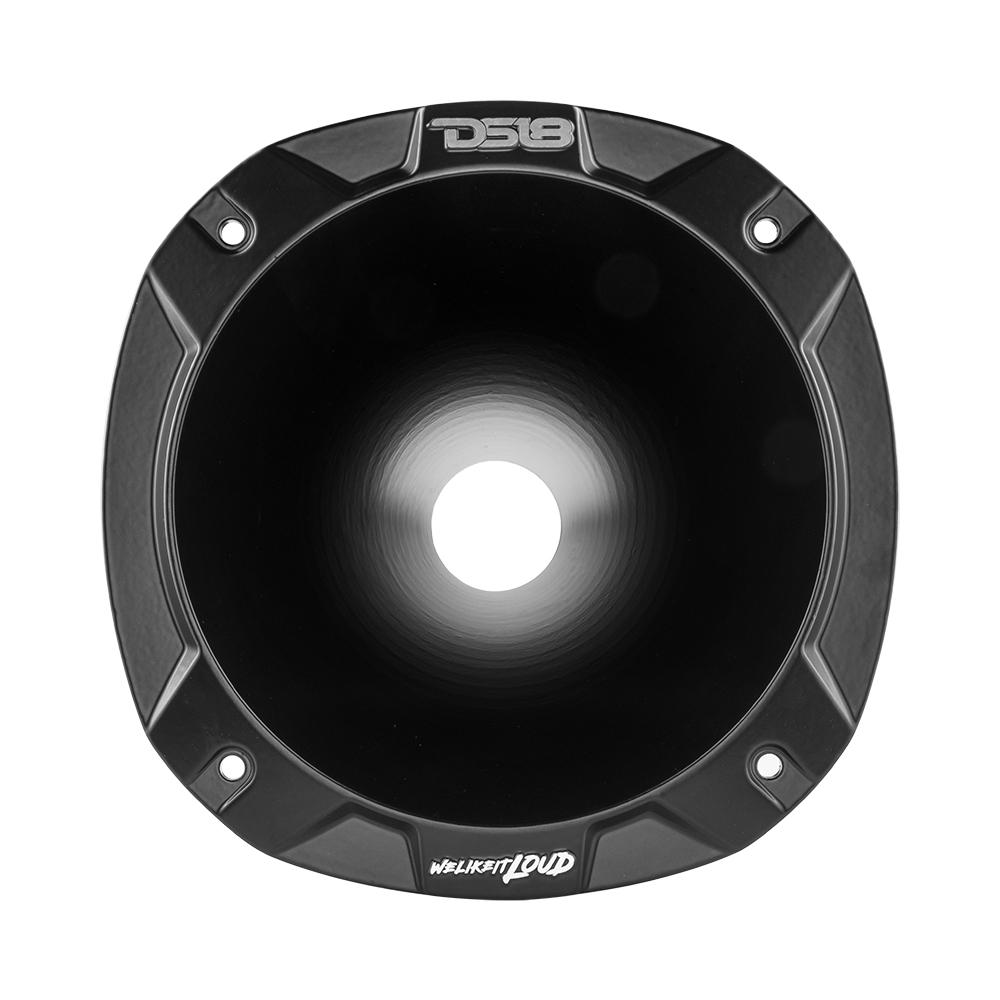

DS18 PRO-HA202 2" Throat Bolt On 27° 10.84" Depth Aluminum Horn

The PRO-HA202 is a full length throat designed to bring you maximum directional volume for your high powered drivers.

This throat has a length of 11.25 inches and an over all diameter of 9.65 inches making it the biggest and most impressive throat available from DS18. This driver throat is the end all of driver throats and will ensure the loudest DB amplification possible all while turning heads because of the sleek and thoughtfully designed look that DS18 takes the utmost pride in.

Technical Details
Download PRO-HA202 Product Manual
Specifications
Installation Type Bolt-On
Throat Diameter 2" / 50.8mm
Nominal Horn Diameter 8"
Sound Coverage 27° Rounded
Measurements
Overall Diameter 9.69" / 246mm
Overall Depth 11.25’’ / 286mm
Mounting Depth 10.84’’ / 275.336mm
Driver Bolt Pattern 4"/ 102mm x 4-0.26" / 6.8mm
Mounting Bolt Pattern 8.58" / 218mm x 4- 0.21" / 5.5mm
Mounting Hole Diameter 7.95" / 202mm

2" Throat Bolt On 27° 10.84" Depth Aluminum Horn

SKU PRO-HA202/RD
$95.95
$95.95
Color:

DS18 PRO-HA202 2" Throat Bolt On 27° 10.84" Depth Aluminum Horn

The PRO-HA202 is a full length throat designed to bring you maximum directional volume for your high powered drivers.

This throat has a length of 11.25 inches and an over all diameter of 9.65 inches making it the biggest and most impressive throat available from DS18. This driver throat is the end all of driver throats and will ensure the loudest DB amplification possible all while turning heads because of the sleek and thoughtfully designed look that DS18 takes the utmost pride in.

Technical Details
Download PRO-HA202 Product Manual
Specifications
Installation Type Bolt-On
Throat Diameter 2" / 50.8mm
Nominal Horn Diameter 8"
Sound Coverage 27° Rounded
Measurements
Overall Diameter 9.69" / 246mm
Overall Depth 11.25’’ / 286mm
Mounting Depth 10.84’’ / 275.336mm
Driver Bolt Pattern 4"/ 102mm x 4-0.26" / 6.8mm
Mounting Bolt Pattern 8.58" / 218mm x 4- 0.21" / 5.5mm
Mounting Hole Diameter 7.95" / 202mm
