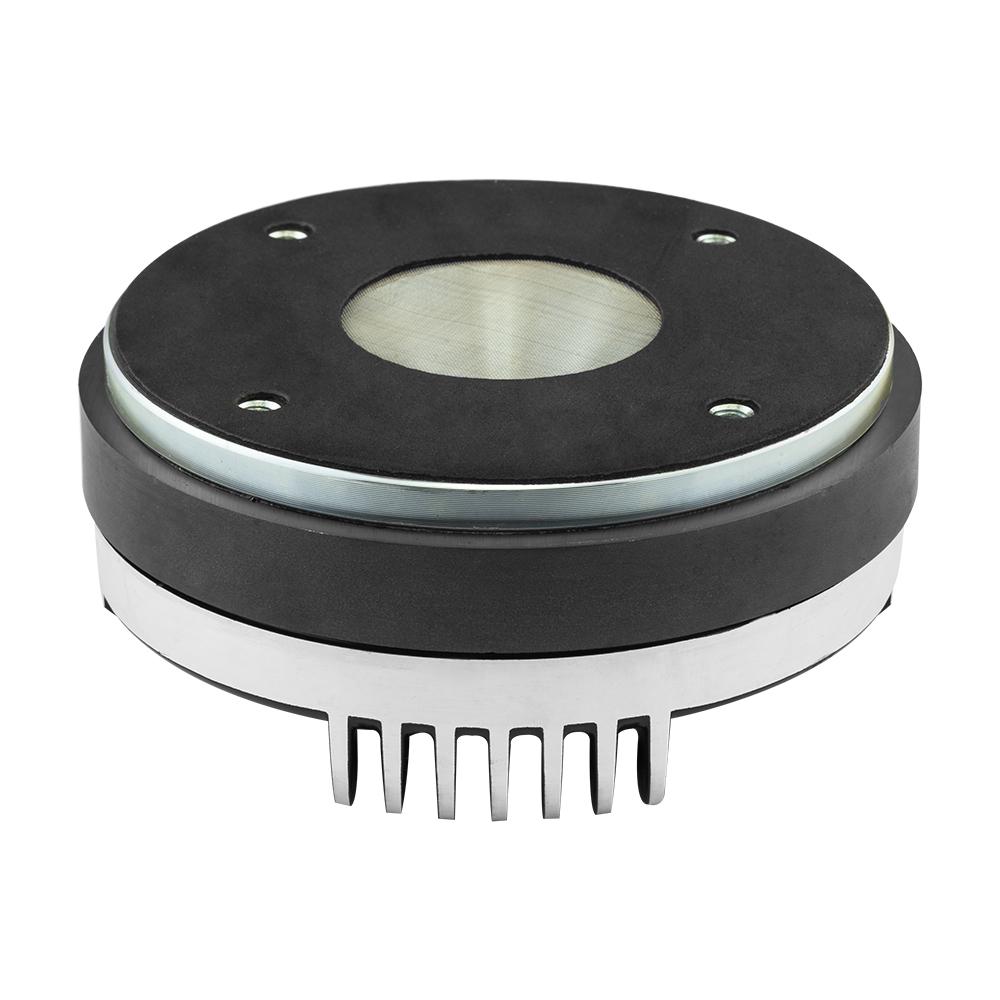

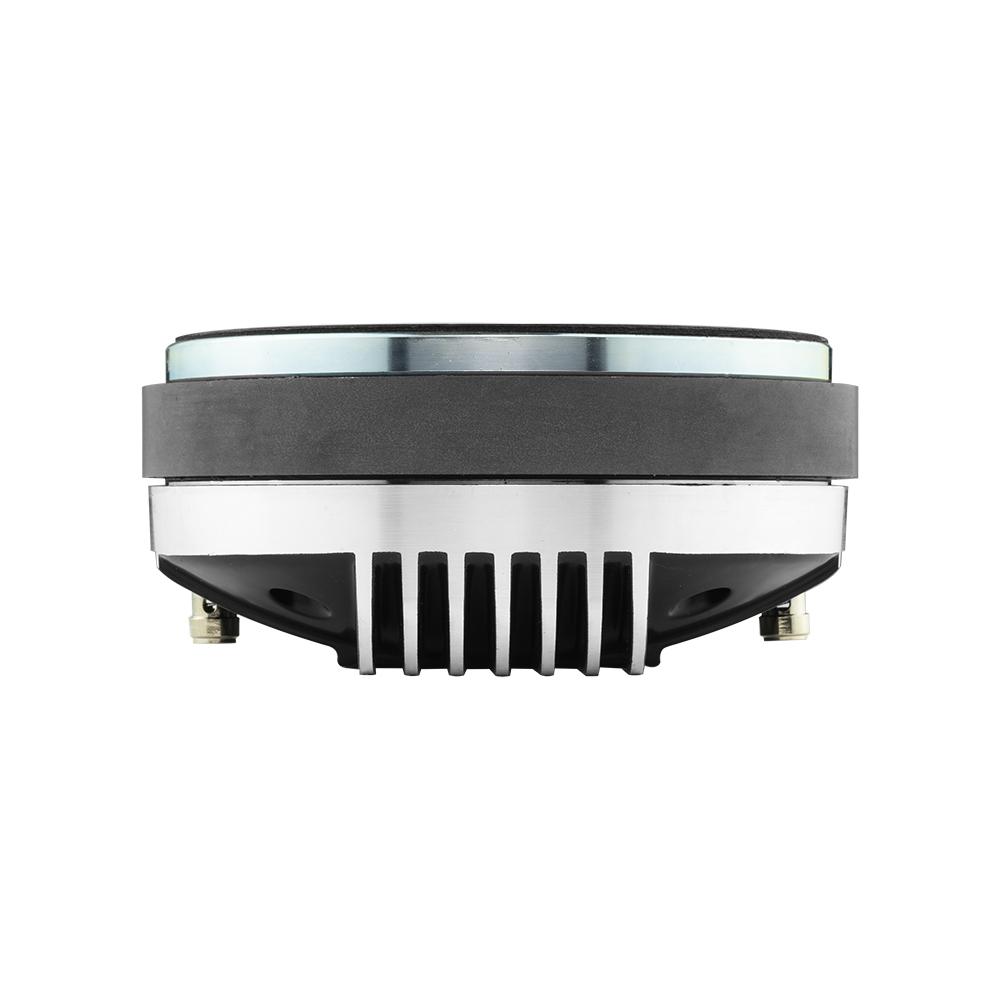

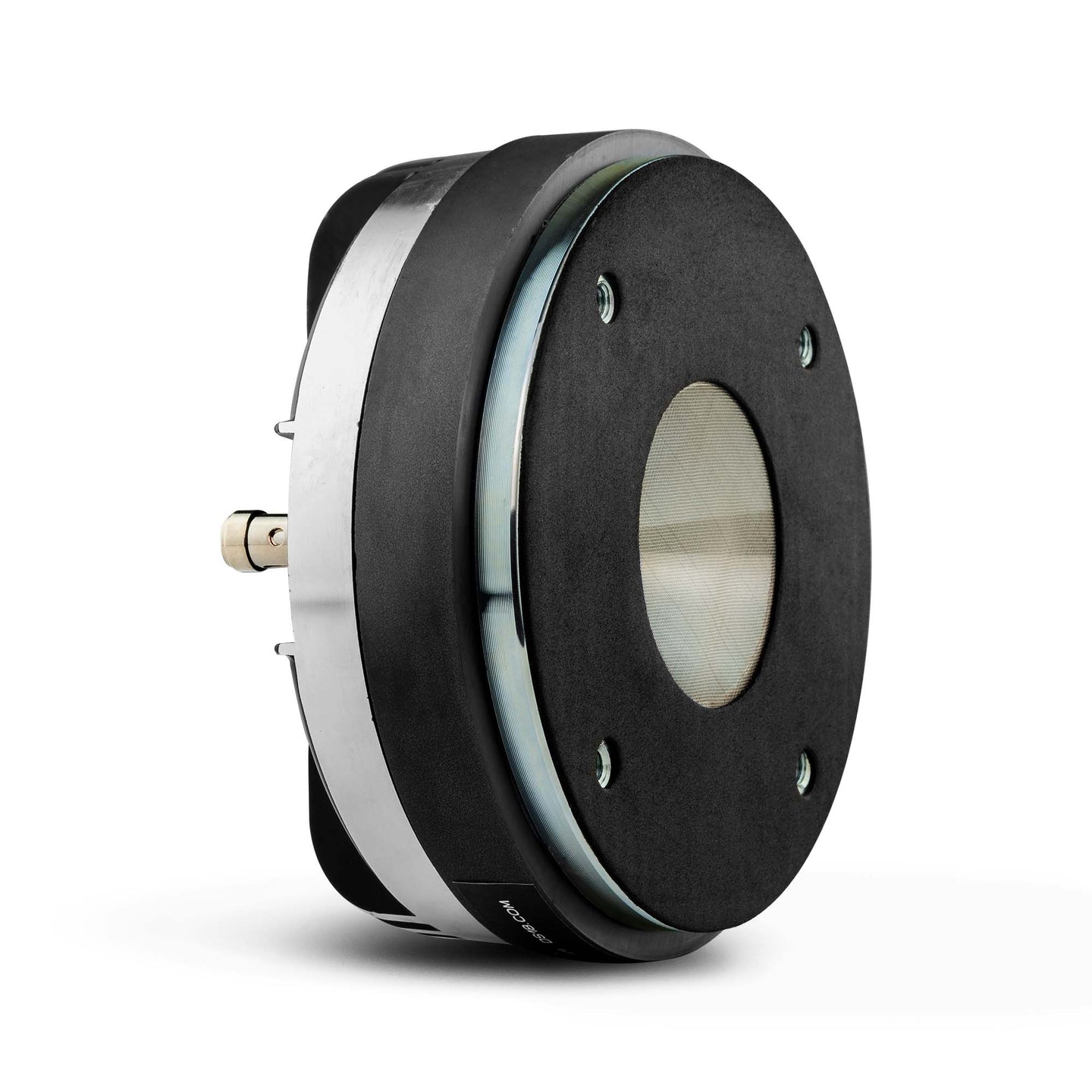

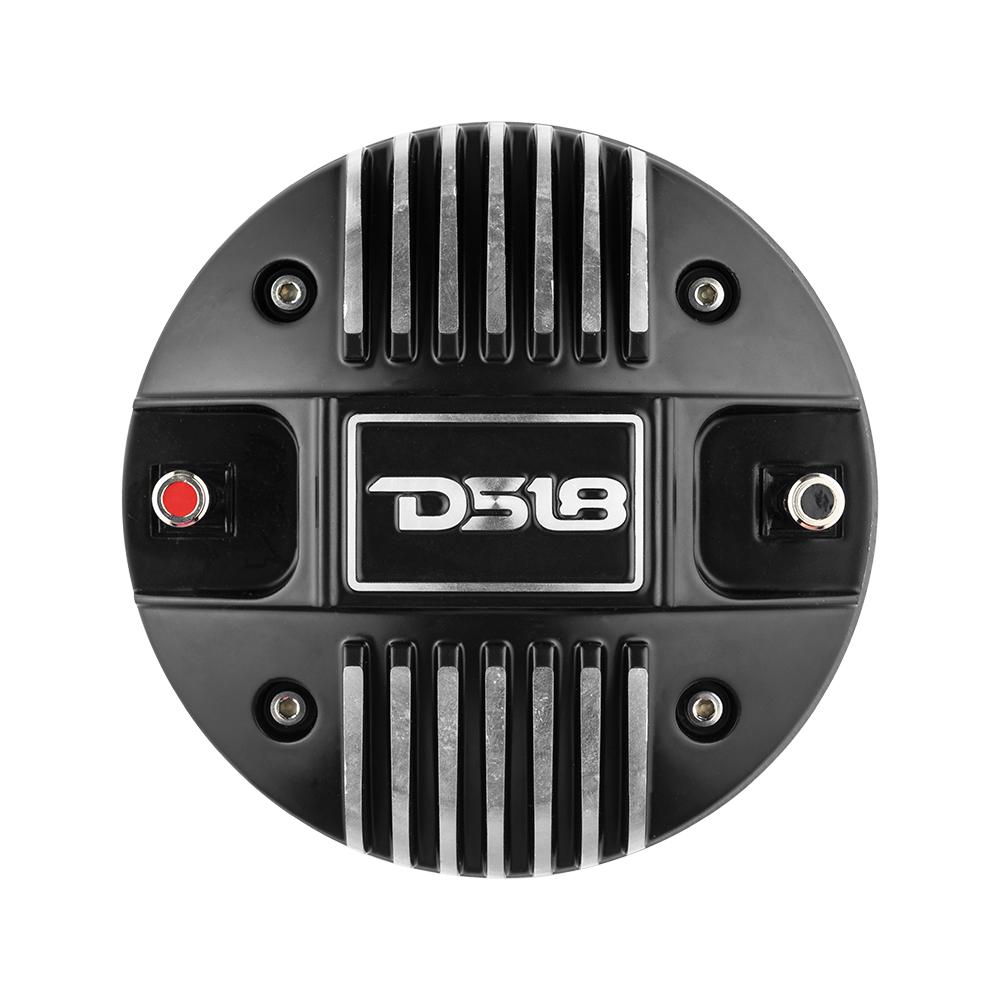

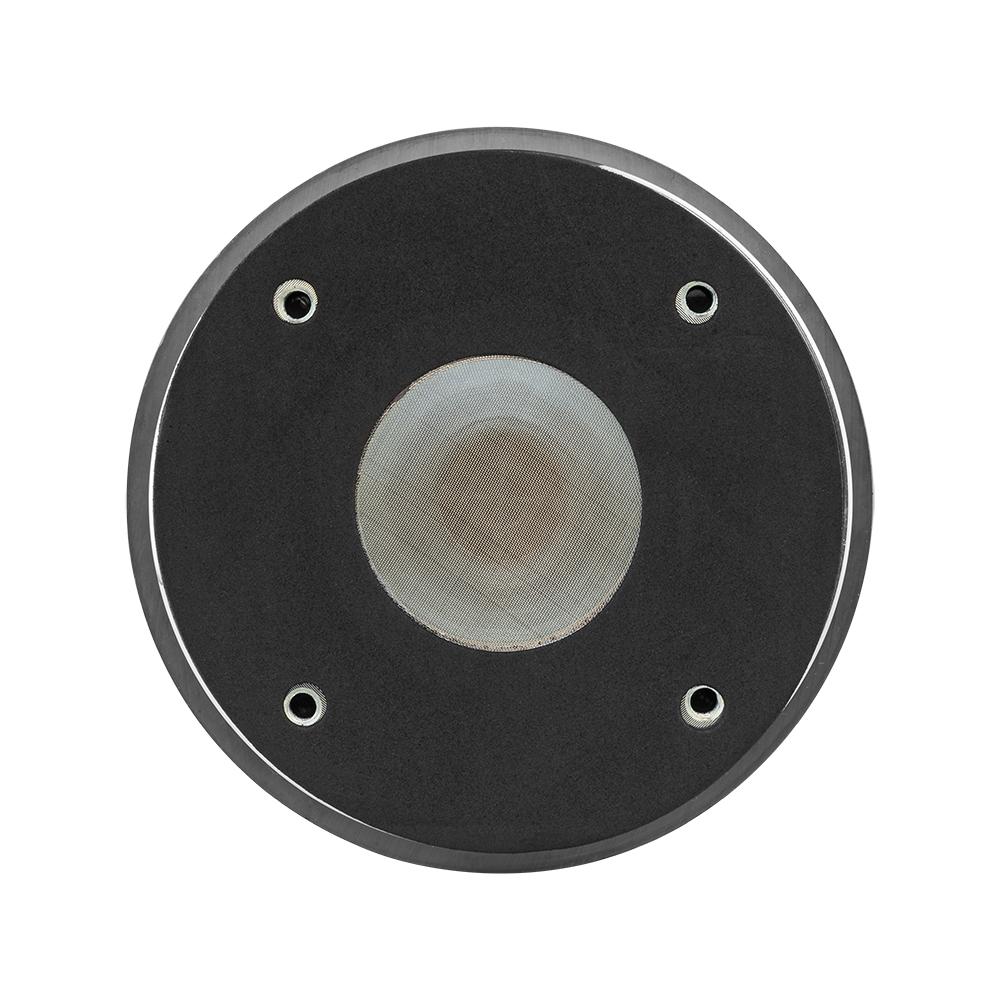

DS18 PRO-D1F 2" Throat Bolt On Compression Driver 2" Throat Phenolic VC 450 Watts 8 ohm


Drivers are known for their extreme loudness all while maintaining the highest efficiency and decibel to wattage ratio. Ferrite is definitely a great motor structure you want to go with for the absolute loudest ear piercing high range frequencies. This ferrite driver is compatible with 4 bolt horns (throat) of all sizes. This will be an amazing addition to any system that needs super loud highs.

This driver comes with a massive 2 inch phenolic voice coil that takes 150 Watts RMS and 450 Watts Peak power for extreme decibel production backed with a high efficiency motor.

Highlights
  • Ferrite motor structure that provides great motor force and loudness.
  • High strength phenolic voice coil taking 150 Watts RMS and 450 Watts peak.
  • Intense high frequency volume without sacrificing sound quality.
  • Compatible with all DS18 4 bolt throats giving a huge variety of mounting depths.
Technical Details
Download PRO-D1F Product Manual

Nominal Impedance 8 Ohms
Throat Diameter 2"
RMS Power Handling 150 Watts
MAX Power handling 450 Watts
Sensitivity (1w/1m) 110dB
frequency response 500Hz-18KHz
Recommended Hi Pass Crossover 800Hz
Voice Coil Diameter 2.03"
Diaphragm Material Phenolic
Magnet Material Ferrite
Magnet Wight 35oz
Bolt Type Bolt-on
Measurements
Overall Diameter 5.27"
Overall Depth 2.4"

2" Throat Bolt on Driver 320 Watts 2" Phenolic Vc 8-Ohm

SKU PRO-D1F
$83.95
