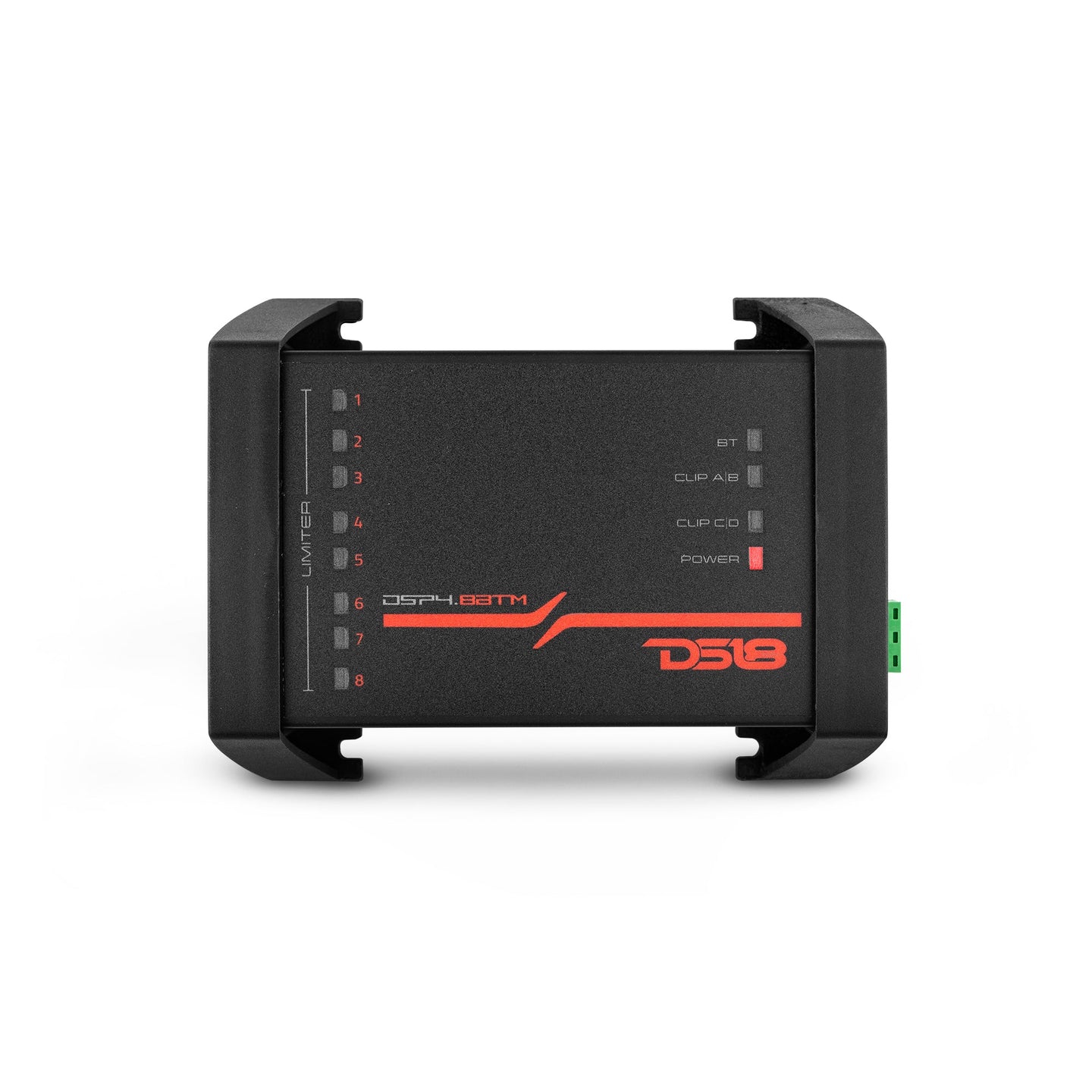

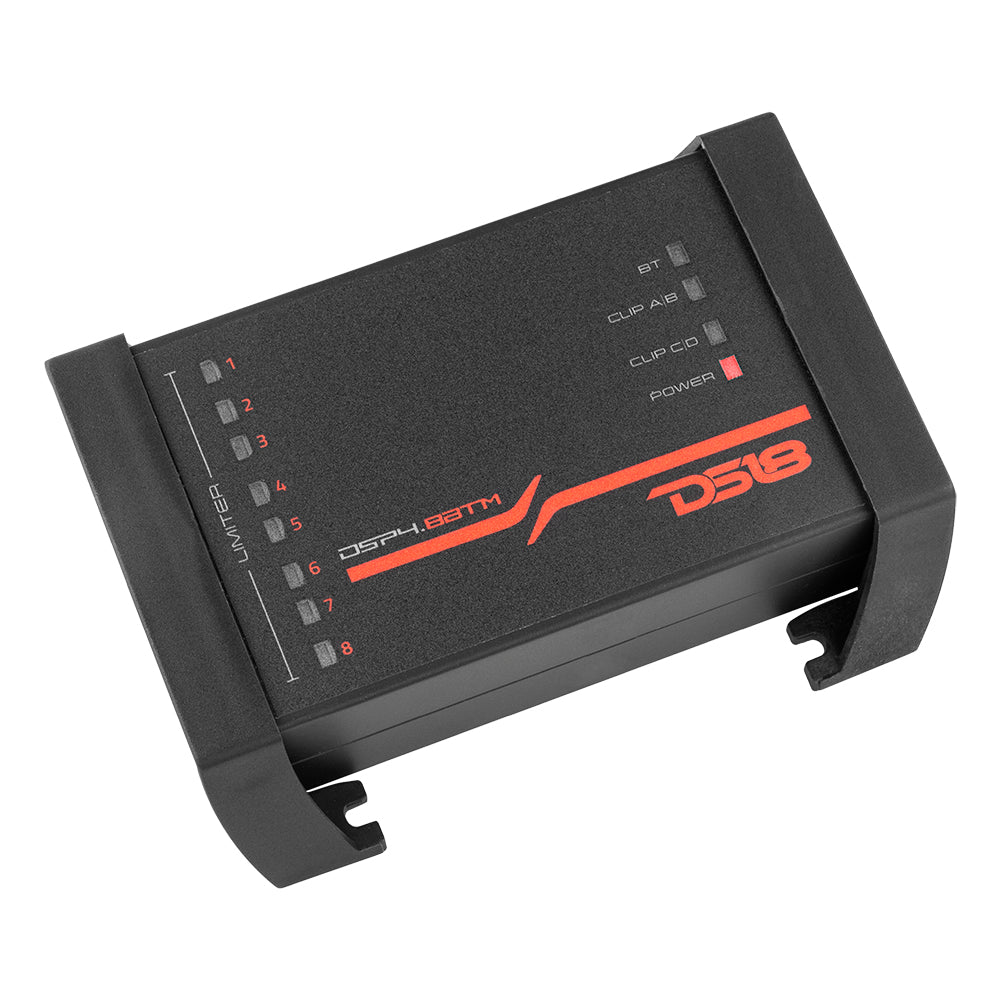

DS18 DSP4.8BTM 4-Channel In and 8-Channel Out Digital Sound Processor with Bluetooth

At DS18, our team of engineers is always working to give users unrestrained control over the unmatched power our products deliver. The DSP4.8BTM, our newest digital sound processor, gives users access to every bit of power in your vehicle’s audio system, allowing you to gain the control needed to handle and achieve the quality of sound you desire.

Creating a flawless audio system has never been easier. The DSP4.8BTM gives users access to a list of filtrations settings directly from our BT Interface. This interface also gives users option to save presets for certain songs or genres allowing for the perfect listening experience one hundred percent of the time.

The DSP4.8BTM gives you access to a great number of tuning options that can be adjusted using the DSP4.8BTM Application on the App Store or Google Play.

Highlights

  • Bluetooth connectivity to allow for easy and accessible audio tuning
  • Easy to use software found on Google Play or the App Store to fine tune and monitor every aspect of your signal processing.
  • 4 Channel RCA inputs
  • 8 Channel RCA outputs
  • Parametric equalizer with 8 independent band per channel
  • Crossover with filters: Butterworth, Linkwitz-Riley and Bessel.



    Great for:

    • Car Audio
    • Pro Audio
    • Motor Cycles
    • Home Studio
    • Stunt Walls
    • DIY Projects

    Technical Details
            DSP4.8BTM Product Manual

    Specifications
    ROUTING CHANNEL
    Routing Options  A / B / C / D / A+B / A+C / B+C
    GAIN  GAIN / GANANCIA
    General Gain  -53 to 0dB
    Channel Gain  -33 to +9dB
    FREQUENCY CUTS (CROSSOVER)
    Cutoff Frequency  20Hz to 20KHz
    Types of Cuts  Linkwitz-Riley / Butter worth / Bessel
    Attenuations  6 / 12 / 18 / 24 / 36 / 48dB/OCT
    INPUT EQUALIZER (EQ IN)
    Equalization Bands  15 Bands
    Gain  -12 to +12dB
    CHANNEL EQUALIZER (EQ CHANNEL)
    Equalization Bands  8 Parametric per Channel
    Gain  -12 to +12dB
    Q Factor  0.6 to 9.9
    TIME ALIGNMENT (DELAY)
    Time  0 to 18,95ms
    Distance  0 to 6500mm
    LIMITER
    Threshold  -54 to +6dB
    Attack  1 to 200ms
    Release  1 to 988ms
    POLARITY INVERSION (PHASE)
    Phase  0 or 180º
    MEMORIES (PRESETS)
    Memories  3 - 100% Configurable

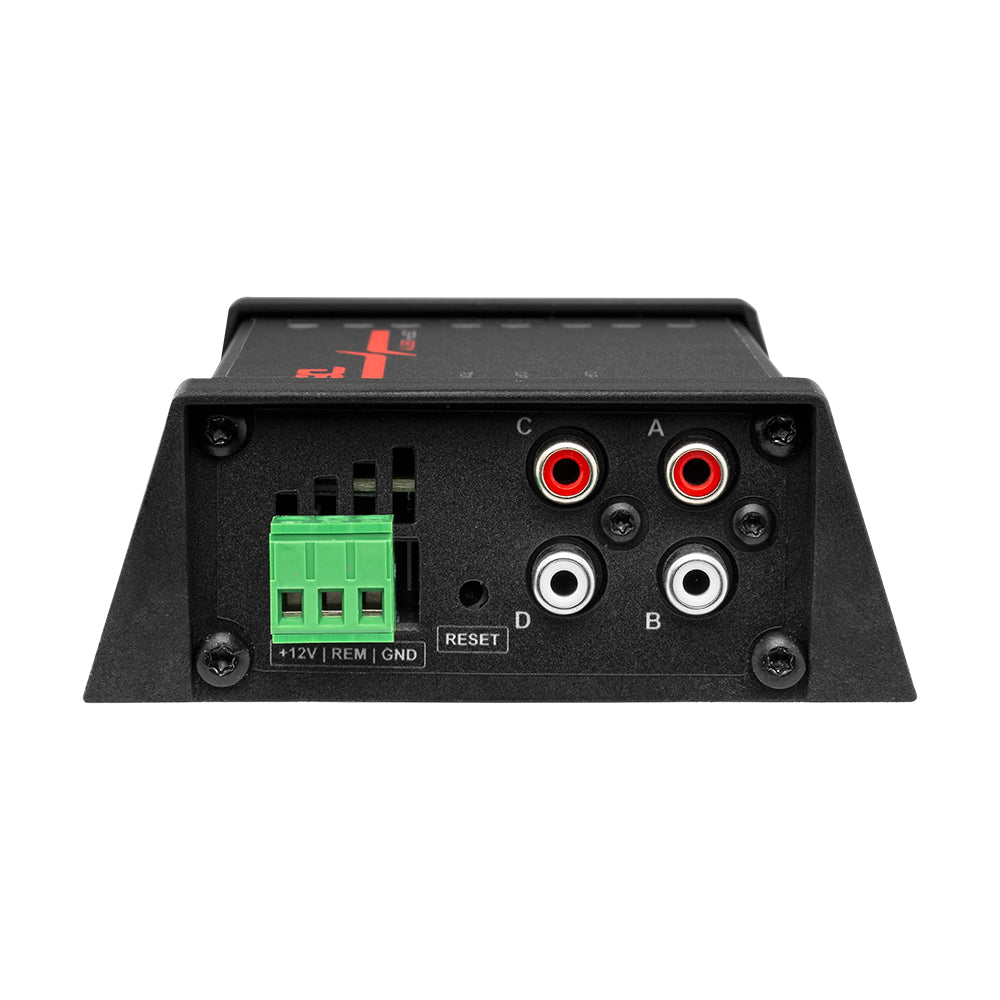

    INPUT A/B/C/D
    Input Channels  4
    Type  Electronically Symmetrical
    Connectors  RCA
    Max Input Level  4,00Vrms (+14dBu)
    Input Impedance  100KΩ

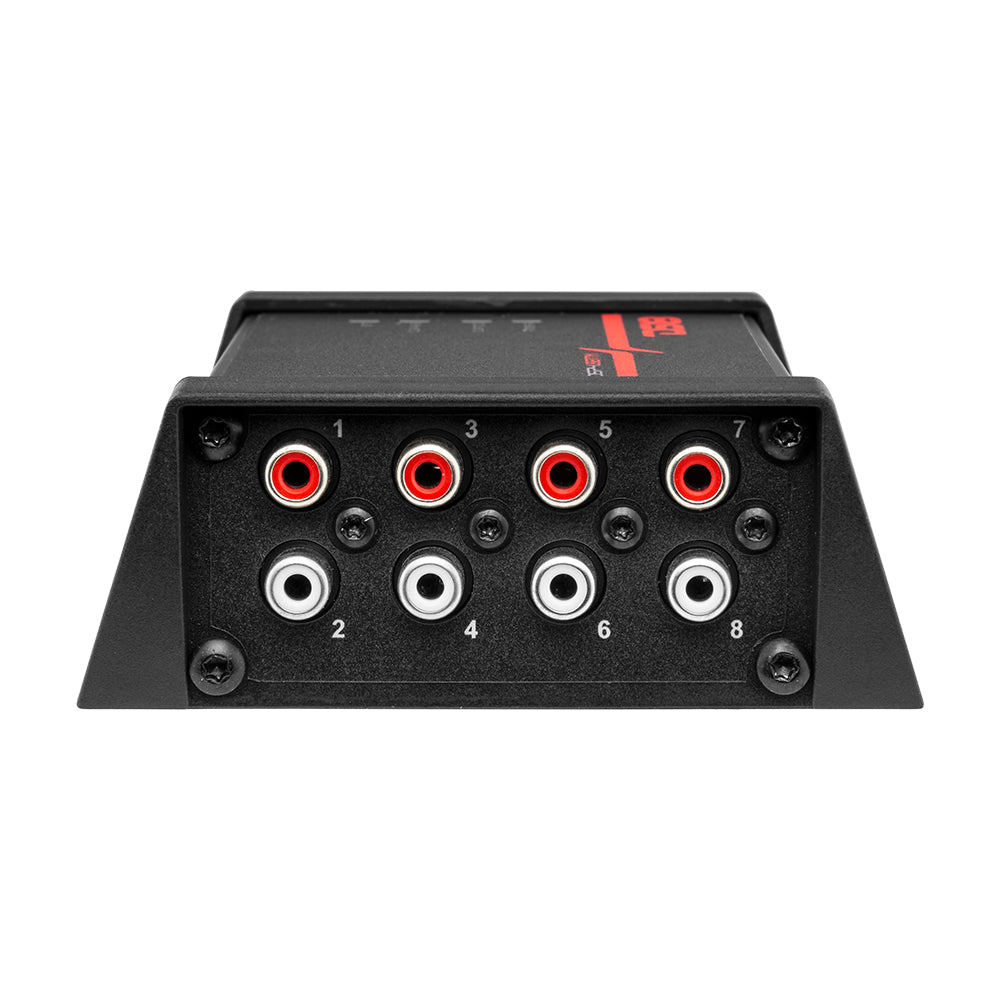

    OUTPUT
    Output Channels  8
    Connectors  RCA
    Type  Electronically Symmetrical
    Max Input Level  3,50Vrms (+13dBu)
    Output Impedance  100Ω
    DSP
    Frequency Response  10Hz to 24KHz (-1dB)
    THD+N <0,01%
    Signal Latency  <0,6ms
    Bit Rate  32Bits
    Sampling Frequency  96KHz
    POWER SUPPLY
    Voltage DC  10~15VDC
    Maximum Consumption  300mA
    DIMENSION
    Height x Length x Depth  1.6" x 5.6" x 4.25" / 41mm x 142mm x 108mm
    Weight  277g / 9.7Oz



    4-Channel In and 8-Channel Out Digital Sound Processor (DSP) with Bluetooth

    SKU DSP4.8BTM
    $275.95
    $275.95

    DS18 DSP4.8BTM 4-Channel In and 8-Channel Out Digital Sound Processor with Bluetooth

    At DS18, our team of engineers is always working to give users unrestrained control over the unmatched power our products deliver. The DSP4.8BTM, our newest digital sound processor, gives users access to every bit of power in your vehicle’s audio system, allowing you to gain the control needed to handle and achieve the quality of sound you desire.

    Creating a flawless audio system has never been easier. The DSP4.8BTM gives users access to a list of filtrations settings directly from our BT Interface. This interface also gives users option to save presets for certain songs or genres allowing for the perfect listening experience one hundred percent of the time.

    The DSP4.8BTM gives you access to a great number of tuning options that can be adjusted using the DSP4.8BTM Application on the App Store or Google Play.

    Highlights

    • Bluetooth connectivity to allow for easy and accessible audio tuning
    • Easy to use software found on Google Play or the App Store to fine tune and monitor every aspect of your signal processing.
    • 4 Channel RCA inputs
    • 8 Channel RCA outputs
    • Parametric equalizer with 8 independent band per channel
    • Crossover with filters: Butterworth, Linkwitz-Riley and Bessel.



      Great for:

      • Car Audio
      • Pro Audio
      • Motor Cycles
      • Home Studio
      • Stunt Walls
      • DIY Projects

      Technical Details
              DSP4.8BTM Product Manual

      Specifications
      ROUTING CHANNEL
      Routing Options  A / B / C / D / A+B / A+C / B+C
      GAIN  GAIN / GANANCIA
      General Gain  -53 to 0dB
      Channel Gain  -33 to +9dB
      FREQUENCY CUTS (CROSSOVER)
      Cutoff Frequency  20Hz to 20KHz
      Types of Cuts  Linkwitz-Riley / Butter worth / Bessel
      Attenuations  6 / 12 / 18 / 24 / 36 / 48dB/OCT
      INPUT EQUALIZER (EQ IN)
      Equalization Bands  15 Bands
      Gain  -12 to +12dB
      CHANNEL EQUALIZER (EQ CHANNEL)
      Equalization Bands  8 Parametric per Channel
      Gain  -12 to +12dB
      Q Factor  0.6 to 9.9
      TIME ALIGNMENT (DELAY)
      Time  0 to 18,95ms
      Distance  0 to 6500mm
      LIMITER
      Threshold  -54 to +6dB
      Attack  1 to 200ms
      Release  1 to 988ms
      POLARITY INVERSION (PHASE)
      Phase  0 or 180º
      MEMORIES (PRESETS)
      Memories  3 - 100% Configurable
      INPUT A/B/C/D
      Input Channels  4
      Type  Electronically Symmetrical
      Connectors  RCA
      Max Input Level  4,00Vrms (+14dBu)
      Input Impedance  100KΩ
      OUTPUT
      Output Channels  8
      Connectors  RCA
      Type  Electronically Symmetrical
      Max Input Level  3,50Vrms (+13dBu)
      Output Impedance  100Ω
      DSP
      Frequency Response  10Hz to 24KHz (-1dB)
      THD+N <0,01%
      Signal Latency  <0,6ms
      Bit Rate  32Bits
      Sampling Frequency  96KHz
      POWER SUPPLY
      Voltage DC  10~15VDC
      Maximum Consumption  300mA
      DIMENSION
      Height x Length x Depth  1.6" x 5.6" x 4.25" / 41mm x 142mm x 108mm
      Weight  277g / 9.7Oz
