Combo 4 Link Kit, Uppers/Lowers Triangulated

Complete triangulated 4-link suspension kit for custom builds.

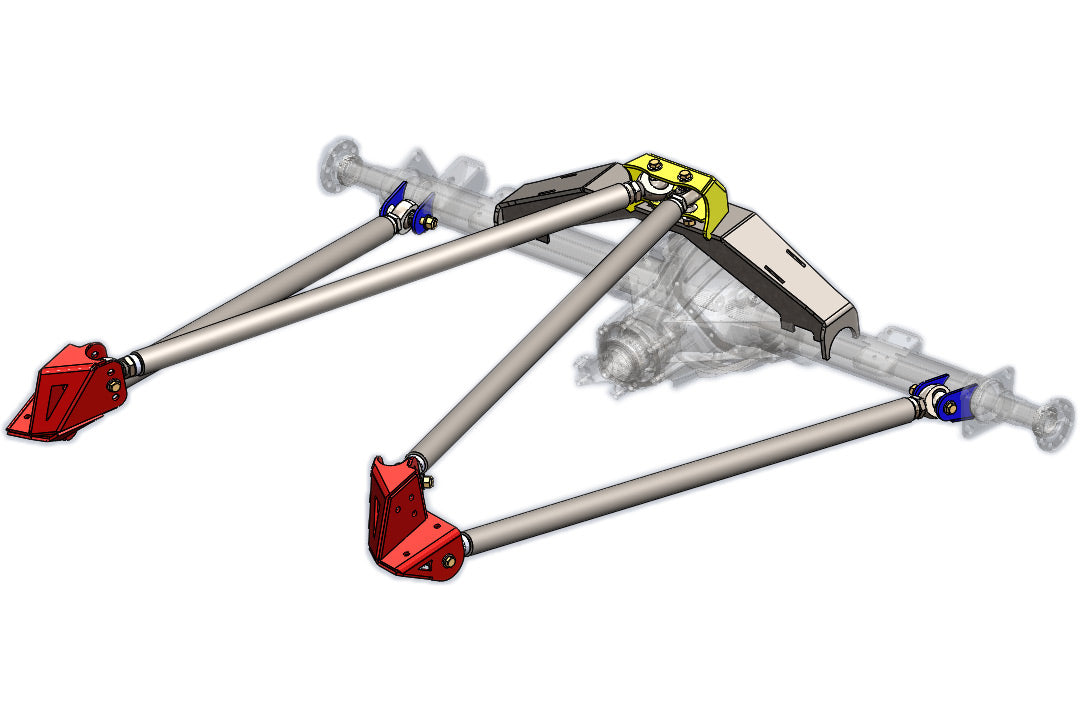

This combo kit includes both upper and lower 4-link bars in a triangulated configuration, giving you everything you need to build a solid rear suspension setup. Triangulated 4-links provide excellent lateral stability without the need for a track bar, making them ideal for rock crawlers and off-road rigs where articulation and strength matter. The design allows the axle to move vertically while keeping it centered under the vehicle.

The kit includes pre-bent DOM tubing with laser-cut tabs, weld-on brackets, and all the hardware you need to mount the links. Each link is designed to be welded together, giving you a custom-fit suspension that's built to handle serious abuse. The triangulated layout works with most axle widths and can be adapted to fit a variety of wheelbases.

Key Features

• Part Number: R2497
• Universal fitment for custom 4-link suspension builds
• DOM steel tubing with laser-cut mounting tabs
• Triangulated design eliminates need for track bar
• Weld-on construction for maximum strength and custom fitment
• Includes complete hardware kit with heim joints, misalignment spacers, jam nuts, and mounting bolts

What's Included

• 4 pre-bent DOM link bars with tabs
• 4 heim joints
• 8 misalignment spacers
• 4 jam nuts
• Mounting bolts and hardware
• Weld-on axle and frame brackets

Notes

• Welding required for installation
• Custom fitting and trimming may be necessary depending on your specific application
• Designed for rear axle suspension systems
