DS18 DX2 Kevlar 6.5” 2 Way Premium Quality Car Component Speaker System 460 Watts 4-Ohm

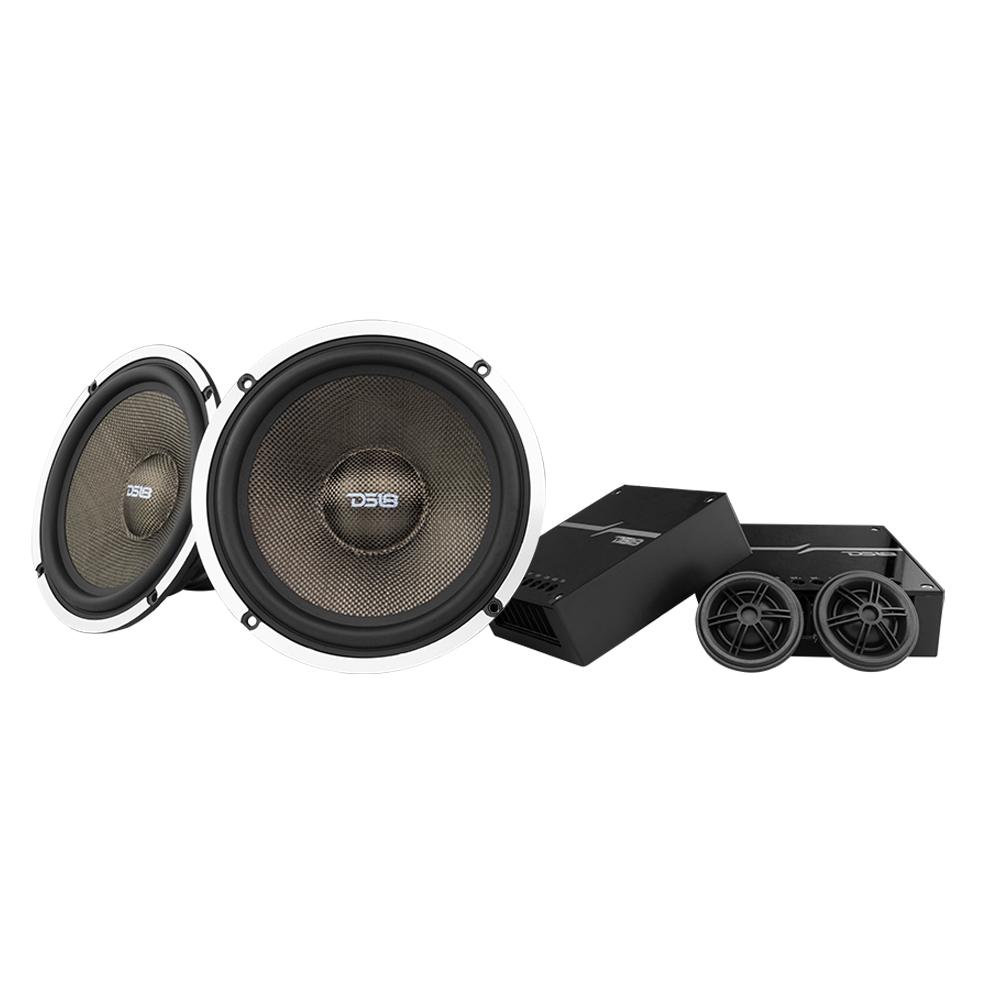

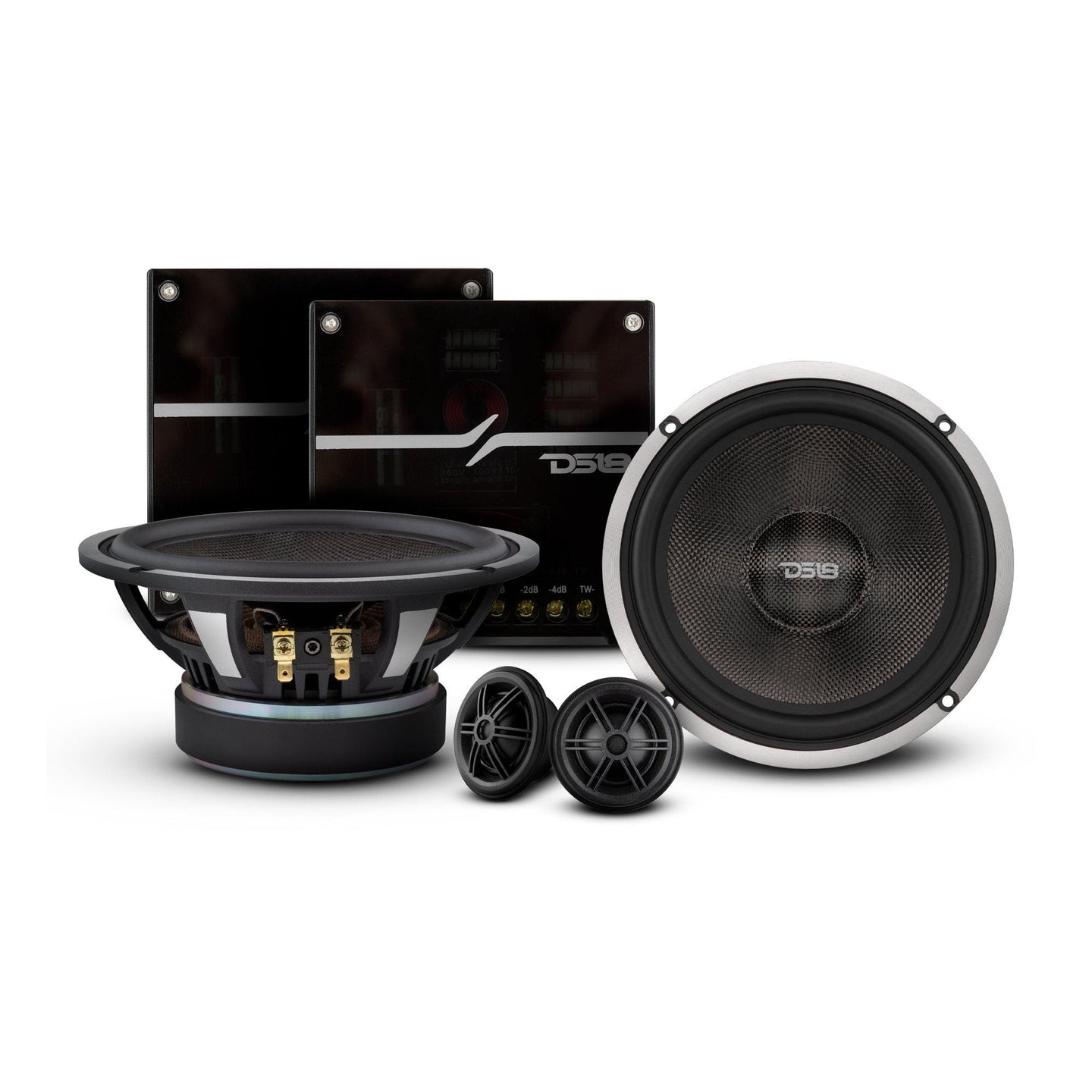

The DX2 set comes with two DX2W 6.5" woofers, as well as two DX2T 1.18" tweeters, and two DX2C passive 2-way crossovers.
The DX2W woofer is a rigid carbon fiber cone with a machined aluminum basket that emits a clear, low end signal at 50Hz and up to 12KHz with a 4 ohms impedance. The DX2T neodymium tweeter, also at 4 ohms, fills the mid-high to high end frequencies adding the right amount of brightness and sizzle to your favorite music.
Also included are the DX2C 2-way passive crossovers which accurately separates wattage and frequencies for your component set, ensuring long lasting and great sounding experiences. The TW ATT options gives you a selection of 0dB, 2dB, and 4dB loudness options at 12dB/oct.
The DS18 DX2 is a quality speaker system that offers exceptional value.
Highlights

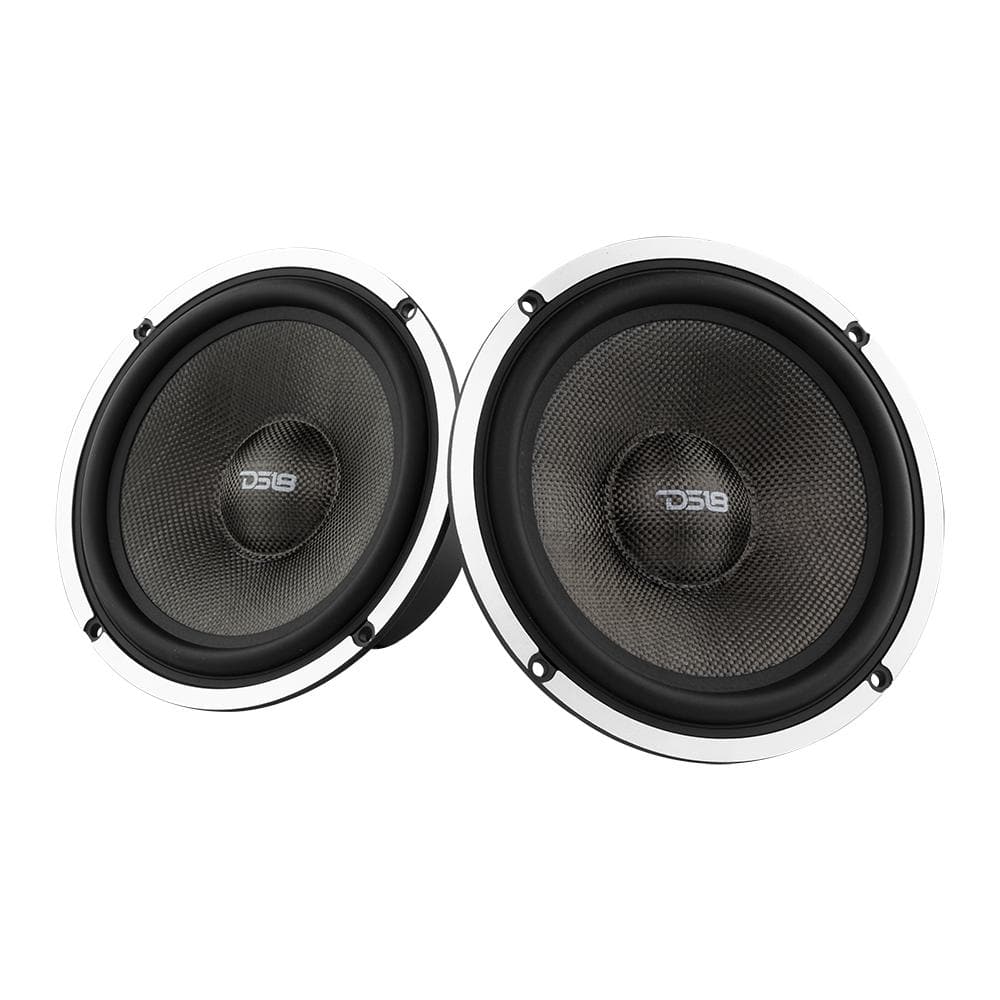

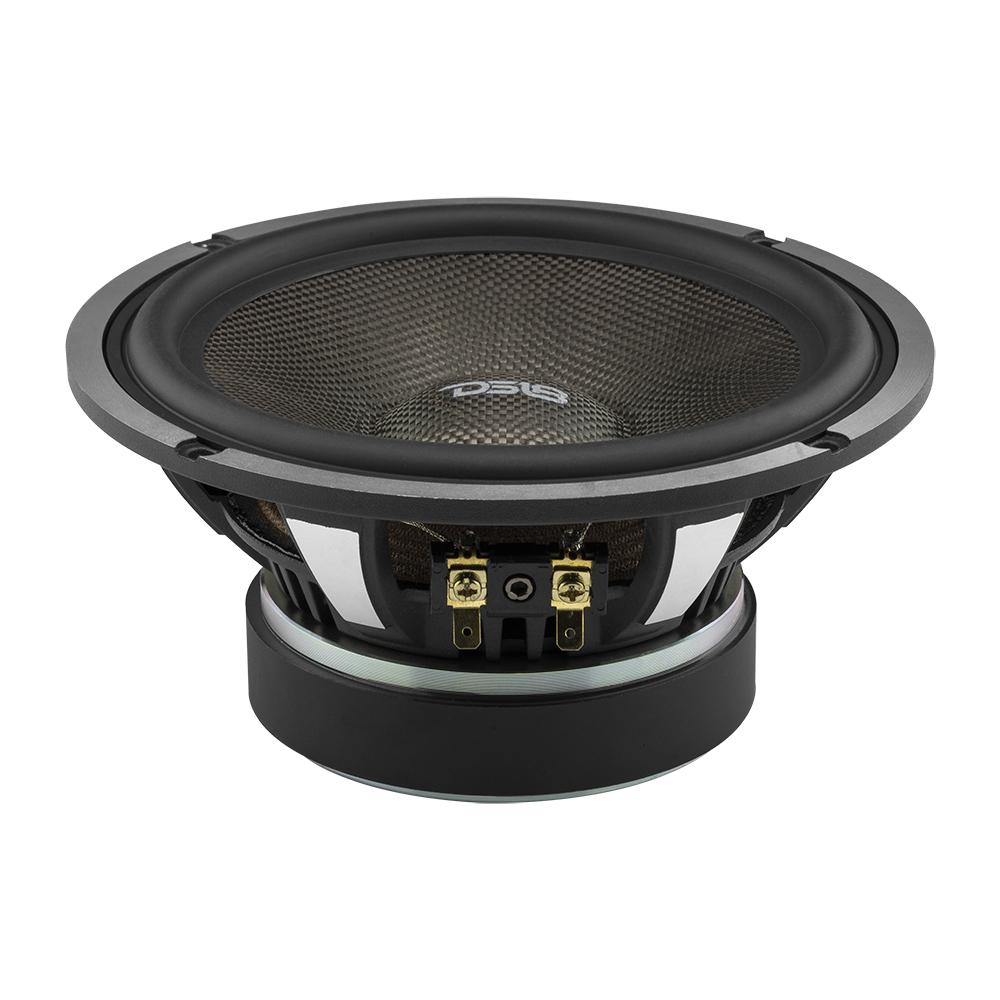

- DX2W 6.5" woofer which handles 100w AES. Featuring a carbon fiber cone, ferrite magnet, machined aluminum basket, and high quality terminals.

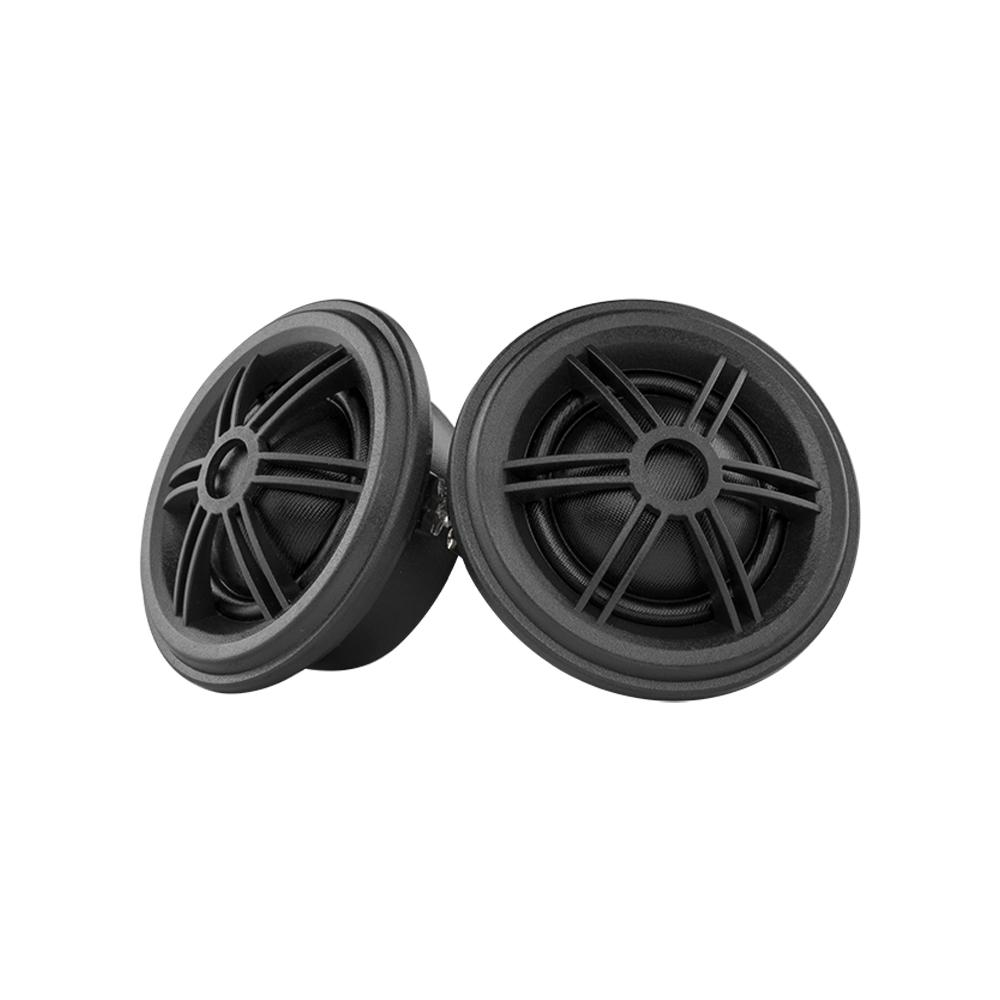

- DX2T 1.18" high fidelity neodymium tweeter that is easy to mount and will complete your HQ full range experience.

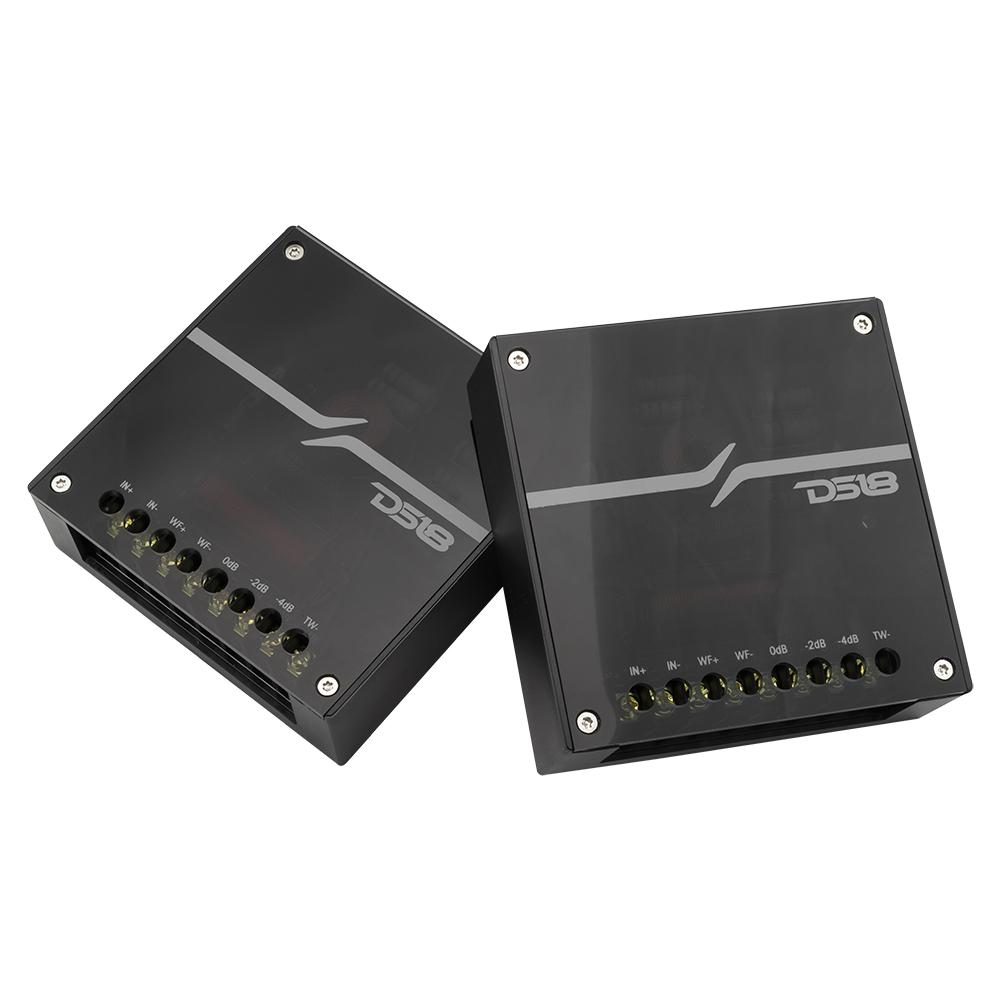

- DX2C 2-way passive crossover with multiple DB selections so you can be sure to get distortion free HQ sound accurately routed to the proper speaker with ease.
Technical Details
WOOFER |
|
Nominal Diameter | 6.5" |
Nominal Impedance | 4 Ohms |
Peak Power Handling | 400W |
Program Power Handling | 200W |
AES Power Handling | 100W |
Sensitivity (1w/1m) | 89 dB |
Frequency Response | 50Hz - 12KHz |
Recommended HI Pass Crossover | 45 Hz |
MOTOR | |
Voice Coil Diameter | 1.2"/30.5 mm |
Voice Coil Former Material | TIL |
Winding Material | SV |
Cone Material | Carbon Fiber |
Surround Materia | Rubber Edge |
Basket Materia | Aluminum |
Magnet Materia | Ferrite |
Magnet Weight | 20.2 oz |

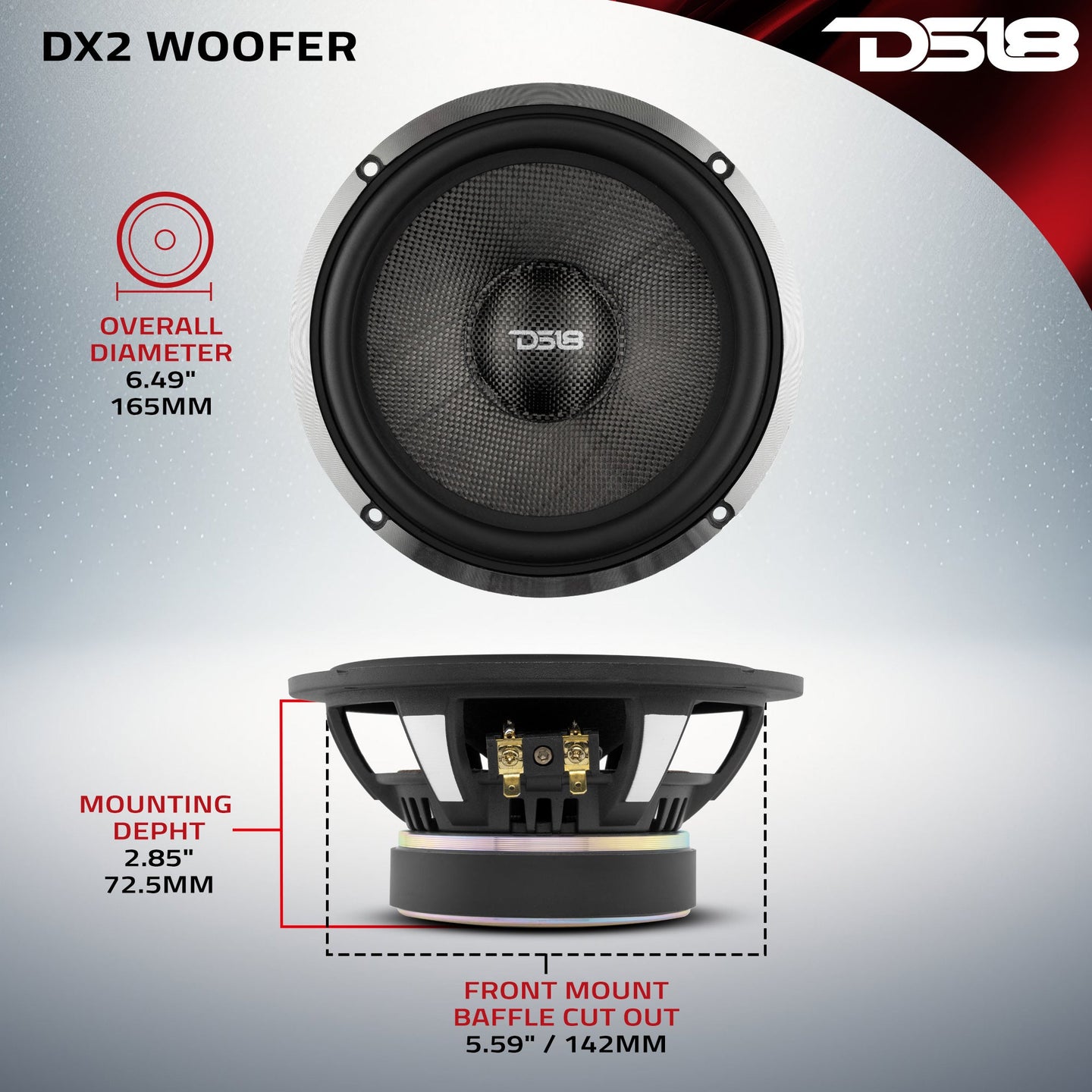

Measurements | |
Overall Diameter | 6.49"/165 mm |
Front Mount Baffle Cutout | 5.59"/142 mm |
Mounting Depth | 2.85"/72.5 mm |
Overall Depth | 3.05"/77.5mm |
Motor Diameter | 3.9"/100mm |
TWEETER |
|
Nominal Diameter | 1.18" |
Nominal Impedance | 4 ohms |
Peak Power Handling | 60 Watts |
Program Power Handling | 30 Watts |
AES Power Handling | 15 Watts |
Sensitivity (1w/1m) | 90dB |
Frequency Response | 800Hz - 20Khz |
Recommended HI Pass Crossover | 3.8 KHz |
MOTOR | |
Voice Coil Diameter | 0.98" |
Voice Coil Former Material | ASV |
Winding Material | CCAW |
Diaphragm Material | Silk |
Magnet Material | Neodymium |
Magnet Weight | 14 oz |
Body Material | ABS |
MEASUREMENT | |
Overall Diameter | 2" / 51mm |
Overall Depth | 1.1"/28.1 mm |
Front Mount Baffle Cutout | 1.85" x 47 mm |
Mounting Depth | 0.7"/ 18 mm |
CROSSOVER |
|
Passive Crossover Ways | 2 Ways |
Frequency Crossover | 3.2 KHz |
Power Handling | 300 Watts |
Cut Off Slope | 12dB /Oct |
Tweeter Attenuation | 4dB |
FEATURES | |
Capacitor Type | Metac Film |
Coil Type | Inductor |
Terminals Type | Screw Terminal |
Housing Material | ABS |
Adjustments | Tw Att by Terminal |
Extra Features | Spk Phase Switch |
MEASUREMENT | |
Overall Length | 4.3"/110 mm |
Overall Depth | 4.3"/110 mm |
Overall Height | 1.37"/35 mm |
